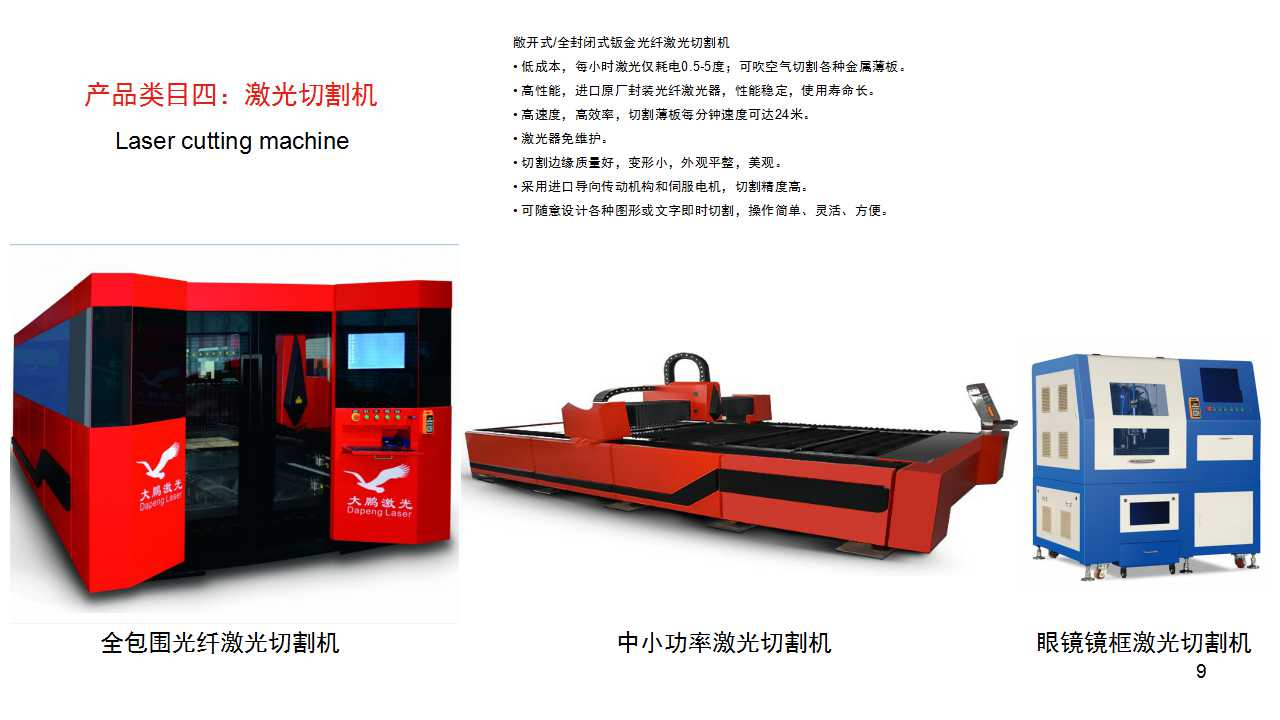

China Laser Cutting Machine Manufacturers 500W
| Price: |
US $ 72000/Set |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
037 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No.: |
Dplc3015-1000I |
| Type For Cutting Machine: |
Laser Cutting Machine |
| Automation: |
Automatic |
| Type: |
Laser Cutting Machine |
| Laser Wavelength: |
1070nm |
| Applicated: |
Machinery & Hardware |
| Certification: |
SGS, Ce, ISO 9001:2000 |
| Condition: |
New |
| Medium Of Laser: |
Semiconductor Pump Continuous Ytterbium Doped Fibe |
| Export Markets: |
Global |
Product Description
| Shenzhen Dapeng Laser Technology Co., Ltd |
Add:1st & 2nd floor, Block A, Fubilun Industrial Park, Chaoyang Rd, Yanchuan,
Songgang, Baoan, Shenzhen, Guangdong, 518105 China |
| Tel: +86-755-36958011 M: +86 13790342259 Fax: +86-755-29932414 |
| www.http://dplaser.en.made-in-china.com/ |
| | | | | | |

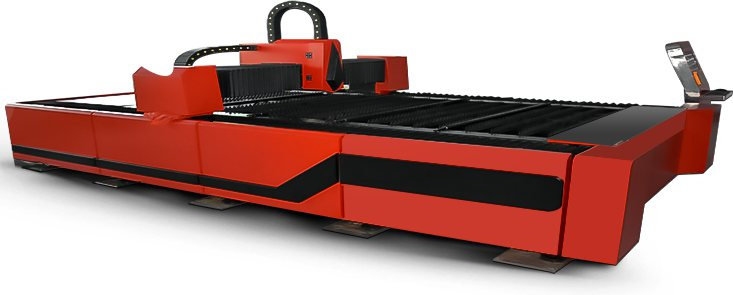

| Quotation of Fiber Laser Cutting Machine |
| |
| To: | | | Date: | |
| Model | Picture | Cutting Area(mm) | Fiber Laser source | Description | Unit Price
(USD/ FOB Shenzhen, China) |
| DPE750-3015R |  | 3000×1500 | Raycus 750W | Dual-driver & rack and pinion | Click for
lastest
price |
| DPE700-3015I | IPG 700W | Click for
lastest
price |
| |
| Remarks: |
| 1. Main configuration of Fiber laser bed: |
| Model | DPE750-3015R | DPE700-3015I |
| Fiber Laser source | IPG 700W from Germany/ Raycus 750W from China |
| Transmission system | Taiwan Hiwin/ TBI Ballscrew and Guiderail | Germany Alpha Rack and Pinion |
| Speed Reducer | VGM from Taiwan | Alpha from Germany |
| Servo Motor | Sanyo/Panasonic from Japan | SANYO from Japan |
| Laser Head | Technology and components from Germany, assembled in China |
| System | From Shanghai Communication University Lab |
| |
| 2. Standard parts included in one set of fiber laser machine: |
| Name | Quantity | | |
| Host machine | 1 set | | |
| Fiber Laser source | 1 set | | |
| Fiber Laser Head | 1 set | | |
| Auto-tracking/Height Adjustment attachment | 1 set | | |
| Water Chiller Group | 1 set | | |
| Exhaust Blower | 2 sets | | |
| Independent Control Panel | 1 set | | |
| Industrial Computer | 1 set | | |
| Protective mirror | 2 pcs | | |
| Nozzle | 2sets/ 8 pcs | | |
| |
| 3. Machine Techinical Parameter: |
| Series | DPE750-3015R | DPE700-3015I |
| Working area (L*W) | 3000×1500mm | 3000×1500mm |
| X-axis running area | 1500mm | 1500mm |
| Y-axis running area | 3000mm | 3000mm |
| Z-axis running area | 120mm | 120mm |
| X/Y axis Repeated Position Precision | 0.05mm | 0.05mm |
| Max. Running Speed | 40m/min | 120m/min |
| Max. accelerated speed | 1.0G | 1.0G |
| Machine weight | 5000Kg | 5000Kg |
| Max. Load on working table | 600Kg | 500Kg |
| Phase | Triphase | Triphase |
| Voltage | 380V | 380V |
| Frequency | 50Hz/ 60Hz | 50Hz/ 60Hz |
| |
| 4. Cutting thickness: |
| Items | 750W | 700W |
| Stainless steel (N2) | 3mm | 3mm |
| Stainless steel (O2)(not recommended) | 6mm | 6mm |
| Carbon steel (O2) | 6mm | 6mm |
| Galvanized steel (O2) | 3mm | 3mm |
| |
| 5. Consumables |
| Name | Replacement Time | Unit Price (USD/ FOB GZ) | | |
| Protective mirror | 2 months | USD 55/ pc | | |
| Nozzle | 3 months | USD 55/ pc | | |
| |
| 6. Applicable Industry: Metal cutting, manufacturing of electrical switches, elevator manufacturing, household appliances manufacturing, kitchenware manufacturing, processing tools, and other machinery manufacturing and processing industries. |
| |

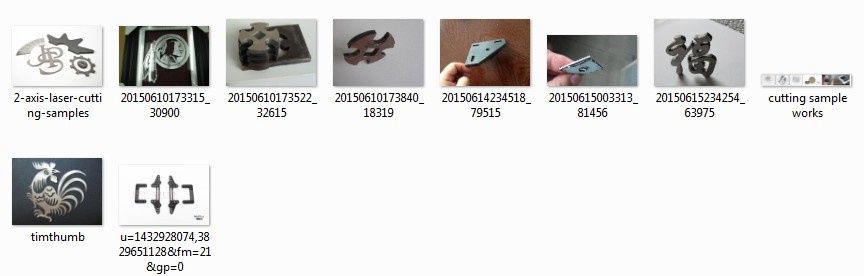

| 7. Cutting Samples: |
 |
| |
| 8. Machine Guarantee: One year free-charge guarantee for the whole machine, not including the consumables i.e. the protective mirrors or the nozzles. Within one year guarantee, any parts or the machine are faulty , we will change or repair the parts free of charge and we will send technician to fix the machine at our cost if necessary. After one year guarantee, we will offer repairing service at actual cost and will provide spare parts at reasonable costs. Service responding time is always not longer than 24 hours. |
| |
| 9. Packing: Seaworthy wooden case with vacuum packing, tinfoil and metal frame inside. |
 |
| |
| 10. Price Terms: Based on FOB Shenzhen, China. |
| |
| 11.Terms of payment: T/T, 30% in advance as deposit, balance after quality check and before shipment. |
| |
| 12. Installation, commissioning and training: Technician will be sent to customer's company to offer installation, commissioning and training service. Return air tickets, accomodation, board and all possible costs in customer's country will be borne by the customer. Technician's salary will be paid by manufacturer. |
| |
| 13. Lead Time: 25days . |
| |
| 14. MOQ: 1 set. |
Founded in 2005, Shenzhen Dapeng Laser Technology Limited is the market leader in developing, manufacturing and servicing products and systems for laser marking, laser welding, laser cutting and engraving. The company provides equipment to a wide range of markets including medical industries, jewelry, automotive, aerospace, military, semiconductor and solar industries as well as the battery, electric vehicle, electronics and general industrial markets. With a decade of cumulative laser equipment design and manufacturing expertise, Dapeng Laser is able to offer standard and custom designs that solve challenging OEM applications. Dapeng Laser is CE and FDA certified. Our laser marker systems are highly precise, most reliable, and cost-effective. We have sold over thousands of systems worldwide for last 10 years. Our products can be found in Europe, America, Russia, India, Vietnam, Thailand, Indonesia, Egypt, Brazil, Colombia, and South Africa, among others.
Since our inception, customer support has been a top priority and that standard still remains today. We hope that we will have a chance to give you a great laser solution with Dapeng Laser products.
Our mission is to be a full service provider of industrial laser equipment that emphasize the quality, reliability, safety, cost effectiveness, and technical support.
