| Prod Model: |
WA19 |
| Model No.: |
Wa19 |
| Usage: |
Processing Pressure Measurement |
| Housing Material: |
Stainless Steel |
| Pressure Range: |
0-7kpa^7MPa |
| Compensation Temperature: |
-20~70c |
| Operation Temp: |
-40~125c |
| Pressure Reference: |
Gauge, Absolute, Sealed Gauge |
| Place Of Origin: |
Heifei, Anhui, China |
| Measuring Medium: |
Liquid, Gas, Vapour |
Product Description
Low Cost Stainless Steel Pressure Sensor WA19 series are based on piezoresistive silicon pressure sensors packaged in a 316L stainless steel housing. The sensing package utilizes silicon oil to transfer pressure from the 316L diaphragm to the sensing element.
It is designed for o-ring mounting for the applications where compatibility with corrosive media is required. Each sensor was strictly temperature compensated for both zero and span.
There are two options of excitation power -- current and voltage
Features - Pressure Sensor:1. High stability and high accuracy2. Low cost OEM3. Suited for pressure range: 0-40Kpa-7Mpa4. Wide temperature compensation range: total error <1%5. Measurable of corrosive media ( media compatible with 316L)6. Standard mounting size7. Typical output:0-100mVSpecifications of current excitation(1.5mA, 25ºC):| Parameters | Min. | Typical | Max. |
| Accuracy(%FS) | | | |
Non-
Linearity1 | 40Kpa | | ±0.20 | ±0.30 |
| >40Kpa | | ±0.10 | ±0.20 |
| Hysteresis2 | | ±0.05 | ±0.1 |
| Repeatibility3 | | ±0.05 | ±0.1 |
| Output(mV) | | | |
| Zero | -2 | ±1 | 2 |
| Span(FS) | 70 | | |
| Temp. characters | | | |
| Operation Temp.(ºC) | -40 | | 125 |
| Compensation Temp(ºC) | 40Kpa | 0 | | | 50 |
| 100Kpa | 0 | | 70 |
| >100Kpa | -10 | | 70 |
| Zero Temp.error(%FS)4 | | ±0.75 | ±1.0 |
| Span Temp. error(%FS)4 | | ±0.75 | ±1.0 |
| Thermal hysteresis(%FS)5 | | 0.1 | |
| Long term Stability | | | |
| Zero (±%FS annual) | | 0.1 | |
| Span (±%FS annual) | | 0.1 | |
| Supply Current | 0.5mA | 1.5mA | 2mA |
| Input Resistance | 2kΩ | 2.5kΩ | 3kΩ |
| Output Resistance | 2.5kΩ | 3kΩ | 3.7kΩ |
| Load Resistance6 | 5MΩ | | |
| Insulation Resistance(50V)7 | 50MΩ | | |
Specifications of voltage excitation(10VDC 25ºC)| Parameters | Min. | Typical | Max. |
| Accuracy(%FS) | | | |
Non-
Linearity1 | 40Kpa | | ±0.20 | ±0.30 |
| >40Kpa | | ±0.10 | ±0.20 |
| Hysteresis | | ±0.05 | ±0.1 |
| Repeatability | | ±0.05 | ±0.1 |
| Output(mV) | | | |
| Zero | -2 | ±1 | 2 |
| Span(FS) | 98 | 100±1 | 102 |
| Temp. characters | | | |
| Operation Temp.(ºC)3 | -40 | | 125 |
| Compensation Temp(ºC) | 40Kpa | 0 | | | 50 |
| 100Kpa | 0 | | 70 |
| >100Kpa | -10 | | 70 |
| Zero Temp.error(%FS)4 | | ±0.75 | ±1.0 |
| Span Temp. error(%FS)4 | | ±0.75 | ±1.0 |
| Thermal hysteresis(%FS) | | 0.1 | |
| Long term Stability | | | |
| Zero (±%FS annual) | | 0.1 | |
| Span (±%FS annual) | | 0.1 | |
| Supply Voltage | | 10VDC | 14VDC |
| Input Resistance | 6kΩ | 8kΩ | 10kΩ |
| Output Resistance | 2.5kΩ | 3kΩ | 3.7kΩ |
| Load Resistance5 | 5MΩ | | |
| Insulation Resistance(50V)6 | 50MΩ | | |
| |
| Pressure Range | 0-40Kpa…7Mpa |
Pressure
Overload | ≤4Mpa | 2X |
| 7Mpa | 1.5X |
| Pressure Media | Liquids and Gases compatible with 316L Stainless Steel |

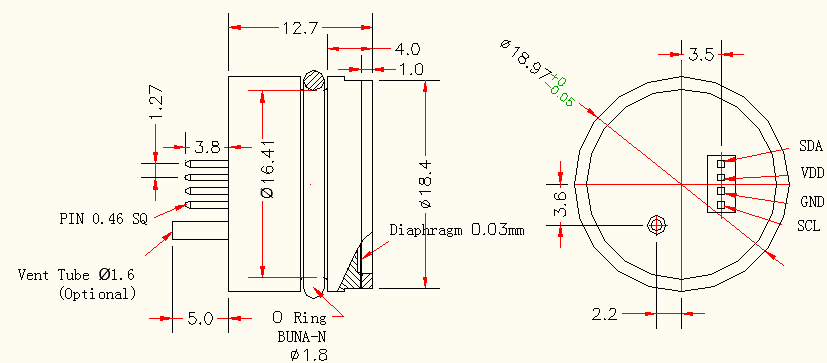

Dimensions(mm):Remark:Ribbon Cable or Connect Pins are optional for all modelsRibbon Cable
Connect Pin
