China Made Induction Heater Circuit for Bolt Hot Forging (JLZ-160)

Name: China Made Induction Heater Circuit for Bolt Hot Forging (JLZ-160)
Brand: all-electronics-online.com
SKU: 787958835
Availability: InStock
Rating: 4.8 (116 reviews)

Price:	US $ 9800-11800/Set
Min Order:	1/Set
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	JLZ-160
Working Theory:	Electromagnetic Induction Heating
Power:	160kw
Voltage:	3 Phase 380V
Max Current:	240A
Warranty:	1 Year
Application:	Meta Hot Forging
Feature:	Energy Saving, High Efficiency etc
Frequency:	Medium Frequency
Package:	Wooden Case

Product Description

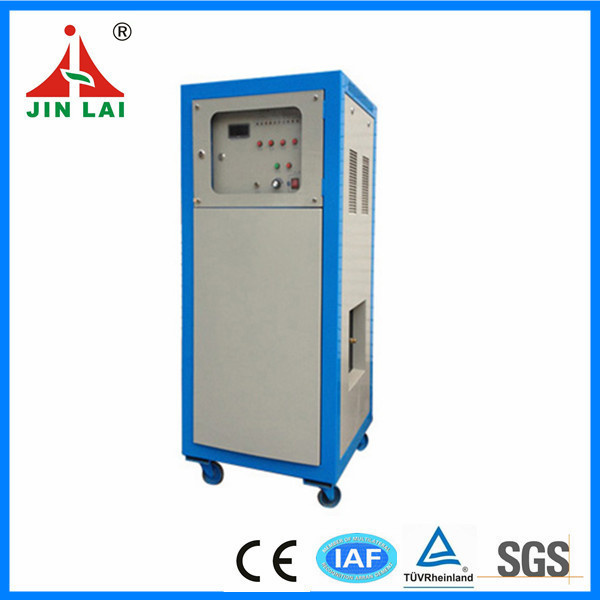

China Made Induction Heater Circuit For Bolt Hot Forging (JLZ-160)

Main Feature

Big power, low frequency and good diathermancy.
High frequency, low power consumption, easy installation and simple operation.
It can continuously work for 24 hours for the comprehensive full load design.
It adopts the IGBT inverter circuit in parallel connection, which ha high load adaptability.
It has functions as over-voltage, over-current, over-heat, phase loss and water shortage alarm indications as automatic control and protection.
Compared with other heating models, it can significantly promote the economic benefits, improve the quality of heated work pieces, save the energy and material, alleviate labor intensity and improve the production environment.

Technical Parameters

Model	JLZ-160KW
Input power desire	3 phase 380V 50/60HZ
Max oscillate power	160KW
Max input current	240A
Output voltage	70-550V
Output current	30-320A
Oscillate frequency	0.5-10KHZ
Cooling water desire	≥0.5MPa ≥6L/Min
Duty cycle	100% 40°C
Dimensions(LWG)	8708501800mm
Net weight	200kg
Cable length	2-6(Meters)

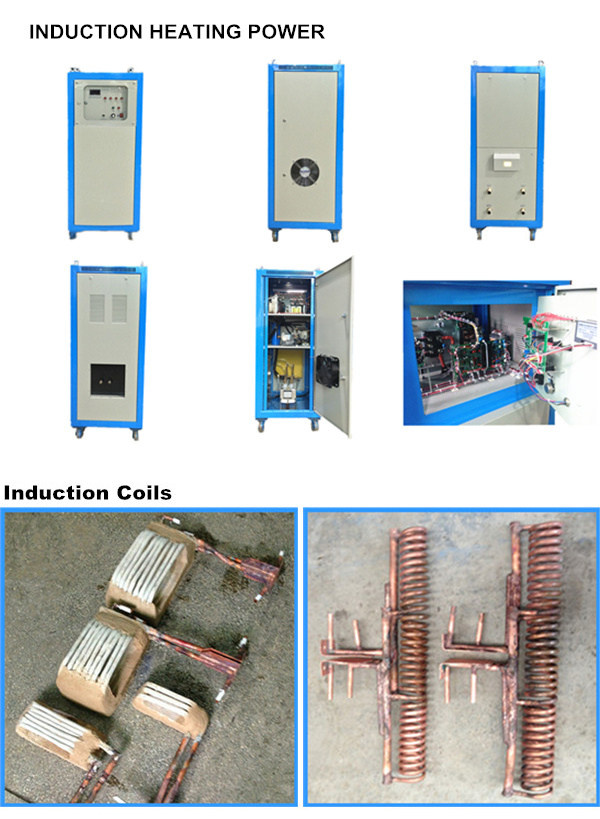

List of Accessories In the Package

Item	Name of machine or parts	Specification	Amount
1	JLZ-160KW Heating Power	-	1 pc
2	Foot switch	3 core	1 pc
3	Induction Coils	-	2 sets
4	Water Cable	-	2 sets
5	Instruction Manual	-	1 pc
6	Product catalog	-	2 sets

Main Parts Introduction

1. Germany SIEMENS INFINEON IGBT Module. ( 40-60KHZ oscillation frequency, fast response time, superhigh stability, almost spatter-free welding )
2. Japan Nichicon electrolytic capacitor. ( filter capacitor )
3. Imported transistor integrated block.
4. All water pipe use thermostability, High pressure resistance best quality material.
5. Main card, signal circuit, drive circuit board,control circuit board and components are adopted:Toshiba, Hitachi,Motorola, China's top manufacturers.
6. International advanced all-solid-state semiconductor power devices.
7.Technical advantage:perfect control, alarm display circuit, getting full automatic tracking frequency, continuous adjustable power, safe dependable protection,clear and accuracy data display and etc.
8. Superiority Advantages: fast heating, wide application, small size, easy installation, simple operation, low power consumption, high efficiency.

Pre-sale service:

1. recommend the most suitable machine for customers, according to their requirements.
2. Inquiry and consulting support.
3. Sample testing support.
4. View our Factory.

In-sale service:

1. Strictly manufacture the machine, according to relevant technical standards.
2. Take run test, according to relevant equipment test run regulations.
3. Strictly check up the machine, before delivery
4. Delivery on time.

After-sale service:

1. 12 months warranty period
2. Within one year free warranty, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, Jinlai shall provide replacement parts after detecting the faults.
3. If any big quality problems occurs out of the guarantee period, Jinlai will send maintenance
4. technician to provide visiting service after checking with the customer and charge for a favorable price.
5. Jinlai will provide a lifetime favorable price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
6. The above mentioned are only basic after-sale service requirements, we will make more promises related to quality assurance and operation guarantee mechanism.

Medium Frequency Series JLZ (0.5-20KHZ)

Model	JLZ-15	JLZ-25	JLZ-35	JLZ-45	JLZ-70	JLZ-90	JLZ-110	JLZ-160
Input power desire	3 phase 380V 50/60HZ
Input power	15KVA	25VA	35KVA	45KVA	70KVA	90KVA	110KVA	160KVA
Max input current	23A	36A	51A	70A	105A	135A	175A	240A
Output current	3-22A	5-45A	10-70A	15-95A	20-130A	25-170A	30-200A	30-320A
Output Voltage	70-520V	70-550V
Oscillate frequency	1-20KHZ							0.5-10KHZ
Cooling water desire (heating power + furnace)	≥0.2MPa ≥6L/Min		≥0.3MPa ≥10L/Min		≥0.3MPa ≥20L/Min		≥0.3MPa ≥30L/Min
Cooling water desire (heating power)	≥0.2MPa ≥3L/Min		≥0.2MPa ≥4L/Min		≥0.2MPa ≥6L/Min		≥0.2MPa ≥10L/Min
Duty cycle	100% 40°C
Net weight	30kg/35kg	32kg/38kg	43kg/50kg	120kg	130kg	140kg	150kg	160kg

Dongguan Jinlai Electromechanical Device Co., Ltd, founded in 1996, which is engaged in R&D, production and sale of solid Induction heating machine professionally. Several senior experts of induction heating equipment gathered here, who initiate the induction heating machines with environmental protection and highly effective energy conservation, positively and diligently.

Now there are series of products range from 3KW to 600KW, including the ultra-high/high/ super-audio/medium frequency induction heater, KGPS Parallel IF Power supply, IGBT energy saving IF power supply, 12 pulse IF furnace and special equipments (e. g. High-frequency quenching machine, Medium-frequency induction melting furnace, Ultrasonic -frequency annealing machine, Induction forging furnace, Brazing machine, Plastic welding machine, Branch divider/Bicycle fittings special -purpose welding machine, Railway river furnace, etc). These products are widely applied in the heating of hardware, metal (steel, iron, copper, aluminum) processing, plastic, deeply heating shaping, brazing, hardening, melting, annealing, hot cooperation and so on.

It was certified to ISO9001: 2008 quality system and CE certification. Advocating quality management conception of "producing products with zero defect", the quality has been guaranteed. The company has been sated up and perfected the marketing network and after-sales system. Our products are widely exported to Russia, USA, Italy, Romania, Netherlands, Finland, Turkey, Ukraine, Argentina, Brazil, India, Pakistan, Malaysia, Indonesia, Thailand, Vietnam and other countries or region. Most of products gain good reputation from customers.

Our conception is "human-oriented, service the society with innovation". "the quality and prestige are the fist" is our mission. The principle is "communal development, mutual benefit, we are looking forward to cooperate with you to create a bright future!
