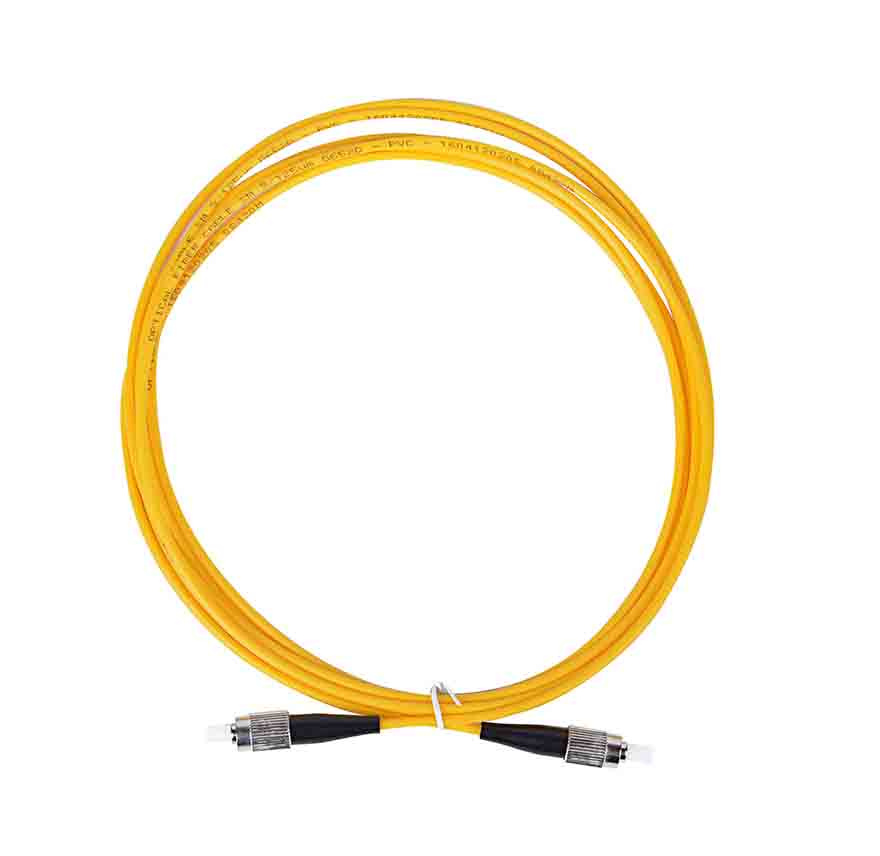

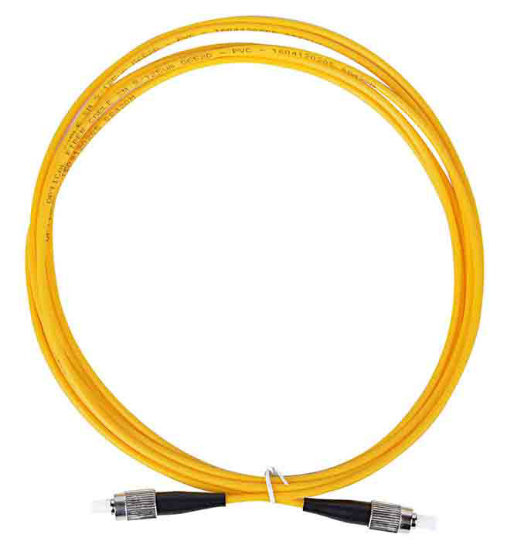

China Manufacturer Factory Outlets FC-FC Sm Simplex Fiber Optic Patch Cord-Patchcord
| Price: |
US $ 1.69-1.99/Piece |
| Min Order: |
99/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
GD-8001 |
| Boot Color: |
Blue, Green, Beige, Aqua, Black, White, Red |
| Cable Diameter Szie: |
0.9mm, 1.6mm, 1.8mm, 2.0mm, 2.4mm, 2.8mm, 3.0mm |
| Boot Type: |
Smooth |
| Boot Size: |
0.9mm 2.0mm 3.0mm |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Connection Structure: |
FC-FC |
| Certification: |
ISO9001 |
| Brand: |
Fibercome |
Product Description
Product DescriptionPatch Cord Production Conventional Process Flow Diagram:
Order Confirmation →Cleaving Cable →Passing Through Components And Parts →Striping Cable And Striping Fiber →Epoxy Defoaming →Checking Fiber And Cleaning →Polishing →Inserting Fiber And Curing →End Face Initial Inspection →Optical Indexes Testing →End Face Inspection →Assembling and Crimping →Machine Grinding →Cleaving Fiber And Manual Grinding → NG →Tensile Test →Analysis →Analysis →Appearance Inspection →PackingFeatures1.Low insertion loss and high retum loss
2.Mechanicl properties meet standards of IEC874-7 and CECC86115-80.
3.For the connector,ceramic ferrule can provide APC type(conical type or step tye) and PC type.
4.All materials meet the RoHS standard.
5.The patch cable can be customized according to customers specific requirements
6.Compliant with Telcordia GR-326-CORE,IEC and ROHS standards
7.Strict quality testing:IL and RL 100% test.
8.A variety of BOOT color choices.Applications1.Wiring of local area network between different enterprise buildings
2.Connection of optical links in optical active devices
3.Wiring in communication base station and distrinbtion case
4.Production and testing of optical devices
5.Optical fiber communication system,CATV and telecommunication network
6.LANs and WANs
7.FTTxSPECIFICATIONS| ITEM | PARAMETER |
| Applicative connector type | SC,LC,FC,ST,MU,D4,DIN |
| Fiber mode | Single mode | Multi-mode |
| Operating wavelength | 1250~1650nm | 850nm, 1300nm |
| Test wavelength | 1310nm, 1550nm | 850nm, 1300nm |
| Insertion Loss | typical≤0.20dB,Max≤0.30dB | typical≤0.15dB,Max≤0.25dB |
| Return Loss | UPC≥50.0dB,APC≥60.0dB | ≥35.0dB |
| Repeatability | ≤0.10dB |
| Interchangeability | ≤0.20dB |
| Durability | ≤0.20dB typical change,1000 mating |
| Tensile Strength | ≥120N(without 0.9mm patchcord) or customized |
| Operating Temperature | -20ºC to +70ºC |
| Storage Temperature | -40ºC to +85ºC |
ORDERING OPTIONS| Fiber Type | Cable Type | Connector Color | Boot Size | Boot Color | Polishing Type | Length |
| SM: 9/125μm | Simplex | beige | 0.9mm | Beige | UPC | Customized |
| MM: 50/125μm | Duplex | blue | 1.8mm | Blue | APC |
|
| MM: 62.5/125μm | 4 fiber | green | 2.0mm | Green |
|
|
| MM: OM3/150 | 6 fiber | aqua | 2.4mm | Yellow |
|
|
| MM: OM3/300 | 8 fiber | black | 3.0mm | Red |
|
|
| MM: OM3/550 | 12 fiber | red |
| Black |
|
|
| 24 fiber | metal |
| White |
|
|
----------------------------------------------------FAQ---------------------------------------------------Q1. Can I have a sample order for this product? What' MOQ of it?
A: Yes welcome send sample order for test. MOQ is 1 piece.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks.
Q3: What' s the payment term
A: We usually use TT(Telegram Transfer) in advance, Western Union. Other payment method is negotiable.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5: What' s the freight of it?
A: It depends on the order quantity. We have some reliable ship forwarders. We will offer cost effective method for you.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty according to different products.
Q7: What action will you take if there are some product problems?
A: If there are defective ones in the batch of products, we will offer spare ones for.
