China Manufacturer Good Quality RS485 Output Pressure Transducer
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Money Gram |
| Prod Model: |
WP401B |
| Pressure Type: |
Gauge Pressure(G), Absolute Pressure(a), Sealed Pr |
| Process Connection: |
1/4NPT,1/2NPT, Customized |
| Electrical Connector: |
DIN, |
| Output Signal: |
4-20mA (1-5V); 4-20mA with Hart Protocol |
| Compensation Range: |
-10~70dgree C |
| Power Supply: |
24V DC |
| Name: |
RS485 out Pressure Transducer |
| Output Signal Type: |
RS485 |
Product Description

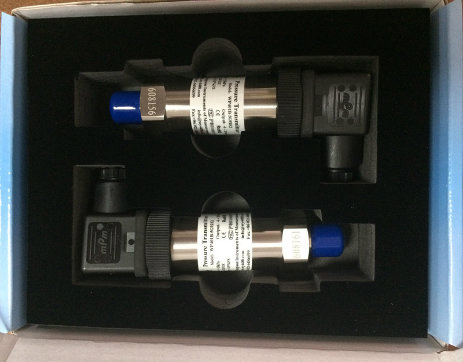

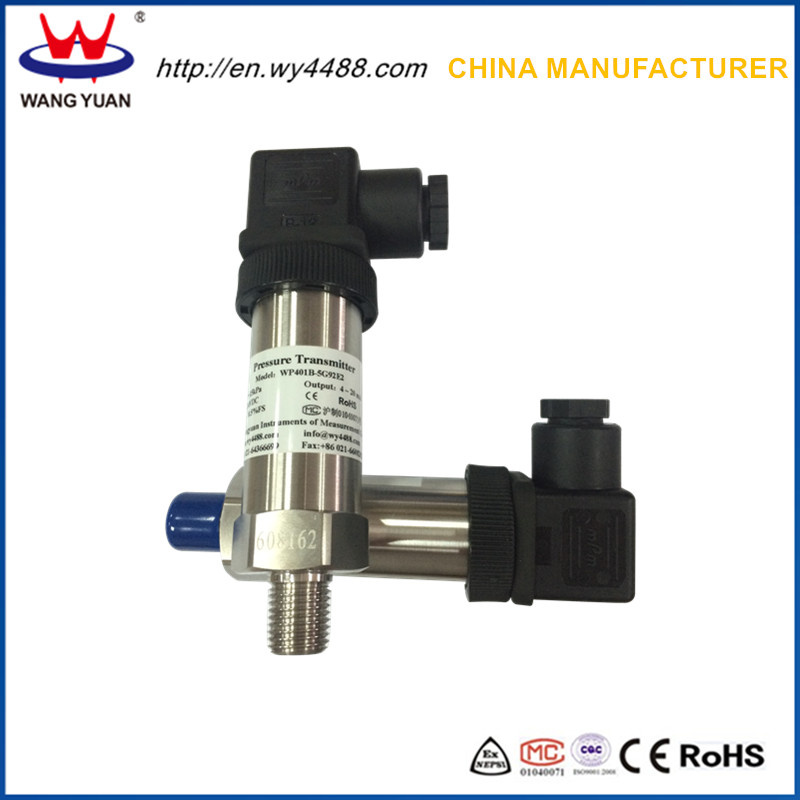

China Manufacturer Good quality RS485 output Pressure Transducer
Model: WP401B
ApplicationThis water pressure transducer can be used to measure & control the pressure of oil, gas, liquid in the fields:
Petroleum, Chemical industry
Light industry, Metallurgy
Electric power, Water supply
Environmental protection
Oil & Gas, Forklift truck
Ocean and etc.DescriptionWP401B pressure sensor adopts advanced imported sensor component, which is combined with the solid state integrated technological and isolate diaphragm technology. The product is designed to work well for measuring all kinds of air, liquids, gas, fluids, even though weak-corrosive media under all-weather environments. The temperature compensation resistance makes on the ceramic base, which is the excellent technology of the pressure sensors. Widely output signals are available.FeaturesVarious pressure range: 0_± 0.2~± 100kPa, 0 _ 0.2kPa~400MPa
Imported advanced sensor component
Measure pressure of various corrosive medium
Strong anti-jamming performance
Compact dimension design, strong construct
Light weight, easy to install, maintenance-free
Range can be adjusted in external, widely range of shift
3 1/2 LCD or LED local display
Explosion-proof type: Ex iaIICT6, Ex dIIBT4SpecificationPressure type:
Gauge pressure(G), Absolute pressure(A), Sealed pressure(S), Negative pressure (N).
Output signal: 4-20mA (1-5V); 4-20mA with HART protocol; 0-10mA(0-5V);
Power supply: 24V DC;
Compensation range: -10-70C
Operation temperature: -40-60C
Overload pressure: 150%FS
Pressure connection: M20*1.5, G1/2,
Electrical connection: Hirschmann(DIN), Cable, Bendix connector(5PIN, 4PIN) | Name | China Manufacturer Good quality RS485 output Pressure Transducer |
| Pressure range | 0-0.2 to 100kPa, 0-0.2kPa to 400MPa |
| Accuracy | 0.5%FS |
| Pressure type | Gauge pressure (G), Absolute pressure(A), Sealed pressure (S), Negative pressure(N) |
| Pressure connection | G1/2, 1/4NPT, M20*1.5 Optional |
| Electrical connector | Hirschmann(DIN), Cable leading, Bendix connector |
| Output | 4-20mA, RS485,1-5V, 4-20mA with HART Protocol |
| Power supply | 24VDC (12-36V) |
| Compensation range | -10~70 deg C |
| Operation temperature | -40~85 deg C |
| Media | Drinking water, waste water, gas, air, liquids, weak corrosive gas |
| Note: | When range <1kPa, only no corrosion or weak corrosive gas can be measured. |
| Ordering guide: | WP401B-0.6MPa-M20*1.5-DIN Connector-RS485-24VDC-0.5%FS |
More information of this pressure sensor, please feel free to contact with us.
APPLICATION:

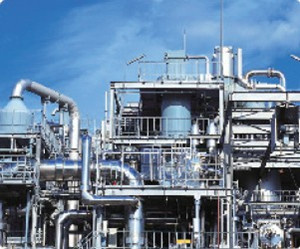

LNG OIL & GAS

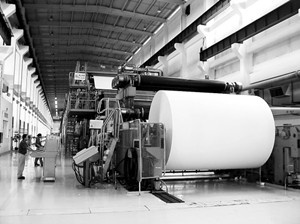

PAPER & PULP PHARMACEUTICAL
About usShanghai Wangyuan Instruments of Measurement Co., Ltd. is a high-tech enterprise level company specializing in industrial process control technology and products for years. We offer a complete product line of pressure, temperature, level transmitter, flow and indicator. Our products and services comply with the professional standards of CE, ISO 9001, RoHS and CPA.
In addition, with our highly skilled and experienced team of professional engineers and technicians we are working with customers from process control industries, government sector, and universities, these customers include China National Petroleum Corp. Shanghai tag water plant and etc.
We can provide integrated research and development services that rank us at the top of our industry. All products are thoroughly tested in-house with our vast array of calibration and special testing equipment. Our testing process is conducted in accordance with a strict quality control system.

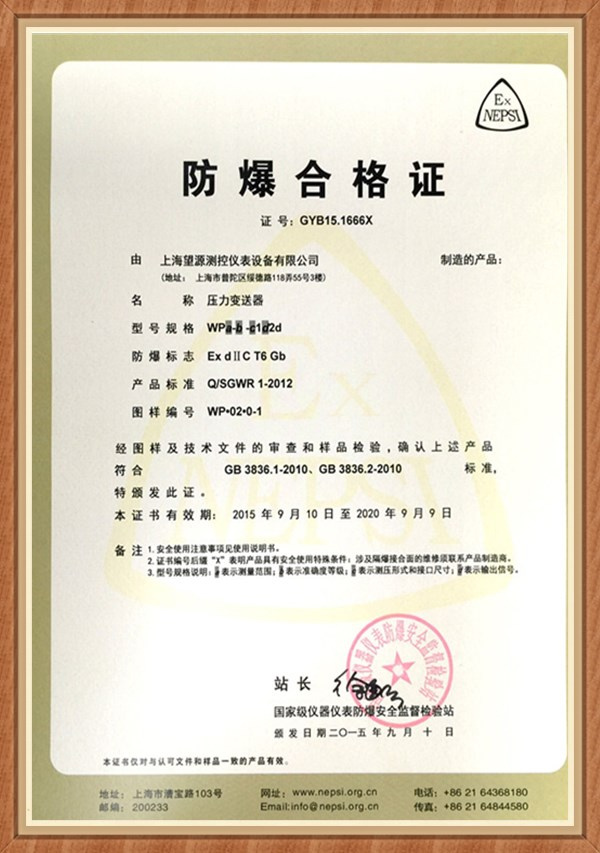

As an honest leader in the industrial automation field, we never crook our customers and provide global customers with high quality products and services. Hope to be your trustworthy supplier in China. You are welcome to contact us with your inquiry/ comments/ orders at any time.Certificates
Shanghai Wangyuan Instruments of Measurement Co., Ltd. is a high-tech enterprise level company specializing in industrial process control technology and products. We offer a complete product line of pressure, temperature, flow and indicator. Our products and services comply with the professional standards of CE, ISO 9001, RoHS, Explosion proof and CPA.
Our main products are including Pressure transmitters, Pressure transducers, Pressure sensor, Level Transmitter, Differential pressure transmitter (DP transmitter), Temperature transmitter, Flow meter, Intelligent indicator, Control instrument, Paperless recorder, Pressure switch and etc.
Our products are applying in the fields like food & beverage plant, water and waste water treatment, oil & gas, electric power, scientific research, ocean, boiler, coal mine, forklift weighing system HVAC systems, CNG & LNG, air condition, fuel pressure measurement and other process control industries.
In addition, with our highly skilled and experienced team of professional engineers and technicians we can provide integrated research and development services that rank us at the top of our industry. All products are thoroughly tested in-house with our vast array of calibration and special testing equipment. Our testing process is conducted in accordance with a strict quality control system.
With our on-site experience, research and development services we are a leader in the industrial automation field, and provide global customers with high quality products and services.
