Shanghai Feilong Meters & Electronics Co., Ltd. >> China Manufacturer High Precision Absolute Pressure Transmitter with 1/2"NPT Process Connection

China Manufacturer High Precision Absolute Pressure Transmitter with 1/2"NPT Process Connection

China Manufacturer High Precision Absolute Pressure Transmitter with 1/2
Price: US $ 200-410/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: FL103-A
Output Signal: 4-20mA, 4-20mA+Hart
Material: SS316L, Hastelloy C
Process Connection: M20*1.5(M), 1/2-14NPT(F), 1/4-18NPT(F)
Media Temperature: with Silicone Oil -40~120c
Display: LCD
Explosion Proof: Can Be Customized
Power Supply: 10.5-55VDC
Working Temperature: -40-85c
Storage Temperature: -50-85c
Model: FL103-a
Pressure Range: 0-250kpa

Product Description

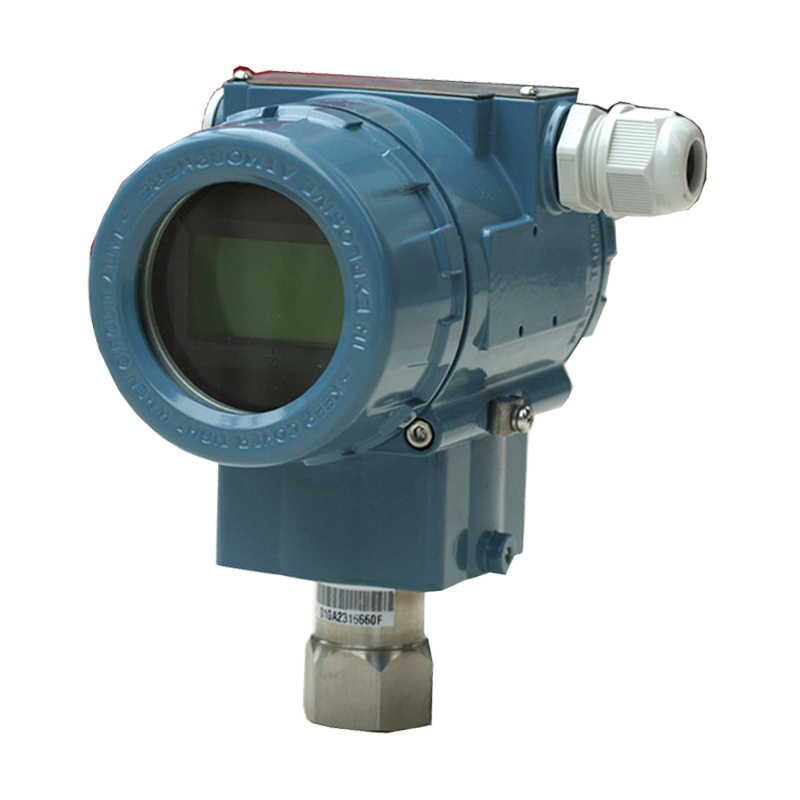

China Manufacturer High Precision Absolute Pressure Transmitter With 1/2"NPT Process connection

 Pressure types:Gauge pressure,absolute pressure,differential pressure
Measuring range: Gauge: 200Pa-40MPa, Absolute: 2kPa - 10MPa, Differential: 200Pa-10Mpa
Output signal:4-20mA,4~20mA/HART , customer
Reference accuracy:0.075% ,0.05%,
Working temperature:-40-85ºC, LCD display unit:-20-70ºC
measuring medium:Liquid, gas, or steam level, density and pressure
Media temperature:with silicone oil -40-120ºC,
with fluorocarbon oil -10-80ºC
Proction class:IP67
OUTPUT SIGNAL:4~20mA two wire,power supply: 10.5-55vdc
4~20mA+HART two wire,power supply: 16.5-55vdc
Diaphragm material:SS316L,Hastelloy C
Stability: ±0.2% URL/5years
Approvals: EX-proof,CE certificate

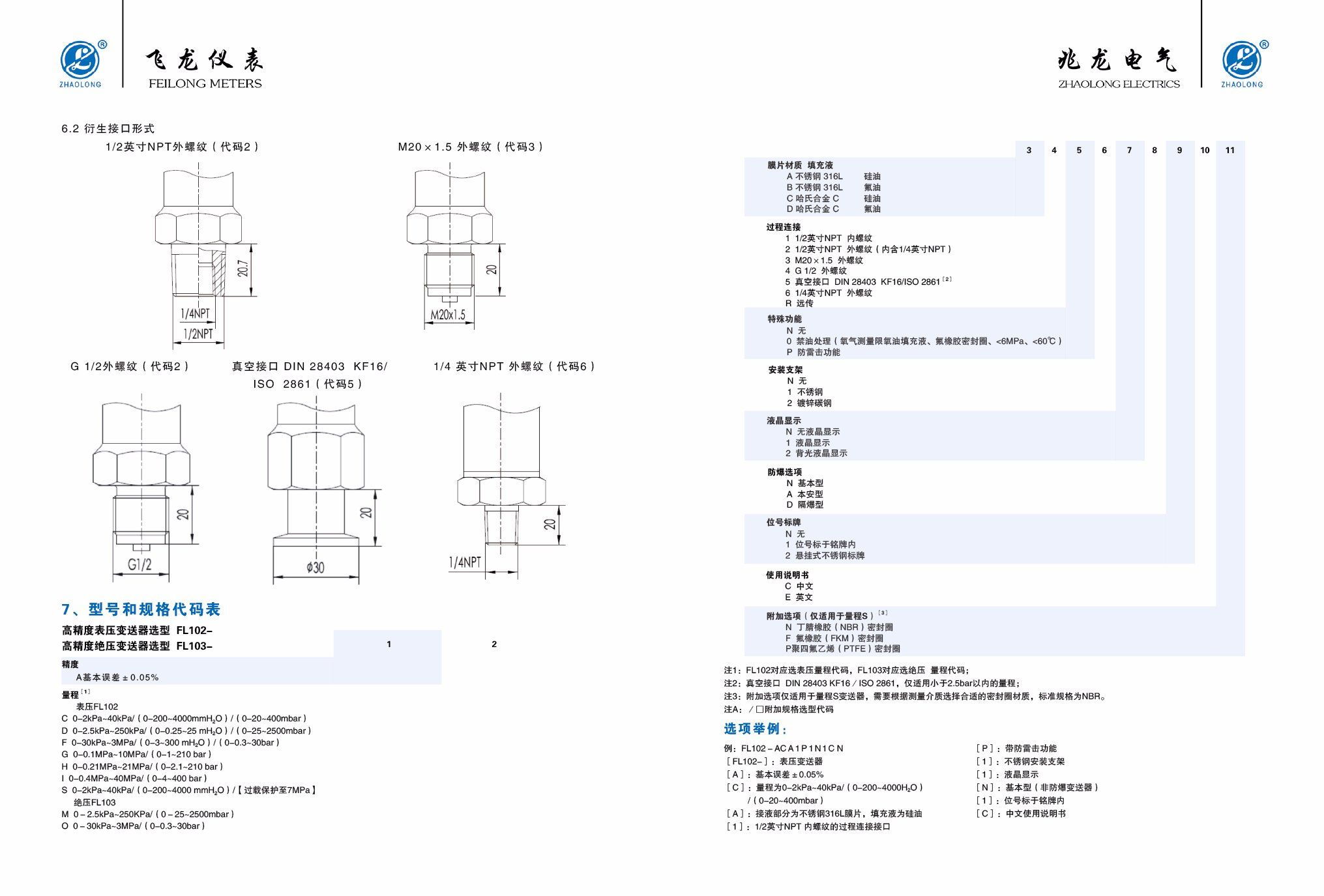

Selection of China Manufacturer High Precision Absolute Pressure Transmitter With 1/2"NPT Process connection

















Shanghai Feilong Meters & Electronics Co., Ltd.

Is a regional high-tech enterprise, and a production base of temperature sensors and temperature control instruments. We have jointly developed and produced a series of thermocouples (thermal resistances) and temperature control electronics with many R & D institutions and academies in Shanghai, they are salable in all over the country and world with the advantage in cost performance. Our products always have famous reputation in the market and win customers'trust as a result of excellent performance, nice appearance, high reliability, advanced technology, and good cost performance. In 2000, we passed ISO9001: 2008 Quality System Certificate and then obtained CE Certification. Our self-developed energy-efficient AC contactor obtained national invention patent and a number of utility patents, as well as China Compulsory Certification. This product has good energy saving effect, long service life and noiseless, and has participated in setting national standard GB21518-2008 . Recently we have developed thermocouples for special conditions, such as solutions of liquid steel, copper water, aluminum water, and zinc water, as well as salt furnace; The thermocouples applied under special environment as cement plant and power plant, which have high accuracy and long service life; New type anti-oxidation tungsten-rhenium thermocouple with low cost and high temperature measurement, which is the ideal product displacing platinum-rhodium thermocouple, some products have reached military level. New products of wireless temperature control and measurement solved the problem for the places where are not convenient for wiring. In 2013, we have obtained National explosion-proof production qualification certificate for explosion-proof thermocouple and thermal resistance and National Good Standardizing Practice Certificate. PTFE tube, plate, bar, gasket, and irregular part produced by our company are ideal products against strong acid, strong alkali, corrosion, and high temperature, which are green, environmental and widely used. With strong technical development team and patent results, we can undertake business for normal and special specifications, and can design & install various large scale and small scale of automatic temperature control box and temperature control room and remote monitoring temperature control systems for customers.

MANAGEMENT IDEAS

Step by step, looking for chance to develop in stable situation.

Self-m t ivation, forge ahead, self-impovement.

With the combination of traditional culture and morden manageme nt

Enthusiastic about social public welfare, showing social responsibility.

Interaction w ith customers. Whose satisfaction is ou biggest motivation.
