| Prod Model: |
wholesale GPS vehicle tracker tk103B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
83*54*26mm |
| Network: |
GSM/GPRS |
| Accuracy: |
5m |
| Tracker Weight: |
120g |
| Certificate: |
Ce FCC |
| Warranty Time: |
1 Year |
| Anti-Theft Car Security: |
Stop Car Engine Remotely |
| Tracking Solution: |
SMS, GPRS Web Based Platform, Android Ios APP Track |
| Arm Alarms: |
Acc, Door and Shock Sensor Alarm |
| Applying Directions: |
Vehicle Fleet/Logistics/Vehicle Rental |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Operating Principle: |
GPS Satellite Positioning and Data Transmit by GSM |
| Port Number: |
20 |
| Model: |
Remotely Shutdown Vehicle Tk103 |
| Screen Size: |
No Screen |
| Chip: |
No |
| Brand: |
Baanool GPS Tracker |
| Certification: |
ISO9001 |
Product Description

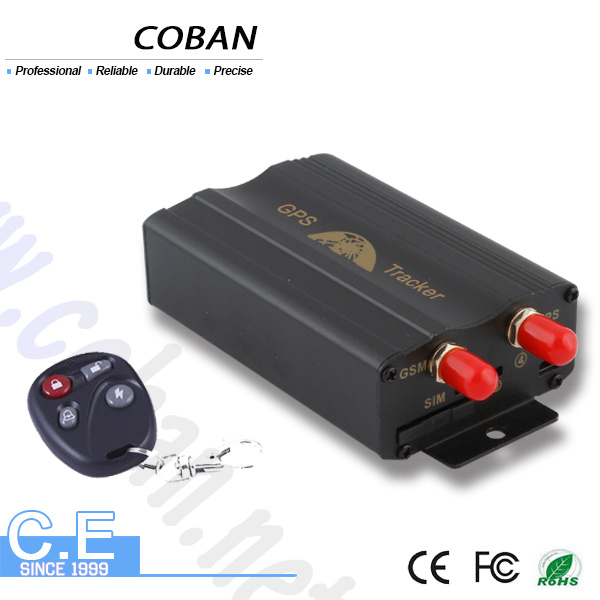

China manufacturer Kidnapping GPS Vehicle Tracker with Android Ios APP TK103B
How does the GPS Car Tracker work? All you need to do is insert a working SIM card, it even has Quad-band Connectivity so it works anywhere in the world.

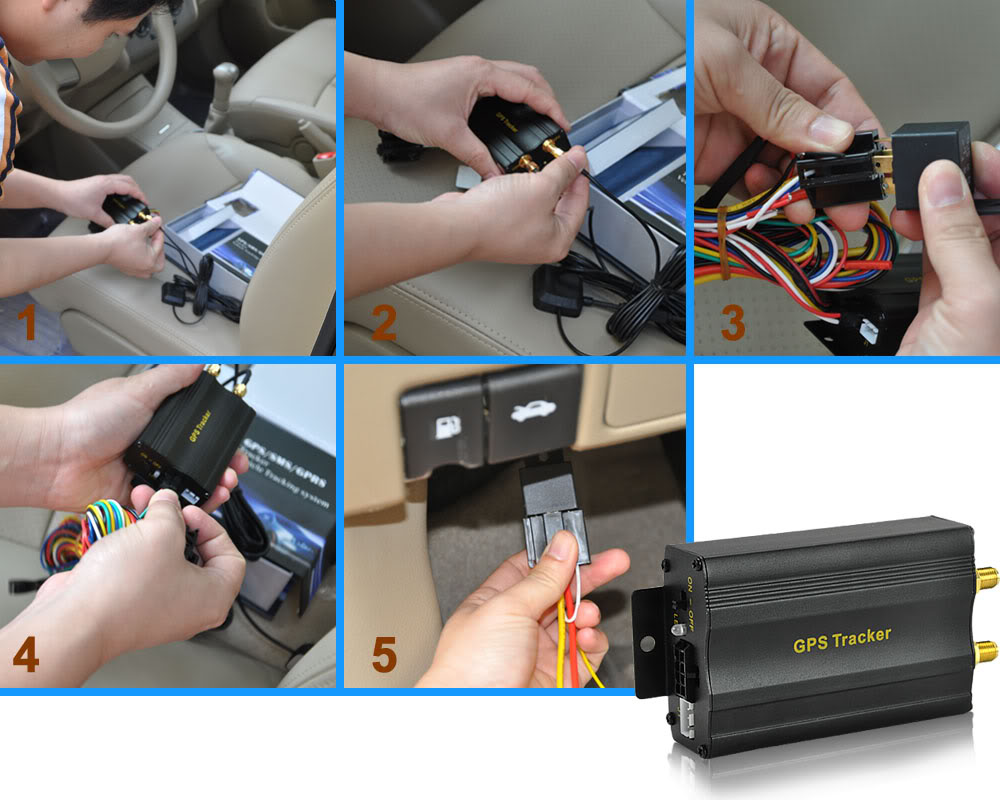

The unit is powered by automotive battery, and should be installed inside a vehicle .
Main Function Description
1. Show location directly on mobile phone with HTTP Google map link
2. Get physical location in real street/address name
3. Remote Engine-stop and Resume.
4. Track by Distance Interval &time
5. USB configuration (option)
6. SD card for data logging (option)
7. ACC working alarm
8. Voice surveillance
9. Multi-Geo fence
10. Less GPRS traffic
11 .automatic update positions of vehicle turns
12. Arm alarm: Door Alarm, ACC Alarm, shock sensor alarm
13. Movement alert.
14. over speed alarm
15. Power supply disconnection alarm.
16. Low battery alarm function
17. Check the vehicle status
18. Easy switch for track or monitor and switch for SMS tracking and GPRS tracking
Applying directions: Vehicle fleet/logistics/Vehicle rental
Technology parameter:
*Dimension: 83mm*54mm*26mm, 120g in weight
*Network:GSM/GPRS
*GSM Network frenquecy: 850/900/1800/1900Mhz
*channel: Parallel 20 channels
*sensitive: -159dBm
*Accuracy: 5m
*Time To First Fix: Cold status 45s, Hot status 1s
4 tracking solutions :
- SMS tracking by calling , return google map link
- Absolute street address by sms
- Free pc based tracking application
- Optional web server www.gpstrackerxy.com
What is in the box :
1x GPS unit
1x GPS antenna
1x GSM antenna
1 x MIC
1 x Harness
1x Relay
1 x CD
1 x Manual
(Remote controller is optional )
Specifications
| Content | specifications |
| DIM. | 83*54*26mm |
| Weight | 120g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Voltage | 12 V -24V
|
| Backup battery | Chargeable 3.7V500mAh Polymer Li-Battery |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +65°C |
| Humidity | 5%--95% non-condensing |
FAQ - Frequently Asked Questions
How do I make sense of the longitude and latitude data this unit provides?
Both Google Maps and Google Earth can easily translate the data into usable visual information.
The unit does not pick up a GSM signal and the SMS functions aren't working,
What's wrong? A number of things could cause this to happen:
1) Make sure the SIM card is compatible (only 2G, 2.5G, 2.75G SIM cards work
2) Make sure there is money left on the SIM card and that it has not expired
3) Make sure there is no PIN code associated with the SIM card
4) Make sure roaming is enabled on your SIM account if you are in a different country
Can I install the software on multiple computers?
No. Each tracker's IMEI number is unique and can only be used to setup the software on one computer once and ONLY ONCE, which means you can only use the software on that computer exclusively after successfully set it up. This is due to the security requirements of the software and the product.
Ordering from Shenzhen Coban Electronics Co, . Ltd provides you with the following benefits:
- Orders processed and shipped within 24-hours
- 12 month warranty- In-house QC- Member discounts
- Award winning customer support- Quantity order discounts
- Worldwide Shipping
Warranty
1. One year warranty is provided for all models.
2. All products have been strictly Quality Checked in house before packing.
3. All products have been well packed before shipping.
OEM&ODM Service
1.Customize logo and brand print on the device or box
2.Offer firmware modification service
3.Customize design in bulk order

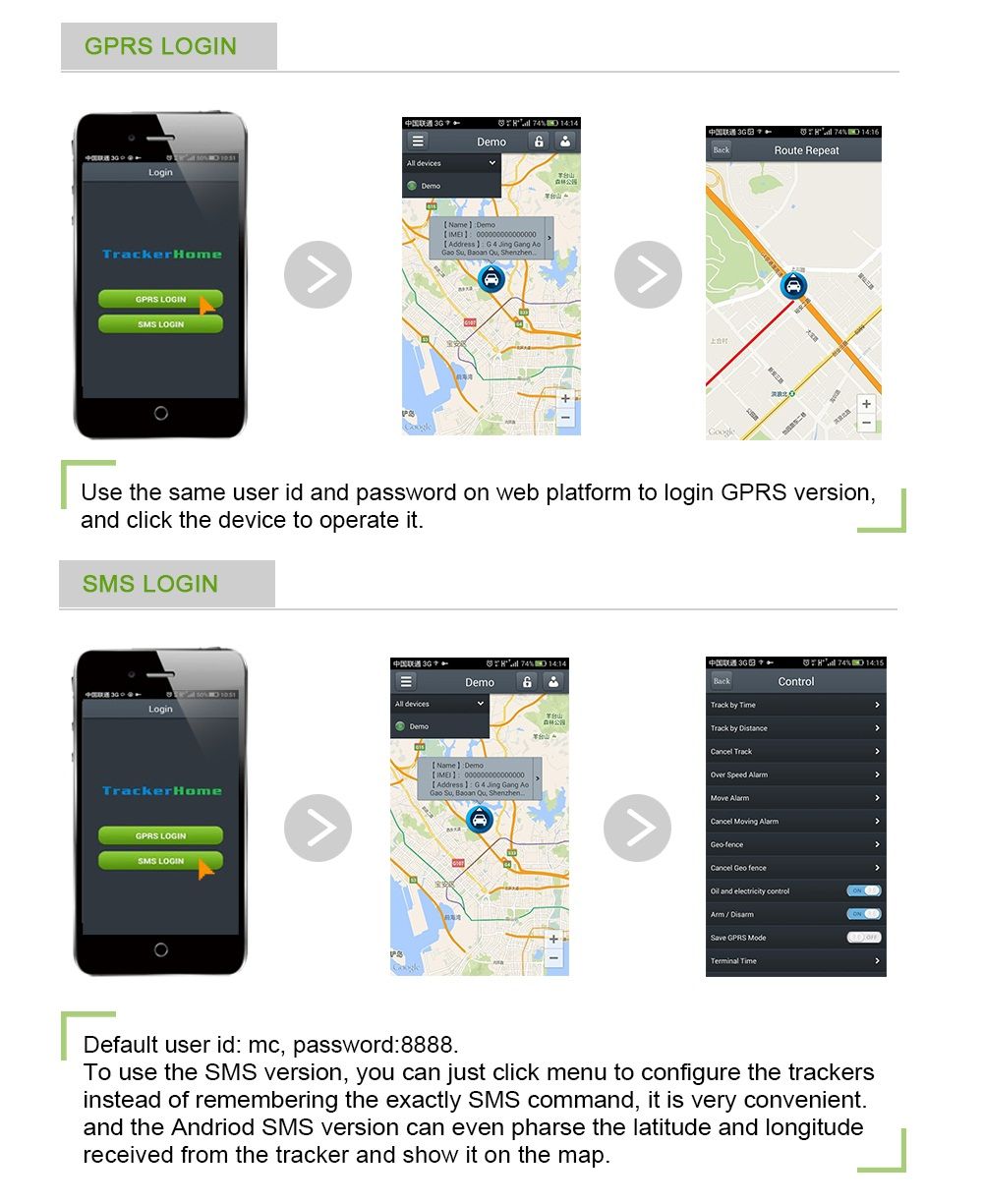

Real time track on cell phone by APP
Certification:
More details pls send inquiry,
lastest price will be updated
