China Manufacturer LSZH 2f Fiber Optic Self-Supporting Figure 8 FTTH Drop Cable

Name: China Manufacturer LSZH 2f Fiber Optic Self-Supporting Figure 8 FTTH Drop Cable
Brand: all-electronics-online.com
SKU: 807236775
Availability: InStock
Rating: 4.7 (72 reviews)

Price:	US $ 0.1-1/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FTTH Messenger Drop Cable
Fiber Standard:	Itu Standard
Strength Memb:	Steel ,FRP
Number Of Conductor:	4
Fiber Count:	1/2/4/6/8
Fiber Sort:	Singlemode or Multimode
Model Number:	Messenger Wire Drop Cable
Fiber Type:	G657A
Fire Retardant:	Yes
OEM:	Support
Customized:	Support
Application:	Fiber Distribution Frame
Type:	Single-mode Fiber
Connection Structure:	LC
Certification:	SGS,ISO140001
Sheath Material:	LSZH

Product Description

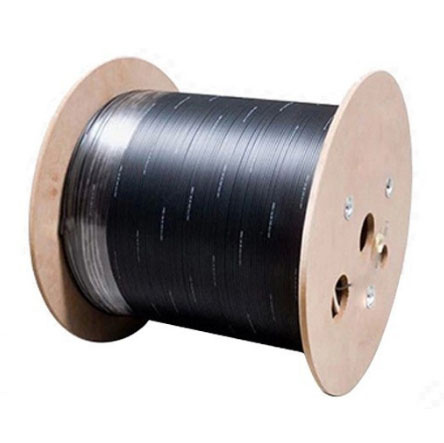

China Manufacturer LSZH 2F Fiber Optic Self-Supporting Figure 8 FTTH Drop Cable

Descriptions:
The struture of indoor optical FTTH cable :In the centre is the optical communication unit,with the parallel non-metical enhanced FRP of the two side.The sheath materiar is LSZH.

Characteristics:
- Special curved optical fiber, providing greater bandwidth and enhanced network transmission characteristics;
- Two parallel fiber optic cable, FRP(or steel ) strength members ensure good performance of crush resistance to protect the fiber;
- Cable structure is simple, light weight, strong practical;
- Unique groove design, easy peeling, convenience for connect, and simplify installation and maintenance;
- LSNHP fire-retardant jackets, environmental protection and safety.

Parameters:

Type	Core Count	Out sheath Diameter (mm)	Short-term allowable Tensile Strength (N)	Long-term allowable Tensile Strength (N)	Short-term allowable Crush Load (N/100cm)	Long-term allowable Crush Load (N/100cm)	Minimum Bending Radius (MM)		Weight (Kg/Km)
FTTH--1Xn	1	2.0*3.0	30	60	300	1000	15D	30D	8
FTTH--2Xn	2	2.0*3.4	30	60	300	1000	15D	30D	8.5
FTTH--4Xn	4	2.0*3.8	30	60	300	1000	15D	30D	10

Optical Characteristics:
Fiber Sort	Multimode	G.651	A1a:50/125	Graded-index fiber
			A1b:62.5/125
	Singlemode	G.652(A,B,C)		B1.1:Conventional fiber
		G.652D		B2: Zero dispersion shifted
		G.655		B1.2 :Cut-off wavelength shifted
		G.657(A1,A2 ,B3)		B4: Main technical data for positive dispersion shifted single-mode fiber
