Product Description

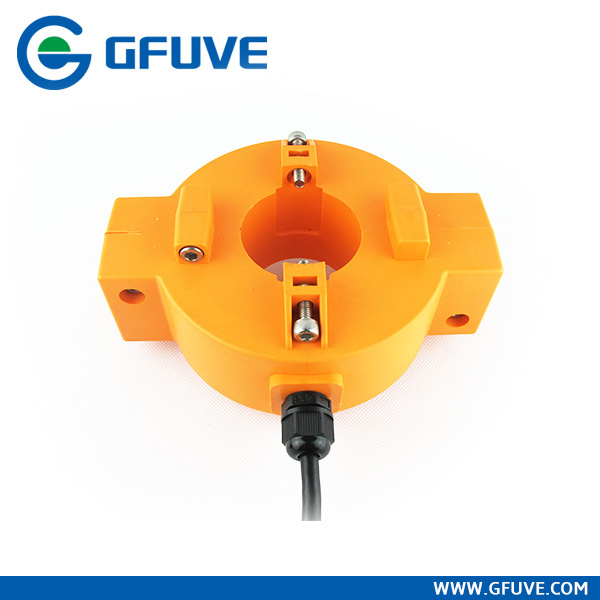

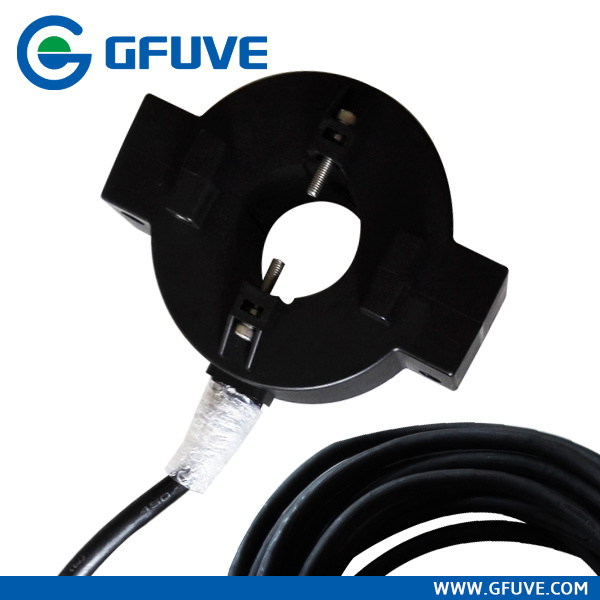

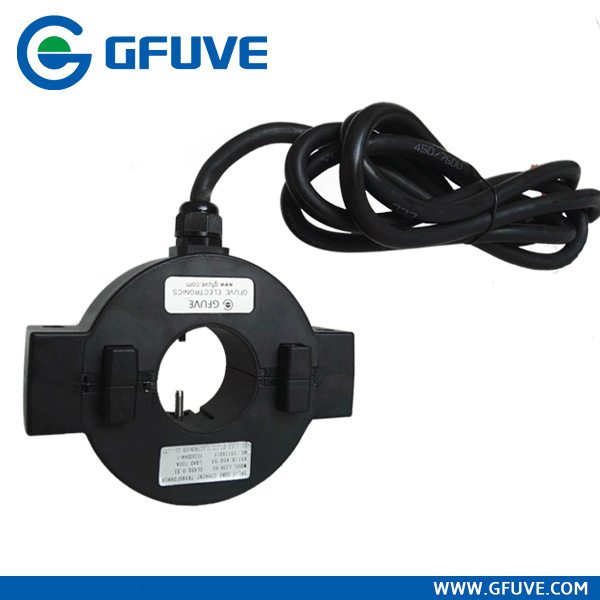

LZCK-55 China Manufacturer Supply 100A/5A High quality Cast Resin Split Core Outdoor CT for 10kv Power line

LZCK series waterproof split core outdoor ct are applicable for AC power system 35kV and measurement of current of power supply equipment below 10KV also can be used for microcomputer protection. This type of current transformer employs imported silicon steel which with high permeability as magnetic material, has the characteristics of Small magnetic circuit loss and can be split, its semicircular core and secondary windings employ high quality epoxy resin vacuum, casting in plastic-case(ABS or PC) which is flame retardance anti-moisture, stable performance, no maintenance.
Applications
Instruments measurement
Protection device
Power monitor
Power quality analyzer
10KV and 20KV power line load current monitor

PARAMETERS
Technical parameters
StandardsIEC60044-1; IEC 61869-2; NTC 2205;  ANSI/IEEE C57.13
Accuracy Class0.5S, 0.5%, 1%, 3% (IEC61869 standard)
Range of primary rated current100-1250A
Range of Rated load≤10VA
Rated frequency50/60Hz
Rated secondary current5A or 1A
Rated short-time thermal current40kA, 1S
Rated continuous thermal current150%I1n
Secondary winding power frequency withstand voltage3kV, 1min
 CAT IV 600V IEC/EN 61010-1
Safety Factor Rating(FS) <10
Output signal1A, 5A, 333mV, 1V or 5V(customized)
Flame retardant ABS and UV plastic shell inside, jaw waterproof apron.

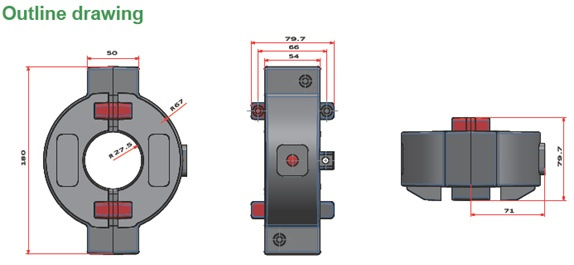

Mechanical parameters
Aperture (mm)Φ55
Dimensions (W×D×H) (mm)180×138×52
Length of Lead2.5 M to 10M  (Heavy Cabtyre Cable Diameter:11.6MM)
Lead informationModel: YC 2*4mm 2 Voltage: 450/750V
Weight (kg)2
ColorOrange, black or customized
Working conditions
Operating temperature-35°C to +70°C
Storage temperature-40°C to +70°C
Ingress ProtectionIP65 ( IEC 60529)
Environmentoutdoors or indoors
The Height of above sea level0- 3000m
ConditionsNo existence of severely begrimed, erosive and radioactive gas in the air. Continuous working under the rated current is allowed.

SELECTION GUIDE
Item NameRange of primary rated currentRange of Rated loadAperture (mm)Description (mm)Weight (kg)
LZCK-55100-1250A≤10VAΦ55180×138×522
LMCK185-10300-5000A≤25VAΦ185350×283×554.5
