China Manufacturing 4pin/5pin DIP Micro Switch /Tactile Switch

Name: China Manufacturing 4pin/5pin DIP Micro Switch /Tactile Switch
Brand: all-electronics-online.com
SKU: 799637225
Availability: InStock
Rating: 4.7 (47 reviews)

Price:	US $ 0.013-0.017/Piece
Min Order:	1000/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HY-1157D
Type:	Standard
Installation Form:	Insert Welding
Package:	SMT Chip Package
Shape:	Square
Certification:	RoHS
Structure:	Four Contact
Application:	Electronic and Electrical Equipment
Shrapnel:	Copper

Product Description

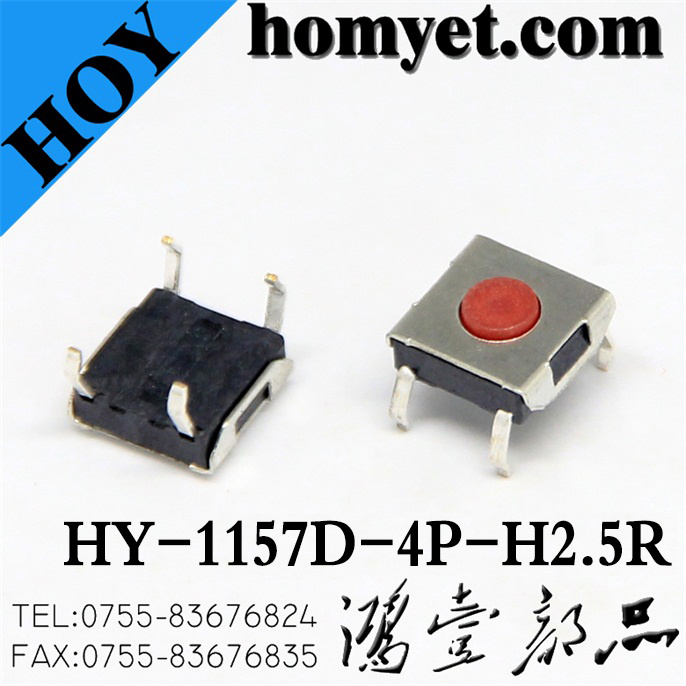

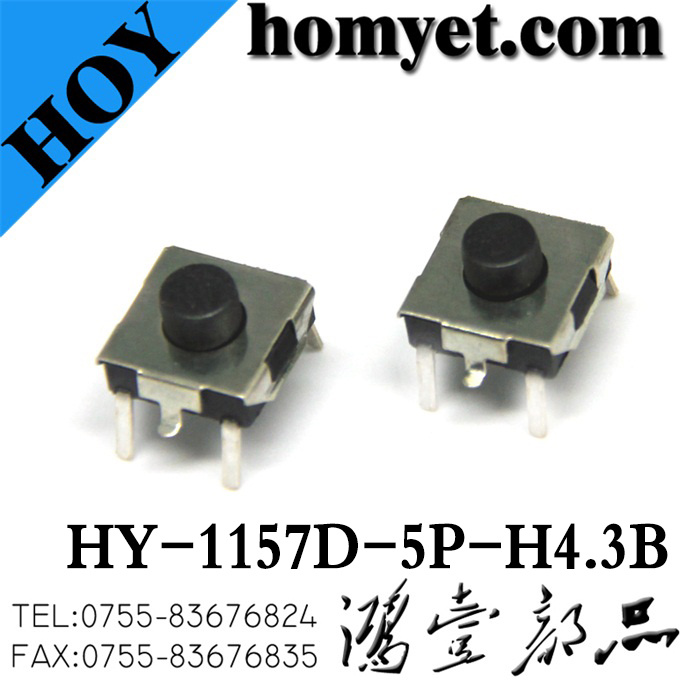

China Manufacturing 4Pin/5PIn DIP Micro Switch /Tactile Switch
-----Good Performance&Long life&Install easily
Customizing the height&operating force&Button shape

Material
1. Keystoke: PA66 Black
2. Base: PPA Black
3. Contact: Brass, Ag-Plated
4. Cover Plate: PPA Black
5. Shrapnel: Copper
6, Shell: PPA Black

Specification:
They can operate all types of electronic equipment such as the computer, telephone, PDA, DVD digital camera, audio equipment, instrument and meter equipment, autoimmunization equipments control etc.

Rated Current Capacity	DC 12V 0.5A
Contact Resistance	50mΩ Max
Insulation Resistance	100mΩ Min
Withstand Voltage	AC 250V
Press Force	250gf
Life	50,000 cycles Min
Relative Humidity	95%(40'C)
Temperature	-25'C-85'C

Welding conditions
1. Hand soldering
Use a soldering iron of 30 watts, controlled at 350º C approximately 3 seconds while solder applying
2. Wave soldering/Reflow Soldering
The peak temperature of the wave oven should be set to 260º C max. Condition for soldering temperature profile

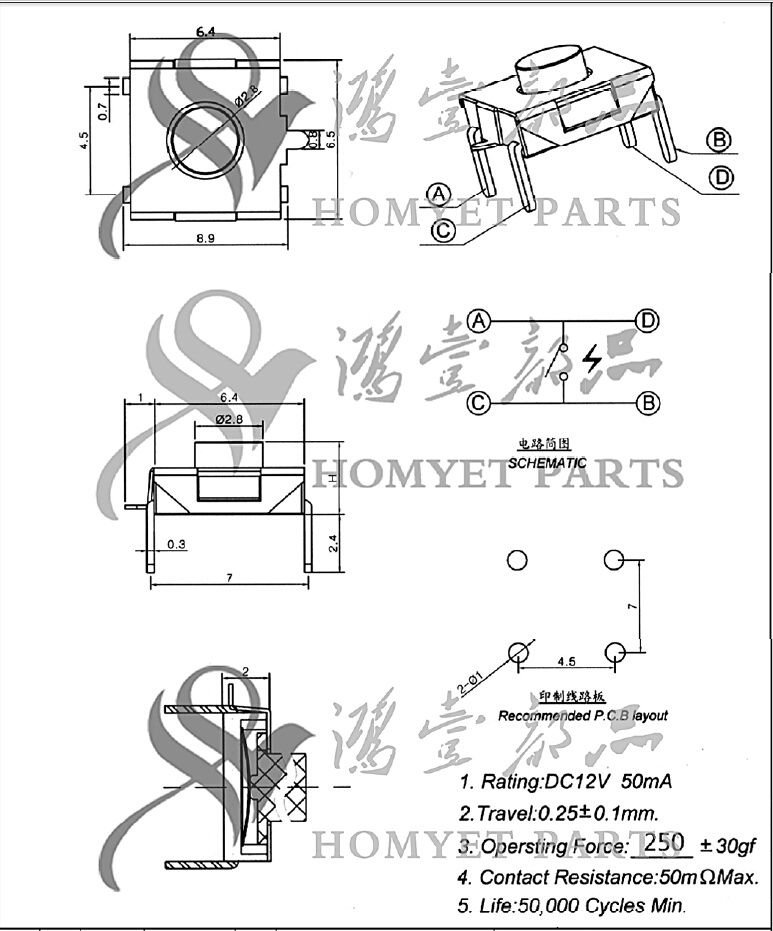

Product Datasheet&Picture

Packing&Shipping:
1) Packaging: Carton
2) Shipping:
Fedex, DHL, UPS, TNT for samples, 3-7 days.
By Air or by Sea for batch goods, 10-30 days.
3) Payment Terms: T/T, L/C, PayPal; 20% deposits; 80% balance before delivery

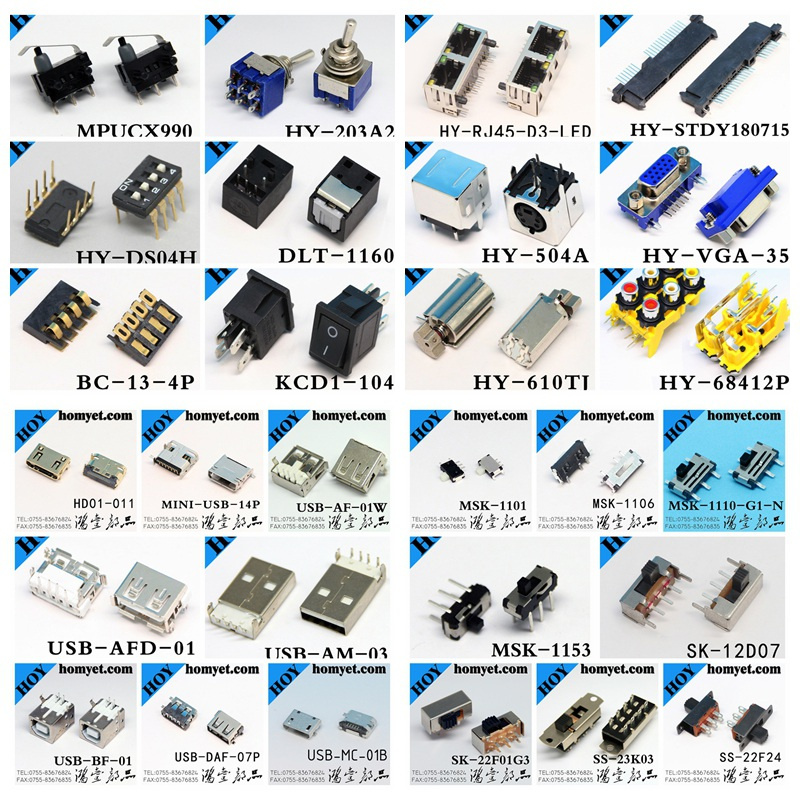

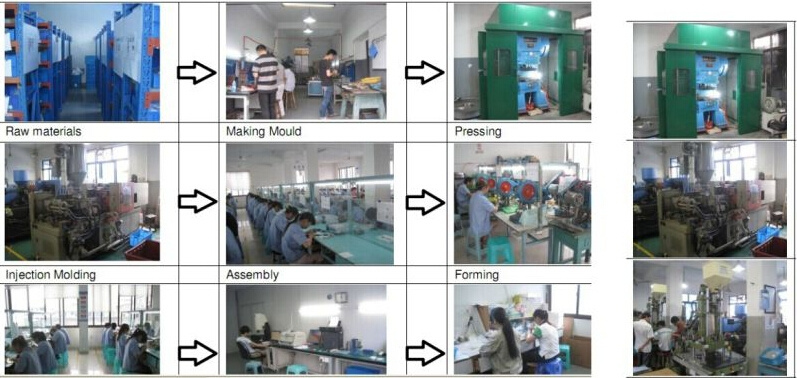

Company&Products Show:
