| Prod Model: |
WP435A |
| Thread: |
Diaphragm G1/2, M20*1.5, |
| Type: |
Diaphragm Pressure Transmitter |
| Measuring Medium: |
Steam, Water, Oil, Air |
| Accuracy Grade: |
0.2%Fs, 0.5%Fs |
| Pressure Range: |
-100kpa~ 0-1kpa~10MPa |
| IP Rating: |
IP55, IP65, IP67, IP68 |
| Certification: |
Ce, ISO9001, RoHS |
Product Description

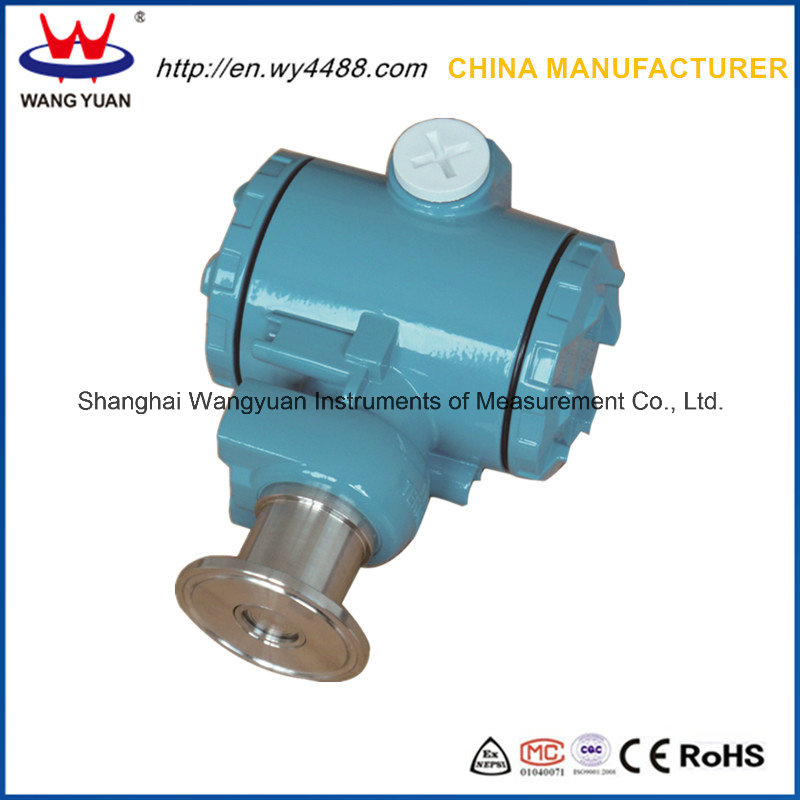

China Non cavity Membran diaphragm 4-20mA Pressure transmitter Price
Model: WP435A
Application:
This Non cavity Sanitary Pressure Transmitter can be used to measure and control PRESSURE in:
- Hydraulic/ Pneumatics
- Industrial test and control
- Electric power, water supply,
- Light industry, Metallurgy
- Mechanical engineering
- Petroleum and chemical industry,
Description:
1. WP435A China Non cavity Membran diaphragm 4-20mA Pressure transmitter adopt advanced imported sensor component with high precision, high stability and anti-corrosion.
2. This pressure transmitter can work stably for a long time under maximum 60ºC temperature work environment.
3. Laser welding technology is used between sensor and stainless steel house, without pressure cavity.
4. This clamp mounting pressure transmitters are suitable to measure and control the pressure in all kinds of easy to clog, sanitary, sterile, easy to clean environment.
5. With the feature of high working frequency, this type sanitary presusre transmitters also are fit for dynamic measurement.
Features of China Non cavity Membran diaphragm 4-20mA Pressure transmitter:
* Various signal outputs
* HART protocol is available
* Operating temperature:-40~ 60ºC
* 4bits or 5bits LCD intelligent display
* High precision 0.1%FS, 0.2%FS, 0.5%FS
* Flush diaphragm, corrugated diaphragm, clamp
* Pressure range: 0--10~ -100kPa, 0-10kPa~100MPa
* 100% Linear meter or 3 1/2 LCD or LED digital indicator is configurable
* Explosion-proof type: Ex iaIICT6-Intrinsically safe comply with requirement of GB3836·4-83;
Ex dIIBT4-Flameproof comply with requirements of GB3836·2-83.
Specification:
Name | WP435A China Non cavity Membran diaphragm 4-20mA Pressure transmitter |
Pressure range | 0--10~ -100kPa, 0-10kPa~100MPa. |
Pressure type | Gauge pressure(G), Absolute pressure(A), Sealed pressure(S), Negative pressure (N). |
Compensation temperature | -10~70ºC |
Operation temperature | -40~60ºC |
Output signal | 4-20mA;4-20mA with HART protocol; 0-10mA; 0-20mA; |
Power supply | 24V DC; 220VAC,50Hz |
Electrical connection | Cable, Terminal block |
Pressure connection | M20*1.5, Flush/Corrugation diaphragm or Clamp mounting, optional. |
Overload pressure | 150%FS |
Stability | 0.5%FS/ year |
Medium material | Shell: Aluminium alloy |
Wetted parts: Stainless steel 304 or 316L |
Note: More technical parameters, please feel free to contact us. |

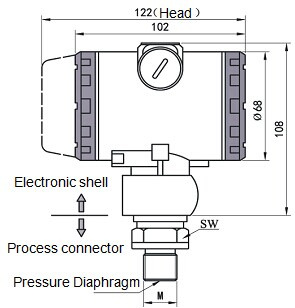

Dimensions of this Non cavity Sanitary pressure transmitter :
