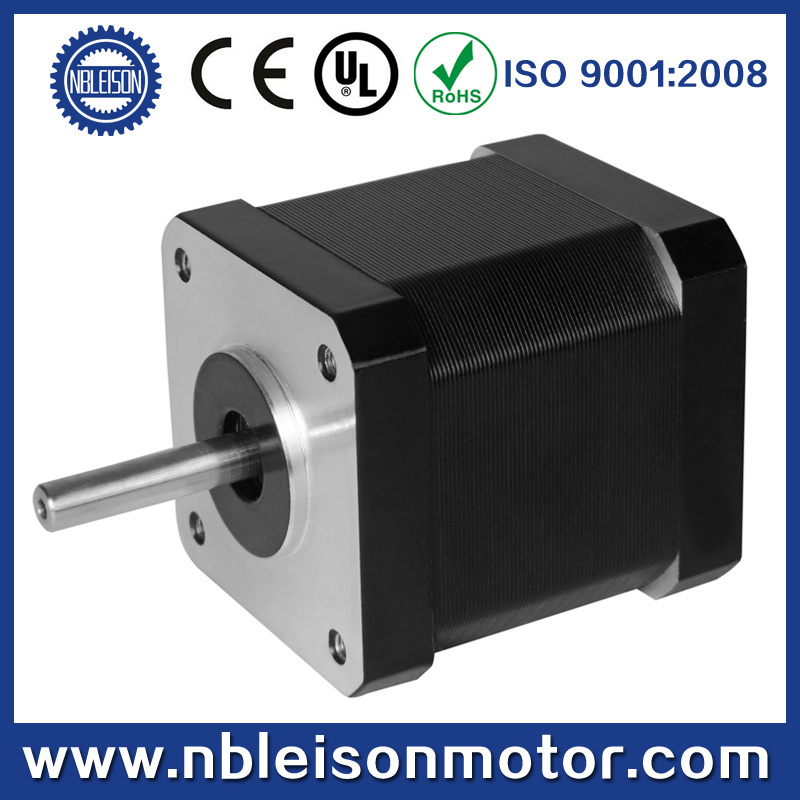

China NEMA 11 NEMA 14 NEMA 17 NEMA 23 NEMA 34 Stepper Motor

Name: China NEMA 11 NEMA 14 NEMA 17 NEMA 23 NEMA 34 Stepper Motor
Brand: all-electronics-online.com
SKU: 678456922
Availability: InStock
Rating: 5 (32 reviews)

Price:	US $ 6.58-10/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	2/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	17HS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Step Angle:	1.8 or 0.9
Hold Torque:	up to 30 N.M
Phase:	2 Phase
Current:	0.1-8A
Motor Body Length:	Customized
Shaft:	D-Cut or Round, Customized Shaft Length
Connectors:	Can with Connectors, 4 or 6 Lead Wires
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Type:	Magnetic-Electric
Application:	CNC Machine, Printer, Lighting, camera

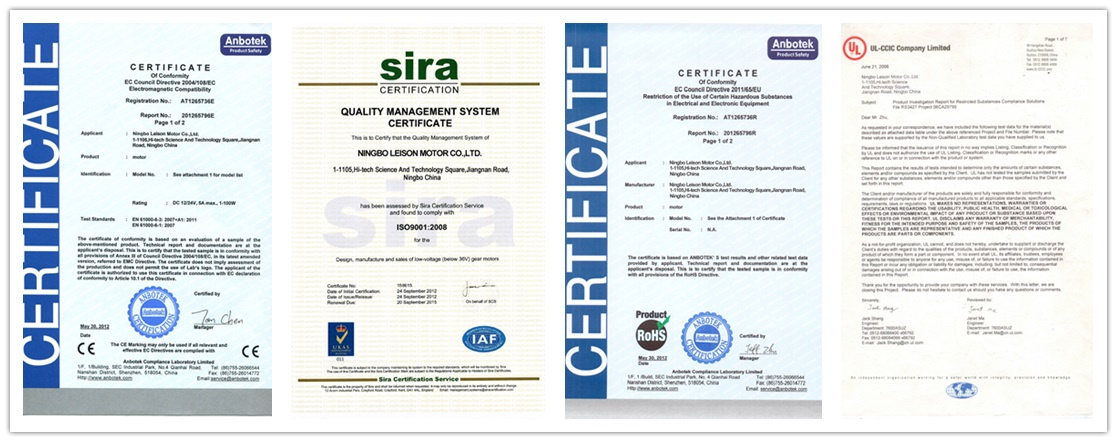

Certification:	Ce,RoHS
Brand:	Leison Motor

Product Description

1. Stepper Motor Specifications:

Step Angle Accuracy: ± 5% full step, no load
Ambient Temperature: -20° - +50°
Insulation Resitance: 100M Ω Min 500V DC
Dielectric Srength: 500V AC for one mintue
Resistance Accuracy: ± 10%
Temperature Rise: 80° Max.

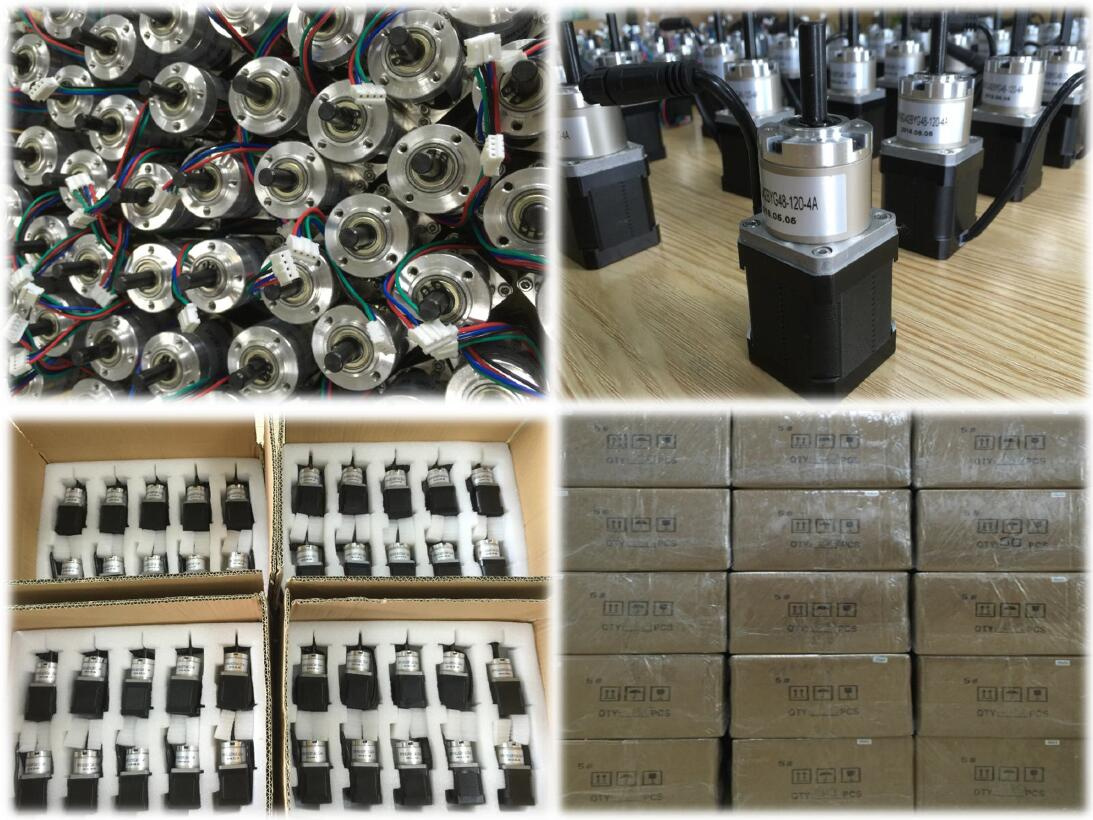

2. Packaging Detail: Foam inner, Papers Carton Outside, 60PCS/CTNS Carton size is 37*31*22cm

3. Note:Motor's current,holding toruqe, shaft can be customzied, Please let me know your requirement, Also we proudce stepper motor nema 08 ,nema 11,nema 14, nema 16, nema 17, nema 23, nema 24, nema 34 and nema 42, It can be equipped with gearbox and with lead screw, suitable driver and so on, Please contact with me if have any questions!

4. More information about our company:

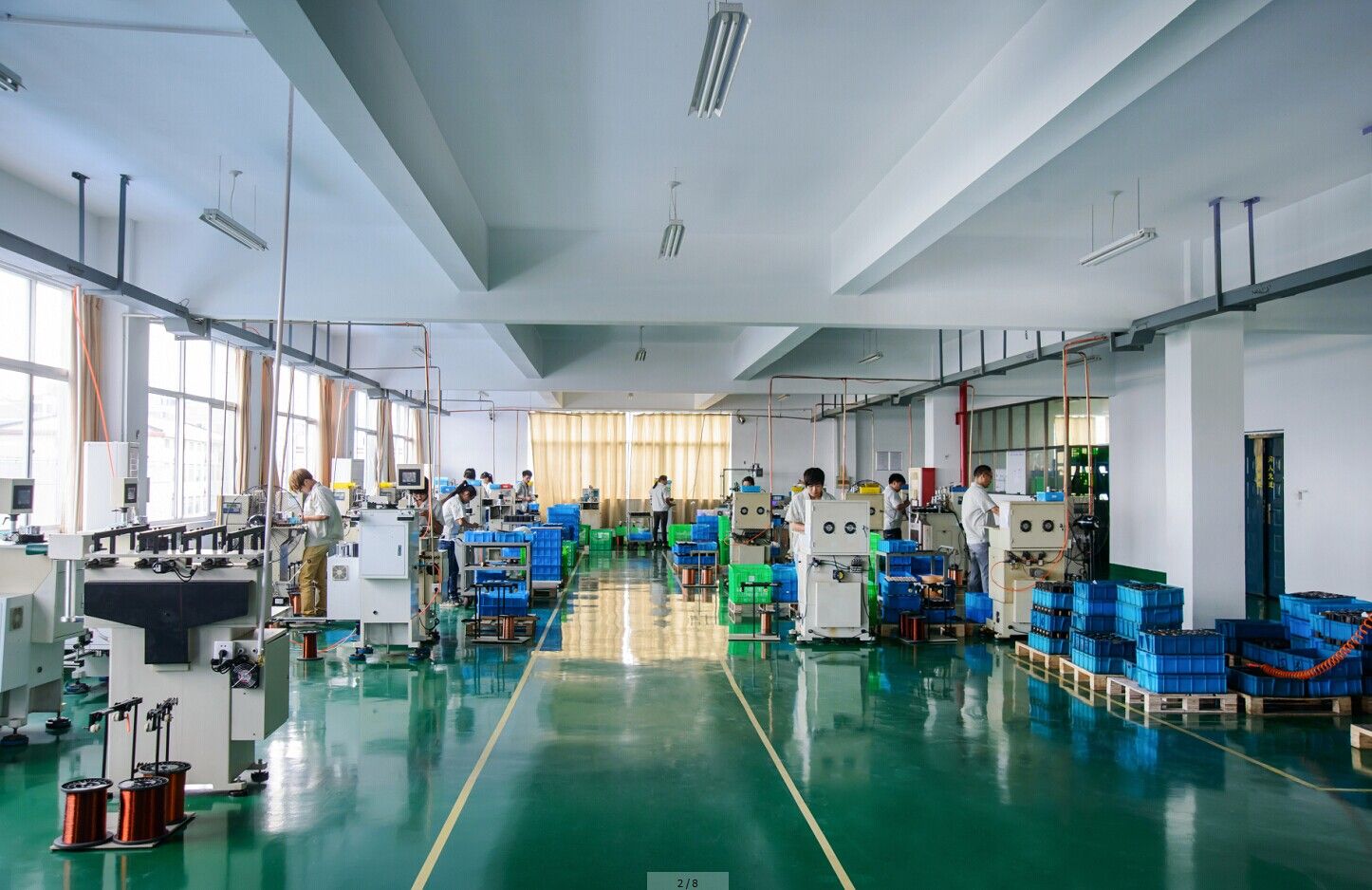

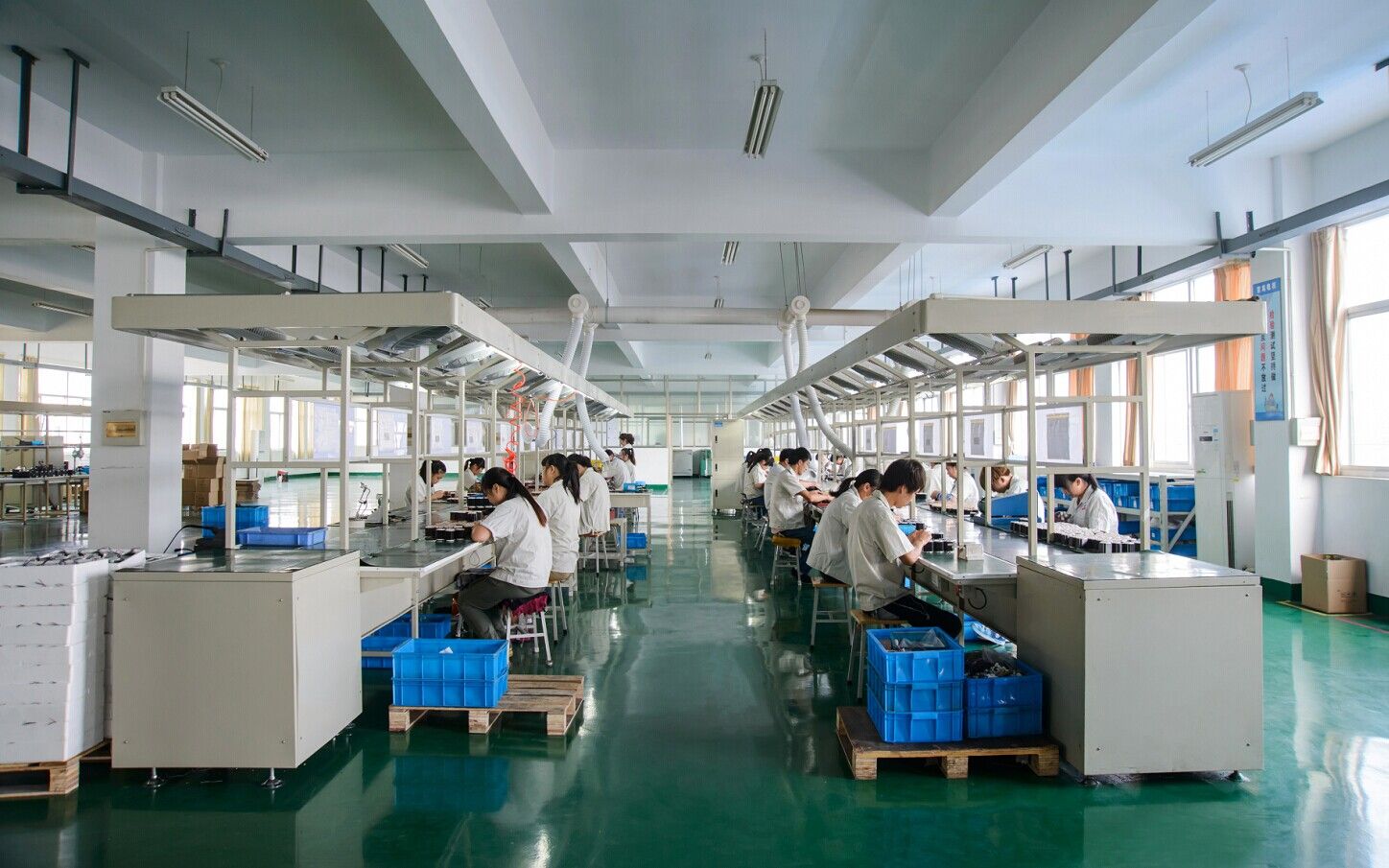

Production line:

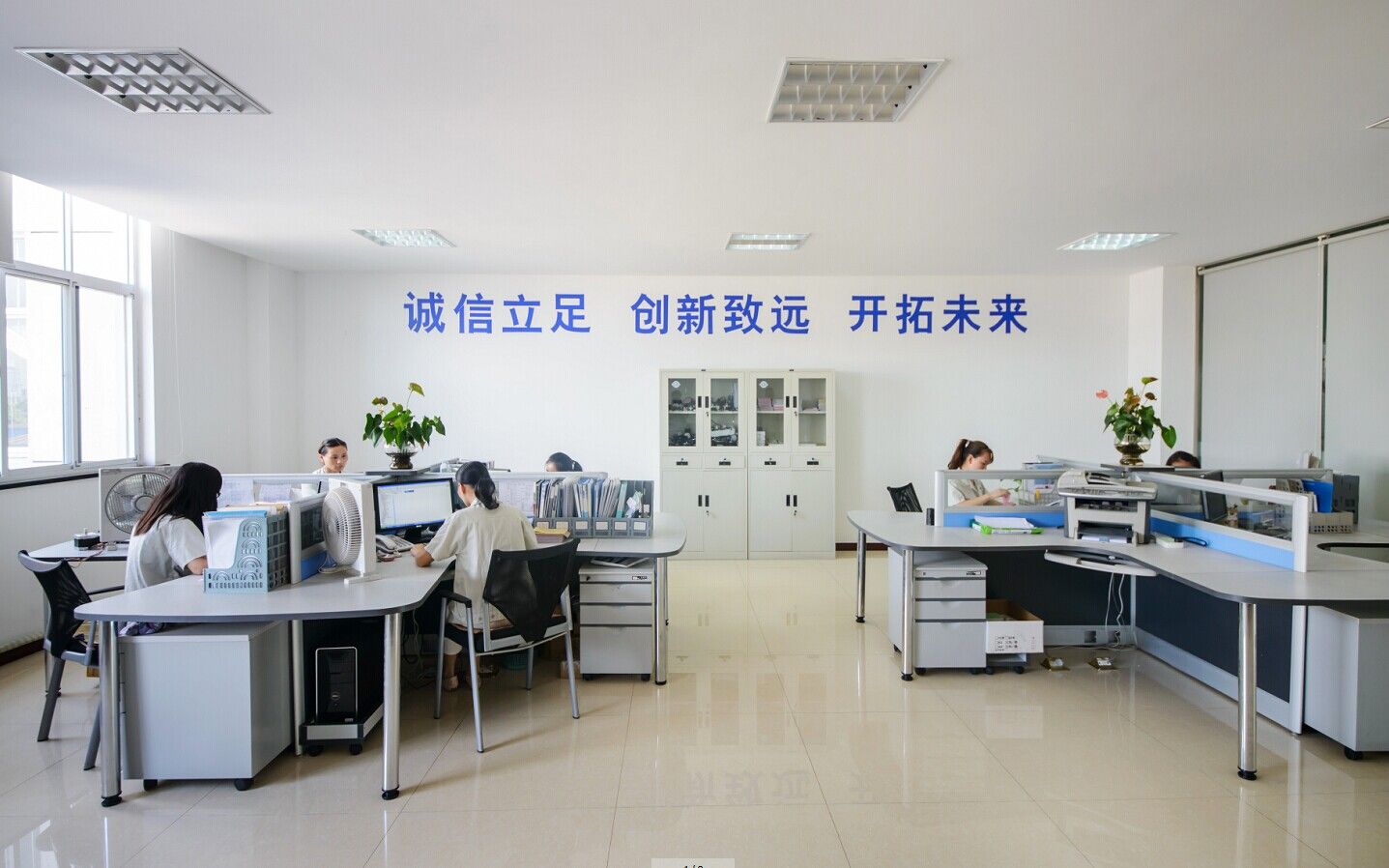

Office:

Series Model	Step Angle (° )	Motor Length (mm)	Rated Current (A)	Phase Resistance ( Ω )	Phase Inductance (mH)	Holding Torque (N. cm Min)	Detent Torque (N. cm Max)	Rotor Inertia (g. cm 2 )	Lead Wire (No. )	Motor Weight (g)
17HS2408	1.8	28	0.6	8	10	12	1.6	34	4	150
17HS3401	1.8	34	1.3	2.4	2.8	28	1.6	34	4	220
17HS3410	1.8	34	1.7	1.2	1.8	28	1.6	34	4	220
17HS3430	1.8	34	0.4	30	35	28	1.6	34	4	220
17HS3630	1.8	34	0.4	30	18	21	1.6	34	6	220
17HS3616	1.8	34	0.16	75	40	14	1.6	34	6	220
17HS4401	1.8	40	1.7	1.5	2.8	40	2.2	54	4	280
17HS4402	1.8	40	1.3	2.5	5.0	40	2.2	54	4	280
17HS4602	1.8	40	1.2	3.2	2.8	28	2.2	54	6	280
17HS4630	1.8	40	0.4	30	28	28	2.2	54	6	280
17HS8401	1.8	48	1.7	1.8	3.2	52	2.6	68	4	350
17HS8402	1.8	48	1.3	3.2	5.5	52	2.6	68	4	350
17HS8403	1.8	48	2.3	1.2	1.6	46	2.6	68	4	350
17HS8630	1.8	48	0.4	30	38	34	2.6	68	6	350

Ningbo Leison Motor Co. Ltd is a manufacturer and exporter of virious of motors,

Our Product range are:

DC Brush motor: 6-130mm diameter, 0.01-1500W output power.

DC Spur Gear Motor: 12-110mm diameter, 0.1-300W output power

DC Planeary Gear Motor: 10-82mm diameter, 0.1-1000W output power

Brushless DC Motor: 28-110mm, 5-1000W output power

Stepper Motor: NEMA 08 to NEMA 43, Can with gearox and lead screw

AC Gear Motor: 49 to 100mm diameter, 6-140 output power

Compare with other competitors, Our advantages are:

1) High Quality Guarantee: 10 years experiences in this field makes us have mature manufacturing process, Most of motors have CE, RoHS marks.

2) Competitive Price: We have a very high competitive ability of the list prices based on low cost labour force in China.

3) Good Service: LEISON MOTOR sales are professional and with good attitude, We will response with our customer within 24 hours(Holiday excepted), So you don' T need way about can' T not find the person when have agent things.

4) On Time Delivery: The delay delivery always are a headache problem for most of buyers, Our technical team and sales team make us can promise about 95% delivery on time.

5) Customized requirement: Beside normal products, We also design the motors according to customer requirement. Meanwhlile our MOQ is very low, (Even 1PC for some motors).

Still need more reasons? Now begin business with LEISON MOTOR, You will find we are a reliable and trustworthy in China.
