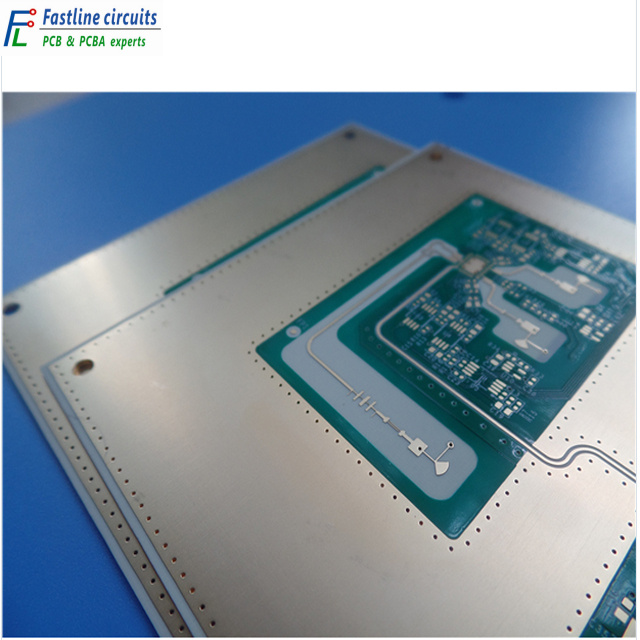

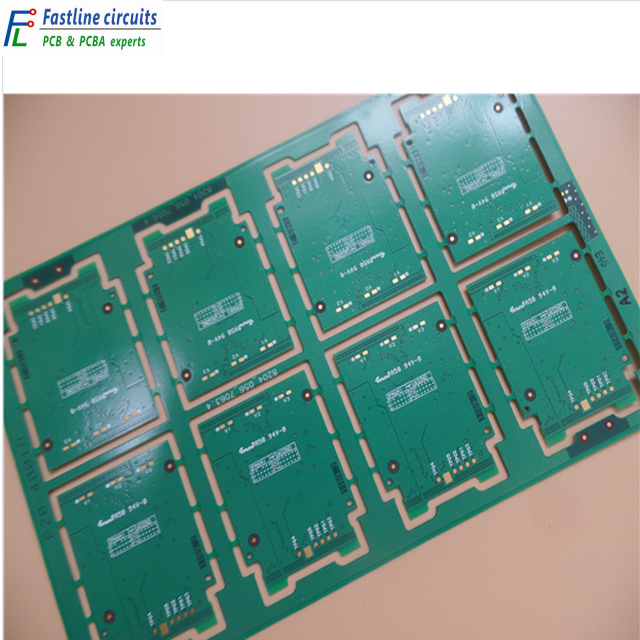

China OEM 94V0 Single-Sided Ceramic PCB Prototype Multilayer Ceramic Printed Circuit Board
| Price: |
US $ 0.15-0.38/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
Fl115 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Board Material: |
Ceramic |
| Board Thickness: |
1.5mm |
| Copper Thickness: |
0.5oz |
| Min. Hole Size: |
0.25mm |
| Min. Line Width: |
0.15mm |
| Min. Line Spacing: |
0.15mm |
| Surface Treatment: |
HASL Lead Free |
| Lead Time: |
5-7 Working Days |
| Small Order: |
Accepted |
| PCB Type: |
Ceramic LED PCB Board |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V0 |
| Material: |
Aluminum |
| Dielectric: |
Aluminum |
| Brand: |
Fastline |
Product Description
Product DescriptionCommodity Introduction
This is a type of 1 layer high frequency Ceramic circuit board at 1.0mm thick for the application of Radar RF. The base laminate is from Ceramic.Withe solder mask and White silkscreen on top side. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 20 panel boards are packed separately. There're blind via from top to inner layer 1 which increase the difficulty of making the plate.Parameters & Data Sheet| PCB SIZE | 37 x 40mm=1PCS |
| BOARD TYPE | |
| Number of Layers | 1 layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | YES |
| LAYER STACKUP | copper ------- 18um(0.5oz)+plate TOP layer |
| 7628H x1 (0.195mm) |
| copper ------- 35um(1oz) MidLayer 1 |
| FR-4 1.0mm |
| copper ------- 35um(1oz) MidLayer 2 |
| 7628H x 1 (0.195mm) |
| copper ------- 18um(0.5oz)+plate BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 6mil/5mil |
| Minimum / Maximum Holes: | 0.35/3.14mm |
| Number of Different Holes: | 7 |
| Number of Drill Holes: | 1519 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | Single Trace Impedance Control, L1, L4, 7mil, 50Ohm.
Differential Pairs Impedance Control, L1, L3, 6.1/8.2mil
90Ohm |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4 Tg170ºC, Shengyi S1170 |
| Final foil external: | 1oz |
| Final foil internal: | 1oz |
| Final height of PCB: | 1.6mm ±0.16 |
| PLATING AND COATING | |
| Surface Finish | Immersion gold 0.025µm over 3µm Nickel |
| Solder Mask Apply To: | TOP and Bottom, 12micron Minimum |
| Solder Mask Color: | Gloss Green, LP-4G/G-05, Nanya supplied |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, S-380W, TAIYO Supplied |
| Manufacturer Name or Logo: | Marked on the board in a conductor and leged FREE AREA |
| VIA | Plated through hole(PTH), Via tented. |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Digital receiver, analogue repeater , 24 Volt Inverter
Burglar Alarm Systems
GPS Tracking Chip
DC Transformer
Data Logging |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
| Items | Speci. | Remark |
| Max panel size | 32" x 20.5"(800mm x 520mm) | |
| Min trace width/ space (inner layer) | 4mil/4mil(0.1mm/0.1mm) | |
| Min PAD (inner layer) | 5 mil(0.13mm) | hole ring width |
| Min thickness(inner layer) | 4 mil(0.1mm) | without copper |
| Inner copper thickness | 1~4 oz | |
| Outer copper thickness | 0.5~6 oz | |
| Finished board thickness | 0.4-3.2 mm | |
Board thickness tolerance control | ±0.10 mm | ±0.10 mm | 1~4 L |
| ±10% | ±10% | 6~8 L |
| ±10% | ±10% | ≥10 L |
| Inner layer treatment | brown oxidation | |
| Layer count Capability | 1-30 LAYER | |
| alignment between ML | ±2mil | |
| Min drilling | 0.15 mm | |
| Min finished hole | 0.1 mm | |
| Hole precision | ±2 mil(±50 um) | |
| tolerance for Slot | ±3 mil(±75 um) | |
| tolerance for PTH | ±3 mil(±75um) | |
| tolerance for NPTH | ±2mil(±50um) | |
| Max Aspect Ratio for PTH | 8:1 | |
| Hole wall copper thickness | 15-50um | |
| Alignment of outer layers | 4mil/4mil | |
| Min trace width/space for outer layer | 4mil/4mil | |
| Tolerance of Etching | +/-10% | |
| Thickness of solder mask | on trace | 0.4-1.2mil(10-30um) | |
| at trace corner | ≥0.2mil(5um) | |
| On base material | ≤+1.2mil
Finished thickness | |
| Hardness of solder mask | 6H | |
| Alignment of solder mask film | ±2mil(+/-50um) | |
| Min width of solder mask bridge | 4mil(100um) | |
| Max hole with solder plug | 0.5mm | |
| Surface finish | HAL (Lead or Lead free), immersion Gold, Immersion Nickel, Electric Gold finger, Electric Gold, OSP, Immersion Silver. | |
| Max Nickel thickness for Gold finger | 280u"(7um) | |
| Max gold thickness for Gold finger | 30u"(0.75um) | |
| Nickel thickness in Immersion Gold | 120u"/240u"(3um/6um) | |
| Gold thickness in Immersion Gold | 2u"/6u"(0.05um/0.15um) | |
| Impedance control and its tolerance | 50±10%,75±10%,100±10% 110±10% | |
| Trace Anti-stripped strength | ≥61B/in(≥107g/mm) | |
bow and twist
| 0.75%
|

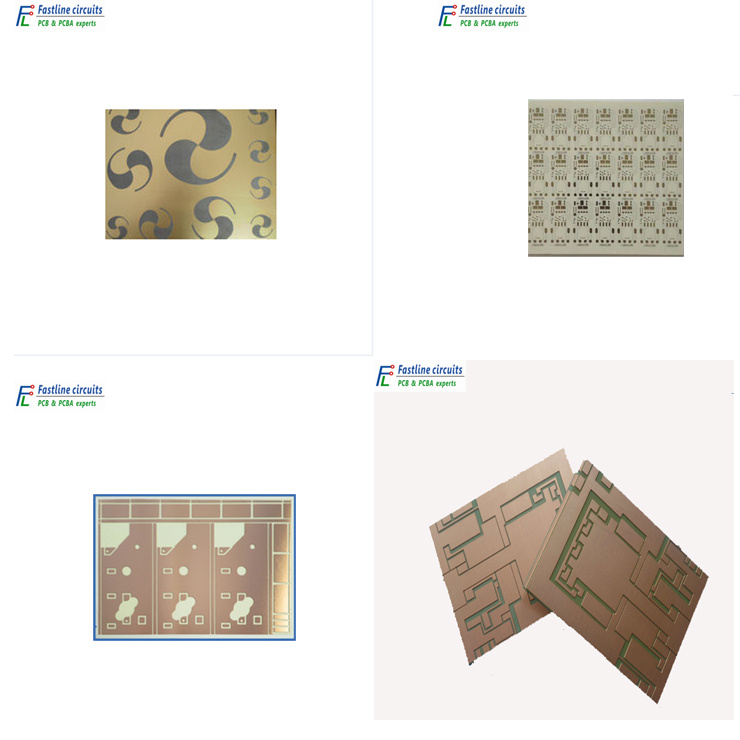

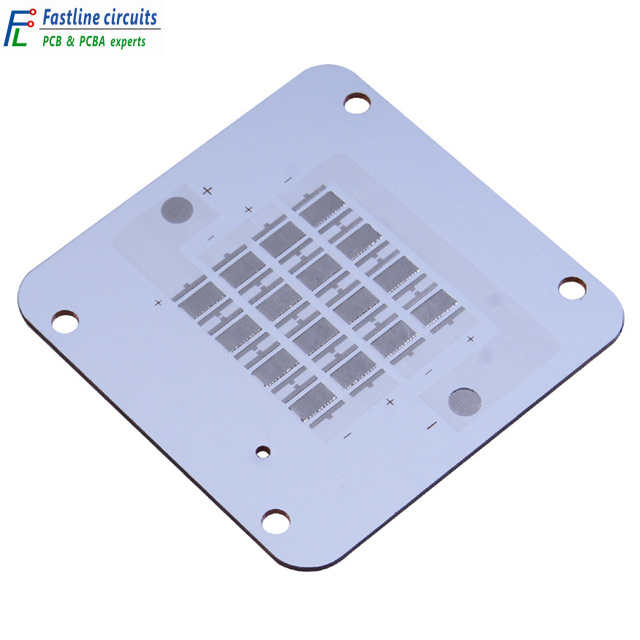

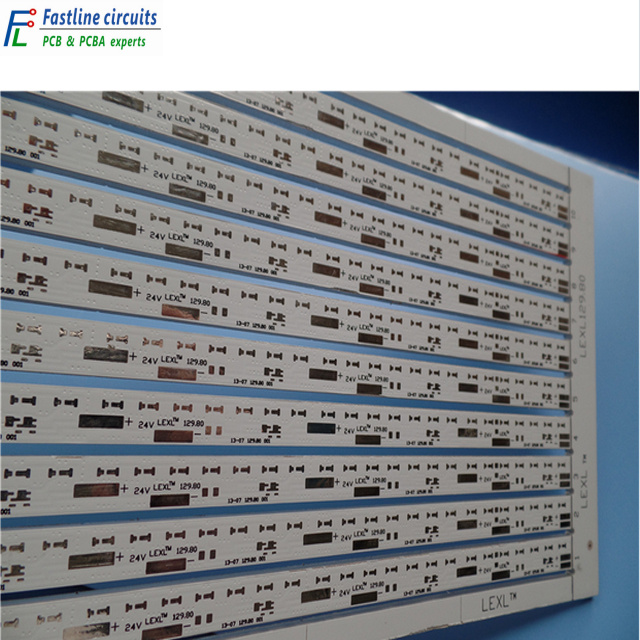

Ceramic PCB
