Product Description
Product Description
Type: RW7
Rated Voltage ( kV ) : 12
Rated Current ( A ) :100,200
Breaking Current ( A ) : 6300,12500
Impulse Voltage ( BIL ) : 110
Power - Frequency Withstand Voltage ( kV ) : 42
Leakage Distance ( mm ) : 230
Dimension(cm): 49x25x12
| Type | Rated voltage(KV) | Rated current(A) | Breaking current(A) | Impulse voltage(BIL) | Power-frequency withstand voltage(KV) | Leakage distance(mm) | Weight(kg) | Dimensions(cm) |
| RW7 | 12 | 100 | 6300 | 110 | 42 | 230 | 7 | 49x25x12 |
| RW7 | 12 | 200 | 12500 | 110 | 42 | 230 | 7.3 |
Data of technical
>>A, XRNT-24----32A
Rated voltage: 24KV
Rated current of fuse: 32A
Rated current of melter: 1, 2, 4, 6.3, 10, 16, 20, 25, 31.5, 32 A
Dimension: 442*51mm
>>B, XRNT-24---100A
Rated voltage: 24KV
Rated current of fuse: 100A
Rated current of melter: 40, 50, 63, 71, 80, 100 A
Dimension: 442*76mm
>>C, XRNT-24----200A
Rated voltage: 24KV
Rated current of fuse: 200A
Rated current of melter: 125, 160, 200 A
Dimension: 442*88mm
Other Information
Notes for ordering
Please offer the followings while ordering:
>A, Type and name of products;
>B, Rated voltage and rated current;
>C, Breaking current and quantity;
>D, Please indicate if details of special requests while ordering.
Parameters
| TYPE | RLF-3 | RLF-3 |
| Rated voltage(kv) | 10-15 | 10-15 |
| Rated current(A) | 100 | 200 |
| Breaking Current(A) | 6000 | 8000 |
| Impulse voltage(KV) | 110 | 110 |
| Power-frequency withstand voltage(KV) | 40 | 40 |
| Creepage distance(mm) | 340 | 340 |
| Weight(kg) | 7.5 | 7.5 |
| Dimensions(cm) | 49*27*11 | 49*27*11 |
Porcelain Fuse Cutout Drop out Fuses 11-36kv
1.ISO9001,CE
2.90%exportation
3.good quality and reasonable price
Product Description

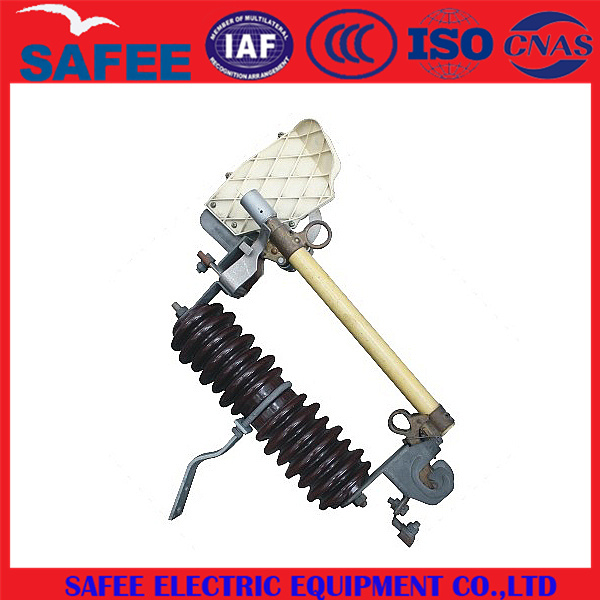

Outdoor Fuse Cutout 10KV-36KV
Application: Protection device for protecting power system from over-load and short-circuit failure.
Ratings: 11kV-36kV.
Standards: IEC 600282-2
Features:
1, High over-current protection capability, high breaking current.
2, High industrial frequency withstands voltage, and mechanical strength, etc.
3, High quality on strict testing.
Technical Data:
Rated voltage: 11kV to 66kV.
Rated current: Up to 200A.
Specifications
1.Parallel-groove connector:Tinplated cast red brass. For ease of conductor connection, accommodates two conductors of unlike size in a single connector. Other styles of connectors are also available
2.Birdproof-design insulator:Higher insulation characteristics than ANSI distribution-cutout standards
3.Trunnion:High-strength cast bronze, silver plated. Surfaces around trunnion bear on broad hinge surfaces to keep tube in alignment during closing
4.Sturdy ferrules:Pinned to top and bottom of tube for permanent alignment . Either the large, accessible lifting ring or the keyhole (not visible in photo) may be engaged with a hookstick for secure control of fuse tube during fuse-tube insallation or removal
| The rated voltage | Rated current | breaking current | Impulse voltage | Power frequency withstand voltage | Creepage distance | weight | Overall dimensions |
| 15 | 100 | 10000 | 110 | 40 | 260 | 8.5 | 48.5×44×13.5 |
| 15 | 200 | 12000 | 110 | 40 | 260 | 8.5 |
Rated Voltage
(kV) | Rated current
(A) | Breaking current
(A) | Impulse voltage
(BIL) | Power-frequency withstand voltage (kV) | Leakage distance
(MM) |
| 33 | 100 | 10000 | 170 | 70 | 720 |
| 33 | 200 | 12000 | 170 | 70 | 720 |
Rated voltage: 11kV to 66kV.
Rated current: Up to 200A.
Note: For detail, please refer to the catalogue.
Rated Voltage
(kV) | Rated current
(A) | Breaking current
(A) | Impulse voltage
(BIL) | Power-frequency withstand voltage (kV) | Leakage distance
(MM) |
| 24 | 100 | 10000 | 150 | 65 | 520 |
| 24 | 200 | 12000 | 150 | 65 | 520 |
| The rated voltage | Rated current | breaking current | Impulse voltage | Power frequency withstand voltage | Creepage distance | weight | Overall dimensions |
| 15 | 100 | 10000 | 110 | 40 | 260 | 8.5 | 48.5×44×13.5 |
| 15 | 200 | 12000 | 110 | 40 | 260 | 8.5 |
Note: For detail, please refer to the catalogue.
Rated Voltage
(kV) | Rated current
(A) | Breaking current
(A) | Impulse voltage
(BIL) | Power-frequency withstand voltage (kV) | Leakage distance
(MM) |
| 36 | 100 | 10000 | 170 | 70 | 1100 |
| 36 | 200 | 12000 | 170 | 70 | 1100 |
