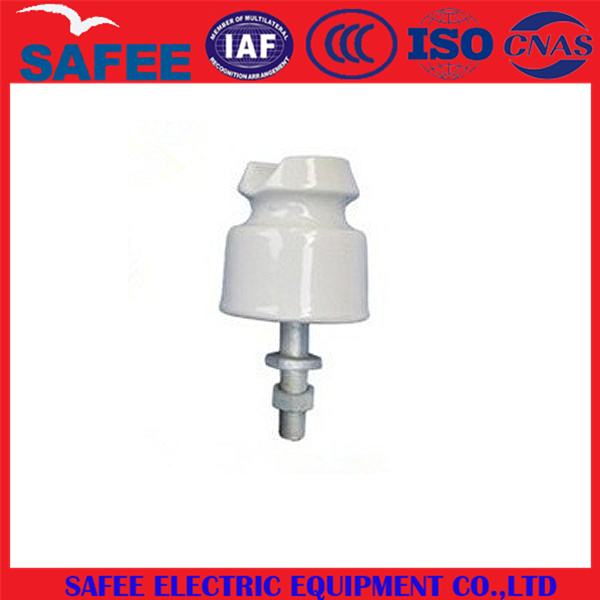

| Application: |
High-voltage |
| Material: |
Porcelain |
| Structure: |
Pin Insulator |
| Type: |
A Type Insulator |
| Certification: |
GB UL |
| Color: |
Brown or Light Gray |
| Brand: |
Safee |
Product Description
Product Description

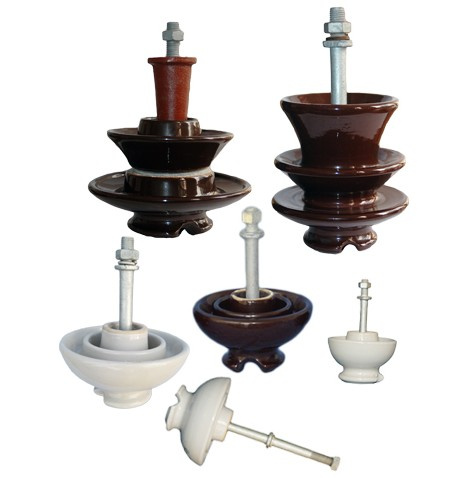

PRODUCT MODEL DESCRIPTION:
Conventional type:
p- pin insulator, the number after the dash indicating rated voltage (kv)
M- wooden arm angel
T-iron arm angel
| model No. | rated voltage (kv) | dimensions (mm) | nominal creepage distance (mm) | bending load (kN) | power frequency voltage(kv) | 50% full wave impulse flashover voltage |
| H | D | H1 | H2 | D1 | wet flashover | breakdown |
| P-6T | 6 | 90 | 125 | 30 | 30 | M16 | 150 | ----------- | 28 | 65 | 70 |
| P-6M | 6 | 90 | 125 | 140 | 140 | M16 | 150 | ----------- | 28 | 65 | 70 |
| P-10T | 10 | 105 | 145 | 151 | 35 | M16 | 195 | 13.7 | 32 | 95 | 80 |
| P-10M | 10 | 105 | 145 | 151 | 140 | M16 | 195 | 13.7 | 32 | 95 | 80 |
| P-15T | 15 | 120 | 190 | 160 | 40 | M20 | 280 | 13.7 | 45 | 98 | 118 |
| P-15M | 15 | 120 | 190 | 160 | 140 | M20 | 280 | 13.7 | 45 | 98 | 118 |
| P-20T | 20 | 165 | 228 | 245 | 45 | M20 | 370 | 13.2 | 57 | 111 | 140 |
| P-20M | 20 | 165 | 228 | 245 | 180 | M20 | 370 | 13.2 | 57 | 111 | 140 |
| P-35T | 35 | 200 | 280 | 285 | 45 | M20 | 560 | 13.2 | 80 | 156 | 175 |
| P-35M | 35 | 200 | 280 | 285 | 210 | M20 | 560 | 13.2 | 80 | 156 | 175 |
ANTI POLLUTION TYPE HIGH VOLTAGE LINE PIN INSULATOR
| model No. | rated voltage (kv) | dimensions (mm) | nominal crepage distance (mm) | mechanical bending load (kN) | power frequency voltqge (kv) | lightning full wave impulse voltage (kv) |
| H | D | H1 | H2 | D1 | tolerance | failure | wet flashover | breakdown |
| PQ-10T16 | 10 | 133 | 140 | 183 | 40 | M16 | 255 | 2.0 | 10.6 | 40 | 130 | 90 |
| PQ-10T20 | 10 | 133 | 140 | 183 | 40 | M20 | 255 | 2.0 | 10.6 | 40 | 130 | 90 |
| PQ-10T20 | 20 | 185 | 175 | 210 | 40 | M20 | 340 | 2.0 | 13.3 | 40 | 145 | 105 |
BS Porcelain Pin Type Insulator P-11-Y
Porcelain Insulator include pin type insulator , suspension type ,post type insulator
BS Porcelain Pin Type Insulator P-11-Y Specification
| Fig.No. | 1 | 1 | 2 | 3 | 6 | 3 | 4 | 5 | 5 |
| BS class | P-11-Y | P-15-Y | P-22-Y | P-33-Y | P-35-Y | P-44-Y | PW-15-Y | PW-22-Y | PW-33-Y |
| Creepage distance, mm | 240 | 298 | 432 | 630 | 720 | 864 | 432 | 673 | 851 |
| Dry arcing distance, mm | 102 | 133 | 200 | 360 | 399 | 483 | 197 | 267 | 419 |
| Main dimension, mm | H | 133 | 137 | 165 | 244 | 270 | 318 | 185 | 255 | 320 |
| h | 48 | 48 | 52.6 | 52.6 | 52.6 | 52.6 | 52.6 | 52.6 | 52.6 |
| D | 140 | 152 | 229 | 280 | 270 | 343 | 170 | 205 | 240 |
| d | 18.3 | 18.3 | 27.8 | 27.8 | 27.8 | 27.8 | 27.8 | 27.8 | 27.8 |
| R1 | 13 | 13 | 19 | 19 | 14 | 19 | 16 | 16 | 16 |
| R2 | 9.5 | 11 | 14.3 | 13 | 14 | 14.3 | 16 | 16 | 16 |
| Cantileveer Strength, KN | 11 | 11 | 11 | 13 | 13 | 13 | 11 | 11 | 13 |
| Min flashover voltage | Power frequency | Dry, KV | 75 | 80 | 100 | 135 | 140 | 155 | 100 | 125 | 140 |
| Wet, KV | 50 | 55 | 60 | 95 | 100 | 110 | 65 | 95 | 110 |
| Critical Impulse | Pos, KV | 115 | 130 | 160 | 180 | 215 | 240 | 150 | 190 | 210 |
| Neg, KV | 150 | 175 | 205 | 290 | 295 | 305 | 190 | 235 | 245 |
| Withstand voltage | 1 min. power
frequency | Dry, KV | 65 | 70 | 90 | 110 | 115 | 125 | 90 | 110 | 125 |
| Wet, KV | 40 | 50 | 55 | 75 | 85 | 100 | 60 | 90 | 100 |
| Withstand voltage Impulse, KV | 90 | 110 | 150 | 170 | 190 | 200 | 140 | 180 | 200 |
| RIV. Data | Test volt. To gound | 15 | 15 | 22 | 30 | 35 | 44 | 22 | 30 | 44 |
| Max RIV at 1000HZ, UV | 8000 | 8000 | 12000 | 16000 | 18000 | 25000 | 12000 | 16000 | 25000 |
| Power frequency puncture voltage, KV | 150 | 150 | 200 | 210 | 230 | 250 | 150 | 200 | 210 |
| Approx weight, kg | 1.8 | 2 | 5 | 11 | 12.5 | 14 | 4.7 | 9.1 | 12.5 |
Ceramic Pin Insulator 55-2 type low voltage porcelain
Porcelain Insulator include pin type insulator , suspension type ,post type insulator
Ceramic Pin Insulator 55-2 type low voltage porcelain Specification
Class
ANSI |
Main Dimension in (mm) |
Leakage Distance |
Min.Pin
Length in (mm) |
Gantilever
Strength 1b (KN) |
Flashover Voltage |
Power
Frequency Puncture
Voltage Kv |
Radio Influence Voltage |
| D | H |
Power Frequency |
Impulse |
Test Voltage
TO Ground KV |
Max RIVAt 1 MHz uv |
Dry kv |
Wet kv |
Positive kv |
Negative kv |
| 55-1 | 3-1/4
(83) | 3-1/2
(89) | 4
(102) | 4
(102) | 3000
(13) | 35 | 20 | 50 | 70 | 50 | 5 | 2500/50 |
| 55-2 | 3-3/4
(95) | 3-1/4
(83) | 5
(127) | 4
(102) | 2500
(11) | 50/45 | 25 | 75/70 | 95/85 | 70 | 5 | 2500/50 |
| 55-3 | 4-3/4
(121) | 3-3/4
(95) | 7
(178) | 5
(127) | 2500
(11) | 65/55 | 35/30 | 100/90 | 130/110 | 90 | 10 | 5500/50 |
| 55-4 | 5-1/2
(140) | 4-3/8
(111) | 9
(229) | 5
(127) | 3000
(13) | 70/65 | 40/35 | 110/105 | 140/130 | 95 | 10 | 5500/50 |
| 55-5 | 7
(178) | 4-7/8
(124) | 12
(305) | 6
(152) | 3000
(13) | 85/80 | 45 | 140/130 | 170/150 |
ANSI type porcelain strain insulator
Specifications
1)porcelain strain insulator
2)ANSI standard strain insulator
3)Strain insulator with cheap price
Service Condition
| Ambient temperature | -40°C~+40°C |
| AC power supply frequency | ≤100 HZ |
| Earthquake intensity | ≤8 |
| Altitude | ≤1500 m |
| Maximum wind velocity | ≤35 m/s |
Description
Strain insulator - A dead end or anchor pole or tower is used where a straight section of line ends, or angles off in another direction. These poles must withstand the lateral (horizontal) tension of the long straight section of wire. In order to support this lateral load, strain insulators are used. For low voltage lines (less than 11 kV), shackle insulators are used as strain insulators. However, for high voltage transmission lines, strings of cap-and-pin (disc) insulators are used, attached to the crossarm in a horizontal direction. When the tension load in lines is exceedingly high, such as at long river spans, two or more strings are used in parallel.
