BOSIN HOLDINGS LTD. >> China Professional Manufacturer for High Quality 12V DC Motor with Potentiometer Linear Actuator

China Professional Manufacturer for High Quality 12V DC Motor with Potentiometer Linear Actuator

China Professional Manufacturer for High Quality 12V DC Motor with Potentiometer Linear Actuator
Price: US $ 2/Piece
Min Order: 1000/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: SL1009
Certificate: ISO9001, ISO14001, Ts16949
Produce Capacity: 10kpcs Per Day
RoHS: 100%
Resistance: Variable Resistor
Function For Resistance: Load Resistor
Installation: DIP Resistor
Material: Carbon Film Resistor
Package Type: Surface Mount
Type: Slide Potentiometer
Brand: BS

Product Description

Potentiometer, slide potentiometers, motorized potentiometers, motorized slide potentiometer

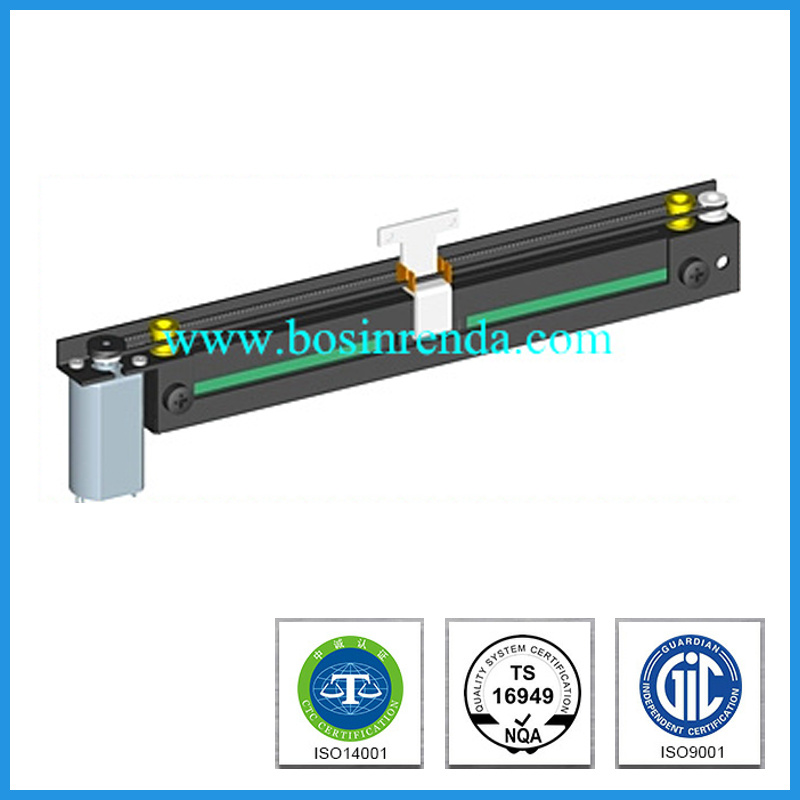

Potentiometer with motor

Bosin electronics is a manufacturer specializing in rotary encoders, potentiometers and switches. Our company passed ISO9001, ISO14001, ISO/TS16949.

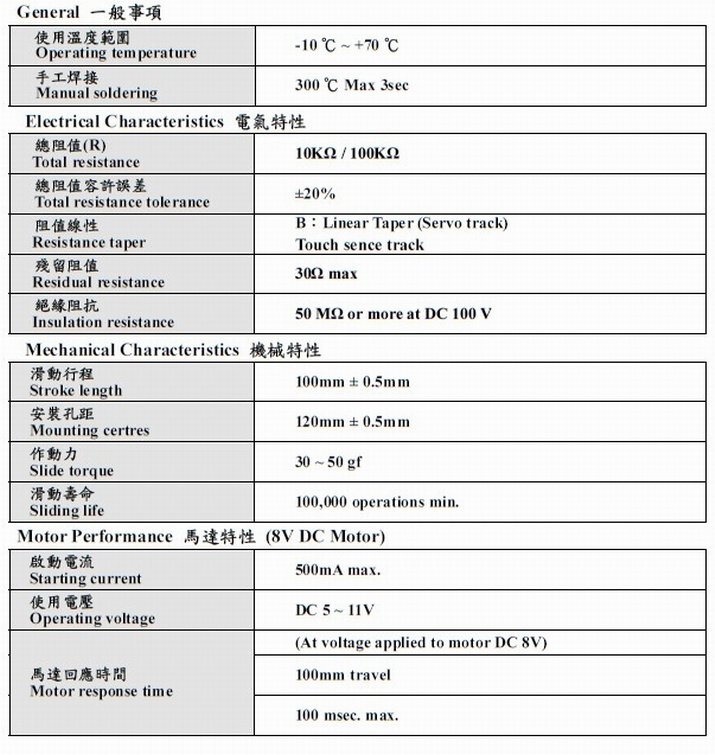

Please check below specification.

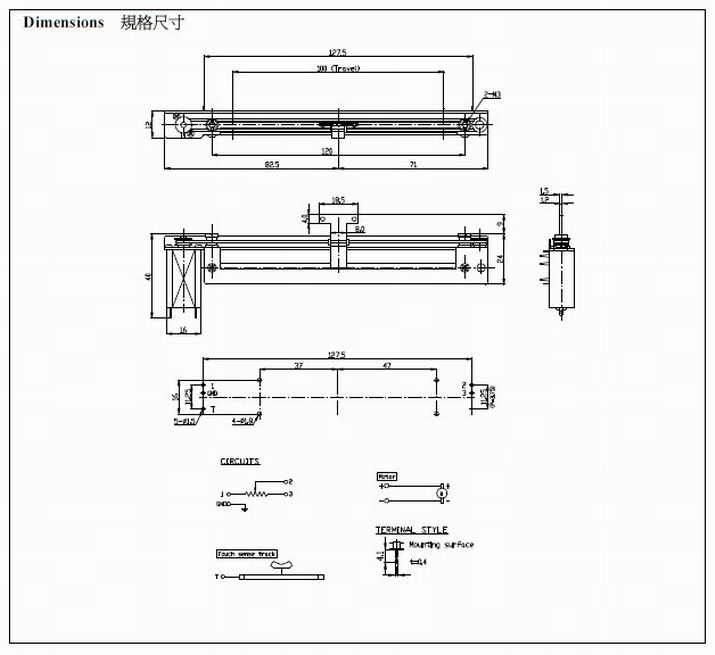

1.Mechanical characteristics slide potentiometer with motor
1.1 Slide Travel:100mm±0.5mm
1.2 Mounting dimension:120mm±0.5mm
1.3 Slide Torque:30~50gf
2.Electrical characteristics
2.1 Total Resistance:10KΩ~100KΩ
2.2 Resistance Tolerance:±20%
2.3 Resistance Taper:B
2.7 Insulation Resistance:More Than 100MΩ at DC 250V
2.8 Withstand Voltage:1 minute at AC 250V/DC 100V
2.9 Residual Resistance:30Ω Max
3.0 Gang error:40db~0db±3db
3.Durability
3.1 Rotational Life:100,000 Cycles Min.
3.2 Working Temperature: -10°C~70°C
3.3 Storage Temperature: -30°C~70°C
4.Motor Capacity
3.1 Starting current:500mA max.
3.2 Opertating voltage:DC 5-11V
3.3 Motor reponse:100mm travel,100msec.max





Bosin Electronics Ltd is invested by Bosin holdings which established in 2006.

The copmany specializing in designing and manufacturing potentiometer, encoder, switch and DC motors. Now our company factory area is about 10000 m2, employees more than 600 persons and technicians more than 60 persons. And we all staffs have strived for five years to build up a set of completely production flow including of developing new product, mould manufacture, spare parts or components manufacture, finished product assembly. We build up a good image of " Bosin" in our field and the products already accepted by LG, PHILIPS, SANYO, BBK, Malata, etc. For a long time.

After decade of efforts, the Bosin products have been sent to over 100 countries, including rotary potentiometers, slide potentiometers, trimmer potentiometers, super-thin potentiometers, encoders and rotary switches, widely applied to computer/multimedia peripherals and various industrial fields. All products are RoHS compliant. For further improving the compatibility and making effort to our quality policy of "Keep Improving, Quality Assurance", the Bosin takes most advanced management mechanism and technologies that including computerized jigs and dies design, automatic assembly facilities and so forth. Now, the Bosin has the capability of producing over 1200 different kinds of hardware, 16 series with about 240 models of potentiometer to meet most of the requirement of the potentiometer market.

The Bosin has passed the certificate of ISO 9001-2000, ISO 14001-2004, TS16949, this assures to satisfy our clients with best quality of products and services. Now, the Bosin is devoting all its efforts to become the top of the potentiometer manufacturer in China.
