| Prod Model: |

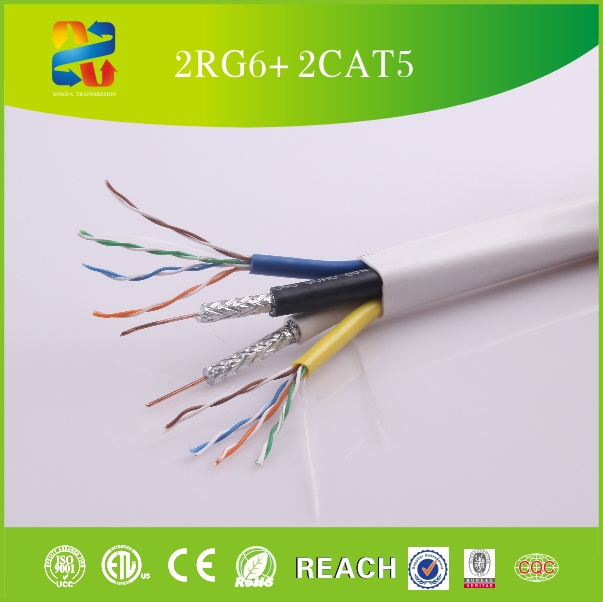

Composite Cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Center Conductor: |
Copper Clad Steel/Solid Bare Copper |
| Dielectric: |
Foam PE/Solid PE |
| Shield: |
Al Foil/Bonded Al Foil |
| Braiding Wire Material: |
Al/Bc/Tinned Copper |
| Jacket: |
PVC |
| Color: |
Per Customers' Special Requirement |
| Certificate: |
ISO9001,CE,ETL,RoHS,Reach,BV |
| Jelly/Apd: |
Per Customers' Special Requirement |
| Overall Jacket: |
7.54mm-13.80mm |
| Application: |
LAN Cable |
| Conductor Material: |
BC/CCS/CCA/TC/CU/CCAG |
| Cover Material: |
PVC |
| Type: |
Composite Cable |
| Certification: |
ETL,Reach,BV,SGS |
| Model: |
Composite Cable |
| Brand: |
Xingfa/OEM |
Product Description
1. Products Specifications:
BC: Bare Copper CCS: Copper Clad Steel
TC: Tinned Copper CCA: Copper Clad Aluminum
1) RG6 Coaxial Cable 75ohm Dual Standard
1.02± 0.01mm CCS Conductor+4.57± 0.05mm PE Foam+Bonded Al Foil+80x0.12mm Al Alloy Wire 60% Braid+6.90± 0.05mm PVC Jacket
2) RG6 Coaxial Cable 75ohm Tri Shielded
1.02± 0.01mm CCS Conductor+4.57±
0.05mm PE Foam+Bonded Al Foil+80x0.12mm Al Alloy Wire 60% Braid+Al Foil+6.9mm PVC Jacket
3) RG6 Coaxial Cable 75ohm Quad Shield
1.02± 0.01mm CCS Conductor+4.57± 0.05mm PE Foam+Bonded Al Foil+80x0.12mm Al Alloy Wire 60% Braid +Double Al Foil+ Al Wire braiding +7.5mm PVC Jacket
4) RG6 Coaxial Cable 75ohm With Messenger
1.02± 0.01mm CCS Conductor+4.57± 0.05mm PE Foam+Bonded Al Foil+80x0.12mm Al Alloy Wire 60% Braid+6.90± 0.05mm PVC Jacket+1.30+0.05mm Messenger
5)OEM
Attenuation | [@68 o F. (20 o C.)] |
| Frequency (MHz) | Maximum (dB/100 ft.) | Maximum (dB/100 m) |
| 5 | 0.58 | 1.9 |
| 50 | 1.5 | 4.9 |
| 100 | 2.0 | 6.5 |
| 200 | 2.8 | 9.2 |
| 400 | 4.1 | 13.6 |
| 700 | 5.6 | 18.4 |
| 900 | 6.2 | 20.3 |
| 1000 | 6.5 | 21.4 |
| 1450 | 8.0 | 26.2 |
| 1800 | 8.5 | 27.9 |
| 2100 | 9.5 | 31.1 |
| 2250 | 10.0 | 34.0 |
| 3000 | 11.4 | 37.5 |
FAQ
What kind of cable do you produce?
We specialize in producing coaxial cable, telephone cable, speaker cable and so on.
What is your MOQ?
Usually, the MOQ is 10km.
What is your delivery time?
Usually, our delivery time is 15 days after received deposit. It is base on the quantity of the order.
What is your payment term?
Usually, we accept T/T.Other payment, we can negotiate with customers.
What is your manner of packing?
Inner Packing:
100m/roll, 200m/roll,300m/roll,100yards/roll;200yards/roll;300yards/roll
305m (1,000ft) wooden reel, wooden drum, plastic drum
Outer Packing:
Wooden drum, carton box, pull out box
Or according to client's request.
Can you customize cables basing on customer's sample?
Yes, of course.
