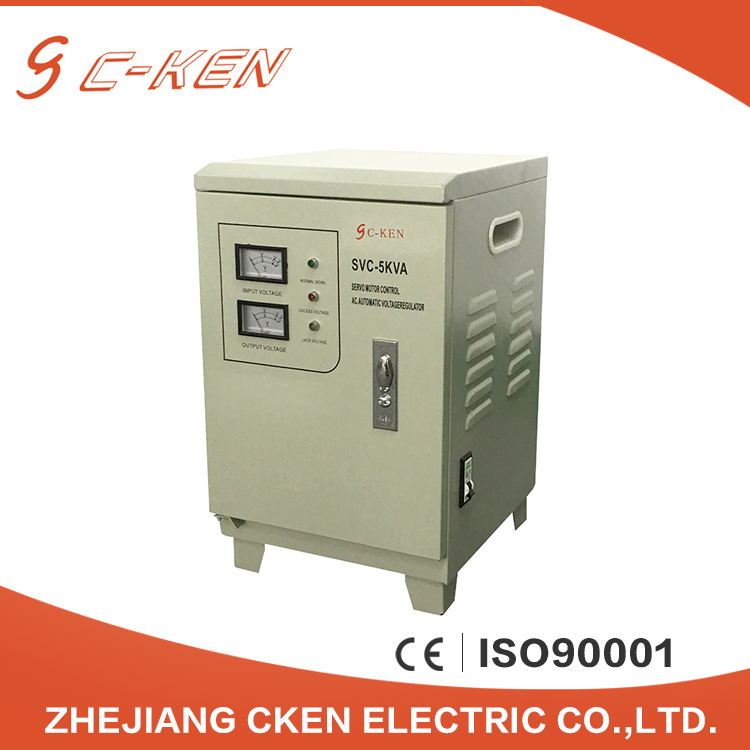

China Supplier 5kVA Single Phase Intelligent Servo Motor Voltage Regulator 5000 Watts Voltage Stabilizer

Name: China Supplier 5kVA Single Phase Intelligent Servo Motor Voltage Regulator 5000 Watts Voltage Stabilizer
Brand: all-electronics-online.com
SKU: 733547772
Availability: InStock
Rating: 4.6 (22 reviews)

Price:	US $ 60.9-64.9/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SVC-5KVA
Current Type:	AC
Phase:	Single Phase
Usage:	SVC
Frequency:	Low Frequency
Brand:	Cken

Product Description

Genaral:

SVC single-phase and three-phase high accuracy full-automatic AC voltage stabilizer is one kind of our dominant products, made up of contact auto voltage regulator, servo motor, automatic control circuit, etc. When the power network voltage fluctuates or the load varies, automatic sampling control circuit will send signal to drive the servo motor which can adjust the position of carbon brush of auto voltage regulator, then, the output voltage will be adjusted to rated value and get a steady state.

Product Properties

Model No.	CKEN SVC-5KVA
Item Name	SVC,Single Phase AC Automatic Voltage Stabilizer
Input Voltage	160V∼250V,120V∼250V,90V∼250V
Output Voltage	AC 220V±3%,110V±3%
Accuracy of Voltage Stabilization	220V±3%,110V±6%
Frequency	50H/60Hz
Protection Over Voltage	246±4V
Max Of Output Current	25A
Phase	Single Phase
Ambient Temperature	-5∼ +40
Insulation Resistance	≥2MΩ
Waveform Distortion	NO additional waveform distortion
Adjustable Time	<1s (when input voltage has a change of 10%)
Dielectric Strength	1500V/1min
Load Power Factor	0.8

FAQ

Q1: How about your delivery time?
A: Generally, it will take 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q2: What is your term of packing?
A: For the small capacity, it use carton, but for big capacity, we should use strong wooden case for protection.

Q3: Can I have a sample for testing?
A: Yes, we can offer free sample, but you should afford the shipping cost.

Q4: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds.

Q5: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery,we will send photos and video to you

Q6: How can I get the after-service?

A: We will send you the free spare parts if the problems caused by us. If the products cannot be repaired, we will send you new free quantity together with next order.

Q7:How about payment terms?
A: 30% deposit, the rest payment balance against B/L. If have regular order and good order quantity, we can give delay payment.

We are a high and new-tech enterprise specialized in research, development, production, and marketing. The leading products include voltage stabilizers, kwh meters, meter parts, power supply parts, transformers and other power supply goods.

Our company ranks leading in passing ISO9001 quality management system certification. The products have obtained certificates like CE and also domestic CCC and CQC. We keep carrying on the development and research of new products. We will abide by quality promise with the spirit of expansion, innovation and marketing.

We believe that our company will be more powerful and far better by your support!
