| Prod Model: |
IG3112 Series Inverter |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Continuous Power: |
500W |
| Output Efficiency: |
Highest94% |
| USB Outlet: |
5V 500mA |
| AC Regulation: |
Thd<3%(Linear Load) |
| Wave Form: |
Pure Sine Wave |
Product Description

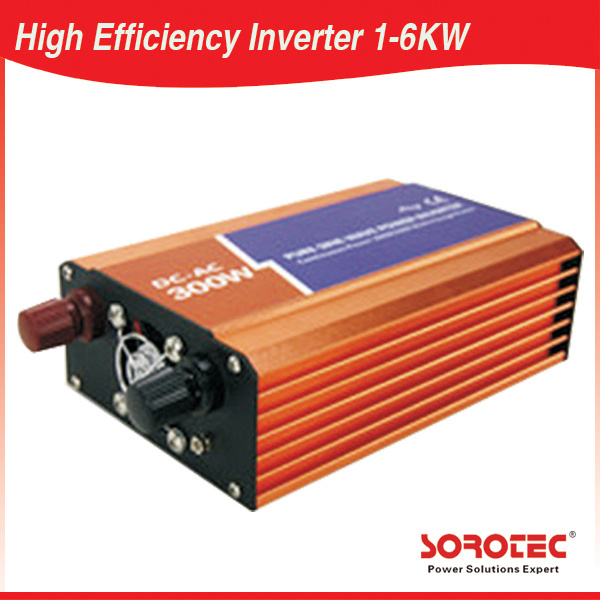

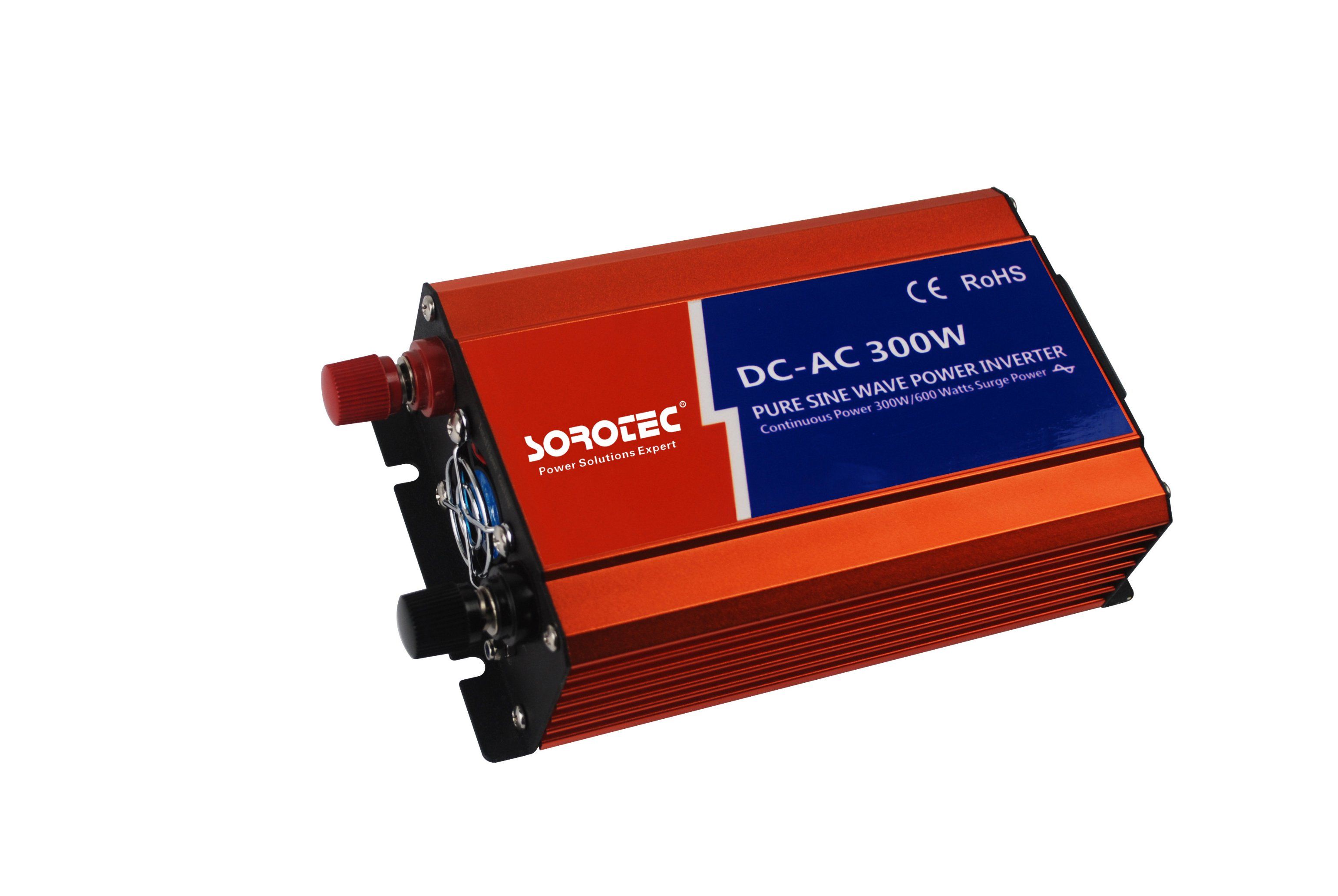

China Supplier Accurate Tools Inverter 150-6000WKey Features :1. Pure Sine wave Output.
2. Low work noise, high efficiency.
3. Small, light and artistic, benefited from adopting the SMD pastern technology.
4. Featured with high reliability and low failure rate by using the advanced Double-CPU single chip intellectual control technology
5. Cooling fan is intellectual controlled, and its working status is controlled by CPU, which mostly increased its service life and helps to save the power consumption, improve work efficiency and lower the working noise.
6. With complete protection: overload protection, internal over-temperature protection, output short-circuit protection, input under-voltage protection, input over-voltage protection, etc, improving the reliability of the products greatly.
SOROTEC all the inverter series :Customized to acce
DC input: DC36V,DC48V ,DC60V,DC72V,DC84V,DC96V,DC110V,DC120V,DC220V etc.
AC output:AC110V,AC120V,AC220V,AC230V,AC240V etc.
Power 300W 500W 800W 1500W 2000W 2500W 3000W 4000W 5000W 6000W 80000W etc.
Frequency :50HZ or 60HZ
With LCD display etc.
1. Better inhibition EMI interference | 2. The former driver control panel ,PWM signal, the perfect protection, precision patch. |
| 3. The after driver control panel, Four-layer board sided precision chip technology, improve the protection of the sine wave signal modulation |
| 4. GB Copper Wire, reducing the line losses |
| 5. Stainless steel screws, insulation covering played shell and radiator insulation ,more safe. |
| 6. Oxidation treatment radiator, heat dissipation more better, more safe. |
| 7. High quality silicone thermal pad, thermal faster,insulation better. |
8. Insulating paper ,make the heat sink and PCB circuit board insulation ,avoid leakage, safety protection
|
IG3112E Inverter Technical Parameters
Model | 500W | 1000W | 2000W | 3000W | 4000W | 6000W |
| Continuous Power | 500W |
| Surge Power | 1000W |
| DC Voltage | DC12V | DC24V | DC48V | DC12V | DC24V | DC48V |
| AC Voltage | 100VAC or 110VAC or 120VAC ±5% | 220VAC or 230VAC or 240VAC ±5% |
| No Load Current Draw | 0.5A | 0.3A | 0.1A | 0.5A | 0.3A | 0.1A |
| Frequency | 50HZ±0.5HZ or 60HZ±0.5HZ |
| Wave Form | Pure Sine Wave |
| AC Regulation | THD<3%(Linear load) |
| USB Outlet | 5V 500MA |
| Output efficiency | Highest94% |
| DC Voltage Range | 10-15.5V | 20-31V | 40-61V | 10-15.5V | 20-31V | 40-61V |
| Low Voltage Alarm | 10.5±0.5V | 21±0.5V | 42±1V | 10.5±0.5V | 21±0.5V | 42±1V |
| Low Voltage Shut Down | 10±0.5V | 20±0.5V | 40±1V | 10±0.5V | 20±0.5V | 40±1V |
| Over Voltage Shut Down | 15.5±0.5V | 31±0.5V | 61±1V | 15.5±0.5V | 31±0.5V | 61±1V |
| Low Voltage Recovery | 13±0.5V | 24±0.5V | 48±1V | 13±0.5V | 24±0.5V | 48±0.5V |
| Over Voltage Recovery | 14.8V±0.5V | 29.5V±0.5V | 59V±1V | 14.8V±0.5V | 29.5V±0.5V | 59V±0.5V |
| Protection | Low Voltage/Over Voltage | LED Alarm and Automatic Recovery |
| Overload | LED Alarm and Automatic Recovery |
| Over Temperature | LED Alarm and Automatic Recovery |
| Short Circuit | LED Alarm and Automatic Recovery |
| Input Oppose | Diode or Mos FET |
| Working Temperature | -10°- +50° | Quantity/Carton | 9pcs |
| Storage Temperature | -30°- +70° | Carton Size | 630*340*385 (mm) |
| Production Size | 221*145*69(mm) | Carton Weight | 19(kg) |
| Packing Size | 252*182*105(mm) | Warranty | 2 Years |
| N.W/G.W(KG) | 1.6/1.85kg | Start | Bipolar soft-start |
| Certification | CE & RoSH & FCC & ISO9001 | Cooling Way | Intelligent Cooling Fan |
Quality control1.Incoming Quality Assurance
2.Critical components inspection
3.Process Quality Assurance
4.Raw material Verification
5.First Article Inspection
6.Online IQC
7.Product testing
8.ICT testing
9.Product aging
10.Product high temperature aging
11.Final QA
FAQ1.Output wave when take the full load
This product provide pure sine wave output when take the resistance load
..............................................................................................................................................................
2.About THDI
Because this series product is not rectifier function, so can't make the THDI when use it
..............................................................................................................................................................
3. About service
We are keep the most closely relationship with customers ,In order to satisfy the customer enjoy the most
perfect after- sales service.
..............................................................................................................................................................
4.About SORO technology
We have the R&D department that is the core of the SORO. Shoulder heavy responsibilities of research ,
developing new product, perfecting the product . we are provide invests 10% of its annual revenue in research
and development ,aims to offer customers in order to suited to their ever-changing environment enabling them
to benefit from the last technological developments.
..............................................................................................................................................................
