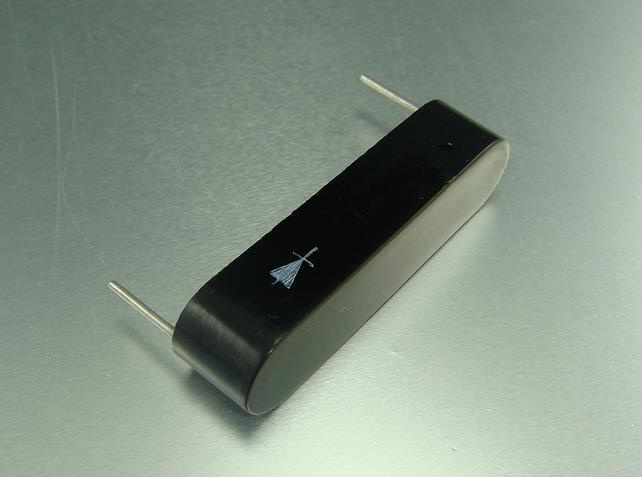

China Supplier Fast Rectifiers HV459S10 High Voltage Diode

Prod Model:	HV459S10
Feature:	More Sizes to Choose
Use:	Electrostatic Cleaning
Max Forward Voltage:	12.5V
Max Forward Surge Current:	80A
Manufacturing Technology:	Discrete Device
Material:	Element Semiconductor
Type:	P-type Semiconductor
Package:	Through-Hole
Application:	Rectification
Model:	HV459s10
Brand:	Leadsun

Product Description

Customized Available HV459S10 High current rectifier ultra fast recovery
Feature:
Avalanche characteristic
More sizes to choose
vacuum molded, non-corrosive epoxy resin case
Tj:-40ºC--+120ºC
Application:
High voltage rectifier used in electrostatic cleaning
High voltage generator
High voltage testing equipment
General purpose high voltage rectifier, voltage multiplier assembly

TYPE	Peak reverse repetive voltage	Forward average rectifier current	Max forward voltage	Max forward surge current	Normal temperature leakage current	Time of reverse recovert
	VRRM(KV)	Ir(A)	VFM(V)	IFSM(A)	IRRM(μA)	Trr(nS)
HV459S8	8.0	1.1	10.0	80	10.0	--
HV459S10	10.0	0.97	12.5	80	10.0	--
HV459S12	12.0	0.85	15.0	80	10.0	--
