| Prod Model: |
IG3115CS 1-10KVA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input Voltage Waveform: |
Sinusoidal (Utility or Generator) |
| Nominal Input Voltage: |
230VAC |
| Low Line Disconnect: |
184VAC± 4% |
| High Line Disconnect: |
253VAC± 4% |
| Max AC Input Voltage: |
270vrms |
| Over-Load Protection (SMPS Load): |
Circuit Breaker |
| Efficiency (Line Mode): |
> 95% |
| Transfer Switch Rating: |
30A |
| Power Factor: |
0~1.0 |
| Nominal Efficiency: |
> 80% |
Product Description

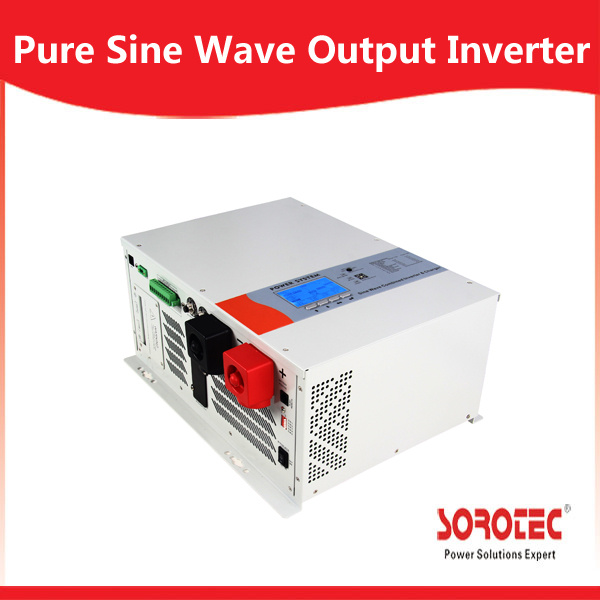

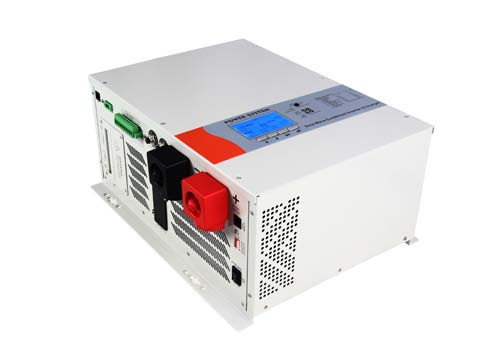

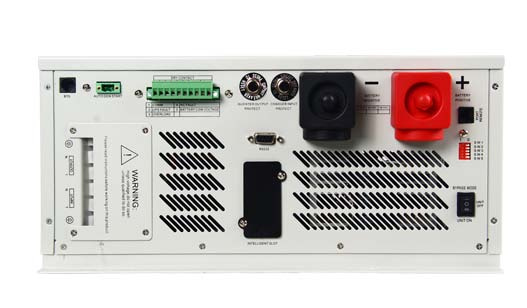

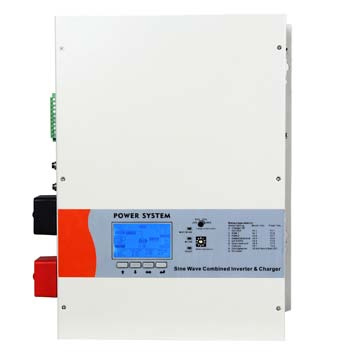

China Suppliers 1000-6000W Pure Sine Wave 48 Volt Dc To Ac Power InverterKey Features:1.Pure sine wave output
2.The charging current is big up to 70 Amp
3.Output power factor:s 0.9-1
4.Well accept generator's output
5.Full automatical and silent operation
6.Automatically transfer between battery and line modes
7.Microprocessor control guarantees high reliability
8.Remote control function
9.Four-steps intelligent charging control to recharging time
10. Bypass and bypass voltage regulation function
11. Could be setting frequency by LCD display with color screen
12. Battery type and charge current can be select
Full protection:Protection for low battery voltage,over load,output short circuitand over- temperature Restrain surge interference,eliminate noise,protection for thunder striking,provide the reliable power to the home appliances. Supply the reliable long back up time power for the home appliances and office appliances Solar power systems etc.
Applications:Supply the reliable long back up time power for the home appliances and office appliances Solar power systems etc.
Technical Specification:| MODEL | IG3115CS 1-10KVA |
|
|
| 1000W | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W | 8000W | 1000W |
| Input wave form | Sine wave (utility or generator) |
| Normal voltage | 120VAC(option) 230VAC | 220/230/240VAC |
| Low voltage re trip | 90V±4% & 184V/154V±4% | 154V |
| Low voltage re engage | 100V±4% & 194V/164V±4% | 164V |
| High voltage re trip | 140V±4% & 253V±4% | 273V |
| High voltage re engage | 135V±4% & 243V±4% | 263V |
| Normal input frequency | 50Hz/ 60Hz (auto detection) |
| Low freq trip | 47Hz for 50Hz,57Hz for 60Hz | 40Hz |
| High freq trip | 55Hz for 50Hz,65Hz for 60Hz | 80Hz |
| Output Wave form | (Bypass mode)same as input |
| Over-Load Protection | Circuit breaker | Yes |
| Short circuit Protection | Circuit breaker | Yes |
| Efficiency on line transfer mode | 95%+ |
| Line transfer time | 10ms Typical |
| Bypass without battery connected | Yes |
| Max bypass current | 30 amp or amp |
| Bypass over load current | 30 amp or amp:Alarm |
| Inverter specification/output |
| Output wave form | Pure sine wave |
| Output continuos power watts | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | 6000 | 8000W | 10000W |
| Output continuos power VA | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | 6000 | 8000W | 10000W |
| Power factor | 0.9-1.0 |
| Nominal Output Voltage rms | 120VAC(option) 230VAC | 230VAC |
| Output Voltage regulation | +/- 10%rms |
| Output frequency | 50Hz ± 0.3Hz or 60Hz ± 0.3Hz |
| Safety Certification | >88% |
| Short circuit protection | Yes,fault after 1 secs |
| Inverter specification/input |
| Nominal input voltage | 12V/24V/48V |
| Minimum start voltage | 10V/20V/40V |
| Low battery alarm | 10.5V/21V/42V |
| Low battery trip | 10V/20V/40V |
| High voltage alarm | 16V/32V/64V |
| Power saver | Below 25 watts when enabled |
| Power saver | Same switched on/off on remote |
| Charger mode specification |
| Output voltage | Dependent on battery type |
| Charge current | 10-85A MAX | 75A MAX | 85A MAX |
| Battery initial voltage for start up | 0-15.7v for 12v(*2 for 24v;*4 for 48v) |
| Over charge protection | 15.7v for 12v(*2 for 24v;*4 for 48v) |
Shenzhen SORO Electronics Co., Ltd is a professional manufacturer in the field of power electronics for over 10 years. We have two large production sites and one SMT department in Zhejiang and Shenzhen. SORO has been a leading ente-rprise in the UPS industry in China.
Since established, The company has carried out three strategies: Operation innovation strategy, people-oriented strategy, technical guidance str-ategy, and implemented strict scientific management with full-fledged quality management system.
The company invests 5% of its annual revenue in researching and development every year. We had international advanced equipments for developing \testing and producing. SORO invited the best technical elites at home, meanwhile, the company established perfect cooperateion relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.
The company ranks first in passing the ISO9001 international quality system certification. We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC); cUL; FCC.
We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran...And so on. We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.
SORO would like to cooperate with famous electric enterprise and create the briliant future based on the constant innovation spirit\uncompromising quality\the advanced technology \the standard and efficient service.
