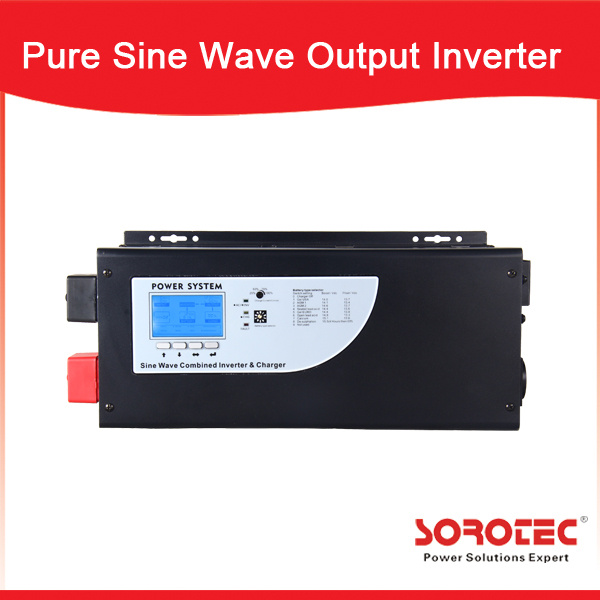

China Supply 1-12kVA Solar Inverter

Prod Model:	IG3115CL 1-12KVA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Nominal Input Voltage:	230VAC
Low Line Disconnect:	184VAC± 4%
High Line Disconnect:	253VAC± 4%
Max AC Input Voltage:	270vrms
Nominal Input Frequency:	50Hz/ 60Hz (Auto Detection)
Over-Load Protection (SMPS Load):	Circuit Breaker
Efficiency (Line Mode):	> 95%
Storage Temperature:	-15o C ~ 60o C
Audible Noise:	60dB Max
Application:	Communication

Product Description

China Supply 1-12KVA Solar Inverter


Key Features:
1. Pure Sine wave Output

2. The charging current is big up to 70 A

3. Output Power Factor is 0.9-1

4. Auto change AC-DC

5. Full automatic and silent operation

6. Automatically transfer between battery and line modes

7. Microprocessor control guarantees high reliability

8. Remote control function

9. Four-steps intelligent charging control to recharging time

10. Bypass and bypass voltage regulation function

11. Could be setting frequency by LCD display for 50hz or 60hz



Applications:
Supply the reliable long back up time power for the Home appliances and office appliances (For example: DVD, Fan, TV etc)




Technical Specification of Pure Sine Wave Inverter IG3115CL Series:

MODEL	IG3115CL 1-12KW Pure Sine wave Output Inverter
	1KW	1.5KW	2KW	3KW	4KW	5KW	6KW	8KW	10KW	12KW
Input  Wave form	Sine wave (utility or generator)
Nominal Voltage	230Vac (120Vac optional)
Low voltage trip	90v ±4% & 184v/154v ±4%
Low voltage re engage	100v ±4% & 194v/164v±4%
High voltage trip	140v ±4% & 253v ±4%
High voltage re engage	135v ±4% & 243v±4%
Nominal Input Frequency	50Hz/ 60Hz (auto detection)
Frequency range	47Hz~65Hz
Output Wave form	(Bypass mode)same as input
Efficiency on line transfer mode	≥95%+
Line transfer time	10ms Typical
Bypass without battery connected	Yes
Inverter specification/output
Output wave form	Pure sine wave
Output continuos power watts	1000	1500	2000	3000	4000	5000	6000	8000	10000	12000
Output continuos power VA	1000	1500	2000	3000	4000	5000	6000	8000	10000	12000
Power factor	0.9-1.0
Nominal Output Voltage rms	230Vac (120Vac optional)
Output Voltage regulation	+/- 10%rms
Output frequency	50Hz ± 0.3Hz or 60Hz ± 0.3Hz
Safety Certification	>88%
Surge ratings	3000	4500	6000	9000	12000	15000	18000	24000	30000	36000
Short circuit protection	Yes,fault after 1 secs
Inverter specification/input
Nominal input voltage	12V/24V/48V							96V
Minimum start voltage	10V/20V/40V							80V
Low battery alarm	10.5V/21V/42V							84V
Low battery trip	10V/20V/40V							80V
High voltage alarm	16V/32V/64V							128V
Power saver	Same switched on/off on remote
Charger mode specification
Output voltage	Dependent on battery type
Charge current	0-85A MAX							35A MAX	45A MAX	50A MAX
Battery initial voltage for start up	0-15.7v for 12v(*2 for 24v;*4 for 48v;*8 for 96v)
Over charge protection shutdown	15.7v for 12v(*2 for 24v;*4 for 48v;*8 for 96v)
Charger curves(4stage constant curren)	battery types
4 step digital controlled progressive charge
Battery type	Fast V                                                Fast V(*2 for 24v;*4 for 48v)
Gel U.S.A	14                                                                       13.7
A.G.M. 1	14.1                                                                    13.4
A.G.M. 2	14.6                                                                    13.7
Sealed lead acid	14.4                                                                    13.6
Gel euro	14.4                                                                    13.8
Open lead acid	14.8                                                                    13.3
Calcium	15.1                                                                    13.6
De-sulphation	15.5 for 4 hrs
Remote control/RS232/USB	Yes. Optional

FAQ:

1.Output wave when take the full load

This product provide pure sine wave output when take the resistance load
 ............................................................................................................................................................


2.About THDI

Because this series product is not rectifier function, so can't make the THDI when use it
 ............................................................................................................................................................



3. About service

We are keep the most closely relationship with customers ,In order to satisfy the  customer enjoy the most
perfect after- sales service.
 ............................................................................................................................................................



4.About SORO technology

We have the R&D department that is the core of the SORO. Shoulder heavy responsibilities of research ,
developing new product, perfecting the product . we are provide invests 10% of its annual revenue in research and development ,aims to offer customers in order to suited to their ever-changing environment enabling them to benefit from the last technological developments.
 ............................................................................................................................................................
