China Tact Switch (TS-1197A) for DV

Name: China Tact Switch (TS-1197A) for DV
Brand: all-electronics-online.com
SKU: 683588945
Availability: InStock
Rating: 4.9 (33 reviews)

Price:	Negotiable/Piece
Trade Terms:	CFR
Min Order:	5000/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	TS-1197A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	SMD Type
Installation Form:	Surface Mount
Structure:	1-Point Contact
Package:	SMT Chip Package
Application:	Audio and Video Products
Shape:	Square
Shrapnel:	Silver
Certification:	RoHS

Product Description

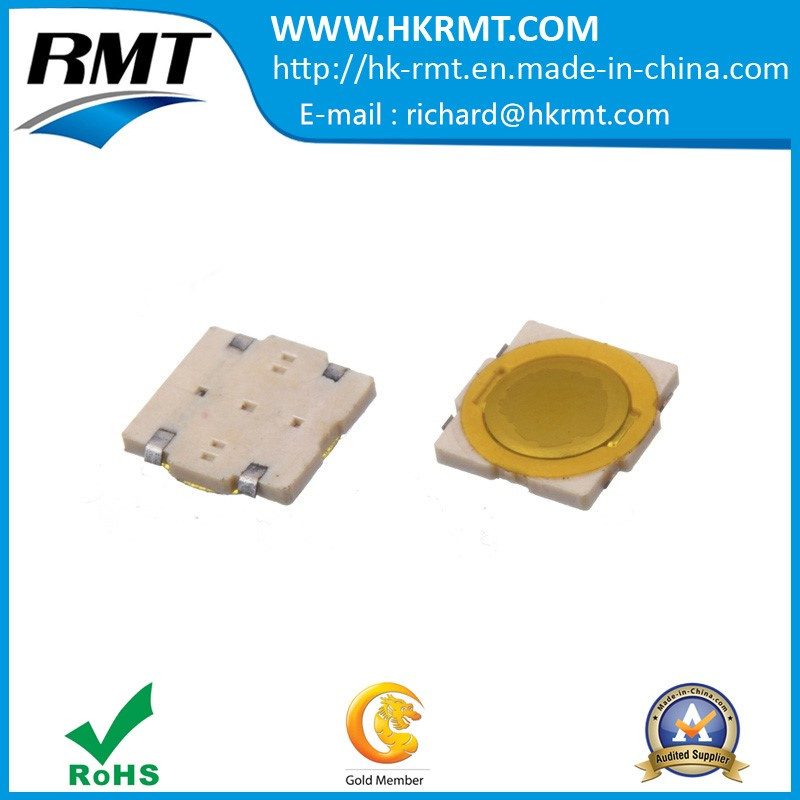

Tact Switch TS-1197A ( 260gf)

* Features:
Re-flow solderable
Suitable for high density mounting

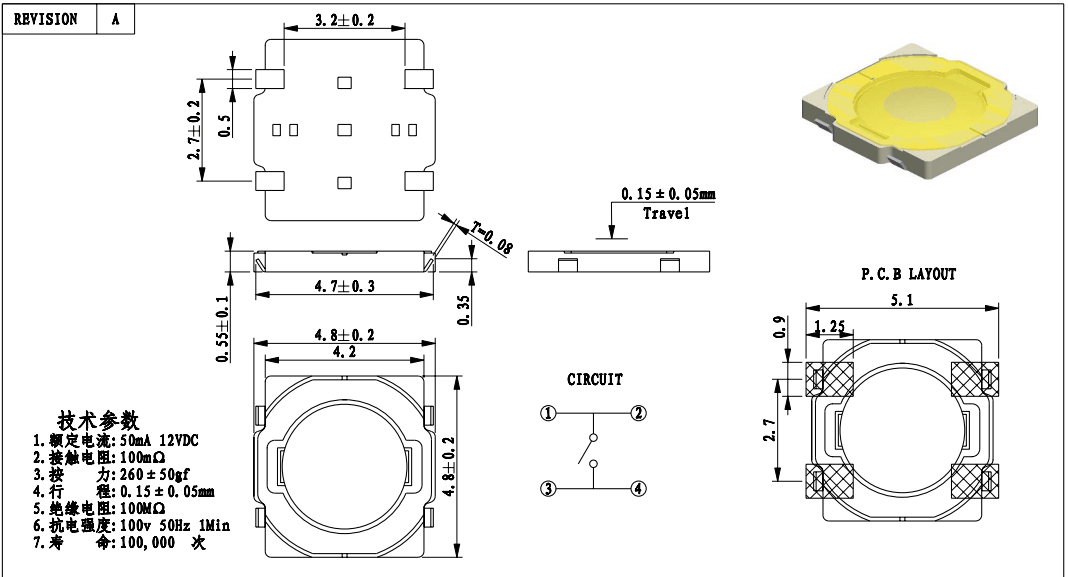

* Specifications:
Voltage: 12V DC
Current: 50mA
Insulation resistance: 100MΩ At 100V DC
Dielectric strength: 100V AC for 1 minute
Operating temperature range: -20 to +70° C
Maximum contact resistance: 100MΩ
Lifetime: 100, 000 cycles
Operating force: 250gf
Travel: 0.20± 0.05mm
Size: 4.8 x 4.8mm
Height: 0.55mm

* Applications:
Operating switches in all types of electronic equipment such as audio, communications apparatus, office equipment, measuring instruments, TV set, VCR and mobile phone.

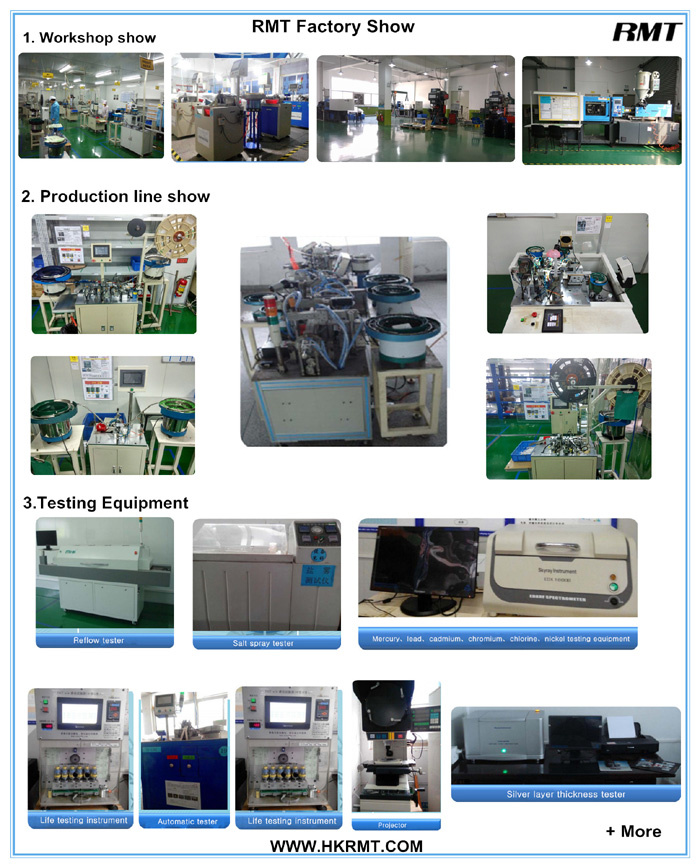

HongKong RMT Electronics Co., Ltd. is a professional manufacturer engaged in producing and developing switches, jacks and connectors. Our products can be widely used in the precision electronics industry like smartphone, projector, earphone, digital camera, auto electronics and portable DVD and other relative fields. We accept OEM and ODM order, welcome to visit our factory.

Quality is the core of enterprise development. RMT has been developing quickly and healthily these years based on strict quality management. We have strong technical force, advanced testing equipments, a group of specialized R&D engineers and skillful workers. We strictly carry out ISO9001 and formed our own quality system. We strictly carry out this standard in management, which enables us to earn a good reputation among our domestic and overseas customers.

We uphold the "high-quality products with the best price, win-win solution " of operating principles. RMT will provide you with best products and best service.
