Prod Model:	PN-009
Color:	Green
Polishing:	APC
Fiber Type:	Singlemode
Insertion Loss:	0.15dB Typical
Back Reflection:	55dB Ultra PC
Connection Durability:	500 Matings
Type:	Single-mode Fiber
Material Shape:	Round Wire
Core:	Single Core
Sheath Material:	Plastic
Transmission Medium:	Single-Mode
Structure:	SC
Number Of Cores:	Single-Core
Ferrule Endface:	PC(',UPC)
Light Source TYPE:	Fiber

Product Description

Chinese 2.0mm Fiber Optic SC Singlemode APC FC Connector Supplier

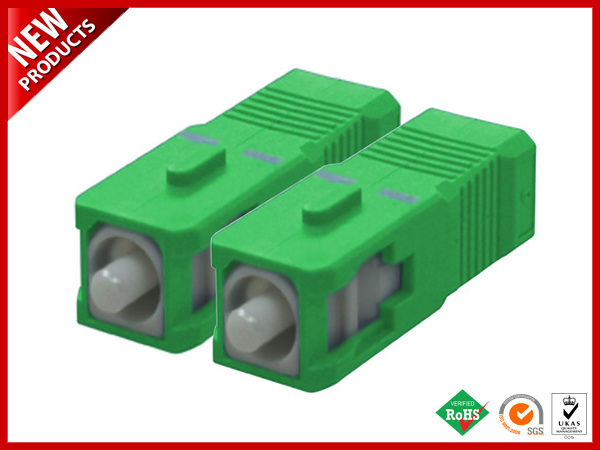

PUNO SC connectors offer excellent performance with very high repeatability and low levels of insertion loss. These products are fully intermatable with standard SC products and provide long term stability under a wide range of conditions. Our product utilizes tightly toleranced, molded MU ferrules to ensure ease of assembly and consistent low loss performance. PUNO SC connectors are available in both female and male configurations. These adapters are designed to mount in standard SC-PC panel openings. PUNO SC connectors comply with EIA/TIA 604 standard performance and reliability.

Application:

√ Exchange Systems;
√ Subscriber Systems;
√ Voice Networks;
√ High-Density DWDM;
√ Advanced Optical;
√ Transmission.

Benefits:

√ High Density Package;
√ High Optical Performance;
√ NTT Compatible;
√ Push-pull Type Operation;
√ Small Size and Light Weight;
√ Tunable Zirconia Connector Ferrule.

SPECIFICATIONS - SC CONNECTOR:

Parameters	Multimode	Singlemode
Insertion Loss	0.2dB Typical	0.15dB Typical
Insertion Loss	0.3dB Maximum	0.25dB Maximum
Back Reflection	25dB Typical	35dB PC Polish
		45dB Super PC
		55dB Ultra PC
Connection Durability	500 Matings	500 Matings
Connector Repeatability	<0.2dB	<0.2dB
Operating Environment	-40ºC to +85ºC	-40ºC to +85ºC
Temperature Cycling	IL<0.2dB RL<5dB	IL<0.2dB RL<5dB
Vibration	IL<0.1dB RL<5dB	IL<0.1dB RL<5dB
Cable Retention	>15Lbs	>15Lbs

SPECIFICATIONS - SC ADAPTER:

Parameters	Phosphor/Bronze	Zirconia
Operating Temperature	-40ºC to +85ºC	-40ºC to +85ºC
Connection Durability	500 Matings	500 Matings
Repeatability	IL<0.2dB	IL<0.1dB
Insertion Loss	<0.3dB	<0.2dB
