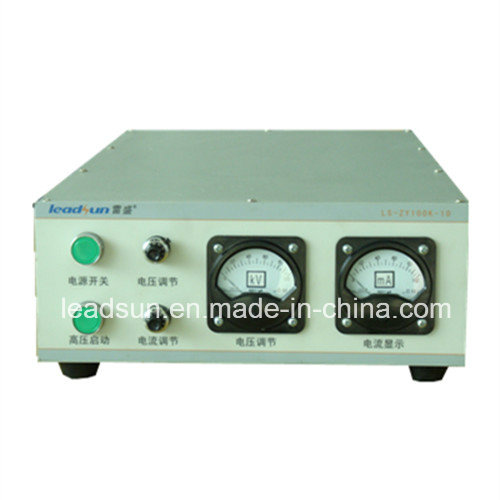

Chinese Factory Ls-Esp 100kv/20mA Switching Power Supply Module

Name: Chinese Factory Ls-Esp 100kv/20mA Switching Power Supply Module
Brand: all-electronics-online.com
SKU: 706878262
Availability: InStock
Rating: 4.8 (139 reviews)

Price:	US $ 5400-5900/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LS-ESP 100KV/20mA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
LHB:	750370250mm
Ambient Temperature:	-20oc~50oc
Cooling:	Air Cooling
Work Frequency:	50kHz
Output Type:	Single
Warranty:	1 Year
Output Power:	101 - 200W
Input Voltage:	220V
Connection Mode:	Series Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CE
Starting Mode:	Soft Start
Brand:	Leadsun

Product Description

High Frequency High Voltage Power Supply LS-ESP 100KV/20mA
Specifications

Item	Parameters	Remarks
Input voltage	220V AC	Wave less than 10%
Rated power	200W	Full load, output Umax, Imax
Rated output voltage	100KV
Rated output current	20mA
Comparative voltage control accuracy	0.5%	Uo=80%Umax
Absolute voltage control accuracy	1.5%	Uo=80%Umax
Voltage/temperature coefficient	100V/1K
Voltage program accuracy	Better than 1.5%
Voltage output range	0-100KV adjustable
Output limiting current	20mA
Control response time	Better than 20mS
Ambient temperature	-20 ~ 50ºC
Ambient humidity	10% ~ 90% no atomization
Cooling	Air cooling
Starting	Soft start
Constant voltage control mode	Phase-shifting PWM
Current control mode	Constant current of average value Peak value testing	Within 100nS peak value loading, cut off and restart automatically
Working frequency	50kHZ
Converting efficiency	Better than 80%	Output voltage from 50% - 75%, efficiency 80% - 90
Voltage regulation rate	<1.0%	10-20mA
Ripple Coefficient	Less than 1%
Current and voltage program mode	10 circles potentiometer with indicator
Dimension	750370250mm LBH

This is leadsun electronics from Anshan, China. Our company is specializing in designing and producing types of high voltage components, such as high voltage diodes, high voltage bridge rectifier, high voltage silicon assembly, special high voltage modular, multiply voltage modular and high frequency high voltage power supply. These products are widely applied for electrostatic cleaning, medical X-ray machine, CT, MR, dehydrating of crude oil, broadcast launching, laser power supply, high voltage modular, high voltage test equipment, TV/display FBT, air purifier, power supply, etc.
