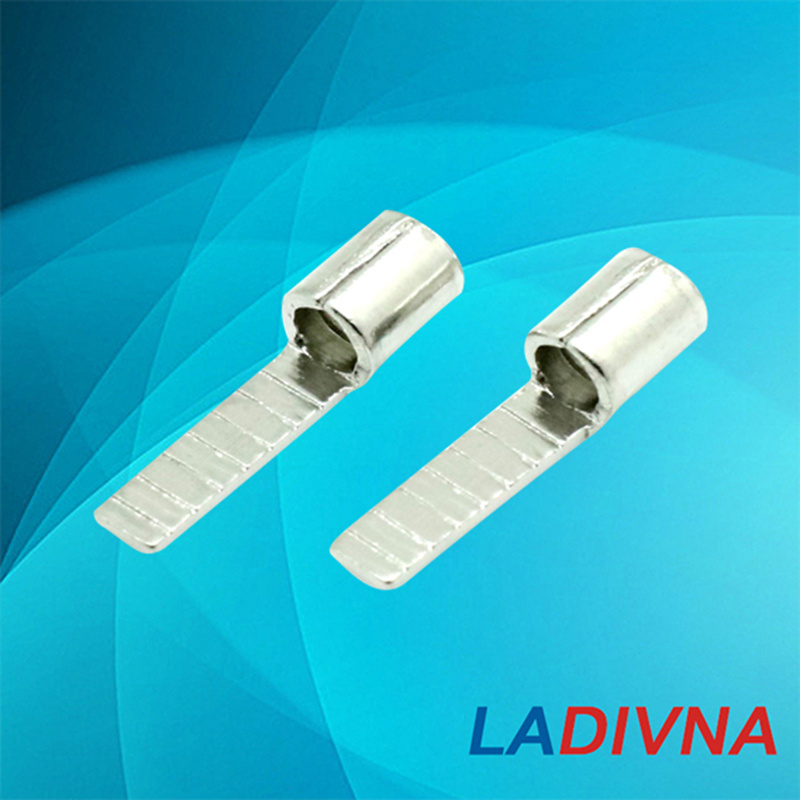

Chip-Shaped Naker Terminal (DBN)

Name: Chip-Shaped Naker Terminal (DBN)
Brand: all-electronics-online.com
SKU: 687672295
Availability: InStock
Rating: 4.8 (69 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	2000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Copper

Product Description

Conductor sectiion: 0.5-1.5mm² (A. W. G 22-16) 1max=19A Material: Copper Thickness: 0.75mm
Conductor sectiion: 1.5-2.5mm² (A. W. G 16-14) 1max=27A Material: Copper Thickness: 0.8mm
Conductor sectiion: 4-6mm² (A. W. G 12-10) 1max=48A Material: Copper Thickness: 1.0mm

ITEM NO	Dimension(mm)
ITEM NO	B	L	F	E	D Ø	d Ø
DBN 1.25-10	2.3	14.8	10.0	4.8	3.4	1.7
DBN 1.25-11	3.0	15.8	11.0
DBN 1.25-14	3.0	18.8	14.0
DBN 1.25-18	2.3	22.8	18.0

ITEM NO	Dimension(mm)
ITEM NO	B	L	F	E	D Ø	d Ø
DBN 2-9	2.8	13.8	9.0	4.8	4.1	2.3
DBN 2-18	2.3	22.8	18.0	4.8	4.1	2.3

ITEM NO	Dimension(mm)
	B		L		F		E		D Ø	d Ø
DBN 5.5-10	2.8		14.8		10.0		6.0		5.6	3.4
DBN 5.5-14	4.5		21.0		14.0
DBN 5.5-18	4.5		23.0		18.0
DBN 8-14	5.0		22.5		14.0		8.5		7.2	4.5
DBN 14-16	6.0		30.6		16.0		14.0		9.0	6.5
ITEM NO		Dimension(mm)
		B		L		F		E	D Ø	d Ø
DBN 1.25-10		2.3		14.8		10.0		4.8	3.4	1.7
DBN 1.25-11		3.0		15.8		11.0
DBN 1.25-14		3.0		18.8		14.0
DBN 1.25-18		2.3		22.8		18.0

ITEM NO	Dimension(mm)
ITEM NO	B	L	F	E	D Ø	d Ø
DBN 2-9	2.8	13.8	9.0	4.8	4.1	2.3
DBN 2-18	2.3	22.8	18.0	4.8	4.1	2.3

ITEM NO	Dimension(mm)
ITEM NO	B	L	F	E	D Ø	d Ø
DBN 5.5-10	2.8	14.8	10.0	6.0	5.6	3.4
DBN 5.5-14	4.5	21.0	14.0
DBN 5.5-18	4.5	23.0	18.0
DBN 8-14	5.0	22.5	14.0	8.5	7.2	4.5
DBN 14-16	6.0	30.6	16.0	14.0	9.0	6.5

Yueqing Divna Electric Co., Ltd & Yueqing Divna trade Co., Ltd is the subsidiary companies of Divna D. O. O. (Croatia). Yueqing Divna Electric Co., Ltd is a manufacturer of kinds of terminals, power plug, pin clips and pipe clamp. In the recent years, we start to do OEM survice for our customers which make them more competitive in their local market. Currently, our mainly market include Euro, New Zealand & Australia, USA, Asia, etc.

Divna D. O. O. (Croatia) is the headquarter company which was founded more than 10 years. We mainly do reworking process & business service for Euro market.

Divna D. O. O. (Croatia) is the headquarter company which was founded more than 10 years. We mainly do reworking process & business service for Euro market. Currently, our customers are mainly from southern Euro & middle Euro.
