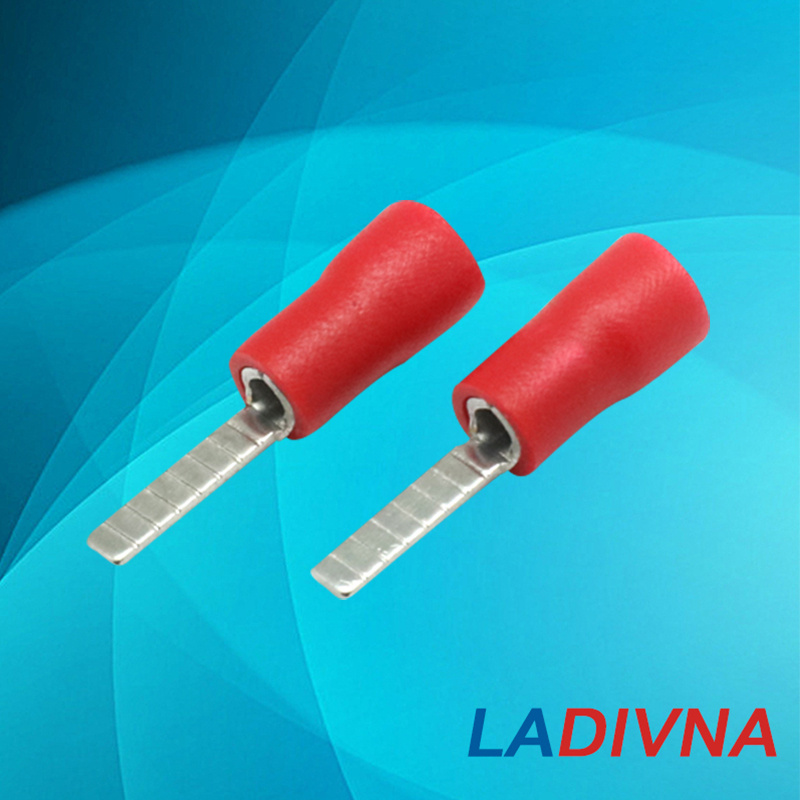

Chip-Shaped Pre-Insulating Terminal (DBV)

Name: Chip-Shaped Pre-Insulating Terminal (DBV)
Brand: all-electronics-online.com
SKU: 687671215
Availability: InStock
Rating: 4.4 (72 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	2000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Conductor section: 0.5-1.5mm² (A. W. G 22-16) 1max=19A
Materoa: Copper Thickness: 0.75mm
Conductor section: 1.5-2.5 mm ² (A. W. G 16-14) 1max=27A Materoa: Copper Thickness: 0.8mm
Conductor section: 4- 6 mm ² (A. W. G 12-10) 1max=48A Materoa: Copper Thickness: 1.0 mm

ITEM NO	Dimension(mm)					Color
ITEM NO	B	L	F	H	D Ø	Color
DBV 1.25-10	2.3	20.0	10.0	10.0	4.3	Red
DBV 1.25-11	3.0	21.0	11.0
DBV 1.25-14	3.0	24.0	14.0
DBV 1.25-18	2.2	28.0	18.0

ITEM NO	Dimension(mm)					Color
ITEM NO	B	L	F	H	D Ø	Color
DBV 2-10	2.4	19.0	9.0	10.0	4.9	Blue
DBV 2-14	2.4	24.0	14.0
DBV 2-18	2.2	28.0	18.0

ITEM NO	Dimension(mm)					Color
ITEM NO	B	L	F	H	D Ø	Color
DBV 5.5-10	2.8	22.5	10.0	13.0	5.6	Yellow
DBV 5.5-14	4.5	26.5	14.0
DBV 5.5-18	4.5	30.5	18.0

Yueqing Divna Electric Co., Ltd & Yueqing Divna trade Co., Ltd is the subsidiary companies of Divna D. O. O. (Croatia). Yueqing Divna Electric Co., Ltd is a manufacturer of kinds of terminals, power plug, pin clips and pipe clamp. In the recent years, we start to do OEM survice for our customers which make them more competitive in their local market. Currently, our mainly market include Euro, New Zealand & Australia, USA, Asia, etc.

Divna D. O. O. (Croatia) is the headquarter company which was founded more than 10 years. We mainly do reworking process & business service for Euro market.

Divna D. O. O. (Croatia) is the headquarter company which was founded more than 10 years. We mainly do reworking process & business service for Euro market. Currently, our customers are mainly from southern Euro & middle Euro.
