Chuangyin 11kv Outdoor Epoxy Resin Current Transformer

Name: Chuangyin 11kv Outdoor Epoxy Resin Current Transformer
Brand: all-electronics-online.com
SKU: 810133365
Availability: InStock
Rating: 5 (125 reviews)

Price:	US $ 99-105/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	LZZBJ9-11A1
Coil Number:	1-6
Standard:	IEC60044-1/ANSI
Rated Voltage:	11kv
Coil Structure:	Toroidal Core
Certification:	Test Report
Material:	Expoy Resin
Frequency:	50/60Hz
Bil:	12/42/75kv
Accuracy Class:	0.2s/0.5/10p
Application:	Instrument
Type:	Current Transformer
Phase:	Single
Winding Form:	Toroidal

Product Description

CHUANGYIN 11KV Outdoor Epoxy Resin Current Transformer

Description

11kv outdoor epoxy resin current transformer

This model is outdoor epoxy resin casted, fully enclosed structure. Suitable for rated frequency 50/60Hz, voltage 15kV and bellow neutral point non-effective earthing power system,for current, energy measuring and relay protection. It is anti-arc, anti-aging, UV-resistant, and long service life.
This product adopted outdoor epoxy resin cast insulation, fully enclosed, small size, light weight.
It is arc resistant, UV resistant, anti-aging, big creepage space, little partial discharge, with good anti-overvoltage capacity.

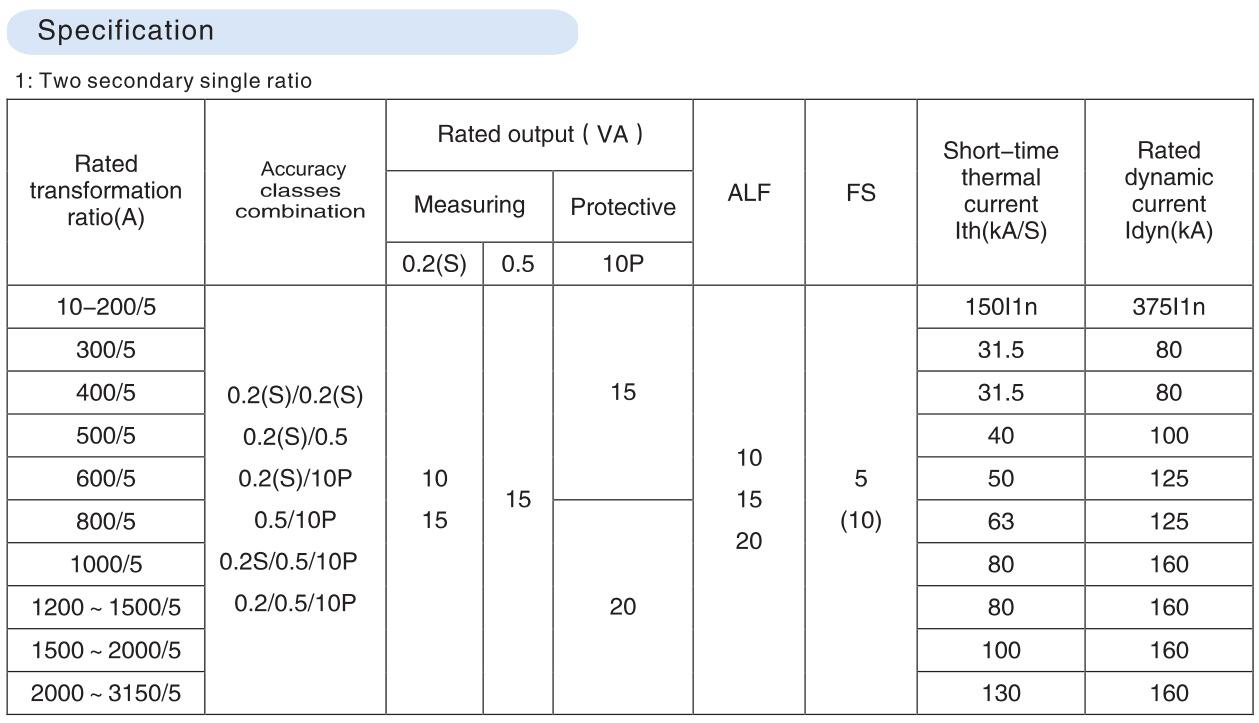

Specifications

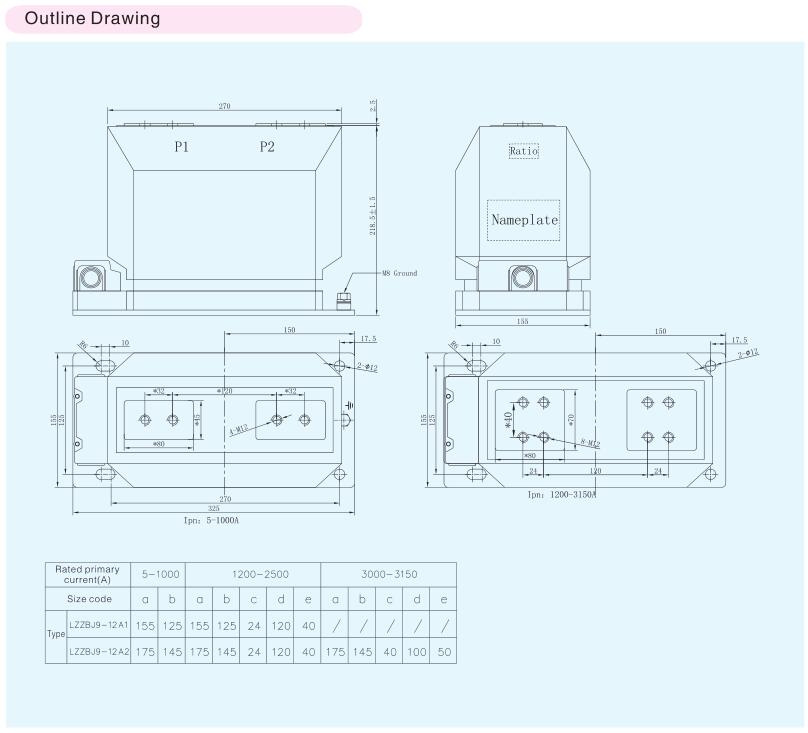

Outline Drawing

Packing&Shipping

Packaging Details:Standard export packing

Lead Time:10-25 days

Company Profile

Shenzhen Chuangyin Technology Co., Ltd is a national high-tech enterprise which specializes in MV /LV Current transformer, Potential transformer, Switchgear Components, Cable Accessories, Split Core Current Transformer, Clamp-on CT, Rogowski Coil, Instrument Transformer, Magnetic Latching Relay, and Shunt with integrated ability of R&D, manufacturing, sales and service.

Address: 1st Floor, Building B, Jiada R&D Building, No.5 Songpingshan Rd., Shenzhen High-Tech Zones, Nanshan, Shenzhen, China,
Post code: 518057
Tel: +86 0755-86000302/ 8600709
Fax: +86 0755-86000614
Web: www.chuangy.com

Mr. Eric Bin
Business Development Executive
Mob +86 135 4330 2386

Work with us, a CT and relay assembly solutions provider that GE and Itron trustCE-, TÜ V- and RoHS-marked ISO 9001: 2008-certified, KEMA

Offering a Wide Range of Products

Shenzhen Chuangyin is a national high-tech enterprise. We are specialized in R&D, production and sales of kinds

1. LV & MV epoxy resin CTs and PTs (0.66kV, 7.2kV, 11kV, 17.5kV, 24kV, 33kV, 72.5kV etc ) for switchgear or power system.

2. Cold shrink cable, Separable accessories(EPDM).

3. Split core Current Transformer, Clamp- on Current Transformer and Rogowski coil Current Transformeretc.

4. CTs and Relays for energy meter.

Passed KEMA, TYPE TEST REPORT, CE, TUV, ISO and RoHS standards

We have a head office in Shenzhen High-tech Park and two subsidiary production bases named Jiangxi Chuangyin (20, 000 square meters) and Zhuhai Chuangyin (10, 000 square meters). We offer a wide product range such as all kinds of current transformers from mini CT to medium voltage CT, and from solid core CT to split core CT. We are a key supplier of energy meter, switchgear and utility companies for more than 10 years. We are the only company who make current transformer and relay together, and provide good solution for smart meters. Our experienced engineers have good knowledge in energy meters and switchgears. Furthermore, we have certificates such as CE, RoHS and ISO from TUV.

Contact us today to know more.

Thank you for your attention and support. Chuang Yin will stay with you to create a better future.
