| Prod Model: |
ZVF300-G011/P015T4MD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Input Voltage: |
Three Phase 380V |
| Inpu Frequency: |
50Hz/60Hz |
| Power: |
11kw |
| Output Voltage: |
Three Phase 0~ Input AC Voltage |
| Output Frequency: |
0.00~600.00Hz |
| Rated Current: |
25A |
| Net Weight: |
5kg |
| Gross Weight For Each Carton: |
12kg |
| Packing Size: |
490*315*280mm/2PCS |
| Application: |
High-performance Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
Vector Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Brand: |
Chziri |
Product Description
11kW Frequency Controller have the following meatures.
1.11kW frequency Controller is our new type frequency inverter.
2.11kW frequency Controller are high performance open loop vector inverters for controlling asynchronous AC induction motors and permanent synchronous motors.
3. Output frequency of 11kW frequency Controller: 0-600Hz.
4.11kW frequency Controller have Multiple password protection mode
5.11kW frequency Controller can support remote control operation keypad, convenient for remote control.
6.11kW frequency Controller have V/F curve &multi-inflection point setting, flexible configuration.
7.11kW frequency Controller have Keyboard parameter copy function. Easy to set the parameters for multi-inverters.
8. Wide industry application for 11kW frequency Controller. To expand special function according to different industries.
9.11kW frequency Controller have multiple hardware and software protection and optimized hardware for anti-interference technology.
10.11kW frequency Controller have Multi-step speed and wobble frequency running (external terminal 15 steps speed control).
11. Unique adaptive control technology for 11kW frequency controller. Auto current limiting and voltage limiting and under-voltage restrain.
12.11kW frequency controller Optimized external installation and internal structure and independent air flue design, fully enclosed electrical space design.
13.11kW frequency controller have Output automatic voltage regulation function. (AVR), automatically adjust the output pulse width. To eliminate the influence of the grid change on load.
14.11kW frequency controller have Built-in PID regulation function to facilitate the realization of closed loop control of the temperature, pressure and flow. And reduce the cost of the control system.
15.11kW frequency controller can support Standard MODBUS communication protocol. Easy to achieve the communication between PLC, IPC and other industrial equipments.
Guide Model for Frequency Converter
Inverter Model | Power
(kW)
G/P | Current
(A) | Dimension (mm) | Figure |

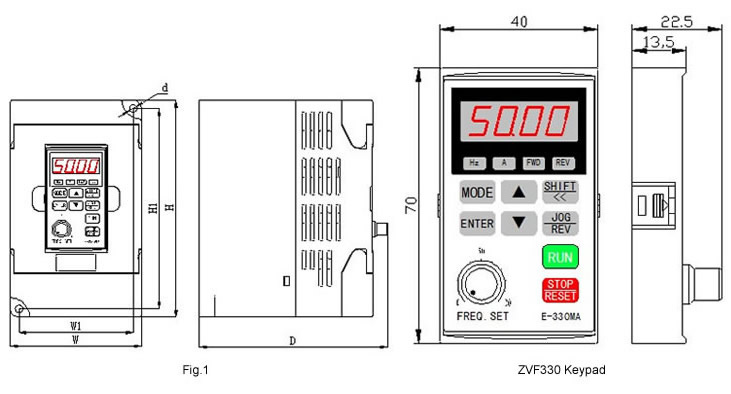

| H | H1 | W | W1 | D | d |
| ZVF300-G0R4S2MD | 0.4 | 2.4 | 185 | 175 | 118 | 108 | 170 | 4 | Fig.1 |
| ZVF300-G0R7S2MD | 0.75 | 7.5 |
| ZVF300-G1R5S2MD | 1.5 | 7.0 | 185 | 175 | 118 | 108 | 190 | 4 |
| ZVF300-G2R2S2MD | 2.2 | 10 |
| ZVF300-G0R7T4MD | 0.75 | 2.5 | 185 | 175 | 118 | 108 | 170 | 4 | Fig.1 |
| ZVF300-G1R5T4MD | 1.5 | 3.7 |
| ZVF300-G2R2T4MD | 2.2 | 5.0 |
| ZVF300-G3R7/P5R5T4MD | 3.7/5.5 | 9.0/13 | 215 | 205 | 145 | 135 | 193 | 4 |
| ZVF300-G5R5/P7R5T4MD | 5.5/7.5 | 13/17 |
| ZVF300-G7R5/P011T4MD | 7.5/11 | 17/25 | 265 | 253 | 185 | 174 | 215 | 5.5 |
| ZVF300-G011/P015T4MD | 11/15 | 25/33 |
| ZVF300-G015/P018T4MD | 15/18.5 | 33/37 | 380 | 360 | 220 | 140 | 230 | 6 | Fig.2 |
| ZVF300-G018/P022T4MD | 18.5/22 | 37/45 |
| ZVF300-G022/P030T4M | 22/30 | 45/60 | 460 | 443 | 260 | 177 | 268 | 6 |
| ZVF300-G030/P037T4M | 30/37 | 60/75 |
| ZVF300-G037/P045T4M | 37/45 | 75/90 | 620 | 603 | 265 | 182 | 300 | 8 |
| ZVF300-G045/P055T4M | 45/55 | 90/110 |
| ZVF300-G055/P075T4M | 55/75 | 110/150 |
| ZVF300-G075/P090T4M | 75/90 | 150/176 | 720 | 702 | 365 | 240 | 360 | 9 |
| ZVF300-G090/P110T4M | 90/110 | 176/210 |
| ZVF300-G110/P132T4M | 110/132 | 210/253 |
| ZVF300-G132/P160T4M | 132/160 | 253/300 | 1190 | | 493 | | 390 | | Fig.3 |
| ZVF300-G160/P185T4M | 160/185 | 300/340 |
| ZVF300-G185/P200T4M | 185/200 | 340/380 |
| ZVF300-G200/P220T4M | 200/220 | 380/420 | 1600 | | 660 | | 415 | |
| ZVF300-G220/P250T4M | 220/250 | 420/470 |
| ZVF300-G250/P280T4M | 250/280 | 470/520 |
| ZVF300-G280/P315T4M | 280/315 | 520/600 |
| ZVF300-G315/P350T4M | 315/350 | 600/640 | 1750 | | 750 | | 470 | |
| ZVF300-G350/P400T4M | 350/400 | 640/690 |
| ZVF300-G400/P450T4M | 400/450 | 690/790 |
| ZVF300-G450/P500T4M | 450/500 | 790/860 | 1900 | | 950 | | 520 | |
Fig.4 |
| ZVF300-G500/P560T4M | 500/560 | 860/950 |
| ZVF300-G560/P630T4M | 560/630 | 950/1100 |
| ZVF300-G630T4M | 630 | 1100 |
Product DescriptionZVF330 Series Mini Type AC Drive ZVF330 Series Mini Type AC Drive are developed for general applications of small power and OEM market. It applies V/f control technology, making the functions of PID, multiple-speed step, DC braking, Modbus communication, as well as less installation space .ZVF330 Series AC drive is for small automation equipment of economical type, especially suitable for electronic equipment, food packaging, wood, glass and other small power transmission. Main Features of AC drive ZVF330 Series mini type AC Drive are high performance open loop vector inverters for controlling asynchronous AC induction motors and permanent synchronous motors . - Output frequency :0-600Hz.
- Multiple password protection mode
- Remote control operation keypad, convenient for remote control.
- V/F curve &multi-inflection point setting, flexible configuration .
- Keyboard parameter copy function . easy to set the parameters for multi-inverters .
- Wide industry application . to expand special function according to different industries.
- Multiple hardware and software protection and optimized hardware for anti-interference technology.
- Multi-step speed and wobble frequency running (external terminal 15 steps speed control).
- Unique adaptive control technology . Auto current limiting and voltage limiting and under-voltage restrain .
- Optimized external installation and internal structure and independent air flue design , fully enclosed electrical space design .
- Output automatic voltage regulation function .(AVR),automatically adjust the output pulse width . to eliminate the influence of the grid change on load .
- Built-in PID regulation function to facilitate the realization of closed loop control of the temperature ,pressure and flow . and reduce the cost of the control system .
- Standard MODBUS communication protocol . easy to achieve the communication between PLC,IPC and other industrial equipments.
Guide Model for AC drive
| Inverter Model | Voltage | Power | Current | Dimension (mm) | Packing Size(mm) | G.W.(kg) |
| (V) | (KW) | ( A) | H | H1 | W | W1 | D | d |
| ZVF330-M0R4S2MD | 220V | 0.4 | 2.4 | 141.5 | 130.5 | 85 | 74 | 125 | 5 | 570*380*460mm/16PCS | 25kg |
| ZVF330-M0R7S2MD | 0.75 | 4 | 141.5 | 130.5 | 85 | 74 | 125 | 5 |
| ZVF330-M1R5S2SD | 1.5 | 7.5 | 151 | 140 | 100 | 89.5 | 128.5 | 5 |
| ZVF330-M2R2S2SD | 2.2 | 10 | 151 | 140 | 100 | 89.5 | 128.5 | 5 |
| ZVF330-M0R7T4SD | 380V | 0.75 | 2.3 | 151 | 140 | 100 | 89.5 | 128.5 | 5 | 570*380*460mm/16PCS | 25kg |
| ZVF330-M1R5T4SD | 1.5 | 3.7 | 151 | 140 | 100 | 89.5 | 128.5 | 5 |
| ZVF330-M2R2T4SD | 2.2 | 5 | 151 | 140 | 100 | 89.5 | 128.5 | 5 |

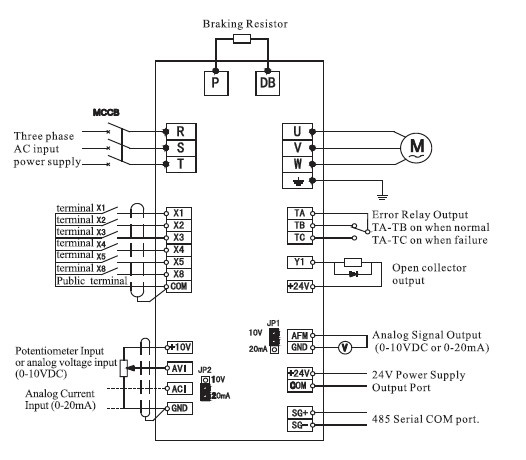

Inverter's Standard Wiring Diagram
ZVF330 AC Drive Application RangePacking machine; dumpling machine; treadmill; temperature/humidity control fan for agriculture and aquaculture; mixer for food processing; grinding machine; drilling machine; small size hydraulic lathe; elevator; coating equipment; small size milling machine; robot arm of injection machine (clamp); wood machine (two-side woodworking planer); edge bending machine. etc.
