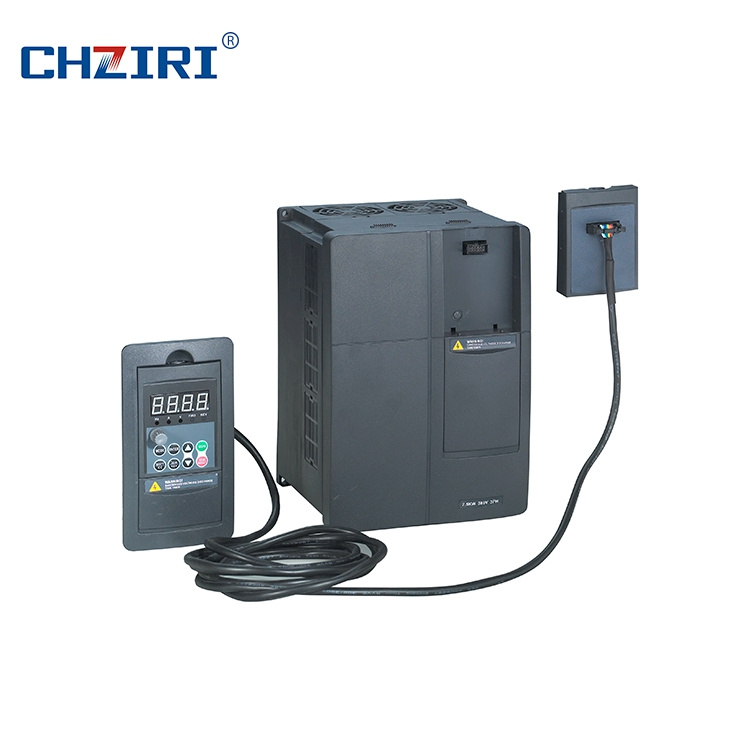

Prod Model: |
ZVF300-G011/P015T4MD |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Power Range: |
11kw |
Input Voltage: |
380V.440V |
Input Frequency: |
50/60Hz |
Output Frequency: |
0.00-600Hz |
Output Voltage: |
Three Phase 0~ Input AC Voltage |
Net Weight For 1PCS: |
5kg |
Gross Weight For One Carton: |
12kg |
Packing Size: |
490*315*280mm/2PCS |
Output Type: |
Triple |
Switch Mode: |
PWM Control |
Main Circuit Type: |
Voltage |
Application: |
to Drive and Control The Speed of Drive |
Principle Of Work: |
Optimal Space Voltage Vector PWM Modulation |
Brand: |
Chziri,OEM |
Product Description
ZVF300 Series frequency inverter is suitable for many kinds of general model of high quality, low noise and multi-purpose.
Scope of application for ZVF300 Series frequency inverter.
ZVF300 Series frequency inverter applied at the metallurgy, plastomer, textile, food-stuff, petroleum, chemical industry, paper-making, pharmacy, printing, building material, crane and all kinds of machine equipment. As AC asynchronous motor's driving and speed control
1. Power: 0.4KW-600KW 50/60Hz.
2. ZVF300 T2 Series: Three phase input, 220V± 20%, Three phase output.
3. Output Frequency: 0~600Hz.
4. CE & ISO9001
5. Built-in RS485 Port
6. There have braking unit for small inverter
7. Capacitor: 0.75KW- 15KW (NICHICON) 18.5KW~375KW (STG) (Import from Japan).
Infineon IGBT and MITSUBISHI. ( Import from Germany ).
For more details, Welcome to send inquiry to us!



Inverter Model | Power (kW) G/P | Current (A) | Dimension (mm) | Figure |
H | H1 | W | W1 | D | d |
ZVF300-G0R4S2MD | 0.4 | 2.4 | 185 | 175 | 118 | 108 | 170 | 4 | Fig.1 |
ZVF300-G0R7S2MD | 0.75 | 7.5 |
ZVF300-G1R5S2MD | 1.5 | 7.0 | 185 | 175 | 118 | 108 | 190 | 4 |
ZVF300-G2R2S2MD | 2.2 | 10 |
ZVF300-G0R7T4MD | 0.75 | 2.5 | 185 | 175 | 118 | 108 | 170 | 4 | Fig.1 |
ZVF300-G1R5T4MD | 1.5 | 3.7 |
ZVF300-G2R2T4MD | 2.2 | 5.0 |
ZVF300-G3R7/P5R5T4MD | 3.7/5.5 | 9.0/13 | 215 | 205 | 145 | 135 | 193 | 4 |
ZVF300-G5R5/P7R5T4MD | 5.5/7.5 | 13/17 |
ZVF300-G7R5/P011T4MD | 7.5/11 | 17/25 | 265 | 253 | 185 | 174 | 215 | 5.5 |
ZVF300-G011/P015T4MD | 11/15 | 25/33 |
ZVF300-G015/P018T4MD | 15/18.5 | 33/37 | 380 | 360 | 220 | 140 | 230 | 6 | Fig.2 |
ZVF300-G018/P022T4MD | 18.5/22 | 37/45 |
ZVF300-G022/P030T4M | 22/30 | 45/60 | 460 | 443 | 260 | 177 | 268 | 6 |
ZVF300-G030/P037T4M | 30/37 | 60/75 |
ZVF300-G037/P045T4M | 37/45 | 75/90 | 620 | 603 | 265 | 182 | 300 | 8 |
ZVF300-G045/P055T4M | 45/55 | 90/110 |
ZVF300-G055/P075T4M | 55/75 | 110/150 |
ZVF300-G075/P090T4M | 75/90 | 150/176 | 720 | 702 | 365 | 240 | 340 | 9 |
ZVF300-G090/P110T4M | 90/110 | 176/210 |
ZVF300-G110/P132T4M | 110/132 | 210/253 |
ZVF300-G132/P160T4M | 132/160 | 253/300 | 1190 | | 493 | | 390 | | Fig.3 |
ZVF300-G160/P185T4M | 160/185 | 300/340 |
ZVF300-G185/P200T4M | 185/200 | 340/380 |
ZVF300-G200/P220T4M | 200/220 | 380/420 | 1600 | | 660 | | 415 | |
ZVF300-G220/P250T4M | 220/250 | 420/470 |
ZVF300-G250/P280T4M | 250/280 | 470/520 |
ZVF300-G280/P315T4M | 280/315 | 520/600 |
ZVF300-G315/P350T4M | 315/350 | 600/640 | 1750 | | 750 | | 470 | |
ZVF300-G350/P400T4M | 350/400 | 640/690 |
ZVF300-G400/P450T4M | 400/450 | 690/790 |
ZVF300-G450/P500T4M | 450/500 | 790/860 | 1900 | | 950 | | 520 | | Fig.4 |
ZVF300-G500/P560T4M | 500/560 | 860/950 |
ZVF300-G560/P630T4M | 560/630 | 950/1100 |
ZVF300-G630T4M | 630 | 1100 |
1. CHZIRI Electrical located in Liushi, Wenzhou -Capital city of low voltage electrical products in China. There have many different factories produce low voltage electrical products. Such as fuses. Circuit breakers. Contactors. And pushbutton. You can buy complete components for automation system.
2. Since 1998. CHZIRI Electrical begin to produce reducer and gear boxes. In 2003. CHZIRI Electrical begin to produce frequency inverter and soft starter and control panels and related products.
3. CHZIRI Electrical is frequency inverter and soft starter manufacturer. We have big stock in warehouse. So we can offer prompt delivery and professional technical support and fast after sale service.
4. CHZIRI Electrical can also provide clients with customized control panel. We
Can design MCC panel and inverter cabinet & soft starter cabinet according to clients the wiring diagram.
5. CHZIRI Electrical also respectively obtained ISO9001, CE, CCC certificates.
6. CHZIRI Electrical set up branch offices in more than 30 cities and established a perfect, professional and efficient sale-and-service system. At the same time, ZIRI Electrical also working up international sales net. CHZIRI products have been exported in large quantity to Europe, South America, Southeast Asia, Middle East.
7. CHZIRI Electrical also go aboard to attend the fair every year.
8. OEM service can be offered.
9. CHZIRI Electrical can offer the optional parts for frequency inverter. Such as braking unit. Braking resistors. EMI Filter. Reactor. CHZIRI Electrical can offer the whole solution for automation system.
10. CHZIRI Electrical adhere to the eximious tradition of technical innovation, continue to introduce new generation products to meet market demands. Make great strides forward gradually to high-end application domain, and strive to shoulder heavy responsibilities to create a full of hope for the future.
