Chziri AC Drive 1HP 220V with RS485 Port
| Price: |
US $ 100/Box |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Box |
| Pay Type: |
T/T,D/P,Western Union,Paypal |
| Prod Model: |
ZVF200-M0007S2MD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
0.75kw |
| Color: |
Black |
| Warranty Times: |
12 Months |
| Input Voltage: |
Single Phase 220V |
| Input Frequency: |
50/60Hz |
| Ouput Voltage: |
0-Three Phase Input Voltage |
| Output Frequency: |
0-400Hz |
| Application: |
General Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
Vector Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Brand: |
Chziri |
Product Description

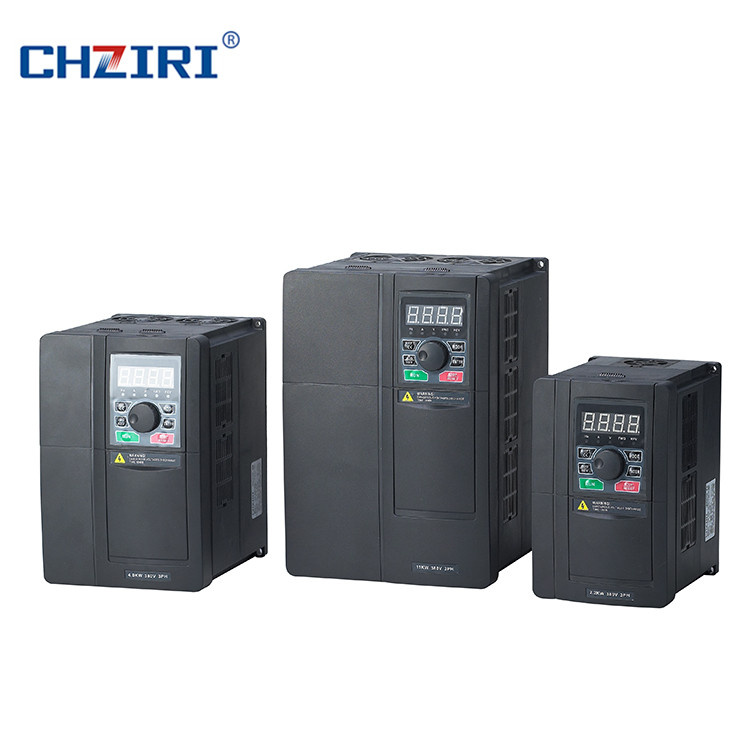

ZVF200-M Series AC Drive ZVF200-M Series AC Drive is Sensorless Vector Micro AC Drive. The compact design is ideal for small and medium horsepower applications. The M drive is designed to provide an ultra-low-noise operation, and includes several innovative technologies that reduce interference.ZVF200-M Series variable speed drive
Main Features ZVF200-M Series variable speed drive is Sensorless Vector Micro AC Drive. The compact design is ideal for small and medium horsepower applications. The M drive is designed to provide an ultra-low-noise operation, and includes several innovative technologies that reduce interference.
16-bit microprocessor controlled PWM output
Automatic torque boost &Slip compensation .
Output frequency : 0.1 ~ 400 Hz.
8-step speed control &7-step process control .
Low-noise carrier frequency up to 15KHZ.
2 accel./decal. Times & S-curve .
Process follower 0-10VDC . 4-20mA.
Communication interface RS485.
Energy saving &Automatic voltage regulation (AVR).
Adjustable V/F curve & Simple vector control
Automatic adjustment of accel./decal. Times.
PID feedback control .
Simple position function .
Application Range:Packing machine; dumpling machine; treadmill; temperature/humidity control fan for agriculture and aquaculture; mixer for food processing; grinding machine; drilling machine; small size hydraulic lathe; elevator; coating equipment; small size milling machine; robot arm of injection machine (clamp); wood machine (two-side woodworking planer); edge bending machine. Etc.
Inverter Outline Dimension & Mounting Dimension
Model Selection | Inverter Model | Voltage
(V) | Power
(KW) | Current
( A) | Dimension (mm) | Figure |
| H | W | A | B | D | d |
| ZVF200-M0004S2MD |
220V
| 0.4 | 2.5 | 141.5 | 85 | 130.5 | 74 | 113 | 5 | Fig.1 |
| ZVF200-M0007S2MD | 0.75 | 5.0 | 141.5 | 85 | 130.5 | 74 | 113 | 5 |
| ZVF200-M0015S2MD | 1.5 | 7.0 | 151.0 | 100 | 140.0 | 89.5 | 116.5 | 5 |
| ZVF200-M0022S2MD | 2.2 | 10 | 151.0 | 100 | 140.0 | 89.5 | 116.5 | 5 |
| ZVF200-M0007T4MD |
380V | 0.75 | 2.3 | 151.0 | 100 | 140.0 | 89.5 | 116.5 | 5 |
| ZVF200-M0015T4MD | 1.5 | 3.7 | 151.0 | 100 | 140.0 | 89.5 | 116.5 | 5 |
| ZVF200-M0022T4MD | 2.2 | 5.0 | 151.0 | 100 | 140.0 | 89.5 | 116.5 | 5 |
| ZVF200-M0037T4MD | 3.7 | 8.5 | 220.0 | 125 | 205 | 110 | 166.5 | 6.5 | Fig.2 |
| ZVF200-M0055T4MD | 5.5 | 9.5 | 220.0 | 125 | 205 | 110 | 166.5 | 6.5 |
1. CHZIRI Electrical located in Liushi, Wenzhou -Capital city of low voltage electrical products in China. There have many different factories produce low voltage electrical products. Such as fuses. Circuit breakers. Contactors. And pushbutton. You can buy complete components for automation system.
2. Since 1998. CHZIRI Electrical begin to produce reducer and gear boxes. In 2003. CHZIRI Electrical begin to produce frequency inverter and soft starter and control panels and related products.

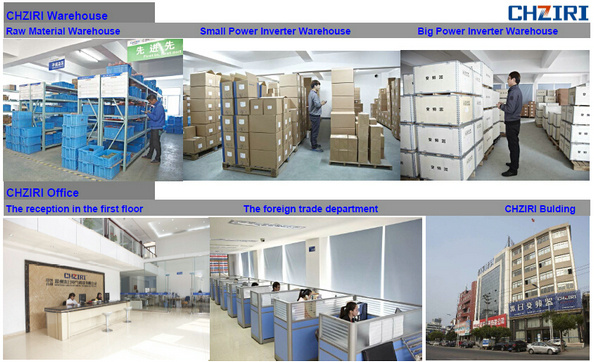

3. CHZIRI Electrical is frequency inverter and soft starter manufacturer. We have big stock in warehouse. So we can offer prompt delivery and professional technical support and fast after sale service.
4. CHZIRI Electrical can also provide clients with customized control panel. We
Can design MCC panel and inverter cabinet & soft starter cabinet according to clients the wiring diagram.
5. CHZIRI Electrical also respectively obtained ISO9001, CE, CCC certificates.
6. CHZIRI Electrical set up branch offices in more than 30 cities and established a perfect, professional and efficient sale-and-service system. At the same time, ZIRI Electrical also working up international sales net. CHZIRI products have been exported in large quantity to Europe, South America, Southeast Asia, Middle East.
7. CHZIRI Electrical also go aboard to attend the fair every year.
8. OEM service can be offered.
9. CHZIRI Electrical can offer the optional parts for frequency inverter. Such as braking unit. Braking resistors. EMI Filter. Reactor. CHZIRI Electrical can offer the whole solution for automation system.
10. CHZIRI Electrical adhere to the eximious tradition of technical innovation, continue to introduce new generation products to meet market demands. Make great strides forward gradually to high-end application domain, and strive to shoulder heavy responsibilities to create a full of hope for the future.
