| Prod Model: |
ZVF9V-G/P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Energy Save Products: |
Energy Saving |
| Low Voltage: |
Low Frequency |
| Automatic Voltage Regulation Control: |
Automatic Slip Compensation |
| Switch Mode: |
High Carrier Frequency PWM Control |
| Main Circuit Type: |
Voltage |
| Application: |
Control The Speed of The Motor |
| Principle Of Work: |
Vector Control Mode |

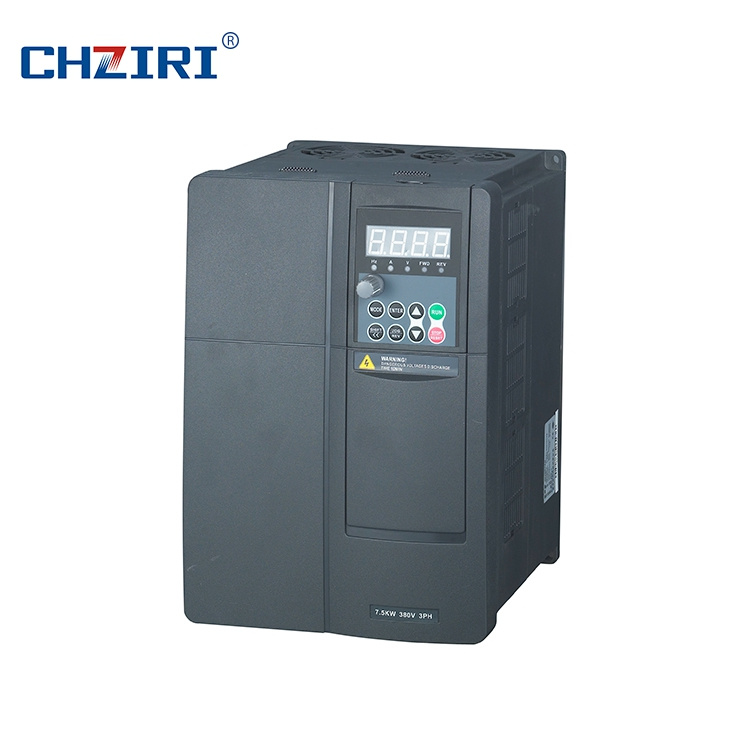

Product Description
1. Power Range: 1HP~550HP.
2. Three phase, 380V ± 20%V.
3. From 0.75KW to 15KW, there have built-in Braking unit inside the inverter. (Paper catons package )
4. 18.5KW and above have no braking unit. ( Wooden case ).
5. From 160KW or above, updated model is matched with DC Reactor.
6. High performance and high speed frequency drive.
Technical Indications of ZVF9V-G/P Series Variable frequency drive:
1: Speed control mode: NO PG vector control(SVC). V/F control.
2: Output Frequency range: 0.00~400.00Hz
3: Instruction Passage Mode: Operator Panel, Terminal Control, Long-distance communication control.
4: PID Frequency setting the signal: Number keyboard, Analog setting ( current, voltage signal ). Long-distance setting, Multi-Phase speed setting. Terminal assembled. PID closed-loop setting.
5: Big Jump-start torque: 0.5 Hz/150%
6; Carrier frequency range: 1.0K~15KHz
7: Speed control precision: ± 0.5% the top speed (SVC)
8: Voltage modulate: ( AVR): Can keep output voltage invariableness automatically when the power net and voltage changes.
9: Automatism restrict current: Can restrict the Maximum current of the motor. And can protect the inverter and the motor reliably.
10: PLC program control: Single Cycle, continuous loop, wobble control and are fit for all kinds of filed's demand.
11: Input, output terminal are programmable and convenient for user
12: Can choose analog signals output, voltage and current.
| Control function | Modulation capacity | Optimal space voltage vector PWM modulation |
| Control method | Speed sensorless vector control(SVC) |
| Frequency accuracy | Digital setting: Max.frequency x±0.01%
Analog setting: Max.frequency x±0.2% |
| Frequency resolution | Digital setting:0.01Hz, Analog setting : Max. Frequencyx0.1% |
| Starting frequency | 0.00~10.00HZ |
| Troque lifting | Automatic torque lifting: To lift the torque automatically according to the output current.
Hand-operated torque lifting : Range:0.1~30.0%. |
| Slip compensation | Setting range: 0~150%. The inverter output frequency can be auto-regulated within this range according to the motor load so as to reduce the speed variation of the motor due to load fluctuation . |
| Acceleration/ Deceleration | 0.1~3600.0 sec/min, which can be set in sequence. |
| Carrier frequency | 1.0~15.0KHz |
| Jog Function | Jog frequency range:0.01~400.0HZ, Jog acceleration/Deceleration time, 0.1~3600.0 can be set. |
| V/F curve | 1.linear curve, 2. quadratic curve (conic) 3.User defined V/F curve. |
| Automatic energy-saving operation | Auto optimize V/F curve according to load fluctuation to realize energy -saving operation. |
| Auto voltage regulation (AVR) | When the network voltage changes, it can regulate PWM output automatically to maintain constant voltage. |
| Built -in PID | This can form a convenient closed-loop control system (CLCS), and is applicable to pressure control, flow control and other process control . |
Product Description ZVF300 Series frequency inverters are high performance open loop vector inverters for controlling asynchronous AC induction motors and permanent synchronous motors .| Input Voltage (V) | Output Voltage(V) | Power Range (kW) |
| Single phase 220V± 20% | Three phase 0~Input Voltage | 0.4kW~2.2kW |
| Three phase 380V ± 20% | Three phase 0~Input Voltage | 0.75kW~630kW |
| Overload capacity :150% 1 minute; 180% 1 second;200% transient protection |
Main Features of frequency inverterZVF300 Series frequency inverter are high performance open loop vector inverters for controlling asynchronous AC induction motors and permanent synchronous motors . 1. Output frequency :0-600Hz.2. Multiple password protection mode3. Remote control operation keypad, convenient for remote control.4. V/F curve &multi-inflection point setting, flexible configuration .5. Keyboard parameter copy function . easy to set the parameters for multi-inverters .6. Wide industry application . to expand special function according to different industries.7. Multiple hardware and software protection and optimized hardware for anti-interference technology.8. Multi-step speed and wobble frequency running (external terminal 15 steps speed control).9. Unique adaptive control technology . Auto current limiting and voltage limiting and under-voltage restrain .10. Optimized external installation and internal structure and independent air flue design , fully enclosed electrical space design .11. Output automatic voltage regulation function .(AVR),automatically adjust the output pulse width . to eliminate the influence of the grid change on load .12. Built-in PID regulation function to facilitate the realization of closed loop control of the temperature ,pressure and flow . and reduce the cost of the control system .13. Standard MODBUS communication protocol . easy to achieve the communication between PLC,IPC and other industrial equipments.ZVF300 Frequency Inverter Model Selection Guide| Three phase 380V/440V± 20% | | | | | | | | |
| Model | Power(kW) | H | H1 | W | W1 | D | d | Packing Size(mm) | G.W.(kg) |
| ZVF300-G0R7T4MD | 0.75kW | 185 | 175 | 118 | 108 | 170 | 4 | 505*455*265mm/6PCS | 16kg |
| ZVF300-G1R5T4MD | 1.5kW | 185 | 175 | 118 | 108 | 170 | 4 |
| ZVF300-G2R2T4MD | 2.2kW | 185 | 175 | 118 | 108 | 170 | 4 |
| ZVF300-G3R7/P5R5T4MD | 3.7kW/5.5kW | 215 | 205 | 145 | 135 | 193 | 4 | 515*387*265mm/4PCS | 16kg |
| ZVF300-G5R5/P7R5T4MD | 5.5kW/7.5kW | 215 | 205 | 145 | 135 | 193 | 4 |
| ZVF300-G7R5/P011T4MD | 7.5kW/11kW | 265 | 23 | 185 | 174 | 215 | 5.5 | 490*315*280mm/2PCS | 12kg |
| ZVF300-G011/P015T4MD | 11kW/15kW | 265 | 253 | 185 | 174 | 215 | 5.5 |

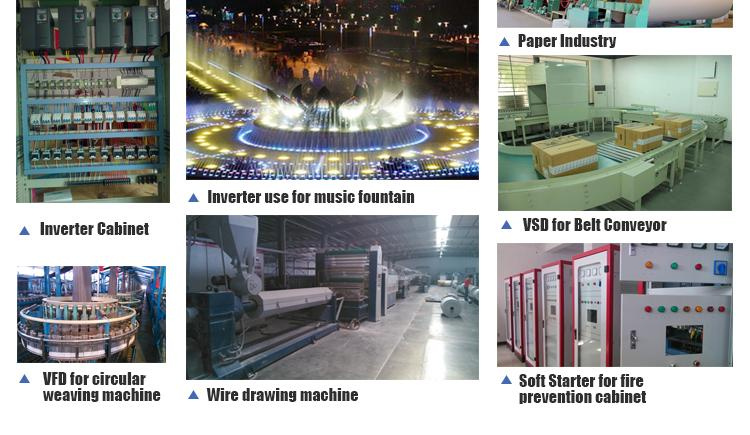

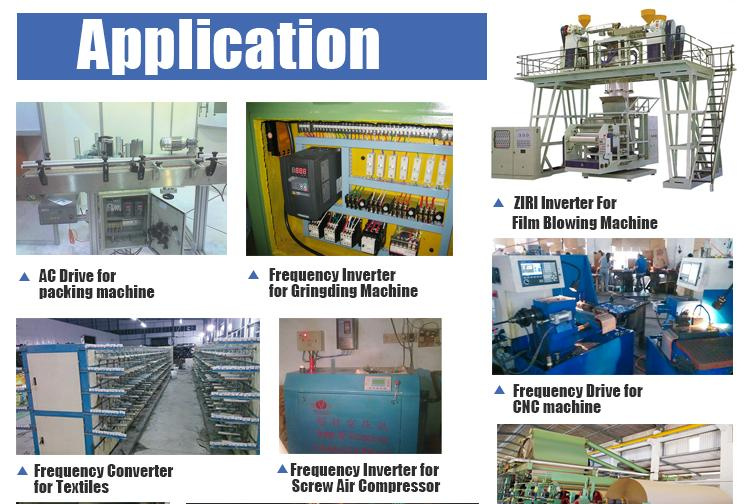

Scope of application:CHZIRI frequency inverter applied at the metallurgy, plastomer,textile, food-stuff,petroleum, chemical industry, paper-making, pharmacy,printing, building material,crane ,music spring .water supply systerm and all kinds of machine equipment.As AC asynchronous motor's driving and speed control.
Frequency Inverter can use in the following environmental | Ambient | Place to be used | Indoor location free from direct exposure to sun light, high humidity or dew condensation, high levels of dust, corrosive gas, explosive gas, inflammable gas, oil mist, salt and etc |
| Altitude | Below 1000 M |
| Ambient Temperature | -10 C to +45 C (Bare Machine: -10 C to+50 C) |
| Humidity | 20%-90% RH without dew condensation |
| Vibration | <0.5G |
| Storage temperature | -20~+60C |
| Structure | Protection class | IP20 |
| Cooling mode | Forced air cooling |
| Installation mode | Wall mounted or floor-type actuator |

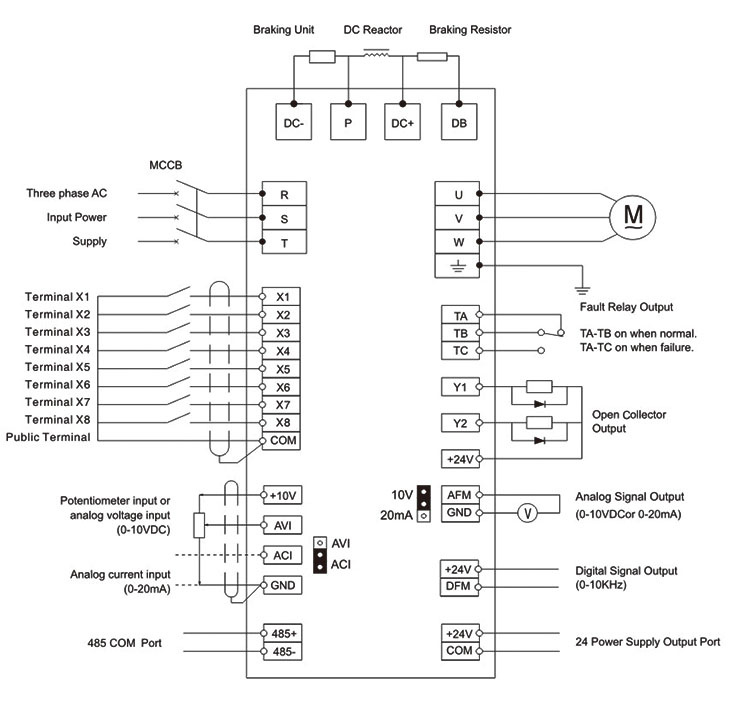

Wiring Diagram for Inverter System .
FAQ 1. Can I get some samples?Yes, Sample order is available for quality check and market test .But you have to pay for it .2. What's delivery time?It usually takes about 3-5 working days for small order and 10-15 days for big order .3. What's your payment terms?We usually accept all kinds of payment terms .Such as T/T,L/C, Western Union.Cash.4. What's your warranty terms?We offer 12 months warranty time .5. Do you have the products in stock?Depends on your request ,We have standard models in stock. Some special products and big order will be newly produced according to your order .6. Can I mix different power in one container .Yes ,Different models can be mixed up in one container ,even one order .7. How does your factory do the quality control?Quality is priority ,we always attach the importance to quality control from the beginning to the end of the production .every product will be fully assembled and carefully tested before packing and shipping .8. Can you sell spare parts ?If you are using CHZIRI products .we can sell spare parts to you . But we couldn't sell the half-finished products.9.I would like to know if you have a partner for export?Yes .CHZIRI Electrical have the right to export and can sell electrical product all over the world..10. Can you make the inverter and soft starter control boards (switchgear)?Yes. We have a lot of experience to design frequency inverter and soft starter cabinet according to your request . But you can send us the wiring diagram .11.Can the inverter connect with computer?Yes .All inverters have built-in RS485 port .and support Modbus communication protocol. 12.How can I trust you ?The core of CHZIRI electrical culture is honesty and loyalty .our company has been audited and approved ISO9001,CE.CCC. Assessment report will could be sent to you by e-mail .also .we are the made-in-china's gold supplier since 2008.Now we have clients all around the world .
1. CHZIRI Electrical located in Liushi, Wenzhou -Capital city of low voltage electrical products in China. There have many different factories produce low voltage electrical products. Such as fuses. Circuit breakers. Contactors. And pushbutton. You can buy complete components for automation system.
2. Since 1998. CHZIRI Electrical begin to produce reducer and gear boxes. In 2003. CHZIRI Electrical begin to produce frequency inverter and soft starter and control panels and related products.
3. CHZIRI Electrical is frequency inverter and soft starter manufacturer. We have big stock in warehouse. So we can offer prompt delivery and professional technical support and fast after sale service.
4. CHZIRI Electrical can also provide clients with customized control panel. We
Can design MCC panel and inverter cabinet & soft starter cabinet according to clients the wiring diagram.
5. CHZIRI Electrical also respectively obtained ISO9001, CE, CCC certificates.
6. CHZIRI Electrical set up branch offices in more than 30 cities and established a perfect, professional and efficient sale-and-service system. At the same time, ZIRI Electrical also working up international sales net. CHZIRI products have been exported in large quantity to Europe, South America, Southeast Asia, Middle East.
7. CHZIRI Electrical also go aboard to attend the fair every year.
8. OEM service can be offered.
9. CHZIRI Electrical can offer the optional parts for frequency inverter. Such as braking unit. Braking resistors. EMI Filter. Reactor. CHZIRI Electrical can offer the whole solution for automation system.
10. CHZIRI Electrical adhere to the eximious tradition of technical innovation, continue to introduce new generation products to meet market demands. Make great strides forward gradually to high-end application domain, and strive to shoulder heavy responsibilities to create a full of hope for the future.
