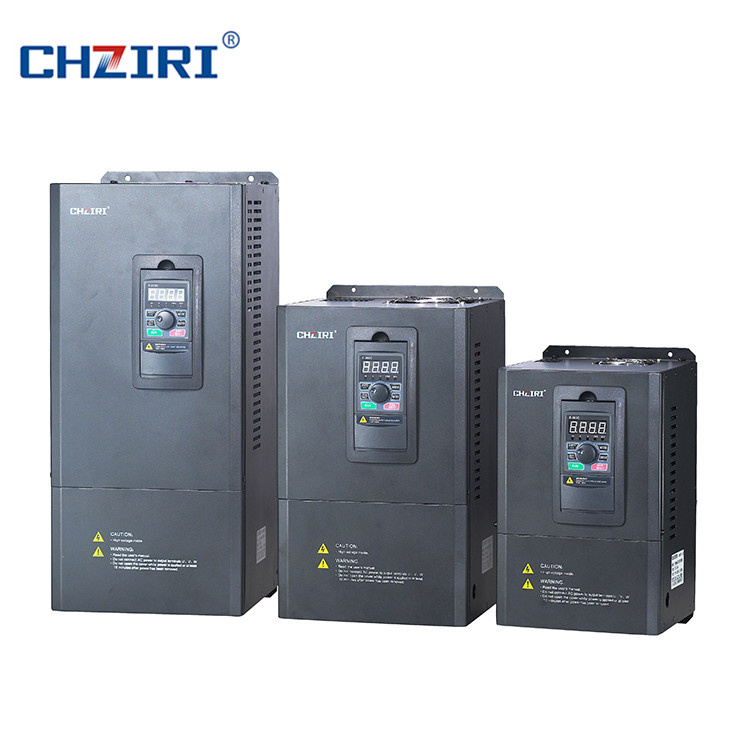

Chziri Frequency Converter for General Type Zvf9V-G0075t4mdr

Name: Chziri Frequency Converter for General Type Zvf9V-G0075t4mdr
Brand: all-electronics-online.com
SKU: 648000865
Availability: InStock
Rating: 4.7 (25 reviews)

Price:	US $ 280/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ZVF9V-G0110T4MDR, ZVF9V-G0075T4MDR
Color:	Black
Power:	7.5kw
Input Voltage:	Three Phase 380VAC
Frequency:	50Hz/60Hz
Output Frequency:	0.00~400.00Hz
Output Voltage:	Three Phase 0~Input Voltage VAC
Rated Current:	17A
Net Weight:	5kg
Gross Weight For Each Carton:	12kg
Packing Size For Each Carton:	490315280mm/2PCS

Product Description

Technical Indications of ZVF9V vector control frequency converter
1. Advanced vector control algorithm, combine accurate speed calculation and self learning of the motor parameter. It realize the accuracy control of motor speed and torque under no- speed sensor mode. V/F and SVC can be selected.

2. Optimized space voltage vector PWM modulation technology, has over-modulation function, high voltage-utilization, low output harmonic, and it greatly improves the motor's stability and switching loss.
3. Good operation characteristic of low frequency, can realize 0.5HZ/150% rated torque output which under no-speed sensor mode.

4. LCD and LED double display keyboard, display digit and Chinese, the user can operate easily.
5. Abundant functions: Automatic voltage regulation control, automatic slip Compensation,
Restart when power cut and so on. Can meet the demand of different clients.

6. Customization function design: Program running, wobble frequency running, PID control operation, timing function, counter function
Sect. Can be convenient to form and meet the different industrial field demands;
7. Built-in RS485 interface, compat MODEBUS communication protocol, can realize networked control.
8. Super strong protect function: Over voltage, over current, over load, under voltage, over heat, short circuit and so on, can offer more than 20 kinds failure protection function for user.

For more details about our frequency converter, Welcome to send inquiry to us!

Item		Item Description
input	Rated voltage, frequency	Single/Three phase 220VAC, three phase 380VAC, 50/60HZ
input	Allowable voltage range	Voltage fluctuation range:-20% ~+20% Voltage unbalance rate<3% ; frequency fluctuation<±20%
Output	Rated Voltage	Three phase: 0~ input voltage
Output	Frequency	0~400HZ
Overload capacity		Type G: 150% 1 minute , 180% 1 second ; 200% transient protection . Type P: 120% 1 minute , 150% 1 second ; 180% transient protection
Control function	Modulation capacity	Optimal space voltage vector PWM modulation
	Control method	Speed sensorless vector control(SVC)
	Frequency accuracy	Digital setting: Max.frequency x±0.01% Analog setting: Max.frequency x±0.2%
	Frequency resolution	Digital setting :0.01Hz, Analog setting : Max. Frequencyx0.1%
	Starting frequency	0.00~10.00HZ
	Troque lifting	Automatic torque lifting: To lift the torque automatically according to the output current. Hand - operated torque lifting : Range:0.1~30.0%.
	Slip compensation	Setting range: 0~150%. The inverter output frequency can be auto-regulated within this range according to the motor load so as to reduce the speed variation of the motor due to load fluctuation .
	Acceleration/ Deceleration	0.1~3600.0 sec/min, which can be set in sequence.
	Carrier frequency	1.0~15.0KHz
	Jog Function	Jog frequency range:0.01~400.0HZ, Jog acceleration/Deceleration time, 0.1~3600.0 can be set.
	V/F curve	1.linear curve, 2. quadratic curve (conic) 3.User defined V/F curve.
	Automatic energy-saving operation	Auto optimize V/F curve according to load fluctuation to realize energy -saving operation.
	Auto voltage regulation (AVR)	When the network voltage changes, it can regulate PWM output automatically to maintain constant voltage.
	Built -in PID	This can form a convenient closed-loop control system (CLCS), and is applicable to pressure control, flow control and other process control .

Product Description

ZVF300 Series frequency inverters are high performance open loop vector inverters for controlling asynchronous AC induction motors and permanent synchronous motors .

Main Features of frequency inverter
ZVF300 Series frequency inverter are high performance open loop vector inverters for controlling asynchronous AC induction motors and permanent synchronous motors .
1.       Output frequency :0-600Hz.
2.       Multiple password protection mode
3.       Remote control operation keypad, convenient for remote control.
4.       V/F curve &multi-inflection point setting, flexible configuration .
5.       Keyboard parameter copy function . easy to set the parameters for multi-inverters .
6.       Wide industry application . to expand special function according to different industries.
7.       Multiple hardware and software protection and optimized hardware for anti-interference technology.
8.       Multi-step speed and wobble frequency running (external terminal 15 steps speed control).
9.       Unique adaptive control technology . Auto current limiting and voltage limiting and under-voltage restrain .
10.   Optimized external installation and internal structure and independent air flue design , fully enclosed electrical space design .
11.   Output automatic voltage regulation function .(AVR),automatically adjust the output pulse width . to eliminate the influence of the grid change on load .
12.   Built-in PID regulation function to facilitate the realization of closed loop control of the temperature ,pressure and flow . and reduce the cost of the control system .
13.   Standard MODBUS communication protocol . easy to achieve the communication between PLC,IPC and other industrial equipments.

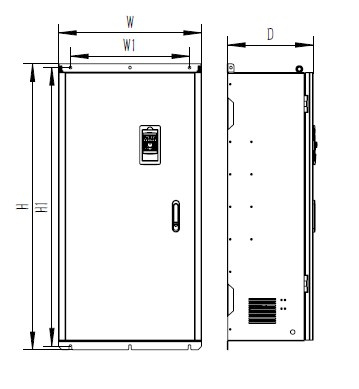

Varaible speed drive outline Dimension (Unit:mm)

ZVF300 Frequency Inverter Model Selection Guide

Model	Power(kW)	H	H1	W	W1	D	d	Packing Size(mm)	G.W.(kg)
ZVF300-G015/P018T4MD	15kW/18.5kW	380	360	220	140	230	6	610435300mm/2PCS	25
ZVF300-G018/P022T4MD	18.5kW/22kW	380	360	220	140	230	6	610435300mm/2PCS	25
ZVF300-G022/P030T4M	22kW/30kW	460	443	260	177	268	6	555X375X360mm/1PCS	25
ZVF300-G030/P037T4M	30kW/37kW	460	443	260	177	268	6	555X375X360mm/1PCS	25
ZVF300-G037/P045T4M	37kW/45kW	620	603	265	182	300	8	700X375X400mm/PCS	36
ZVF300-G045/P055T4M	45kW/55kW	620	603	265	182	300	8
ZVF300-G055/P075T4M	55kW/75kW	620	603	265	182	300	8
ZVF300-G075/P090T4M	75kW/90kW	720	702	365	240	360	9	800X495X485mm/1PCS	64
ZVF300-G090/P110T4M	90kW/110kW	720	702	365	240	360	9
ZVF300-G110/P132T4M	110kW/132kW	720	702	365	240	360	9

CHZIRI Package

Technical Details:

Item		Item Description
Input	Rated voltage& Frequency	Single /Three phase 220VAC . Three phase 380V.50Hz/60Hz
Input	Allowable Voltage range	Voltage fluctuate range:-20%~+20% Voltage unbalance rate:<3%;Frequency fluctuation:≤5%
Output	Rated voltage	three phase 0~ input AC voltage
Output	Frequency	0.00~600.00Hz
Overload capacity		Type G:150% 1minute,180% 1 second,200% transient protection Type P:120% 1minute,150% 1 second,180% transient protection
Control Function	Modulation mode	Optimal space voltage vector PWM modulation
	Control mode	Sensorless vector control (SVC), V/F control . Torque control
	Frequency accuracy	Digital setting::Max. Frequency×±0.01% Analog setting:Max. Frequency×±0.2%
	Frequency resolution	Digital setting :0.01HZ; Analog setting :Max. Frequency x0.1%.
	Starting frequency	0.00~10.00Hz
	Torque lift	Automatic torque lift: To lift the torque automatically according to the output current. Manual torque lift, Range: 0.1_30.0%
	Slip compensation	Setting range:0~150%,The inverter output frequency can be auto-regulated within this range according to the motor load, so as to reduce the speed variation of the motor due to load fluctuation.
	Acceleration/deceleration time	Minutes/Seconds can be selected as time unit .0.1~3600 can be set in sequence .
	Carrier frequency	1.0~15.0KHz
	Jog function	Jog frequency range:0.01~600.00Hz, Jog acceleration /deceleration time 0.1~3600.0 can be set.
	V/F curve	1:linear curve;2:quadratic;3:user defined V/F curve

Scope of application:

CHZIRI frequency inverter applied at the metallurgy, plastomer,textile, food-stuff,petroleum, chemical industry, paper-making, pharmacy,printing, building material,crane ,music spring .water supply systerm and all kinds of machine equipment.As AC asynchronous motor's driving and speed control.

Frequency Inverter can use in the following environmental

Ambient	Place to be used	Indoor location free from direct exposure to sun light, high humidity or dew condensation, high levels of dust, corrosive gas, explosive gas, inflammable gas, oil mist, salt and etc
	Altitude	Below 1000 M
	Ambient Temperature	-10 C to +45 C (Bare Machine: -10 C to+50 C)
	Humidity	20%-90% RH without dew condensation
	Vibration	<0.5G
	Storage temperature	-20~+60C
Structure	Protection class	IP20
	Cooling mode	Forced air cooling
	Installation mode	Wall mounted or floor-type actuator

CHZIRI Clients

FAQ
1.    Can I get some samples?
Yes, Sample order is available for quality check and market test .But you have to pay for it .
2.    What's delivery time?
It usually takes about 3-5 working days for small order and 10-15 days for big order .
3.    What's your payment terms?
We usually accept all kinds of payment terms .Such as T/T,L/C, Western Union.Cash.
4.    What's your warranty terms?
We offer 12 months warranty time .
5.    Do you have the products in stock?
Depends on your request ,We have standard models in stock. Some special products and big order will be newly produced according to your order .
6.    Can I mix different power in one container .
Yes ,Different models can be mixed up in one container ,even one order .
7.    How does your factory do the quality control?
Quality is priority ,we always attach the importance to quality control from the beginning to the end of the production .every product will be fully assembled and carefully tested before packing and shipping .
8.    Can you sell spare parts ?
If you are using CHZIRI products .we can sell spare parts to you . But we couldn't sell the half-finished products.
9.I would like to know if you have a partner for export?
Yes .CHZIRI Electrical have the right to export and can sell electrical product all over the world..
10. Can you make the inverter and soft starter control boards (switchgear)?
Yes. We have a lot of experience to design frequency inverter and soft starter cabinet according to your request . But you can send us the wiring diagram .
11.Can the inverter connect with computer?
Yes .All inverters have built-in RS485 port .and support Modbus communication protocol.
12.How can I trust you ?
The core of CHZIRI electrical culture is honesty and loyalty .our company has been audited and approved ISO9001,CE.CCC. Assessment report will could be sent to you by e-mail .also .we are the made-in-china's gold supplier since 2008.Now we have clients all around the world .

1. CHZIRI Electrical located in Liushi, Wenzhou -Capital city of low voltage electrical products in China. There have many different factories produce low voltage electrical products. Such as fuses. Circuit breakers. Contactors. And pushbutton. You can buy complete components for automation system.

2. Since 1998. CHZIRI Electrical begin to produce reducer and gear boxes. In 2003. CHZIRI Electrical begin to produce frequency inverter and soft starter and control panels and related products.

3. CHZIRI Electrical is frequency inverter and soft starter manufacturer. We have big stock in warehouse. So we can offer prompt delivery and professional technical support and fast after sale service.

4. CHZIRI Electrical can also provide clients with customized control panel. We

Can design MCC panel and inverter cabinet & soft starter cabinet according to clients the wiring diagram.

5. CHZIRI Electrical also respectively obtained ISO9001, CE, CCC certificates.

6. CHZIRI Electrical set up branch offices in more than 30 cities and established a perfect, professional and efficient sale-and-service system. At the same time, ZIRI Electrical also working up international sales net. CHZIRI products have been exported in large quantity to Europe, South America, Southeast Asia, Middle East.

7. CHZIRI Electrical also go aboard to attend the fair every year.

8. OEM service can be offered.

9. CHZIRI Electrical can offer the optional parts for frequency inverter. Such as braking unit. Braking resistors. EMI Filter. Reactor. CHZIRI Electrical can offer the whole solution for automation system.

10. CHZIRI Electrical adhere to the eximious tradition of technical innovation, continue to introduce new generation products to meet market demands. Make great strides forward gradually to high-end application domain, and strive to shoulder heavy responsibilities to create a full of hope for the future.
