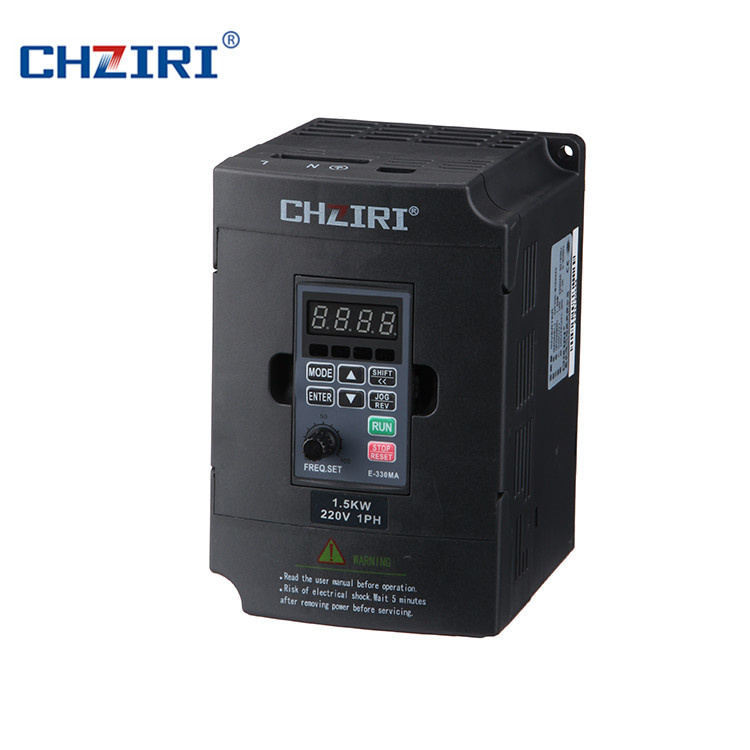

Chziri Frequency Drive with Control Cable
| Price: |
Negotiable/Piece |
| Trade Terms: |
CFR,CIF,CPT |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
ZVF300, ZVF9V-G, ZVF9V-P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Power Range: |
0.75kw~600kw |
| Output Type: |
Triple |
| Main Circuit Type: |
Voltage |
| Application: |
to Drive and Control The Speed of The Motor |
| Principle Of Work: |
SVC Control, V/F Control. Torque Control |
Product Description
ZVF9V-G/P Series frequency inverter has good effect energy saving find speed adjustment , stable running .soft start, protection function and self diagnostics fault and other advantages.
1.Advanced vector control algorithm , combine with accurate speed calculation and self learning of the motor parameter. It can realize the accuracy control of motor speed and torque under no- speed sensor mode. V/F and SVC can be selected.
2.Optimized space voltage vector PWM modulation technique, over modulation, high
Voltage- utilization, low output harmonic, and it greatly improves the stability of the motor and switching losses.
3.Good operation characteristic of low frequency running , can be realized 0.5HZ/150% torque output under no-speed sensor mode.

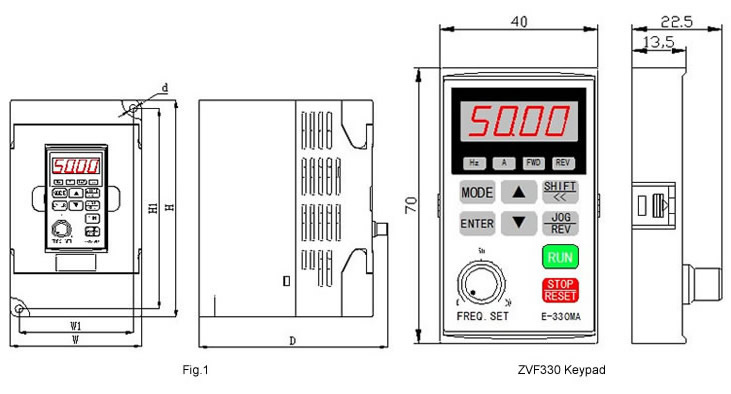

4.LED display and removable keypad . display frequency , current ,parameters ,error and ect .
the user can operate easily.
5.Control terminals can be analog voltage output . current output and digital pulse output . Voltage , current ,pulse and other multiple frequency setting mode . It can achieve the overlay function of different source . The frequency control mode is very flexible.
6.Abundant functions: automatic voltage regulation control, automatic slip Compensation,
restart when power off ect. Can meet the demand of different clients.
7.Customization function design :program running, wobble frequency running, PID control operation , timing function ,counter functions ect. can be convenient to form and meet the different industrial application .
8.Built-in RS485 Port Compat with MODEBUS communication protocol, It can realize networked control.
9. Super strong protection function: Over voltage, over current , over load, under voltage, over heat , short circuit and so on , can offer more than 20 kinds fault protection function for clients.
Application Range :
ZVF9V-P Series frequency inverter is suitable for driving and speed control of blower fan, water pump electrical machinery. Built-in PID function, which is specially suitable for flow ,pressure ,air ,temperature and other slow physical change of process control .
Application range: Blower fan . Water Pump and Music Spring and so on .

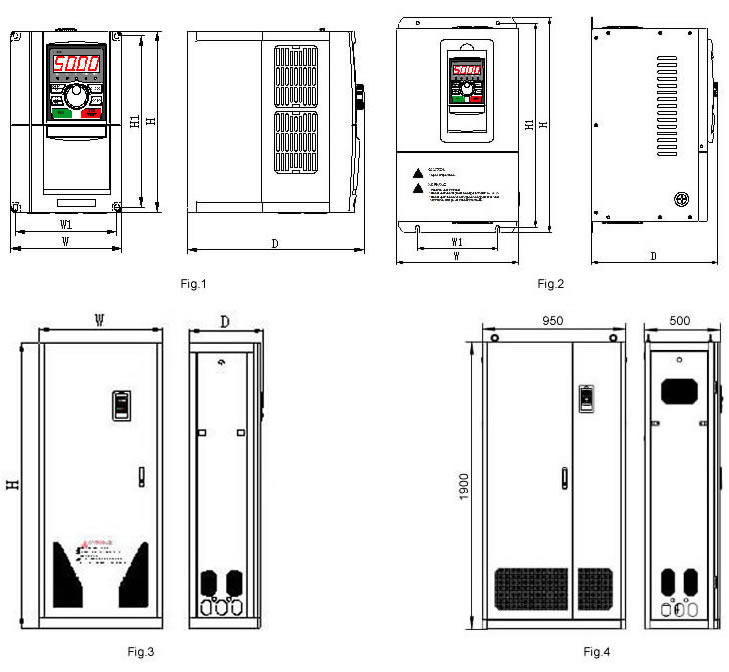

Inverter Model | Power
(KW) | Current
(A) | Dimension (mm) | Figure |
| H | W | A | B | D | d |
| ZVF9V-G0007T4MDR | 0.75 | 2.3 | 185 | 175 | 118 | 108 | 175 | 4 | Fig.1 |
| ZVF9V-G0015T4MDR | 1.5 | 3.7 |
| ZVF9V-G0022T4MDR | 2.2 | 5.0 |
| ZVF9V-G0037T4MDR | 3.7 | 9.5 | 215 | 205 | 145 | 135 | 178 | 4 |
| ZVF9V-G0055T4MDR | 5.5 | 13 |
| ZVF9V-G0075T4MDR | 7.5 | 17 | 265 | 253 | 185 | 174 | 200 | 5.5 |
| ZVF9V-G0110T4MDR | 11 | 25 |
| ZVF9V-G0150T4MDR | 15 | 33 | 380 | 360 | 210 | 160 | 204 | 10 | Fig.2 |
| ZVF9V-G0185T4M | 18.5 | 39 | 470 | 450 | 270 | 206 | 255 | 10 |
| ZVF9V-G0220T4M | 22 | 45 |
| ZVF9V-G0300T4M | 30 | 60 |
| ZVF9V-G0370T4M | 37 | 75 | 630 | 605 | 360 | 270 | 300 | 10 |
| ZVF9V-G0450T4M | 45 | 90 |
| ZVF9V-G0550T4M | 55 | 110 |
| ZVF9V-G0750T4M | 75 | 150 | 750 | 726 | 470 | 376 | 346 | 12 |
| ZVF9V-G090T4M | 90 | 176 |
| ZVF9V-G1100T4M | 110 | 210 |
| ZVF9V-G1320T4M | 132 | 250 | 1270 | | 574 | | 380 | | Fig.3 |
| ZVF9V-G1600T4M | 160 | 310 |
| ZVF9V-G1850T4M | 185 | 360 |
| ZVF9V-G2000T4M | 200 | 380 | 1700 | | 710 | | 410 | |
| ZVF9V-G2200T4M | 220 | 415 |
| ZVF9V-G2500T4M | 250 | 470 |
| ZVF9V-G2800T4M | 280 | 510 |
| ZVF9V-G3150T4M | 315 | 585 | 2020 | | 750 | | 550 | |
| ZVF9V-G3500T4M | 350 | 645 |
| ZVF9V-G3750T4M | 375 | 675 |
1. CHZIRI Electrical located in Liushi, Wenzhou -Capital city of low voltage electrical products in China. There have many different factories produce low voltage electrical products. Such as fuses. Circuit breakers. Contactors. And pushbutton. You can buy complete components for automation system.
2. Since 1998. CHZIRI Electrical begin to produce reducer and gear boxes. In 2003. CHZIRI Electrical begin to produce frequency inverter and soft starter and control panels and related products.
3. CHZIRI Electrical is frequency inverter and soft starter manufacturer. We have big stock in warehouse. So we can offer prompt delivery and professional technical support and fast after sale service.
4. CHZIRI Electrical can also provide clients with customized control panel. We
Can design MCC panel and inverter cabinet & soft starter cabinet according to clients the wiring diagram.
5. CHZIRI Electrical also respectively obtained ISO9001, CE, CCC certificates.
6. CHZIRI Electrical set up branch offices in more than 30 cities and established a perfect, professional and efficient sale-and-service system. At the same time, ZIRI Electrical also working up international sales net. CHZIRI products have been exported in large quantity to Europe, South America, Southeast Asia, Middle East.
7. CHZIRI Electrical also go aboard to attend the fair every year.
8. OEM service can be offered.
9. CHZIRI Electrical can offer the optional parts for frequency inverter. Such as braking unit. Braking resistors. EMI Filter. Reactor. CHZIRI Electrical can offer the whole solution for automation system.
10. CHZIRI Electrical adhere to the eximious tradition of technical innovation, continue to introduce new generation products to meet market demands. Make great strides forward gradually to high-end application domain, and strive to shoulder heavy responsibilities to create a full of hope for the future.
