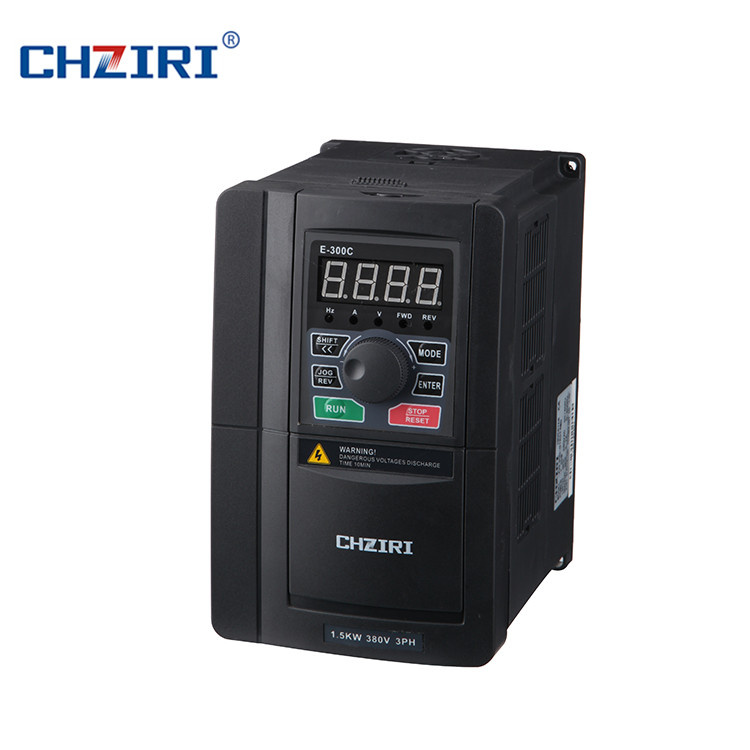

Chziri Frequency Inverter for Fan and Pump Application

Name: Chziri Frequency Inverter for Fan and Pump Application
Brand: all-electronics-online.com
SKU: 638656925
Availability: InStock
Rating: 5 (73 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	4/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ZVF9V-P0015T4MDR ZVF9V-P0037T4MDR ZVF9V-P0110T4MDR
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power Range:	1.5kw~400kw
Warranty Times:	12 Months
Color:	Black
Application:	General Transducer
Output Type:	Triple
Principle Of Work:	V/F Control Transducer
Switch Mode:	PWM Control
Main Circuit Type:	Voltage

Product Description

Power range:
380 V grade 1.5-400KW
Output frequency: 0-400Hz
Overload capability: 150% rated current for 1 minute
ZVF9V-P Series frequency inverter is suitable for driving and speed control of blower fan, water pump electrical machinery. Built-in PID function, which is specially suitable for flow, pressure, air, temperature and other slow physical change of process control.
Application range: Blower fan. Water Pump and Music Spring and so on.
For more details, Feel free to contact us!

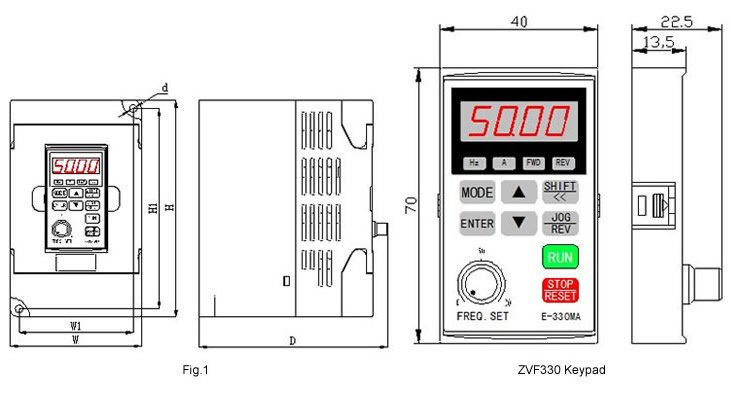

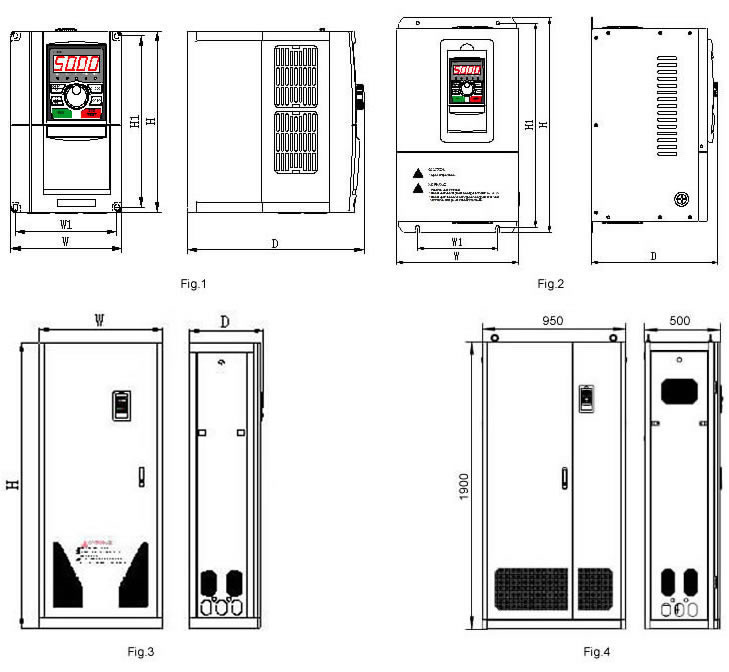

Inverter Model	Power (KW)	Current (A)	Dimension (mm)
			H	W	A	B	D	d
ZVF9V-P0015T4MDR	1.5	3.7	185	175	118	108	175	4
ZVF9V-P0022T4MDR	2.2	5.0
ZVF9V-P0037T4MDR	3.7	9.5	215	205	145	135	178	4
ZVF9V-P0055T4MDR	5.5	13
ZVF9V-P0075T4MDR	7.5	17
ZVF9V-P0110T4MDR	11	25	265	253	185	174	200	5.5
ZVF9V-P0150T4MDR	15	33
ZVF9V-P0185T4MDR	18.5	39	380	360	210	160	204	10
ZVF9V-P0220T4M	22	45	470	450	270	206	255	10
ZVF9V-P0300T4M	30	60
ZVF9V-P0370T4M	37	75
ZVF9V-P0450T4M	45	90	630	605	360	270	300	10
ZVF9V-P0550T4M	55	110
ZVF9V-P0750T4M	75	150
ZVF9V-P090T4M	90	176	750	726	470	376	346	12
ZVF9V-P1100T4M	110	210
ZVF9V-P1320T4M	132	250
ZVF9V-P1600T4M	160	310	1270		574		380
ZVF9V-P1850T4M	185	360
ZVF9V-P2000T4M	200	380
ZVF9V-P2200T4M	220	415	1700		710		410
ZVF9V-P2500T4M	250	470
ZVF9V-P2800T4M	280	510
ZVF9V-P3150T4M	315	585
ZVF9V-P3500T4M	350	645	2020		750		550

1. CHZIRI Electrical located in Liushi, Wenzhou -Capital city of low voltage electrical products in China. There have many different factories produce low voltage electrical products. Such as fuses. Circuit breakers. Contactors. And pushbutton. You can buy complete components for automation system.

2. Since 1998. CHZIRI Electrical begin to produce reducer and gear boxes. In 2003. CHZIRI Electrical begin to produce frequency inverter and soft starter and control panels and related products.

3. CHZIRI Electrical is frequency inverter and soft starter manufacturer. We have big stock in warehouse. So we can offer prompt delivery and professional technical support and fast after sale service.

4. CHZIRI Electrical can also provide clients with customized control panel. We

Can design MCC panel and inverter cabinet & soft starter cabinet according to clients the wiring diagram.

5. CHZIRI Electrical also respectively obtained ISO9001, CE, CCC certificates.

6. CHZIRI Electrical set up branch offices in more than 30 cities and established a perfect, professional and efficient sale-and-service system. At the same time, ZIRI Electrical also working up international sales net. CHZIRI products have been exported in large quantity to Europe, South America, Southeast Asia, Middle East.

7. CHZIRI Electrical also go aboard to attend the fair every year.

8. OEM service can be offered.

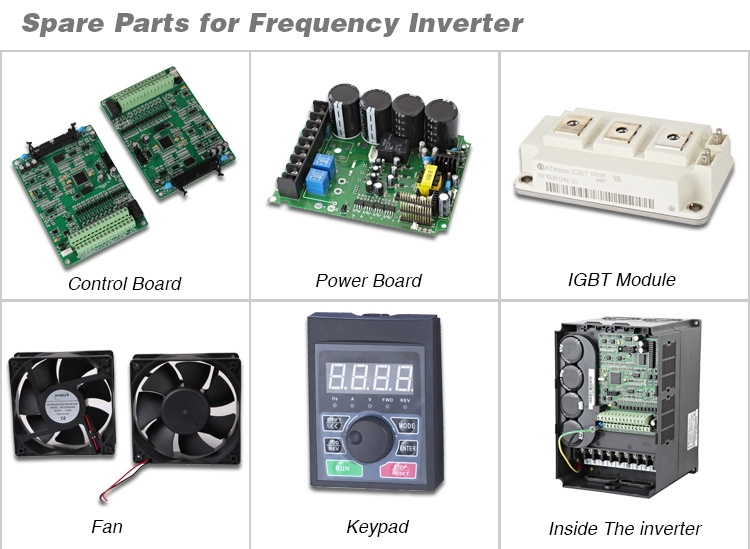

9. CHZIRI Electrical can offer the optional parts for frequency inverter. Such as braking unit. Braking resistors. EMI Filter. Reactor. CHZIRI Electrical can offer the whole solution for automation system.

10. CHZIRI Electrical adhere to the eximious tradition of technical innovation, continue to introduce new generation products to meet market demands. Make great strides forward gradually to high-end application domain, and strive to shoulder heavy responsibilities to create a full of hope for the future.
