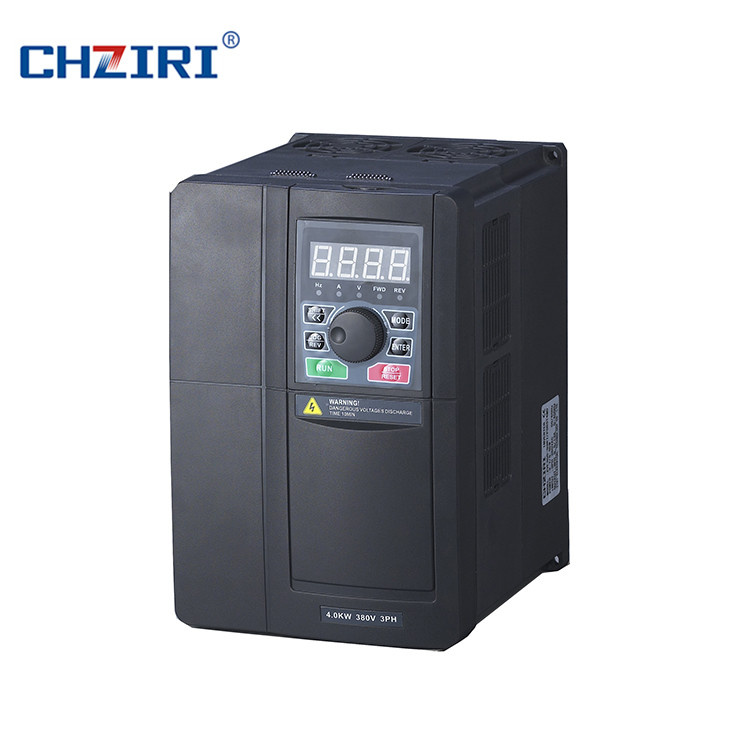

Chziri Frequency Inverters for General Purpose Application 220V 3.7kw

Prod Model:	ZVF300-G3R7S2S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Black
Power Range:	0.75kw-600kw
Application:	to Drive and Control The Speed of Drive
Output Type:	Triple
Main Circuit Type:	Voltage
Principle Of Work:	AC Inverter
Switch Mode:	Sensorless Vector Control (SVC), V/F Control.
Brand:	Ziri

Product Description

ZVF300 Series AC Drive have the following function:

Skip frequency, Jog function, Counter, Rotation speed tracking, Momentary power loss restart, Frequency upper/lower limiting,
Acceleration/ Deceleration mode can be adjusted, Frequency meter and Voltmeter output, Multi-speed/ program running,
Two wire mode/ three wire mode control, Wobble frequency control, Multi-function input terminal selection, Fault auto reset, RS485 serial communication.



Item		Item Description
Input	Rated voltage& Frequency	Single /Three phase 220VAC . Three phase 380V.50Hz/60Hz
	Allowable Voltage range	Voltage fluctuate range:-20%~+20% Voltage unbalance rate:<3%;Frequency fluctuation:≤5%
Output	Rated voltage	three phase 0~  input AC voltage
	Frequency	0.00~600.00Hz
Overload capacity		Type G:150% 1minute,180% 1 second,200% transient protection Type P:120% 1minute,150% 1 second,180% transient protection
Control Function	Modulation mode	Optimal space voltage vector PWM modulation
	Control mode	Sensorless  vector control (SVC), V/F control . Torque control
	Frequency accuracy	Digital setting::Max. Frequency×±0.01% Analog setting:Max. Frequency×±0.2%
	Frequency resolution	Digital setting :0.01HZ; Analog setting :Max. Frequency x0.1%.
	Starting frequency	0.00~10.00Hz
	Torque lift	Automatic torque lift: To lift the torque automatically according to the output current. Manual torque lift, Range: 0.1_30.0%
	Slip compensation	Setting range:0~150%,The inverter output frequency can be auto-regulated within this range according to the motor load, so as to reduce the speed variation of the motor due to load fluctuation.
	Acceleration/deceleration time	Minutes/Seconds can be selected as time unit .0.1~3600 can be set in sequence .
	Carrier frequency	1.0~15.0KHz
	Jog function	Jog frequency range:0.01~600.00Hz, Jog acceleration /deceleration time 0.1~3600.0 can be set.
	V/F curve	1:linear curve;2:quadratic;3:user defined V/F curve

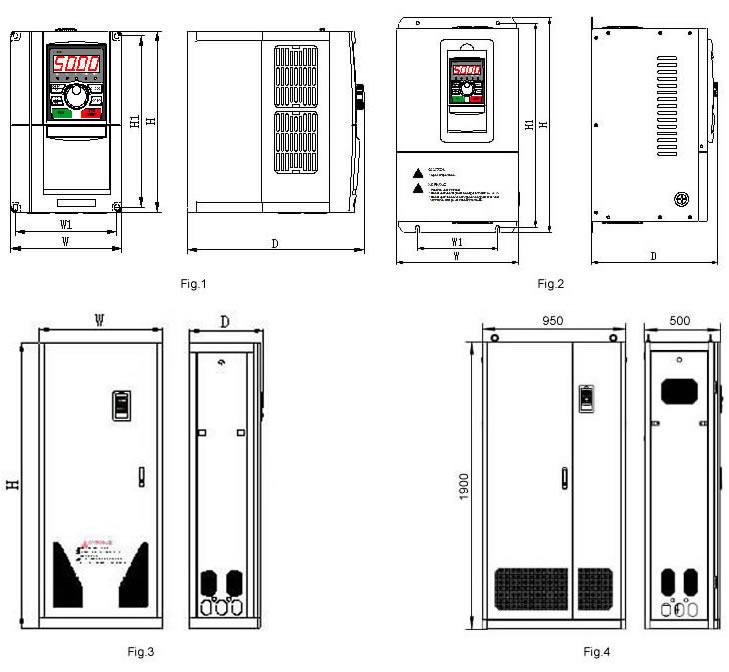

Inverter Model	Power (kW) G/P	Current (A)	Dimension (mm)						Figure
			H	H1	W	W1	D	d
ZVF300-G0R4S2MD	0.4	2.4	185	175	118	108	170	4	Fig.1
ZVF300-G0R7S2MD	0.75	7.5
ZVF300-G1R5S2MD	1.5	7.0	185	175	118	108	190	4
ZVF300-G2R2S2MD	2.2	10
ZVF300-G0R7T4MD	0.75	2.5	185	175	118	108	170	4	Fig.1
ZVF300-G1R5T4MD	1.5	3.7
ZVF300-G2R2T4MD	2.2	5.0
ZVF300-G3R7/P5R5T4MD	3.7/5.5	9.0/13	215	205	145	135	193	4
ZVF300-G5R5/P7R5T4MD	5.5/7.5	13/17
ZVF300-G7R5/P011T4MD	7.5/11	17/25	265	253	185	174	215	5.5
ZVF300-G011/P015T4MD	11/15	25/33
ZVF300-G015/P018T4MD	15/18.5	33/37	380	360	220	140	230	6	Fig.2
ZVF300-G018/P022T4MD	18.5/22	37/45
ZVF300-G022/P030T4M	22/30	45/60	460	443	260	177	268	6
ZVF300-G030/P037T4M	30/37	60/75
ZVF300-G037/P045T4M	37/45	75/90	620	603	265	182	300	8
ZVF300-G045/P055T4M	45/55	90/110
ZVF300-G055/P075T4M	55/75	110/150
ZVF300-G075/P090T4M	75/90	150/176	720	702	365	240	360	9
ZVF300-G090/P110T4M	90/110	176/210
ZVF300-G110/P132T4M	110/132	210/253
ZVF300-G132/P160T4M	132/160	253/300	1190		493		390		Fig.3
ZVF300-G160/P185T4M	160/185	300/340
ZVF300-G185/P200T4M	185/200	340/380
ZVF300-G200/P220T4M	200/220	380/420	1600		660		415
ZVF300-G220/P250T4M	220/250	420/470
ZVF300-G250/P280T4M	250/280	470/520
ZVF300-G280/P315T4M	280/315	520/600
ZVF300-G315/P350T4M	315/350	600/640	1750		750		470
ZVF300-G350/P400T4M	350/400	640/690
ZVF300-G400/P450T4M	400/450	690/790
ZVF300-G450/P500T4M	450/500	790/860	1900		950		520		Fig.4
ZVF300-G500/P560T4M	500/560	860/950
ZVF300-G560/P630T4M	560/630	950/1100
ZVF300-G630T4M	630	1100

Why you choose the products from CHZIRI Electrical ?

1.CHZIRI Electrical located in Liushi ,Wenzhou -Capital city of low voltage electrical products in China . There have many different factories produce low voltage electrical products .Such as fuses . circuit breakers . contactors . and pushbutton. you can buy complete components for automation system .
2. Since 1998.CHZIRI Electrical begin to produce reducer and gear boxes . in 2003. CHZIRI Electrical begin to produce frequency inverter and soft starter and related products .
3.CHZIRI Electrical is frequency inverter and soft starter manufacturer .we have big stock in warehouse . so we can offer prompt delivery and professional technical support and fast after sale service .
4.CHZIRI Electrical can also provide clients with customized control panel.We
can design MCC panel and inverter cabinet & soft starter cabinet according to clients the wiring diagram .
5.CHZIRI Electrical also respectively obtained ISO9001, CE ,CCC certificates.
6.CHZIRI Electrical set up branch offices in more than 30 cities and established a perfect, professional and efficient sale-and-service system. At the same time , ZIRI Electrical also working up international sales net. CHZIRI products have been exported in large quantity to Europe, South America, Southeast Asia, Middle East.
7.CHZIRI Electrical also go aboard to attend the fair every year .
8. OEM  service can be offered .

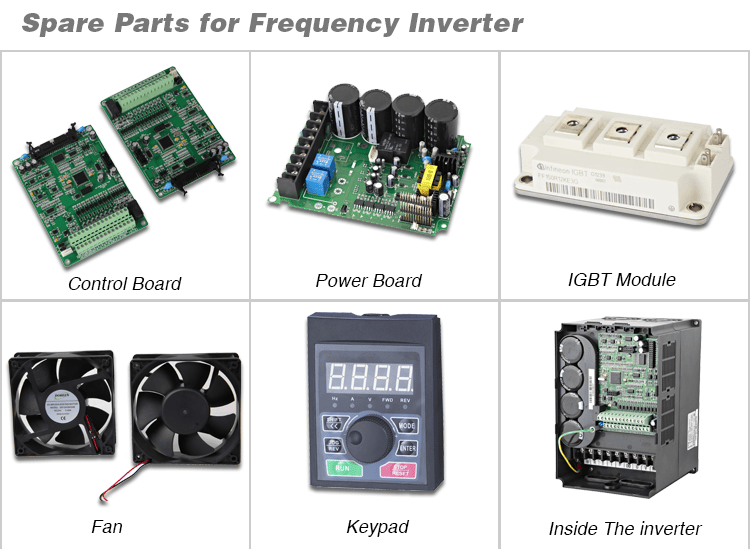

9. CHZIRI Electrical can offer the optional parts for frequency inverter .Such as braking unit .braking resistors .EMI Filter .Reactor . CHZIRI Electrical can offer the whole solution for automation system .

CHZIRI Inverter and soft starter Sales 's Point .

1. We are manufacturer . CHZIRI products are offered with big quantity with small profit .
2.Key parts are imported from Germany and Japan . Such as Infenion IGBT. Rubycon Capacitor or Nichincon capacitor , Chip: TI,ST,ON,. ADDA and  ebmpapst fan .
3. CHZIRI frequency inverter has the good effect energy conservation , fine speed adjustment performance , stable operation , stable operation , electrical machinery soft start, protect function and self diagnostics fault and other advantages.

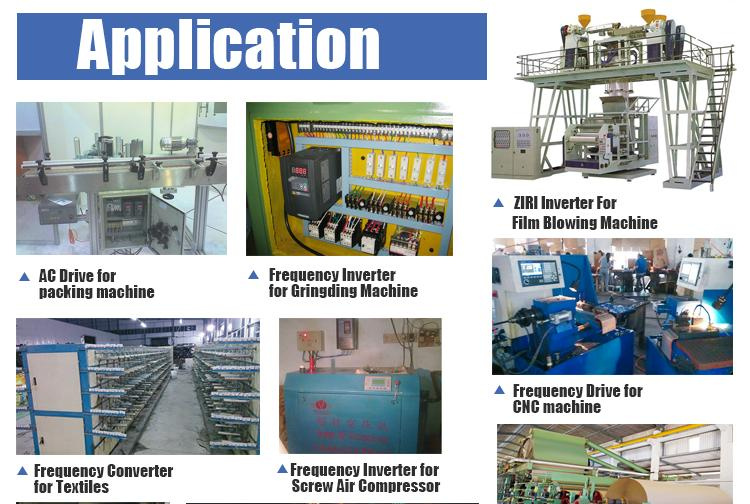

4.CHZIRI  frequency inverter is suitable for all kinds of devices such as metallurgy, plastic,   textile machinery ,   paper manufacturing machinery, food machinery, petrification equipment, drugs manufacture, steel and iron equipment , printing mechanism ,  packing machinery , blower fan, water pump,hoisting equipment , building materials  and so on for driving  and speeding control of AC asynchronous motor .
5.CHZIRI Inverter and soft starter are certificated with CE.
6.Warranty time :16 Months. If the products get damaged by quality problem within the warranty time .we will send you the spare parts for free . If the inverter caused improper and incorrect operation . we will we will not be responsible for the loss caused .
7.CHZIRI  inverter  have built-in RS485 port .and support Modbus communication protocol.

8. CHZIRI frequency inverters and soft starters are easy and convenient to operate .
9.CHZIRI inverter have the following protection function : Input phase loss protection, Over current protection ,Overload protection, Over voltage protection ,Under voltage protection, Over heat protection ect.
10.Automatic energy-saving operation:  Auto optimize V/F curve according to the load changes to realize the energy saving operation .
 11.Auto voltage regulation (AVR):When the network voltage changes, it can regulate PWM output automatically to maintain constant voltage.
12. Built-in PID: This can form a convenient closed-loop control system (CLCS)and is applicable to pressure control, flow control and other process control  .
