| Prod Model: |
ZVF300-G220/P250T4M |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Power Range: |
0.75kw-600kw |
| Output Type: |
Triple |
| Main Circuit Type: |
Voltage |
| Application: |
to Drive and Control The Speed of Drive |
| Principle Of Work: |
AC Inverter |
| Switch Mode: |
Sensorless Vector Control (SVC), V/F Control. |
Product Description

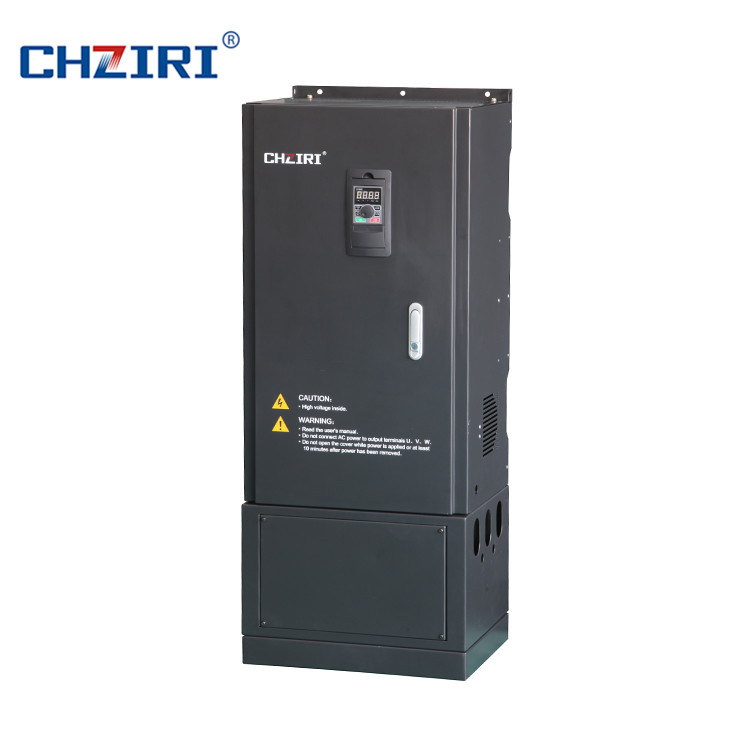

ZVF300 Series AC Drive is new products in ZIRI Company.
ZVF300 Series AC Drive have the following function.
Skip frequency, Jog function, Counter, Rotation speed tracking, Momentary power loss restart, Frequency upper/lower limiting, Acceleration/ Deceleration mode can be adjusted, Frequency meter and Voltmeter output, Multi-speed/ program running, Two wire mode/ three wire mode control, Wobble frequency control, Multi-function input terminal selection, Fault auto reset, RS485 serial communication.
If you are interested in CHZIRI AC Drive, Welcome to contact us!
| Item | Item Description |
| Input | Rated voltage& Frequency | Single /Three phase 220VAC . Three phase 380V.50Hz/60Hz |
| Allowable Voltage range | Voltage fluctuate range:-20%~+20%
Voltage unbalance rate:<3%;Frequency fluctuation:≤5% |
| Output | Rated voltage | three phase 0~ input AC voltage |
| Frequency | 0.00~600.00Hz |
| Overload capacity | Type G:150% 1minute,180% 1 second,200% transient protection
Type P:120% 1minute,150% 1 second,180% transient protection |
| Control Function | Modulation mode | Optimal space voltage vector PWM modulation
|
| Control mode | Sensorless vector control (SVC), V/F control . Torque control
|
Frequency accuracy
| Digital setting::Max. Frequency×±0.01%
Analog setting:Max. Frequency×±0.2% |
| Frequency resolution | Digital setting :0.01HZ;
Analog setting :Max. Frequency x0.1%. |
| Starting frequency | 0.00~10.00Hz |
| Torque lift | Automatic torque lift: To lift the torque automatically according to the output current.
Manual torque lift, Range: 0.1_30.0% |
| Slip compensation | Setting range:0~150%,The inverter output frequency can be auto-regulated within this range according to the motor load, so as to reduce the speed variation of the motor due to load fluctuation. |
Acceleration/deceleration
time | Minutes/Seconds can be selected as time unit .0.1~3600 can be set in sequence . |
| Carrier frequency | 1.0~15.0KHz |
| Jog function | Jog frequency range:0.01~600.00Hz,
Jog acceleration /deceleration time 0.1~3600.0 can be set. |
| V/F curve | 1:linear curve;2:quadratic;3:user defined V/F curve |
Product DescriptionZVF330 Series Mini Type AC Drive ZVF330 Series Mini Type AC Drive are developed for general applications of small power and OEM market. It applies V/f control technology, making the functions of PID, multiple-speed step, DC braking, Modbus communication, as well as less installation space .ZVF330 Series AC drive is for small automation equipment of economical type, especially suitable for electronic equipment, food packaging, wood, glass and other small power transmission. Main Features of AC drive ZVF330 Series mini type AC Drive are high performance open loop vector inverters for controlling asynchronous AC induction motors and permanent synchronous motors . - Output frequency :0-600Hz.
- Multiple password protection mode
- Remote control operation keypad, convenient for remote control.
- V/F curve &multi-inflection point setting, flexible configuration .
- Keyboard parameter copy function . easy to set the parameters for multi-inverters .
- Wide industry application . to expand special function according to different industries.
- Multiple hardware and software protection and optimized hardware for anti-interference technology.
- Multi-step speed and wobble frequency running (external terminal 15 steps speed control).
- Unique adaptive control technology . Auto current limiting and voltage limiting and under-voltage restrain .
- Optimized external installation and internal structure and independent air flue design , fully enclosed electrical space design .
- Output automatic voltage regulation function .(AVR),automatically adjust the output pulse width . to eliminate the influence of the grid change on load .
- Built-in PID regulation function to facilitate the realization of closed loop control of the temperature ,pressure and flow . and reduce the cost of the control system .
- Standard MODBUS communication protocol . easy to achieve the communication between PLC,IPC and other industrial equipments.
Guide Model for AC drive
| Inverter Model | Voltage | Power | Current | Dimension (mm) | Packing Size(mm) | G.W.(kg) |
| (V) | (KW) | ( A) | H | H1 | W | W1 | D | d |
| ZVF330-M0R4S2MD | 220V | 0.4 | 2.4 | 141.5 | 130.5 | 85 | 74 | 125 | 5 | 570*380*460mm/16PCS | 25kg |
| ZVF330-M0R7S2MD | 0.75 | 4 | 141.5 | 130.5 | 85 | 74 | 125 | 5 |
| ZVF330-M1R5S2SD | 1.5 | 7.5 | 151 | 140 | 100 | 89.5 | 128.5 | 5 |
| ZVF330-M2R2S2SD | 2.2 | 10 | 151 | 140 | 100 | 89.5 | 128.5 | 5 |
| ZVF330-M0R7T4SD | 380V | 0.75 | 2.3 | 151 | 140 | 100 | 89.5 | 128.5 | 5 | 570*380*460mm/16PCS | 25kg |
| ZVF330-M1R5T4SD | 1.5 | 3.7 | 151 | 140 | 100 | 89.5 | 128.5 | 5 |
| ZVF330-M2R2T4SD | 2.2 | 5 | 151 | 140 | 100 | 89.5 | 128.5 | 5 |

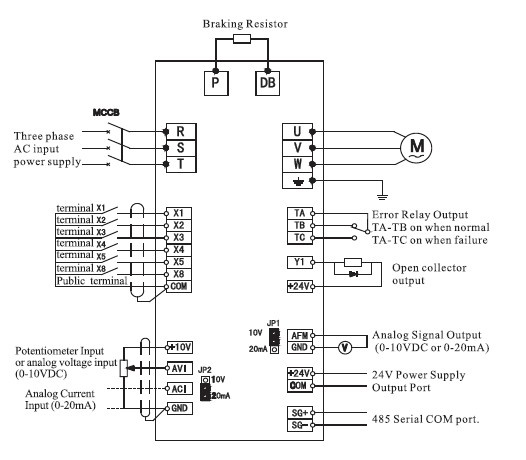

Inverter's Standard Wiring Diagram
ZVF330 AC Drive Application RangePacking machine; dumpling machine; treadmill; temperature/humidity control fan for agriculture and aquaculture; mixer for food processing; grinding machine; drilling machine; small size hydraulic lathe; elevator; coating equipment; small size milling machine; robot arm of injection machine (clamp); wood machine (two-side woodworking planer); edge bending machine. etc.
Why you choose the products from CHZIRI Electrical ?
- low voltage frequency inverter and soft starter manufacturer and exporter .
- More than 10 years experience and professional devoting the automation control system . we want to be the best to serve our clients.
- CHZIRI frequency inverter and soft starters are certificated with CE. CHZIRI Electrical passed ISO9001:2008 quality control system.
- Key parts inside the CHZIRI Frequency Inverter are imported .We use Infenion IGBT ,Fans are from Germany company ,Capacitors are imported from Japan .
- CHZIRI frequency inverters and soft starters are easy and convenient to operate .
- CHZIRI frequency inverter have built-in RS485 Port .and support Modbus communication protocol.
- CHZIRI Frequency Inverters and Soft starters are selling to all over the world . CHZIRI Products earn good reputation and sell well in the market .
- CHZIRI Electrical can offer the optional parts for frequency inverter .Such as braking unit .braking resistors .EMI Filter .Reactor .Choke and remote control cables.
- CHZIRI Electrical can also provide clients with customized control panel .Such as frequency inverter switchgear and soft starters cabinets.
- CHZIRI Electrical located in Liushi,Wenzhou -Capital city of low voltage electrical appliances in China . you can buy different kind of electrical products from our city . Such as breakers ,contactors .relays .fuses . indicators. Pushbutton and so on .
- CHZIRI Electrical are near to NINGBO ,SHANGHAI port .The shipping cost will be cheaper .
- OEM service can be offered .
- Prompt delivery :5-12 days after receipt your money.
- Warranty time :12 ~16 months .
.
