| Prod Model: |
ZVF300-G3R7/P5R5T4MD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Power Range: |
0.75kw-600kw |
| Output Type: |
Triple |
| Main Circuit Type: |
Voltage |
| Application: |
to Drive and Control The Speed of Drive |
| Principle Of Work: |
AC Inverter |
| Switch Mode: |
Sensorless Vector Control (SVC), V/F Control. |
Product Description

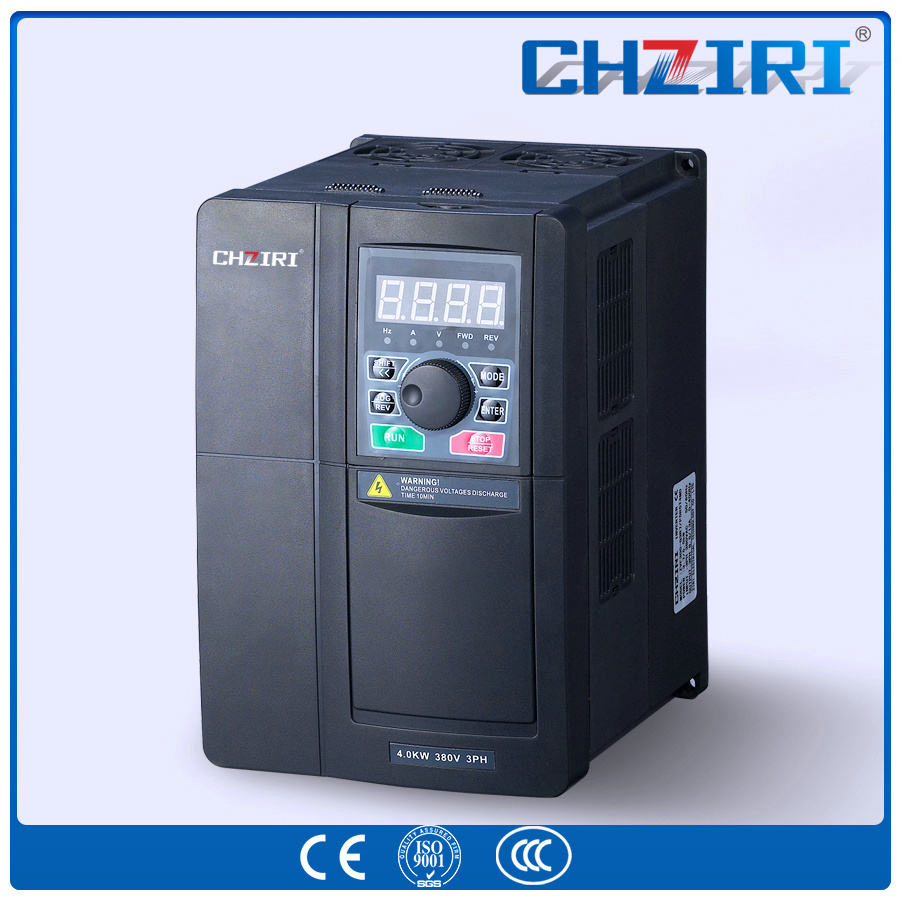

ZVF300 Series AC Drive is new products in ZIRI Company.
ZVF300 Series AC Drive have the following function.
Skip frequency, Jog function, Counter, Rotation speed tracking, Momentary power loss restart, Frequency upper/lower limiting, Acceleration/ Deceleration mode can be adjusted, Frequency meter and Voltmeter output, Multi-speed/ program running, Two wire mode/ three wire mode control, Wobble frequency control, Multi-function input terminal selection, Fault auto reset, RS485 serial communication.
If you are interested in CHZIRI AC Drive, Welcome to contact us!
| Item | Item Description |
| Input | Rated voltage& Frequency | Single /Three phase 220VAC . Three phase 380V.50Hz/60Hz |
| Allowable Voltage range | Voltage fluctuate range:-20%~+20%
Voltage unbalance rate:<3%;Frequency fluctuation:≤5% |
| Output | Rated voltage | three phase 0~ input AC voltage |
| Frequency | 0.00~600.00Hz |
| Overload capacity | Type G:150% 1minute,180% 1 second,200% transient protection
Type P:120% 1minute,150% 1 second,180% transient protection |
| Control Function | Modulation mode | Optimal space voltage vector PWM modulation
|
| Control mode | Sensorless vector control (SVC), V/F control . Torque control
|
Frequency accuracy
| Digital setting::Max. Frequency×±0.01%
Analog setting:Max. Frequency×±0.2% |
| Frequency resolution | Digital setting :0.01HZ;
Analog setting :Max. Frequency x0.1%. |
| Starting frequency | 0.00~10.00Hz |
| Torque lift | Automatic torque lift: To lift the torque automatically according to the output current.
Manual torque lift, Range: 0.1_30.0% |
| Slip compensation | Setting range:0~150%,The inverter output frequency can be auto-regulated within this range according to the motor load, so as to reduce the speed variation of the motor due to load fluctuation. |
Acceleration/deceleration
time | Minutes/Seconds can be selected as time unit .0.1~3600 can be set in sequence . |
| Carrier frequency | 1.0~15.0KHz |
| Jog function | Jog frequency range:0.01~600.00Hz,
Jog acceleration /deceleration time 0.1~3600.0 can be set. |
| V/F curve | 1:linear curve;2:quadratic;3:user defined V/F curve |
1. CHZIRI Electrical located in Liushi, Wenzhou -Capital city of low voltage electrical products in China. There have many different factories produce low voltage electrical products. Such as fuses. Circuit breakers. Contactors. And pushbutton. You can buy complete components for automation system.
2. Since 1998. CHZIRI Electrical begin to produce reducer and gear boxes. In 2003. CHZIRI Electrical begin to produce frequency inverter and soft starter and control panels and related products.
3. CHZIRI Electrical is frequency inverter and soft starter manufacturer. We have big stock in warehouse. So we can offer prompt delivery and professional technical support and fast after sale service.
4. CHZIRI Electrical can also provide clients with customized control panel. We
Can design MCC panel and inverter cabinet & soft starter cabinet according to clients the wiring diagram.
5. CHZIRI Electrical also respectively obtained ISO9001, CE, CCC certificates.
6. CHZIRI Electrical set up branch offices in more than 30 cities and established a perfect, professional and efficient sale-and-service system. At the same time, ZIRI Electrical also working up international sales net. CHZIRI products have been exported in large quantity to Europe, South America, Southeast Asia, Middle East.
7. CHZIRI Electrical also go aboard to attend the fair every year.
8. OEM service can be offered.

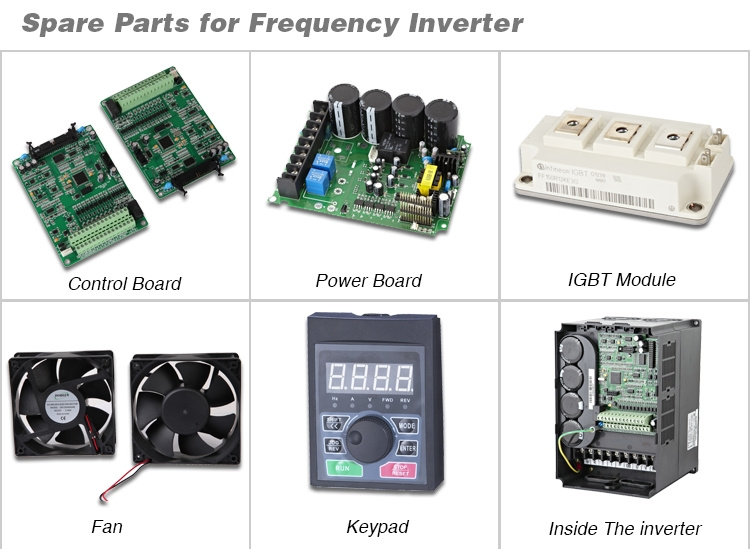

9. CHZIRI Electrical can offer the optional parts for frequency inverter. Such as braking unit. Braking resistors. EMI Filter. Reactor. CHZIRI Electrical can offer the whole solution for automation system.
10. CHZIRI Electrical adhere to the eximious tradition of technical innovation, continue to introduce new generation products to meet market demands. Make great strides forward gradually to high-end application domain, and strive to shoulder heavy responsibilities to create a full of hope for the future.
