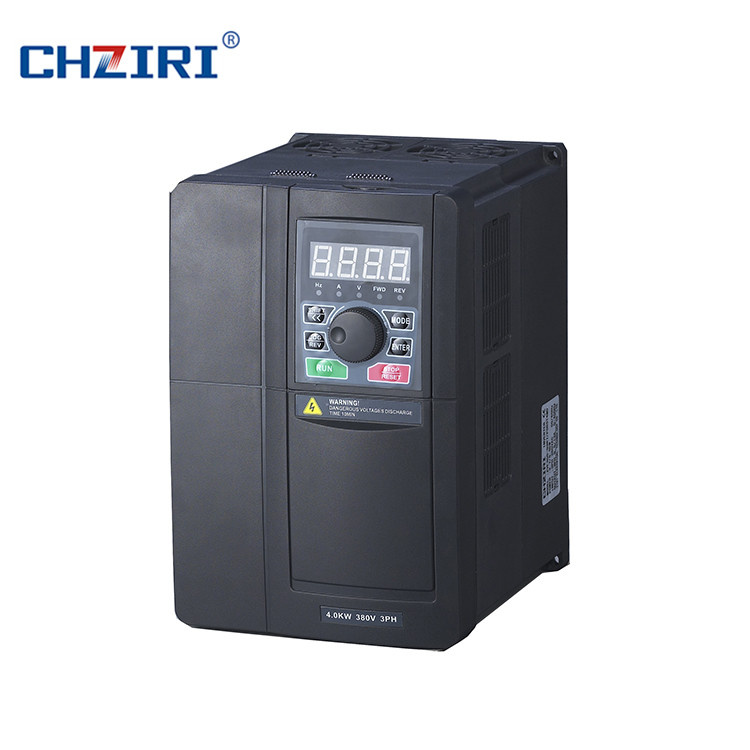

Chziri General Type Variable Frequency Drive Zvf9V-G0075t4mdr

Prod Model:	ZVF9V-G0075T4MDR, ZVF9V-G0220T4M
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Black
Input Voltage:	Three Phase 380V
Input Frequency:	50/60Hz
Output Frequency:	0.00~400.00Hz
Output Voltage:	Three Phase 0~Input Voltage VAC
Current:	15A
Net Weight:	5kg
Gross Weight For Each Carton:	12kg
Packing Size For Each Carton:	490*315*280mm/2PCS
Application:	General Transducer
Output Type:	Triple
Principle Of Work:	Vector Control Transducer
Switch Mode:	PWM Control
Main Circuit Type:	Voltage
Brand:	Chziri

Product Description

Product characteristic: of Variable Frequency Drive.

The ZVF9-G series frequency inverter suitable for many kinds of general model of high quality, low noise and multi-purpose. It characteristic as follow:
1. Adopt the Magnetic Flux Vector PWM control algorithm, advanced technique, resonant wave of output current is few and high efficiency.
2. Good at characteristic of low frequency operation, It can output of torsion on low frequency reting.
3. Maximum carrier wave frequency are 13kHz, It can oeration with Static sound
4. Numeral keyboard, simulation Potentiometer, Exterior intelligence terminal, COM and etc that so many kinds of input mode. The control mode is extremely agility.

5. Prolific function, for example: Voltage control in automatism, dead-time compensation, automatic slip compensation and DC braking, restarting after power interruption and etc. It can according to the re quire of control of high precision and complexity.
6. Program operation(multiple speed), Pendulum-frequency operation. In sets at the PI regulator, It can structure expediently to satisfy different need automatization control system.
7. In sets RS485 standard communication interface, It can realize the networking control or the proportion gearing control.
8. Consummation malfunction management and protection function, and guarantee the frequency inverter and motor are not damaged in any malfunction situation.
9. Advanced technology, compact-structure, and the product contour artistic is natural.

Scope of application for Variable Frequency Drive
ZVF9-G series frequency inverter applied at the metallurgy, plastomer, textile, food-stuff, petroleum, chemical industry, paper-making, pharmacy, printing, building material, crane and all kinds of machine equipment. As AC asynchronous motor's driving and speed control.

Inverter Outline& Mounting Dimension (Unit: mm)

Inverter Model	Power (KW)	Current (A)	Dimension (mm)						Figure
			H	W	A	B	D	d
ZVF9V-G0007T4MDR	0.75	2.3	185	175	118	108	175	4	Fig.1
ZVF9V-G0015T4MDR	1.5	3.7
ZVF9V-G0022T4MDR	2.2	5.0
ZVF9V-G0037T4MDR	3.7	9.5	215	205	145	135	178	4
ZVF9V-G0055T4MDR	5.5	13
ZVF9V-G0075T4MDR	7.5	17	265	253	185	174	200	5.5
ZVF9V-G0110T4MDR	11	25
ZVF9V-G0150T4MDR	15	33	380	360	210	160	204	10	Fig.2
ZVF9V-G0185T4M	18.5	39	470	450	270	206	255	10
ZVF9V-G0220T4M	22	45
ZVF9V-G0300T4M	30	60
ZVF9V-G0370T4M	37	75	630	605	360	270	300	10
ZVF9V-G0450T4M	45	90
ZVF9V-G0550T4M	55	110
ZVF9V-G0750T4M	75	150	750	726	470	376	346	12
ZVF9V-G090T4M	90	176
ZVF9V-G1100T4M	110	210
ZVF9V-G1320T4M	132	250	1270		574		380		Fig.3
ZVF9V-G1600T4M	160	310
ZVF9V-G1850T4M	185	360
ZVF9V-G2000T4M	200	380	1700		710		410
ZVF9V-G2200T4M	220	415
ZVF9V-G2500T4M	250	470
ZVF9V-G2800T4M	280	510
ZVF9V-G3150T4M	315	585	2020		750		550
ZVF9V-G3500T4M	350	645
ZVF9V-G3750T4M	375	675

90kW frequency Converter have the following meatures.
1.90kW frequency Converter is our new type frequency inverter.
2.90kW frequency Converter are high performance open loop vector inverters for controlling asynchronous AC induction motors and permanent synchronous motors.
3. Output frequency of 200kW frequency Converter: 0-600Hz.
4.90kW frequency Converter have Multiple password protection mode
5.90kW frequency Converter can support remote control operation keypad, convenient for remote control.
6.90kW frequency Converter have V/F curve &multi-inflection point setting, flexible configuration.
7.90kW frequency Converter have Keyboard parameter copy function. Easy to set the parameters for multi-inverters.
8. Wide industry application for 200kW frequency Converter To expand special function according to different industries.
9.90kW frequency Converter have multiple hardware and software protection and optimized hardware for anti-interference technology.
10.90kW frequency Converter have Multi-step speed and wobble frequency running (external terminal 15 steps speed control).
11. Unique adaptive control technology for 200kW frequency Converter. Auto current limiting and voltage limiting and under-voltage restrain.
12.90kW frequency Converter Optimized external installation and internal structure and independent air flue design, fully enclosed electrical space design.
13.90kW frequency Converter have Output automatic voltage regulation function. (AVR), automatically adjust the output pulse width. To eliminate the influence of the grid change on load.
14.90kW frequency Converter have Built-in PID regulation function to facilitate the realization of closed loop control of the temperature, pressure and flow. And reduce the cost of the control system.
15.90kW frequency Converter can support Standard MODBUS communication protocol. Easy to achieve the communication between PLC, IPC and other industrial equipments.

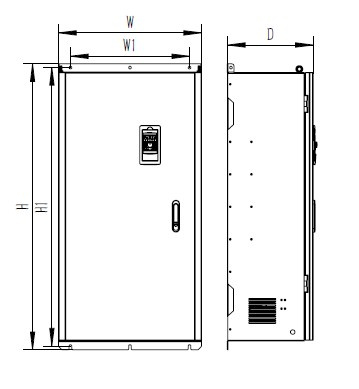

Model	Power(kW)	H	H1	W	W1	D	d	Packing Size(mm)	G.W.(kg)
ZVF300-G015/P018T4MD	15kW/18.5kW	380	360	220	140	230	6	610*435*300mm/2PCS	25
ZVF300-G018/P022T4MD	18.5kW/22kW	380	360	220	140	230	6
ZVF300-G022/P030T4M	22kW/30kW	460	443	260	177	268	6	555X375X360mm/1PCS	25
ZVF300-G030/P037T4M	30kW/37kW	460	443	260	177	268	6
ZVF300-G037/P045T4M	37kW/45kW	620	603	265	182	300	8	700X375X400mm/PCS	36
ZVF300-G045/P055T4M	45kW/55kW	620	603	265	182	300	8
ZVF300-G055/P075T4M	55kW/75kW	620	603	265	182	300	8
ZVF300-G075/P090T4M	75kW/90kW	720	702	365	240	360	9	800X495X485mm/1PCS	64
ZVF300-G090/P110T4M	90kW/110kW	720	702	365	240	360	9
ZVF300-G110/P132T4M	110kW/132kW	720	702	365	240	360	9

CHZIRI Package

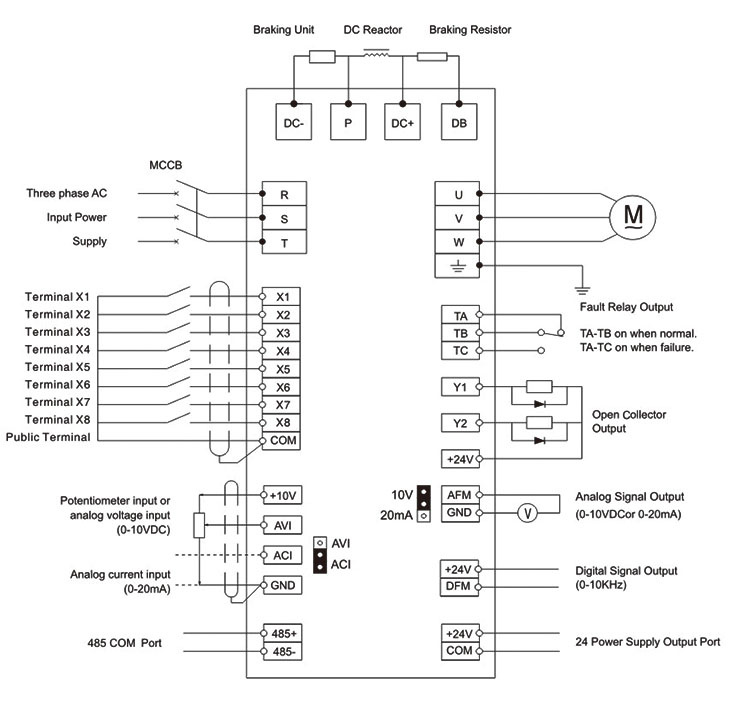

Inverter Wiring Diagram





Item		Item Description
Control Function	Automatic energy-saving operation	Auto optimize V/F curve according to the load changes to realize the energy saving operation.
	Auto voltage regulation(AVR)	When the network voltage changes, it can regulate PWM output automatically to maintain constant voltage.
	Built-in PID	This can form a convenient closed-loop control system (CLCS)and is applicable to pressure control, flow control and other process control  .
Operation Function	Operating command	Operation panel control ,external terminal control and COM control
	Frequency setting	Keypad potentiometer setting , operation panel  setting,. external terminal UP/DOWN setting, analog voltage signal or external potentiometer setting , analog current signal setting .terminal combination setting ,485 COM setting and so on.
	Input Signal	Forward/Reverse signal\multi-speed signal \fault signal \ reset signal etc.
	Output signal	Programmable relay\open collector output \Fault  signal output.
	Multi-function analog and digital output terminal	This can realize the output of frequency current and other physical quantity by output 0-10V or 0-20mA DC signal and 0-10KHz digital signal output.
Braking function	Dynamic braking	With an external braking resistor, the maximum braking torque may reach 100%.
	DC Braking	This can be selected when the motor starts or stops with the action frequency of 0-20Hz,action current level of 0-100% and actuation time of 0-30sec., which can be set in sequence.
Other Function		Skip frequency\Jog function\Counter \Rotation speed tracking\Momentary power loss restart \Frequency upper/lower limiting\Acceleration/ Deceleration mode can be adjusted \Frequency meter and Voltmeter output \Multi-speed/ program running \Two wire mode/ three wire mode control \Wobble frequency control\Multi-function input terminal selection \Fault auto reset\RS485 serial communication .
Protection Function		Input phase loss protection\Over current protection \Overload protection\Over voltage protection \Under voltage protection\Over heat protection ect.


FAQ
1.   Can I get some samples?
Yes, Sample order is available for quality check and market test .But you have to pay for it .
2.   What's delivery time?
It usually takes about 3-5 working days for small order and 10-15 days for big order .
3.   What's your payment terms?
We usually accept all kinds of payment terms .Such as T/T,L/C, Western Union.Cash.
4.   What's your warranty terms?
We offer 12 months warranty time .
5.   Do you have the products in stock?
Depends on your request ,We have standard models in stock. Some special products and big order will be newly produced according to your order .
6.   Can I mix different power in one container .
Yes ,Different models can be mixed up in one container ,even one order .
7.   How does your factory do the quality control?
Quality is priority ,we always attach the importance to quality control from the beginning to the end of the production .every product will be fully assembled and carefully tested before packing and shipping .
8.   Can you sell spare parts ?
If you are using CHZIRI products .we can sell spare parts to you . But we couldn't sell the half-finished products.
9.I would like to know if you have a partner for export?
Yes .CHZIRI Electrical have the right to export and can sell electrical product all over the world..
10. Can you make the inverter and soft starter control boards (switchgear)?
Yes. We have a lot of experience to design frequency inverter and soft starter cabinet according to your request . But you can send us the wiring diagram .
11.Can the inverter connect with computer?
Yes .All inverters have built-in RS485 port .and support Modbus communication protocol.
12.How can I trust you ?
The core of CHZIRI electrical culture is honesty and loyalty .our company has been audited and approved ISO9001,CE.CCC. Assessment report will could be sent to you by e-mail .also .we are the made-in-china's gold supplier since 2008.Now we have clients all around the world .
