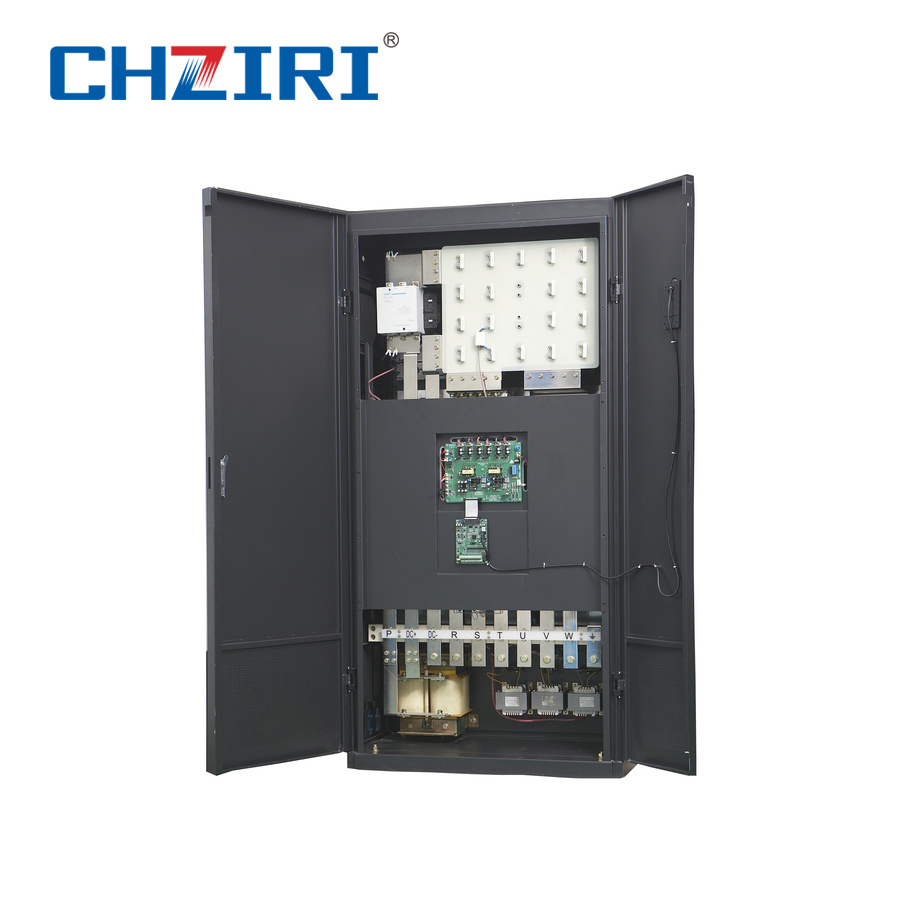

Chziri High Performance Frequency Converter 7.5kw with Remote Control Cable

Prod Model:	ZVF300-G7R5/P011T4MD, ZVF300-G2R2T4MD,
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Black
Input Voltage:	380V
Input Frequency:	50/60Hz
Power:	7.5kw
Output Voltage:	Three Phase 0~ Input AC Voltage
Output Frequency:	0.00~600.00Hz
Current:	17A
Remte Control Cable:	2 Meters
Net Weight:	5kg
Gross Weight For Each Carton:	12kg
Brand:	Chziri

Product Description

ZVF300 Series High Performance vector control frequency converter

ZVF300  series high Performance vector control  frequency converter is ZIRI Electrical developed the new type frequency inerter . General type and fan/pump type are in one model . support Modbus communication protocol. can be widely used to control  and drive the speed of induction motors and synchronous motor . superior performance, abundant functions, easy operation, high accountability and a complete range of specifications.Can fully meet the individual needs of customers in the industry.

Guide Model for Frequency Converter


Inverter Model	Power (kW) G/P	Current (A)	Dimension (mm)						Figure
			H	H1	W	W1	D	d
ZVF300-G0R4S2MD	0.4	2.4	185	175	118	108	170	4	Fig.1
ZVF300-G0R7S2MD	0.75	7.5
ZVF300-G1R5S2MD	1.5	7.0	185	175	118	108	190	4
ZVF300-G2R2S2MD	2.2	10
ZVF300-G0R7T4MD	0.75	2.5	185	175	118	108	170	4	Fig.1
ZVF300-G1R5T4MD	1.5	3.7
ZVF300-G2R2T4MD	2.2	5.0
ZVF300-G3R7/P5R5T4MD	3.7/5.5	9.0/13	215	205	145	135	193	4
ZVF300-G5R5/P7R5T4MD	5.5/7.5	13/17
ZVF300-G7R5/P011T4MD	7.5/11	17/25	265	253	185	174	215	5.5
ZVF300-G011/P015T4MD	11/15	25/33
ZVF300-G015/P018T4MD	15/18.5	33/37	380	360	220	140	230	6	Fig.2
ZVF300-G018/P022T4MD	18.5/22	37/45
ZVF300-G022/P030T4M	22/30	45/60	460	443	260	177	268	6
ZVF300-G030/P037T4M	30/37	60/75
ZVF300-G037/P045T4M	37/45	75/90	620	603	265	182	300	8
ZVF300-G045/P055T4M	45/55	90/110
ZVF300-G055/P075T4M	55/75	110/150
ZVF300-G075/P090T4M	75/90	150/176	720	702	365	240	360	9
ZVF300-G090/P110T4M	90/110	176/210
ZVF300-G110/P132T4M	110/132	210/253
ZVF300-G132/P160T4M	132/160	253/300	1190		493		390		Fig.3
ZVF300-G160/P185T4M	160/185	300/340
ZVF300-G185/P200T4M	185/200	340/380
ZVF300-G200/P220T4M	200/220	380/420	1600		660		415
ZVF300-G220/P250T4M	220/250	420/470
ZVF300-G250/P280T4M	250/280	470/520
ZVF300-G280/P315T4M	280/315	520/600
ZVF300-G315/P350T4M	315/350	600/640	1750		750		470
ZVF300-G350/P400T4M	350/400	640/690
ZVF300-G400/P450T4M	400/450	690/790
ZVF300-G450/P500T4M	450/500	790/860	1900		950		520		Fig.4
ZVF300-G500/P560T4M	500/560	860/950
ZVF300-G560/P630T4M	560/630	950/1100
ZVF300-G630T4M	630	1100

ZIRI Electrical can provide a range of extended shielding remote control cables with different specifications such as 1m,1.5m,2m,3m,5m and 10m.If there is any special requirement on cable length . Just place an order with the company .
ZVF300 Series Frequency Inverter is new product in ZIRI Company.

ZVF300 series frequency inverter applied at the metallurgy, plastomer, textile, food-stuff, petroleum, chemical industry, paper-making, pharmacy, printing, building material, crane and all kinds of machine equipment. As AC asynchronous motor's driving and speed control.

ZVF300 Series frequency inverters are high performance open loop vector inverters for controlling asynchronous AC induction motors and permanent synchronous motors.
        1.The Output frequency of 11kW frequency inverter :0-600Hz.
Multiple password protection mode for 11kW frequency inverter
Remote control operation keypad, convenient for remote control.
V/F curve &multi-inflection point setting, flexible configuration .
Keyboard parameter copy function . easy to set the parameters for multi-inverters .
Wide industry application . to expand special function according to different industries.
Multiple hardware and software protection and optimized hardware for anti-interference technology.
 Multi-step speed and wobble  frequency running  (external terminal 15 steps speed control).
Unique adaptive control technology . Auto current limiting and voltage limiting and under-voltage restrain .
Optimized external installation and internal structure and independent air flue design , fully enclosed electrical space design .
Output automatic voltage regulation function .(AVR),automatically adjust the output pulse width . to eliminate the  influence  of the grid change on load .
Built-in PID regulation function to facilitate the  realization of closed loop control of the temperature ,pressure and flow . and reduce the cost of the control system .
Standard MODBUS communication protocol . easy to achieve the communication between PLC,IPC and other industrial equipments.

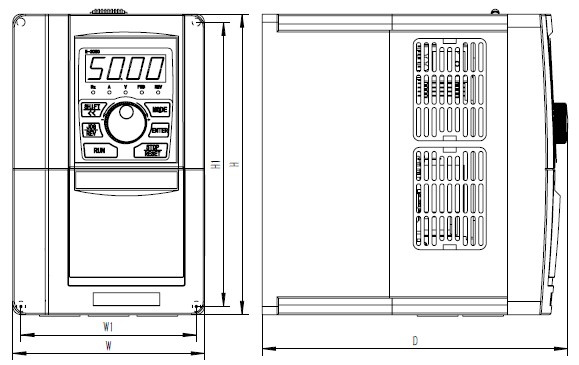

Vector Control Inverter Outline Dimension (Unit:mm)





ZVF300 Frequency Inverter Model Selection Guide

Three phase 380V/440V± 20%
Model	Power(kW)	H	H1	W	W1	D	d	Packing Size(mm)	G.W.(kg)
ZVF300-G0R7T4MD	0.75kW	185	175	118	108	170	4	505*455*265mm/6PCS	16kg
ZVF300-G1R5T4MD	1.5kW	185	175	118	108	170	4
ZVF300-G2R2T4MD	2.2kW	185	175	118	108	170	4
ZVF300-G3R7/P5R5T4MD	3.7kW/5.5kW	215	205	145	135	193	4	515*387*265mm/4PCS	16kg
ZVF300-G5R5/P7R5T4MD	5.5kW/7.5kW	215	205	145	135	193	4
ZVF300-G7R5/P011T4MD	7.5kW/11kW	265	23	185	174	215	5.5	490*315*280mm/2PCS	12kg
ZVF300-G011/P015T4MD	11kW/15kW	265	253	185	174	215	5.5

 CHZIRI Package


Scope of application:

CHZIRI frequency inverter applied at the metallurgy, plastomer,textile, food-stuff,petroleum, chemical industry, paper-making, pharmacy,printing, building material,crane ,music spring .water supply systerm and all kinds of machine equipment.As AC asynchronous motor's driving and speed control.

Frequency Inverter can use in the following environmental

Ambient	Place to be used	Indoor location free from direct exposure to sun light, high humidity or dew condensation, high levels of dust, corrosive gas, explosive gas, inflammable gas, oil mist, salt and etc
	Altitude	Below 1000 M
	Ambient Temperature	-10 C to +45 C (Bare Machine: -10 C to+50 C)
	Humidity	20%-90% RH without dew condensation
	Vibration	<0.5G
	Storage temperature	-20~+60C
Structure	Protection  class	IP20
	Cooling mode	Forced air cooling
	Installation mode	Wall mounted or floor-type actuator



Technical Details:

Item		Item Description
Control Function	Automatic energy-saving operation	Auto optimize V/F curve according to the load changes to realize the energy saving operation.
	Auto voltage regulation(AVR)	When the network voltage changes, it can regulate PWM output automatically to maintain constant voltage.
	Built-in PID	This can form a convenient closed-loop control system (CLCS)and is applicable to pressure control, flow control and other process control  .
Operation Function	Operating command	Operation panel control ,external terminal control and COM control
	Frequency setting	Keypad potentiometer setting , operation panel UP ,DOWN setting,. external terminal UP/DOWN setting, analog voltage signal or external potentiometer setting , analog current signal setting .terminal combination setting ,485 COM setting and so on.
	Input Signal	Forward/Reverse signal\multi-speed signal \fault signal \ reset signal etc.
	Output signal	Programmable relay\open collector output \Fault  signal output.
	Multi-function analog and digital output terminal	This can realize the output of frequency current and other physical quantity by output 0-10V or 0-20mA DC signal and 0-10KHz digital signal output.
Braking function	Dynamic braking	With an external braking resistor, the maximum braking torque may reach 100%.
	DC Braking	This can be selected when the motor starts or stops with the action frequency of 0-20Hz,action current level of 0-100% and actuation time of 0-30sec., which can be set in sequence.
Other Function		Skip frequency\Jog function\Counter \Rotation speed tracking\Momentary power loss restart \Frequency upper/lower limiting\Acceleration/ Deceleration mode can be adjusted \Frequency meter and Voltmeter output \Multi-speed/ program running \Two wire mode/ three wire mode control \Wobble frequency control\Multi-function input terminal selection \Fault auto reset\RS485 serial communication .
Protection Function		Input phase loss protection\Over current protection \Overload protection\Over voltage protection \Under voltage protection\Over heat protection ect.

FAQ
1.    Can I get some samples?
Yes, Sample order is available for quality check and market test .But you have to pay for it .
2.    What's delivery time?
It usually takes about 3-5 working days for small order and 10-15 days for big order .
3.    What's your payment terms?
We usually accept all kinds of payment terms .Such as T/T,L/C, Western Union.Cash.
4.    What's your warranty terms?
We offer 12 months warranty time .
5.    Do you have the products in stock?
Depends on your request ,We have standard models in stock. Some special products and big order will be newly produced according to your order .
6.    Can I mix different power in one container .
Yes ,Different models can be mixed up in one container ,even one order .
7.    How does your factory do the quality control?
Quality is priority ,we always attach the importance to quality control from the beginning to the end of the production .every product will be fully assembled and carefully tested before packing and shipping .

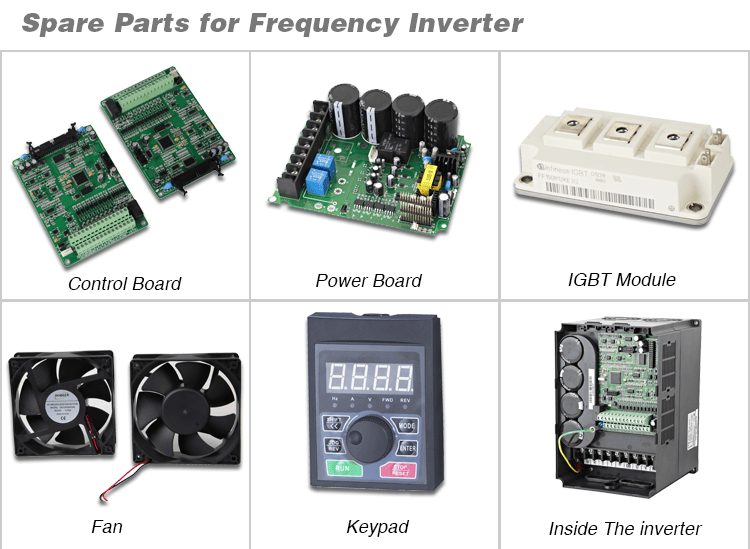

8.    Can you sell spare parts ?
If you are using CHZIRI products .we can sell spare parts to you . But we couldn't sell the half-finished products.
9.I would like to know if you have a partner for export?
Yes .CHZIRI Electrical have the right to export and can sell electrical product all over the world..
10. Can you make the inverter and soft starter control boards (switchgear)?
Yes. We have a lot of experience to design frequency inverter and soft starter cabinet according to your request . But you can send us the wiring diagram .
11.Can the inverter connect with computer?
Yes .All inverters have built-in RS485 port .and support Modbus communication protocol.
12.How can I trust you ?
The core of CHZIRI electrical culture is honesty and loyalty .our company has been audited and approved ISO9001,CE.CCC. Assessment report will could be sent to you by e-mail .also .we are the made-in-china's gold supplier since 2008.Now we have clients all around the world .
