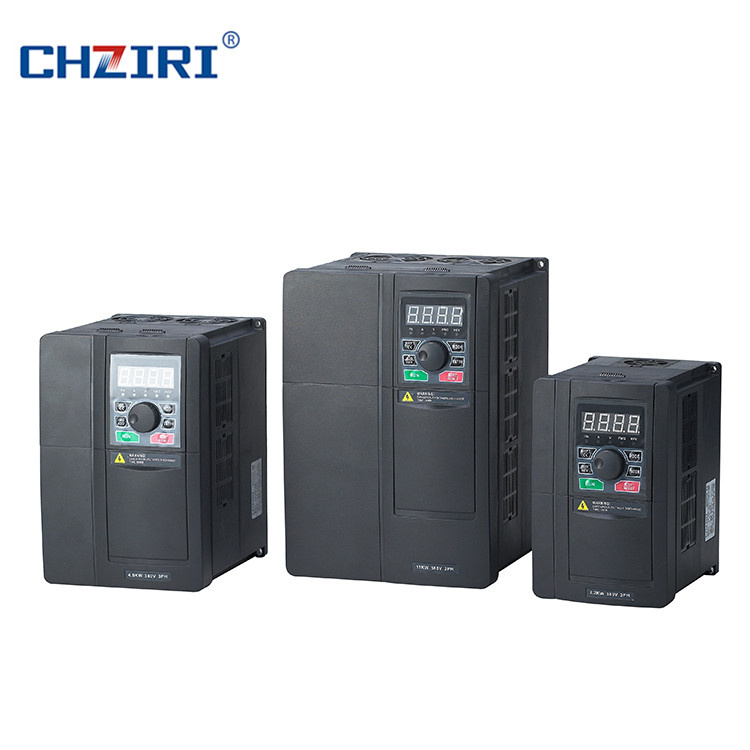

Chziri High Performnace Frequency Inverter 22kw with Ce Certificate

Prod Model:	ZVF9V-G0220T4M, ZVF9V-G0185T4M, ZVF9V-G0300T4M
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Black
Power:	22kw
Input Voltage:	Three Phase .380V.440V
Input Frequency:	50/60Hz
Outpur Voltage:	Three Phase 0~Input Voltage VAC
Output Frequency:	0.00~400.00Hz
Output Current:	45A
Net Weight:	21kg
Gross Weight:	26kg
Packing Size:	555*375*360mm/1PCS

Product Description

Product characteristic for ZVF9V-G frequency Inverter

The ZVF9-G series frequency inverter suitable for many kinds of general model of high quality, low noise and multi-purpose. It characteristic as follow:
1. Adopt the Magnetic Flux Vector PWM control algorithm, advanced technique, resonant wave of output current is few and high efficiency.
2. Good at characteristic of low frequency operation, It can output of torsion on low frequency reting.
3. Maximum carrier wave frequency are 13kHz, It can oeration with Static sound
4. Numeral keyboard, simulation Potentiometer, Exterior intelligence terminal, COM and etc that so many kinds of input mode. The control mode is extremely agility.
5. Prolific function, for example: Voltage control in automatism, dead-time compensation, automatic slip compensation and DC braking, restarting after power interruption and etc. It can according to the re quire of control of high precision and complexity.
6. Program operation(multiple speed), Pendulum-frequency operation. In sets at the PI regulator, It can structure expediently to satisfy different need automatization control system.
7. In sets RS485 standard communication interface, It can realize the networking control or the proportion gearing control.
8. Consummation malfunction management and protection function, and guarantee the frequency inverter and motor are not damaged in any malfunction situation.
9. advanced technology, compact-structure, and the product contour artistic is natural.

Guide Model of ZVF9V-G Frequency Inverter

Inverter Model	Power (KW)	Current (A)	Dimension (mm)						Figure
			H	W	A	B	D	d
ZVF9V-G0007T4MDR	0.75	2.3	185	175	118	108	175	4	Fig.1
ZVF9V-G0015T4MDR	1.5	3.7
ZVF9V-G0022T4MDR	2.2	5.0
ZVF9V-G0037T4MDR	3.7	9.5	215	205	145	135	178	4
ZVF9V-G0055T4MDR	5.5	13
ZVF9V-G0075T4MDR	7.5	17	265	253	185	174	200	5.5
ZVF9V-G0110T4MDR	11	25
ZVF9V-G0150T4MDR	15	33	380	360	210	160	204	10	Fig.2
ZVF9V-G0185T4M	18.5	39	470	450	270	206	255	10
ZVF9V-G0220T4M	22	45
ZVF9V-G0300T4M	30	60
ZVF9V-G0370T4M	37	75	630	605	360	270	300	10
ZVF9V-G0450T4M	45	90
ZVF9V-G0550T4M	55	110
ZVF9V-G0750T4M	75	150	750	726	470	376	346	12
ZVF9V-G090T4M	90	176
ZVF9V-G1100T4M	110	210
ZVF9V-G1320T4M	132	250	1270		574		380		Fig.3
ZVF9V-G1600T4M	160	310
ZVF9V-G1850T4M	185	360
ZVF9V-G2000T4M	200	380	1700		710		410
ZVF9V-G2200T4M	220	415
ZVF9V-G2500T4M	250	470
ZVF9V-G2800T4M	280	510
ZVF9V-G3150T4M	315	585	2020		750		550
ZVF9V-G3500T4M	350	645
ZVF9V-G3750T4M	375	675

Scope of application of ZVF9-G series frequency inverter

ZVF9-G series frequency inverter applied at the metallurgy, plastomer, textile, food-stuff, petroleum, chemical industry, paper-making, pharmacy, printing, building material, crane and all kinds of machine equipment. As AC asynchronous motor's driving and speed control.

Main Features:

ZVF300 Series inverters are high performance open loop vector inverters for controlling asynchronous AC induction motors and permanent synchronous motors.

1. Output frequency: 0-600Hz.
2. Multiple password protection mode
3. Remote control operation keypad, convenient for remote control.
4. V/F curve &multi-inflection point setting, flexible configuration.
5. Keyboard parameter copy function. Easy to set the parameters for multi-inverters.
6. Wide industry application. To expand special function according to different industries.
7. Multiple hardware and software protection and optimized hardware for anti-interference technology.
8. Multi-step speed and wobble frequency running (external terminal 15 steps speed control).
9. Unique adaptive control technology. Auto current limiting and voltage limiting and under-voltage restrain.
10. Optimized external installation and internal structure and independent air flue design, fully enclosed electrical space design.
11. Output automatic voltage regulation function. (AVR), automatically adjust the output pulse width. To eliminate the influence of the grid change on load.
12. Built-in PID regulation function to facilitate the realization of closed loop control of the temperature, pressure and flow. And reduce the cost of the control system.
13. Standard MODBUS communication protocol. Easy to achieve the communication between PLC, IPC and other industrial equipments.





Scope of application:

CHZIRI frequency inverter applied at the metallurgy, plastomer,textile, food-stuff,petroleum, chemical industry, paper-making, pharmacy,printing, building material,crane ,music spring .water supply systerm and all kinds of machine equipment.As AC asynchronous motor's driving and speed control.

Frequency Inverter can use in the following environmental

Ambient	Place to be used	Indoor location free from direct exposure to sun light, high humidity or dew condensation, high levels of dust, corrosive gas, explosive gas, inflammable gas, oil mist, salt and etc
	Altitude	Below 1000 M
	Ambient Temperature	-10 C to +45 C (Bare Machine: -10 C to+50 C)
	Humidity	20%-90% RH without dew condensation
	Vibration	<0.5G
	Storage temperature	-20~+60C
Structure	Protection  class	IP20
	Cooling mode	Forced air cooling
	Installation mode	Wall mounted or floor-type actuator

 FAQ
1.    Can I get some samples?
Yes, Sample order is available for quality check and market test .But you have to pay for it .
2.    What's delivery time?
It usually takes about 3-5 working days for small order and 10-15 days for big order .
3.    What's your payment terms?
We usually accept all kinds of payment terms .Such as T/T,L/C, Western Union.Cash.
4.    What's your warranty terms?
We offer 12 months warranty time .
5.    Do you have the products in stock?
Depends on your request ,We have standard models in stock. Some special products and big order will be newly produced according to your order .
6.    Can I mix different power in one container .
Yes ,Different models can be mixed up in one container ,even one order .
7.    How does your factory do the quality control?
Quality is priority ,we always attach the importance to quality control from the beginning to the end of the production .every product will be fully assembled and carefully tested before packing and shipping .

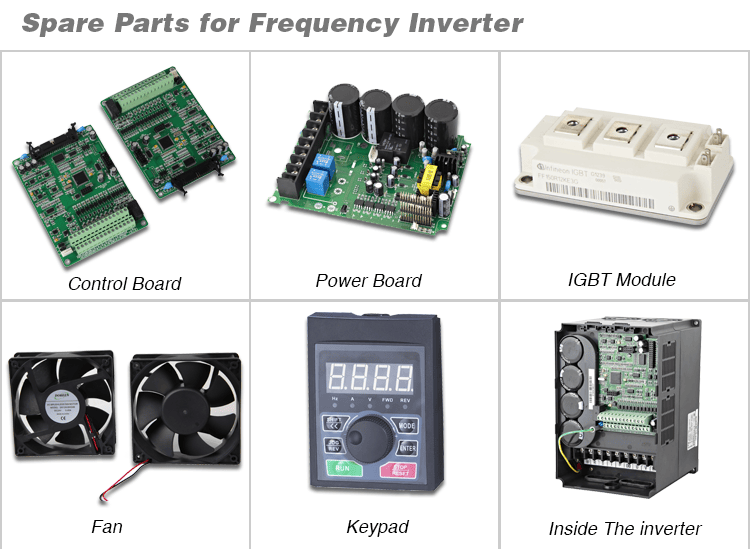

8.    Can you sell spare parts ?
If you are using CHZIRI products .we can sell spare parts to you . But we couldn't sell the half-finished products.
9.I would like to know if you have a partner for export?
Yes .CHZIRI Electrical have the right to export and can sell electrical product all over the world..
10. Can you make the inverter and soft starter control boards (switchgear)?
Yes. We have a lot of experience to design frequency inverter and soft starter cabinet according to your request . But you can send us the wiring diagram .
11.Can the inverter connect with computer?
Yes .All inverters have built-in RS485 port .and support Modbus communication protocol.
12.How can I trust you ?
The core of CHZIRI electrical culture is honesty and loyalty .our company has been audited and approved ISO9001,CE.CCC. Assessment report will could be sent to you by e-mail .also .we are the made-in-china's gold supplier since 2008.Now we have clients all around the world .
