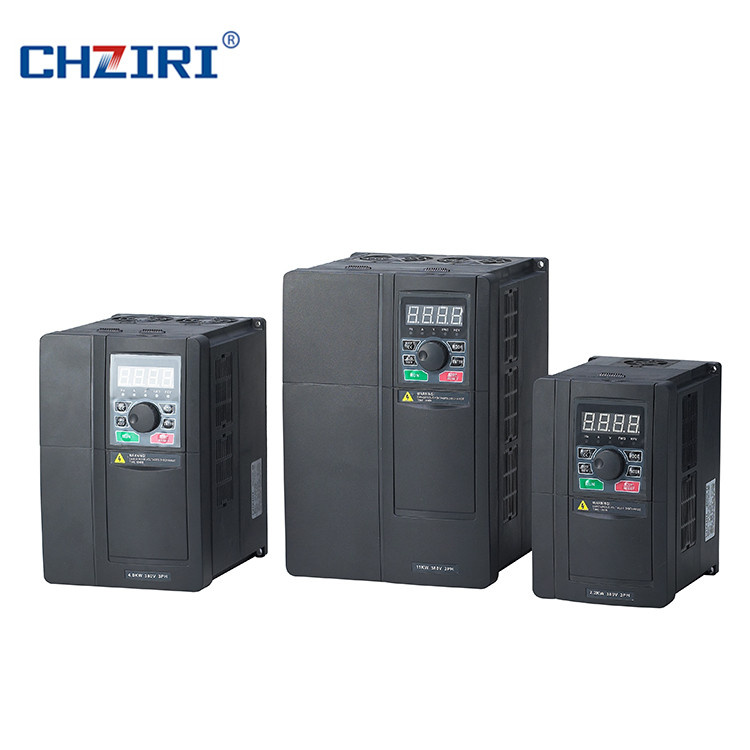

Chziri Mini Type Frequency Drive 0.75kw with Ce Certificate Zvf9V-M0007s2

Prod Model:	ZVF9V-M0007S2, ZVF9V-M0015S2, ZVF9V-M0022S2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Black
Power:	0.75kw
Input Voltage:	Single Phase ,220V
Input Frequency:	50/60Hz
Output Voltage:	Three Phase0~Input Voltage VAC
Current:	4.0A
Output Frequency:	0.00~400.00Hz
Net Weight:	1.5kg
Gross Weight:	2.5kg
Packing Size For Each Carton:	462*350*160mm/8PCS
Application:	Single-phase Transducer
Output Type:	Triple
Principle Of Work:	Vector Control Transducer
Switch Mode:	PWM Control
Main Circuit Type:	Current
Brand:	Chziri

Product Description

ZVF9V-M Mini Type vector control  frequency drive


Input Voltage(V)	Output Voltage (V)	Power Range (kW)
Single phase 220V± 20%	Three phase 0~input voltage	0.75kW~2.2kW
Three phase  380V± 20%	Three phase 0~input voltage	0.75kW~2.2kW
Overload Capacity : 150% 1 minute ;180% 1 second ;200% transient protection .

Technical Indications of Frequency Drive
1.Control Mode: SAPWM vector control .
2.Output  Frequency range: 0.00~400.00HZ
3.Operation command selection : Keyboard control ,Terminal Control, Multi-stage control , External analog voltage input control . External analog current input control .RS485 control .
4.Frequency setting Mode: Digit keypad   setting, Analog setting ( current , voltage signal ). Remote communication  setting , Multi-step speed setting. Terminal assembled setting  . PID closed-loop setting.
5.Start torque control :0-20% can be adjusted .
6.Carrier frequency range:1.0K~15KHz
7.DC current braking : Start and stop DC current braking can be adjusted solely .
8. Automatism voltage Modulate : ( AVR):  Automatically keep output voltage  stable when input voltage fluctuation .
9.Automatic limiting current : can limit  the Maximum current of the motor. And can protect the inverter and the motor reliably.
10. PLC programmable  control: Single Cycle, continuous loop, wobble control and are suitable  for  all kinds of applications
11.Input ,output terminal are programmable and It's convenient for user.
12.Analog signals output , voltage and current can be selected .

Specification for ZVF9V-M Frequency Drive

Inverter Model	Voltage (V)	Power (KW)	Current ( A)	Dimension (mm)
				H	W	A	B	D	d
ZVF9V-M0007S2	220V	0.75	4.0	151.0	100	140.0	89.5	116.5	5
ZVF9V-M0015S2		1.5	7.5	151.0	100	140.0	89.5	116.5	5
ZVF9V-M0022S2		2.2	10	151.0	100	140.0	89.5	116.5	5
ZVF9V-M0007T4S	380V	0.75	2.3	151.0	100	140.0	89.5	116.5	5
ZVF9V-M0015T4S		1.5	3.7	151.0	100	140.0	89.5	116.5	5
ZVF9V-M0022T4S		2.2	5.0	151.0	100	140.0	89.5	116.5	5

Why you choose the products from CHZIRI Electrical ?
1.Low voltage frequency inverter and soft starter manufacturers and exporter .
2.More than 12 years experience and professional. we want to be the best to serve our clients.
3.CHZIRI frequency inverters and soft starters are easy and convenient to operate .
4.We can also provide clients with customized control panel.
5.CHZIRI Electrical can offer the optional parts for frequency inverter .Such as braking unit .braking resistors .EMI Filter .Reactor .
6.CHZIRI frequency inverter and soft starters are certificated with CE and ISO9001.
7.CHZIRI frequency inverter have built-in RS485 Port .and support Modbus communication protocol.
8.CHZIRI Electrical are near to NINGBO ,SHANGHAI port .The shipping cost have advantage .
9.CHZIRI Frequency Inverters and Soft starters are selling to all over the world .
10.OEM  service can be offered .
11.Prompt delivery :7-15 days .
12.Warranty time :12 months .
Main Features:

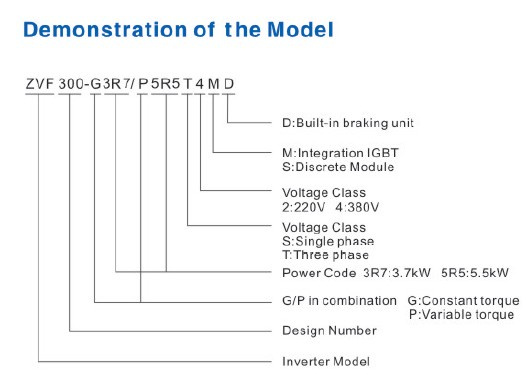

ZVF300 Series inverters are high performance open loop vector inverters for controlling asynchronous AC induction motors and permanent synchronous motors.

1. Output frequency: 0-600Hz.
2. Multiple password protection mode
3. Remote control operation keypad, convenient for remote control.
4. V/F curve &multi-inflection point setting, flexible configuration.
5. Keyboard parameter copy function. Easy to set the parameters for multi-inverters.
6. Wide industry application. To expand special function according to different industries.
7. Multiple hardware and software protection and optimized hardware for anti-interference technology.
8. Multi-step speed and wobble frequency running (external terminal 15 steps speed control).
9. Unique adaptive control technology. Auto current limiting and voltage limiting and under-voltage restrain.
10. Optimized external installation and internal structure and independent air flue design, fully enclosed electrical space design.
11. Output automatic voltage regulation function. (AVR), automatically adjust the output pulse width. To eliminate the influence of the grid change on load.
12. Built-in PID regulation function to facilitate the realization of closed loop control of the temperature, pressure and flow. And reduce the cost of the control system.
13. Standard MODBUS communication protocol. Easy to achieve the communication between PLC, IPC and other industrial equipments.





Scope of application:

CHZIRI frequency inverter applied at the metallurgy, plastomer,textile, food-stuff,petroleum, chemical industry, paper-making, pharmacy,printing, building material,crane ,music spring .water supply systerm and all kinds of machine equipment.As AC asynchronous motor's driving and speed control.

Frequency Inverter can use in the following environmental

Ambient	Place to be used	Indoor location free from direct exposure to sun light, high humidity or dew condensation, high levels of dust, corrosive gas, explosive gas, inflammable gas, oil mist, salt and etc
	Altitude	Below 1000 M
	Ambient Temperature	-10 C to +45 C (Bare Machine: -10 C to+50 C)
	Humidity	20%-90% RH without dew condensation
	Vibration	<0.5G
	Storage temperature	-20~+60C
Structure	Protection  class	IP20
	Cooling mode	Forced air cooling
	Installation mode	Wall mounted or floor-type actuator

 FAQ
1.    Can I get some samples?
Yes, Sample order is available for quality check and market test .But you have to pay for it .
2.    What's delivery time?
It usually takes about 3-5 working days for small order and 10-15 days for big order .
3.    What's your payment terms?
We usually accept all kinds of payment terms .Such as T/T,L/C, Western Union.Cash.
4.    What's your warranty terms?
We offer 12 months warranty time .
5.    Do you have the products in stock?
Depends on your request ,We have standard models in stock. Some special products and big order will be newly produced according to your order .
6.    Can I mix different power in one container .
Yes ,Different models can be mixed up in one container ,even one order .
7.    How does your factory do the quality control?
Quality is priority ,we always attach the importance to quality control from the beginning to the end of the production .every product will be fully assembled and carefully tested before packing and shipping .

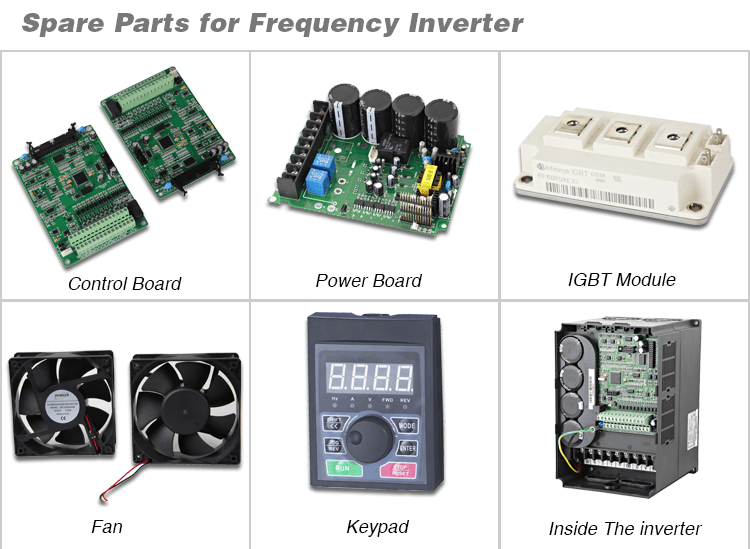

8.    Can you sell spare parts ?
If you are using CHZIRI products .we can sell spare parts to you . But we couldn't sell the half-finished products.
9.I would like to know if you have a partner for export?
Yes .CHZIRI Electrical have the right to export and can sell electrical product all over the world..
10. Can you make the inverter and soft starter control boards (switchgear)?
Yes. We have a lot of experience to design frequency inverter and soft starter cabinet according to your request . But you can send us the wiring diagram .
11.Can the inverter connect with computer?
Yes .All inverters have built-in RS485 port .and support Modbus communication protocol.
12.How can I trust you ?
The core of CHZIRI electrical culture is honesty and loyalty .our company has been audited and approved ISO9001,CE.CCC. Assessment report will could be sent to you by e-mail .also .we are the made-in-china's gold supplier since 2008.Now we have clients all around the world .
