Chziri Mini Type Frequency Inverter Zvf330-M0r4s2MD CCC, Ce Approved

Name: Chziri Mini Type Frequency Inverter Zvf330-M0r4s2MD CCC, Ce Approved
Brand: all-electronics-online.com
SKU: 734957685
Availability: InStock
Rating: 5 (149 reviews)

Price:	US $ 90/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	4/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ZVF330-M0R4S2MD, ZVF330-M0R7S2MD
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Outline Size:	Mini Type
Input Voltage:	Single Phase .220V
Input Frequency:	50/60Hz
Power:	0.4kw
Output Voltage:	Three Phase 0~ Input AC Voltage
Output Frequency:	0.00~600.00Hz
Rated Current:	2.4A
Starting Frequency:	0.00~10.00Hz

Product Description

Inverters - ZVF330-M0R4S2MD with RS485 RS485 Communication protocol.
ZVF330-M0R4S2MD is a mini type frequency Inverters. Has high performance and Space Voltage Vector SAPWM control.

Output Signal:
Analog output: 0-10V, 0-20mA.
Relay Output: Output specification Z contact (250VAC/3A), output function: Abnormity alarming.

This is very pupular inverters in market, small in size, excellent performance and same apperance as Siemens.

ZVF330 Series Mini Type frequency inverter
ZVF330 Series Mini Type frequency inverter are developed for general applications of small power and OEM market. It applies V/f control technology, making the functions of PID, multiple-speed step, DC braking, Modbus communication, as well as less installation space .ZVF330 Series AC drive is for small automation equipment of economical type, especially suitable for electronic equipment, food packaging, wood, glass and other small power transmission.

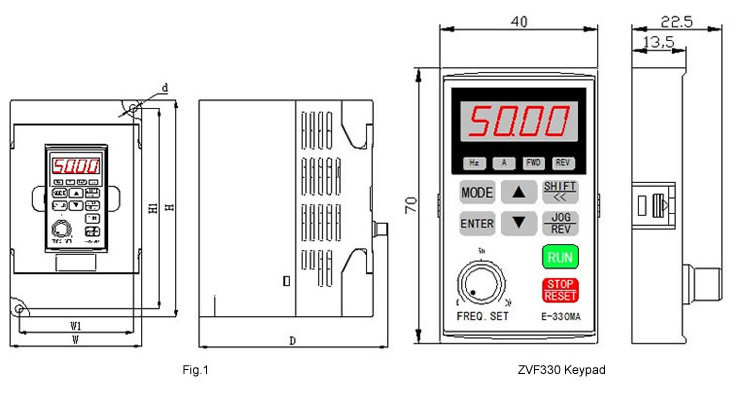

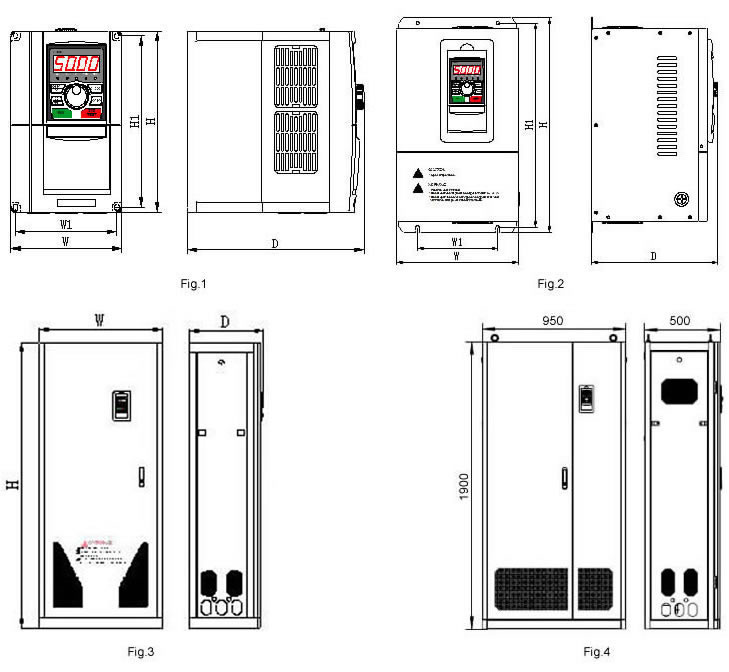

Specification for ZVF330 Frequency Inverter

Inverter Model	Voltage (V)	Power (KW)	Current ( A)	Dimension (mm)
Inverter Model	Voltage (V)	Power (KW)	Current ( A)	H	H1	W	W1	D	d
ZVF330-M0R4S2MD	220V	0.4	2.4	141.5	130.5	85	74	125	5
ZVF330-M0R7S2MD		0.75	4.0	141.5	130.5	85	74	125	5
ZVF330-M1R5S2S		1.5	7.5	151.0	140	100	89.5	128.5	5
ZVF330-M2R2S2S		2.2	10	151.0	140	100	89.5	128.5	5
ZVF330-M0R7T4S	380V	0.75	2.3	151.0	140	100	89.5	128.5	5
ZVF330-M1R5T4S		1.5	3.7	151.0	140	100	89.5	128.5	5
ZVF330-M2R2T4S		2.2	5.0	151.0	140	100	89.5	128.5	5

1. CHZIRI Electrical located in Liushi, Wenzhou -Capital city of low voltage electrical products in China. There have many different factories produce low voltage electrical products. Such as fuses. Circuit breakers. Contactors. And pushbutton. You can buy complete components for automation system.

2. Since 1998. CHZIRI Electrical begin to produce reducer and gear boxes. In 2003. CHZIRI Electrical begin to produce frequency inverter and soft starter and control panels and related products.

3. CHZIRI Electrical is frequency inverter and soft starter manufacturer. We have big stock in warehouse. So we can offer prompt delivery and professional technical support and fast after sale service.

4. CHZIRI Electrical can also provide clients with customized control panel. We

Can design MCC panel and inverter cabinet & soft starter cabinet according to clients the wiring diagram.

5. CHZIRI Electrical also respectively obtained ISO9001, CE, CCC certificates.

6. CHZIRI Electrical set up branch offices in more than 30 cities and established a perfect, professional and efficient sale-and-service system. At the same time, ZIRI Electrical also working up international sales net. CHZIRI products have been exported in large quantity to Europe, South America, Southeast Asia, Middle East.

7. CHZIRI Electrical also go aboard to attend the fair every year.

8. OEM service can be offered.

9. CHZIRI Electrical can offer the optional parts for frequency inverter. Such as braking unit. Braking resistors. EMI Filter. Reactor. CHZIRI Electrical can offer the whole solution for automation system.

10. CHZIRI Electrical adhere to the eximious tradition of technical innovation, continue to introduce new generation products to meet market demands. Make great strides forward gradually to high-end application domain, and strive to shoulder heavy responsibilities to create a full of hope for the future.
