| Prod Model: |
ZVF9V-M0007S2, ZVF9V-M0007T4, ZVF9V-M0015T4S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Input Voltage: |
Three Phase 380VAC |
| Input Frequency: |
50Hz/60Hz |
| Power: |
1.5kw |
| Output Voltage: |
Three Phase 0~Input Voltage VAC |
| Output Frequency: |
0.00~400.00Hz |
| Overload Capacity: |
150% 1 Minute; 180% 1 Second;200% Transient |
| Modulation: |
Optimal Space Voltage Vector PWM Modulation |
| Brand: |
Chziri |

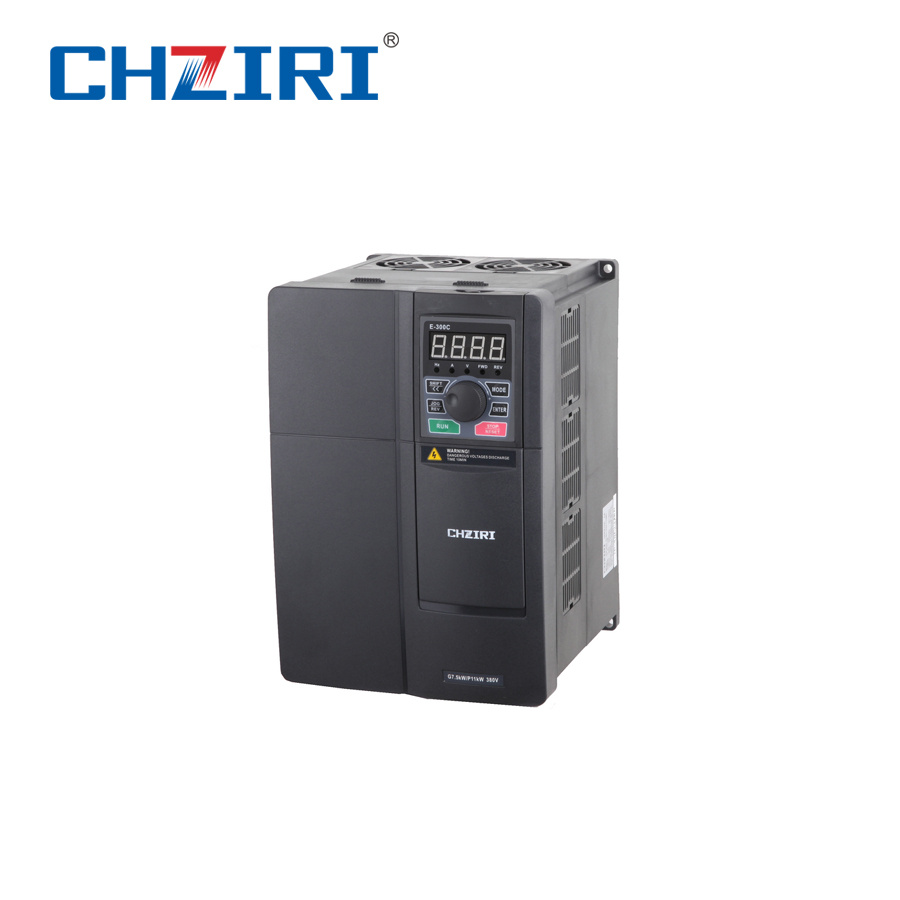

Product Description
ZVF9V-M Mini Type vector control frequency inverter
| Input Voltage(V) | Output Voltage (V) | Power Range (kW) |
| Single phase 220V± 20% | Three phase 0~input voltage | 0.75kW~2.2kW |
| Three phase 380V± 20% | Three phase 0~input voltage | 0.75kW~2.2kW |
| Overload Capacity : 150% 1 minute ;180% 1 second ;200% transient protection . |
Technical Indications of Frequency inverter
1.Control Mode: SAPWM vector control .
2.Output Frequency range: 0.00~400.00HZ
3.Operation command selection : Keyboard control ,Terminal Control, Multi-stage control , External analog voltage input control . External analog current input control .RS485 control .
4.Frequency setting Mode: Digit keypad setting, Analog setting ( current , voltage signal ). Remote communication setting , Multi-step speed setting. Terminal assembled setting . PID closed-loop setting.
5.Start torque control :0-20% can be adjusted .
6.Carrier frequency range:1.0K~15KHz
7.DC current braking : Start and stop DC current braking can be adjusted solely .
8. Automatism voltage Modulate : ( AVR): Automatically keep output voltage stable when input voltage fluctuation .
9.Automatic limiting current : can limit the Maximum current of the motor. And can protect the inverter and the motor reliably.
10. PLC programmable control: Single Cycle, continuous loop, wobble control and are suitable for all kinds of applications
11.Input ,output terminal are programmable and It's convenient for user.
12.Analog signals output , voltage and current can be selected .
Specification for ZVF9V-M Frequency inverter
| Inverter Model | Voltage
(V) | Power
(KW) | Current
( A) | Dimension (mm) |
| H | W | A | B | D | d |
| ZVF9V-M0007S2 | 220V
| 0.75 | 4.0 | 151.0 | 100 | 140.0 | 89.5 | 116.5 | 5 |
| ZVF9V-M0015S2 | 1.5 | 7.5 | 151.0 | 100 | 140.0 | 89.5 | 116.5 | 5 |
| ZVF9V-M0022S2 | 2.2 | 10 | 151.0 | 100 | 140.0 | 89.5 | 116.5 | 5 |
| ZVF9V-M0007T4S | 380V | 0.75 | 2.3 | 151.0 | 100 | 140.0 | 89.5 | 116.5 | 5 |
| ZVF9V-M0015T4S | 1.5 | 3.7 | 151.0 | 100 | 140.0 | 89.5 | 116.5 | 5 |
| ZVF9V-M0022T4S | 2.2 | 5.0 | 151.0 | 100 | 140.0 | 89.5 | 116.5 | 5 |

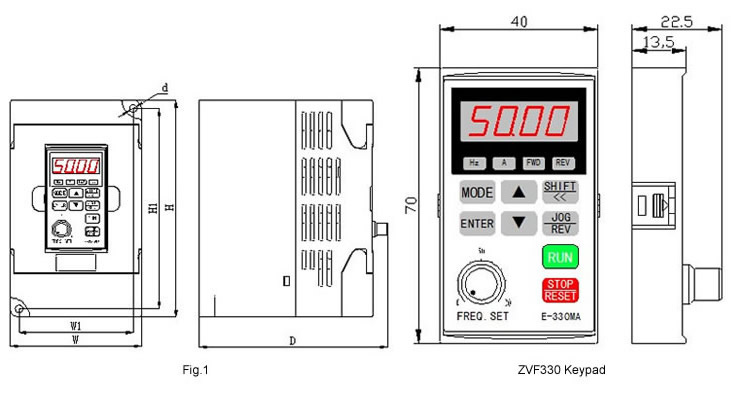

ZVF330 Series Mini Type AC Drive ZVF330 Series Mini Type AC Drive are developed for general applications of small power and OEM market. It applies V/f control technology, making the functions of PID, multiple-speed step, DC braking, Modbus communication, as well as less installation space .ZVF330 Series AC drive is for small automation equipment of economical type, especially suitable for electronic equipment, food packaging, wood, glass and other small power transmission.AC Drive outline Dimension (Unit:mm)
Specification for ZVF330 Series Mini Type AC Drive| Inverter Model | Voltage | Power | Current | Dimension (mm) | Packing Size(mm) | G.W.(kg) |
| (V) | (KW) | ( A) | H | H1 | W | W1 | D | d |
| ZVF330-M0R4S2MD | 220V | 0.4 | 2.4 | 141.5 | 130.5 | 85 | 74 | 125 | 5 | 570*380*460mm/16PCS | 25kg |
| ZVF330-M0R7S2MD | 0.75 | 4 | 141.5 | 130.5 | 85 | 74 | 125 | 5 |
| ZVF330-M1R5S2SD | 1.5 | 7.5 | 151 | 140 | 100 | 89.5 | 128.5 | 5 |
| ZVF330-M2R2S2SD | 2.2 | 10 | 151 | 140 | 100 | 89.5 | 128.5 | 5 |
Main Features of AC drive ZVF330 Series mini type AC Drive are high performance open loop vector inverters for controlling asynchronous AC induction motors and permanent synchronous motors . - Output frequency :0-600Hz.
- Multiple password protection mode
- Remote control operation keypad, convenient for remote control.
- V/F curve &multi-inflection point setting, flexible configuration .
- Keyboard parameter copy function . easy to set the parameters for multi-inverters .
- Wide industry application . to expand special function according to different industries.
- Multiple hardware and software protection and optimized hardware for anti-interference technology.
- Multi-step speed and wobble frequency running (external terminal 15 steps speed control).
- Unique adaptive control technology . Auto current limiting and voltage limiting and under-voltage restrain .
- Optimized external installation and internal structure and independent air flue design , fully enclosed electrical space design .
- Output automatic voltage regulation function .(AVR),automatically adjust the output pulse width . to eliminate the influence of the grid change on load .
- Built-in PID regulation function to facilitate the realization of closed loop control of the temperature ,pressure and flow . and reduce the cost of the control system .
- Standard MODBUS communication protocol . easy to achieve the communication between PLC,IPC and other industrial equipments.
CHZIRI Package for AC Drive 2.2kW
ZVF330 AC Drive Application RangePacking machine; dumpling machine; treadmill; temperature/humidity control fan for agriculture and aquaculture; mixer for food processing; grinding machine; drilling machine; small size hydraulic lathe; elevator; coating equipment; small size milling machine; robot arm of injection machine (clamp); wood machine (two-side woodworking planer); edge bending machine. etc.CHZIRI Clients for AC Drive
FAQ 1. Can I get some samples?Yes, Sample order is available for quality check and market test .But you have to pay for it .2. What's delivery time?It usually takes about 3-5 working days for small order and 10-15 days for big order .3. What's your payment terms?We usually accept all kinds of payment terms .Such as T/T,L/C, Western Union.Cash.4. What's your warranty terms?We offer 12 months warranty time .5. Do you have the products in stock?Depends on your request ,We have standard models in stock. Some special products and big order will be newly produced according to your order .6. Can I mix different power in one container .Yes ,Different models can be mixed up in one container ,even one order .7. How does your factory do the quality control?Quality is priority ,we always attach the importance to quality control from the beginning to the end of the production .every product will be fully assembled and carefully tested before packing and shipping .8. Can you sell spare parts ?If you are using CHZIRI products .we can sell spare parts to you . But we couldn't sell the half-finished products.9.I would like to know if you have a partner for export?Yes .CHZIRI Electrical have the right to export and can sell electrical product all over the world..10. Can you make the inverter and soft starter control boards (switchgear)?Yes. We have a lot of experience to design frequency inverter and soft starter cabinet according to your request . But you can send us the wiring diagram .11.Can the inverter connect with computer?Yes .All inverters have built-in RS485 port .and support Modbus communication protocol. 12.How can I trust you ?The core of CHZIRI electrical culture is honesty and loyalty .our company has been audited and approved ISO9001,CE.CCC. Assessment report will could be sent to you by e-mail .also .we are the made-in-china's gold supplier since 2008.Now we have clients all around the world .
1. CHZIRI Electrical located in Liushi, Wenzhou -Capital city of low voltage electrical products in China. There have many different factories produce low voltage electrical products. Such as fuses. Circuit breakers. Contactors. And pushbutton. You can buy complete components for automation system.
2. Since 1998. CHZIRI Electrical begin to produce reducer and gear boxes. In 2003. CHZIRI Electrical begin to produce frequency inverter and soft starter and control panels and related products.
3. CHZIRI Electrical is frequency inverter and soft starter manufacturer. We have big stock in warehouse. So we can offer prompt delivery and professional technical support and fast after sale service.
4. CHZIRI Electrical can also provide clients with customized control panel. We
Can design MCC panel and inverter cabinet & soft starter cabinet according to clients the wiring diagram.
5. CHZIRI Electrical also respectively obtained ISO9001, CE, CCC certificates.
6. CHZIRI Electrical set up branch offices in more than 30 cities and established a perfect, professional and efficient sale-and-service system. At the same time, ZIRI Electrical also working up international sales net. CHZIRI products have been exported in large quantity to Europe, South America, Southeast Asia, Middle East.
7. CHZIRI Electrical also go aboard to attend the fair every year.
8. OEM service can be offered.
9. CHZIRI Electrical can offer the optional parts for frequency inverter. Such as braking unit. Braking resistors. EMI Filter. Reactor. CHZIRI Electrical can offer the whole solution for automation system.
10. CHZIRI Electrical adhere to the eximious tradition of technical innovation, continue to introduce new generation products to meet market demands. Make great strides forward gradually to high-end application domain, and strive to shoulder heavy responsibilities to create a full of hope for the future.
