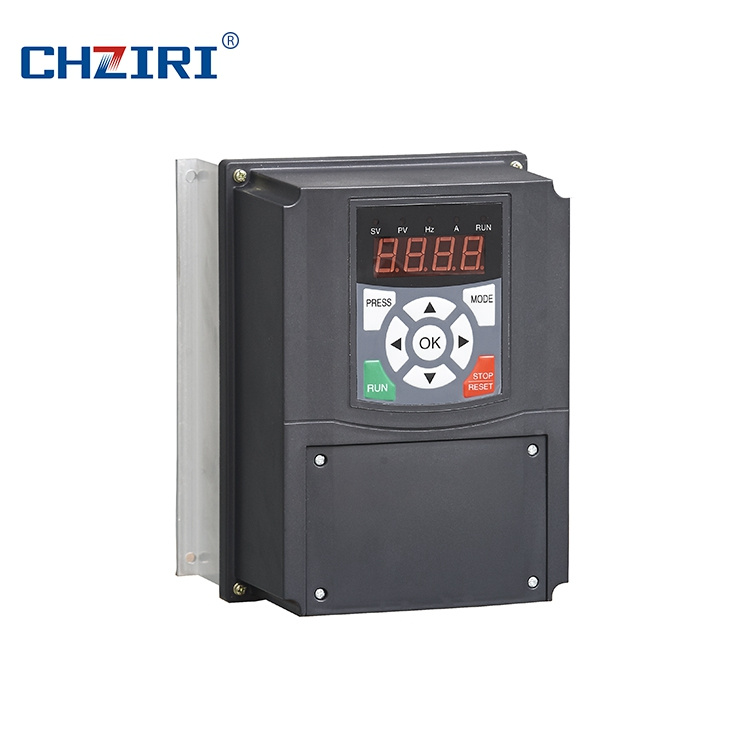

Chziri Pump Type Frequency Inverter with Ce Certificate

Prod Model:	ZVF9V-P0075T4MDR, ZVF9V-P0220T4M
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Black
Power:	7.5kw, 22kw
Input Voltage:	380V.440V.
Input Frequency:	50/60Hz
Output Voltage:	Three Phase 0~Input Voltage VAC
Output Frequency:	0.00~400.00Hz
Rated Current:	15A.45A
Overload Capacity:	120% 1 Minute; 150% 1 Second;180% Transient
Control Modulation:	Optimal Space Voltage Vector PWM

Product Description

Main Features for pump frequency inverter
ZVF9V-P Series frequency inverter has good effect energy saving find speed adjustment , stable running .soft start,  protection  function and self diagnostics fault and other advantages.
1.Advanced vector control algorithm , combine  with accurate speed calculation and self learning of the motor parameter. It can realize the accuracy control of motor speed and torque under no- speed sensor mode. V/F and SVC can be selected.
2.Optimized space voltage vector PWM modulation technique, over modulation, high
Voltage- utilization, low output harmonic, and it greatly improves the stability of the motor and switching losses.
3.Good operation characteristic of low frequency running , can be realized  0.5HZ/150% torque output under no-speed sensor mode.
4.LED display and removable keypad . display frequency , current ,parameters ,error and ect .
the user can operate easily.
5.Control terminals can be analog voltage output . current output and digital pulse  output . Voltage , current ,pulse .COM and other multiple frequency setting mode . It can achieve the overlay function of different source . The frequency control mode is very flexible.
6.Abundant functions: automatic voltage regulation control, automatic slip Compensation,
restart when power off ect. Can meet the demand of different clients.
7.Customization function design :program running, wobble frequency running, PID control operation , timing function ,counter functions ect. can be convenient to form and  meet the  different industrial application .
8.Built-in RS485 Port Compat with MODEBUS communication protocol, It can  realize networked control.
9. Super strong protection  function: Over voltage, over current , over load, under voltage, over heat , short circuit and so on , can offer more than 20 kinds fault protection function for clients.
Application Range :

ZVF9V-P Series frequency inverter is suitable for driving and speed control of blower fan, water pump electrical machinery. Built-in PID function, which is specially  suitable for flow ,pressure ,air ,temperature and other  slow physical change of process control .

Application range: Blower fan . Water Pump and Music Spring and so on .

ZVF9V-P Pump and Blower Type Special Inverter for pump and fan application .

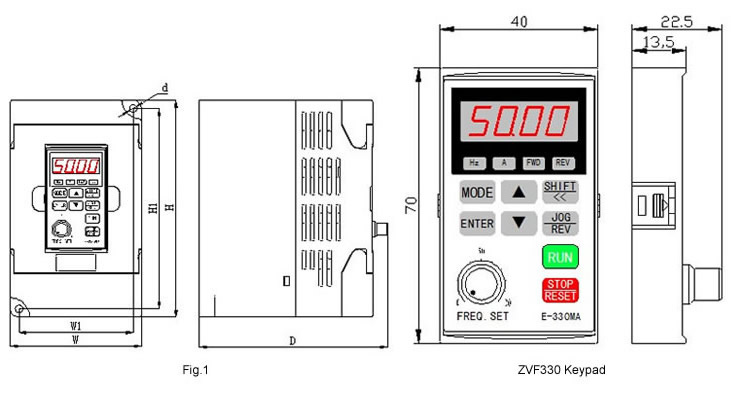

Inverter Outline & Mounting Dimension (Unit:mm)


Inverter Model	Power (KW)	Current (A)	Dimension (mm)						Figure
			H	W	A	B	D	d
ZVF9V-P0015T4MDR	1.5	3.7	185	175	118	108	175	4	Fig-1
ZVF9V-P0022T4MDR	2.2	5.0
ZVF9V-P0037T4MDR	3.7	9.5	215	205	145	135	178	4
ZVF9V-P0055T4MDR	5.5	13
ZVF9V-P0075T4MDR	7.5	17
ZVF9V-P0110T4MDR	11	25	265	253	185	174	200	5.5
ZVF9V-P0150T4MDR	15	33
ZVF9V-P0185T4MDR	18.5	39	380	360	210	160	204	10	Fig-2
ZVF9V-P0220T4M	22	45	470	450	270	206	255	10
ZVF9V-P0300T4M	30	60
ZVF9V-P0370T4M	37	75
ZVF9V-P0450T4M	45	90	630	605	360	270	300	10
ZVF9V-P0550T4M	55	110
ZVF9V-P0750T4M	75	150
ZVF9V-P090T4M	90	176	750	726	470	376	346	12
ZVF9V-P1100T4M	110	210
ZVF9V-P1320T4M	132	250
ZVF9V-P1600T4M	160	310	1270		574		380		Fig-3
ZVF9V-P1850T4M	185	360
ZVF9V-P2000T4M	200	380
ZVF9V-P2200T4M	220	415	1700		710		410
ZVF9V-P2500T4M	250	470
ZVF9V-P2800T4M	280	510
ZVF9V-P3150T4M	315	585
ZVF9V-P3500T4M	350	645	2020		750		550
ZVF9V-P3750T4M	375	675
ZVF9V-P4000T4M	400	750

Product Description
ZVF330  Series Mini Type AC Drive

ZVF330 Series Mini Type AC Drive are developed for general applications of small power and OEM market. It applies V/f control technology, making the functions of PID, multiple-speed step, DC braking, Modbus communication, as well as less installation space .ZVF330 Series AC drive is for  small automation equipment of economical type, especially suitable for electronic equipment, food packaging, wood, glass and other small power transmission.




Main Features of AC drive
     ZVF330 Series mini type AC Drive are high performance open loop vector inverters for controlling asynchronous AC induction motors and permanent synchronous motors .

1. Output frequency :0-600Hz.
2. Multiple password protection mode
3. Remote control operation keypad, convenient for remote control.
4. V/F curve &multi-inflection point setting, flexible configuration .
5. Keyboard parameter copy function . easy to set the parameters for multi-inverters .
6. Wide industry application . to expand special function according to different industries.
7. Multiple hardware and software protection and optimized hardware for anti-interference technology.
8.  Multi-step speed and wobble  frequency running  (external terminal 15 steps speed control).
9. Unique adaptive control technology . Auto current limiting and voltage limiting and under-voltage restrain .
10. Optimized external installation and internal structure and independent air flue design , fully enclosed electrical space design .
11. Output automatic voltage regulation function .(AVR),automatically adjust the output pulse width . to eliminate the  influence  of the grid change on load .
12. Built-in PID regulation function to facilitate the  realization of closed loop control of the temperature ,pressure and flow . and reduce the cost of the control system .
13. Standard MODBUS communication protocol . easy to achieve the communication between PLC,IPC and other industrial equipments.

Guide Model for AC drive

Inverter Model	Voltage	Power	Current	Dimension (mm)						Packing Size(mm)	G.W.(kg)
	(V)	(KW)	( A)	H	H1	W	W1	D	d
ZVF330-M0R4S2MD	220V	0.4	2.4	141.5	130.5	85	74	125	5	570*380*460mm/16PCS	25kg
ZVF330-M0R7S2MD		0.75	4	141.5	130.5	85	74	125	5
ZVF330-M1R5S2SD		1.5	7.5	151	140	100	89.5	128.5	5
ZVF330-M2R2S2SD		2.2	10	151	140	100	89.5	128.5	5
ZVF330-M0R7T4SD	380V	0.75	2.3	151	140	100	89.5	128.5	5	570*380*460mm/16PCS	25kg
ZVF330-M1R5T4SD		1.5	3.7	151	140	100	89.5	128.5	5
ZVF330-M2R2T4SD		2.2	5	151	140	100	89.5	128.5	5

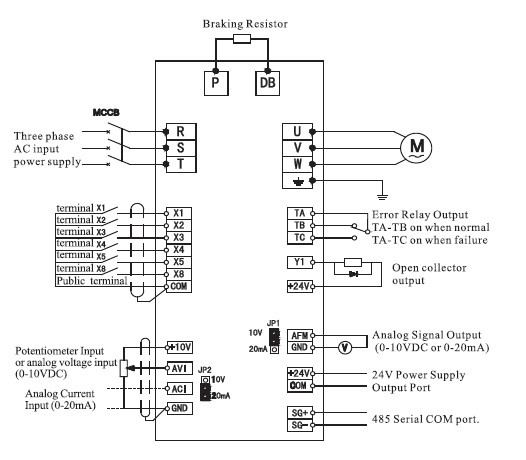

Inverter's Standard Wiring Diagram




ZVF330 AC Drive Application Range
Packing machine; dumpling machine; treadmill; temperature/humidity control fan for agriculture and aquaculture; mixer for food processing; grinding machine; drilling machine; small size hydraulic lathe; elevator; coating equipment; small size milling machine; robot arm of injection machine (clamp); wood machine (two-side woodworking planer); edge bending machine. etc.


Why you choose the products from CHZIRI Electrical ?


1. low voltage frequency inverter and soft starter manufacturer and exporter .
2. More than 10 years experience and professional devoting the automation control system . we want to be the best to serve our clients.
3. CHZIRI frequency inverter and soft starters are certificated with CE. CHZIRI Electrical passed ISO9001:2008 quality control system.
4. Key parts inside the CHZIRI Frequency Inverter are imported .We use Infenion IGBT ,Fans are from Germany company ,Capacitors are imported from Japan .
5. CHZIRI frequency inverters and soft starters are easy and convenient to operate .
6. CHZIRI frequency inverter have built-in RS485 Port .and support Modbus communication protocol.
7. CHZIRI Frequency Inverters and Soft starters are selling to all over the world . CHZIRI Products earn good reputation and sell well in the market .
8. CHZIRI Electrical can offer the optional parts for frequency inverter .Such as braking unit .braking resistors .EMI Filter .Reactor .Choke and remote control cables.
9. CHZIRI Electrical  can also provide clients with customized control panel .Such as frequency inverter switchgear and soft starters cabinets.
10. CHZIRI Electrical located in Liushi,Wenzhou -Capital city of low voltage electrical appliances  in China . you can buy different kind of electrical products from our city . Such as breakers ,contactors .relays .fuses . indicators. Pushbutton and so on .
11. CHZIRI Electrical are near to NINGBO ,SHANGHAI port .The shipping cost will be cheaper .
12. OEM  service can be offered .
13. Prompt delivery :5-12 days after receipt your money.
14. Warranty time :12 ~16 months .



.
