Chziri Series OEM Customized VFD Electric Control Panel with Digital-Analog Module

Prod Model:	ZBTG-
Adaptive Motor:	Squirrel-Cage Three-Phase Asynchronous Motor
Request:	Custom-Made
Power:	400kw
Voltage:	380V/440V
Input Frequency:	50/60Hz
Starting Times:	It Is Recommended Not to Exceed 20 Times Per Hour.
Start Mode 1:	Current-Limiting Start; 2) Voltage Ramp Start;
Start Mode 2:	1) Soft Stop; 2) Free Stop.
Type:	Distribution Metering Box
Structure:	Protection
Shell Material:	Ggd
Brand:	Chziri

Product Description

We accept your own requirments.

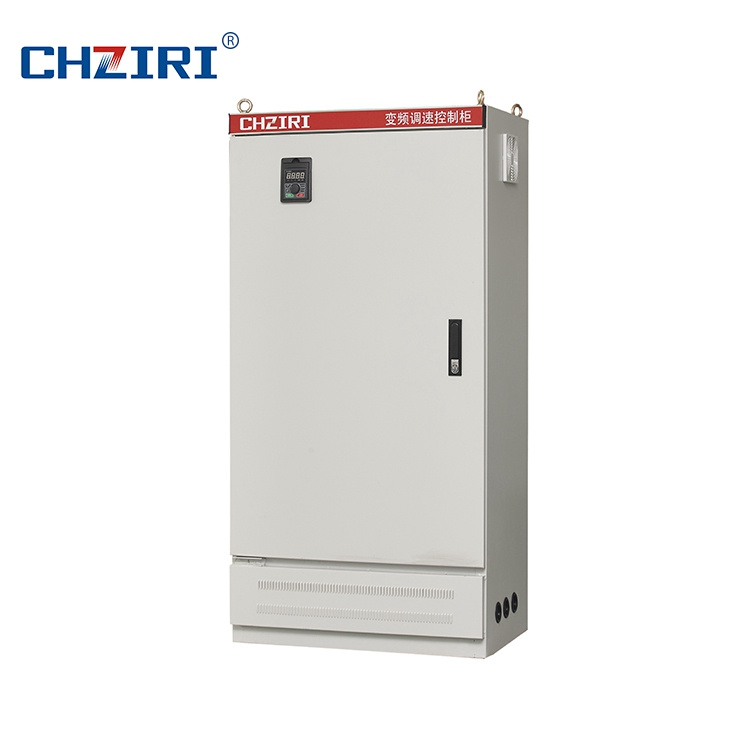

Inverter control Cabinet


With the frequency technology become more and more mature, the use of frequency inverter, PLC, digital-analog conversion module, temperature sensor, temperature module and other devices combine to form a closed-loop automatic temperature control system, the system can work smoothly and more stable, More important Its energy-saving reach to as much as 30% or more, can bring good economic benefits.

The frequency inverter control panel adopts the enclosed cabinet structure, adopts the frame skeleton, the surface coating spray, and easy to install the cabinet, the upper end can configure the bus bar . the keypad of  frequency inverter leads to the front foot of cabinet and can operate directly, it can set local and remote control or PC/PLC communication control .the inverter control cabinet can display different  kinds of function .

Frequency inverter  is a dedicated accessory of inverter cabinet ,the variable frequency control the speed  and the main technical parameters depends on the specification of built-in  inverter  and external configuration. Inverter cabinet have big difference according to the use of different  application and different functions

According to the needs of the operating conditions, we can  install AC input reactor, output reactor, DC reactor, EMI filter, braking unit, breaking resistor, contactor, intermediate relay, thermal relay, PLC, GOT , Electricity meter , cooling fan and ect inside the control cabinet .
According to the system working conditions, we can set a variety of control button and indicators. Such as forward, reverse, motor speed boost, motor speed deceleration, jog forward, jog reverse, manual / automatic, emergency stop, frequency conversion, power frequency, PLC control, touch screen and so on in the front door of the panels .


  Model description


ZBTG-
                                       1T2 : One inverter run with two motors
               Motors     2B1 :Two are running one spare use
                                      no mark: standard model
             Frequency inverter power (kW)

    CHZIRI frequency inverter control panel


 Using condition
Power Supply: Electric supply r, self-connected power network, diesel generator set, 3phase AC 380V , (-10%,+15%),50HZApplicable motor: three-phase asynchronous motor, variable frequency motorStart frequency: can start frequentlyProtection class: IP41 or IP20
Environment condition
Altitude ≤ 2km (used and downgraded if altitude beyond of 2km), Environment temperature : -25ºC~ +40ºCRelative humidity: ≤90%, no condensationVibration: ≤0.5G


Applicable Industry

The frequency converter control panel (VFD electric control panel / electrical control panel) can  widely use in metallurgy, chemical industry, petroleum, water supply, mine, building material, electrical motor industry, such as pumps, fans, air compressor, rolling mill, injection molding machine, conveyer belt  and other machinery and equipments.









Frequency inverter control panel function


1, Save energy
Inverter control motor compared with the traditional control of the motor, energy conservation is the most practical significance, you can achieve energy-saving effect.
2,Lower operating cost.
The traditional motor are consists of three parts: initial purchase cost, maintenance cost, and energy cost. The Energy costs account for about 77% of the motor's operating costs. After install the frequency and soft starter start to reduce  the impact of the device. The energy costs can be reduced by 44.3%.The  maintenance and repair volume also reduced . So the operating costs will be greatly reduced.
3,Extend motor's life
In addition, the frequency conversion control can reduce the unit start when the current fluctuation, this fluctuation current will affect the power grid and other equipment, the inverter can effectively reduce the peak starting current to a minimum. Starting from 0HZ, the start-up time can be adjusted to reduce the impact on the electrical components and mechanical parts of the motor at start-up, thus enhancing the reliability of the system and prolonging the service life of the motor. In addition, the frequency conversion control can reduce the unit start when the current fluctuation, this fluctuation current will affect the power grid and other equipment, the inverter can effectively reduce the peak starting current to a minimum.
4,Reduce motor's noise
According to the requirements of the motor operating conditions, the installation of frequency inverter, the motor speed significantly slowed down, so effectively reduce the noise of the motor running.
