| Prod Model: |
ZVF330-M0R7S2MD, ZVF330-M1R5S2S, ZVF330-M2R2S2S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Input Voltage: |
Single Phase 220V |
| Input Frequency: |
50/60Hz |
| Power: |
1.5kw |
| Output Voltage: |
Three Phase 0~ Input AC Voltage |
| Output Frequency: |
0.00~600.00Hz |
| Current: |
7.0A |
| Modulation Mode: |
Optimal Space Voltage Vector PWM |
| Brand: |
Chziri |
Product Description

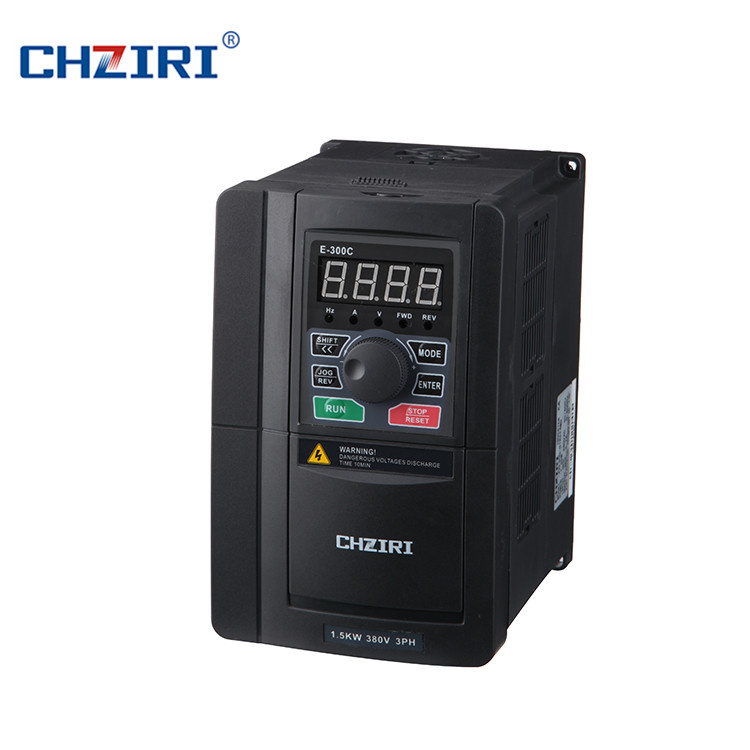

ZVF330 Series inverter's Characteristic
ZVF330 Series Mini Type frequency Inverter are developed for general applications of small power and OEM market. It applies V/f control technology, making the functions of PID, multiple-speed step, DC braking, Modbus communication, as well as less installation space .ZVF330 Series AC drive is for small automation equipment of economical type, especially suitable for electronic equipment, food packaging, wood, glass and other small power transmission.
Specification for frequency inverter
| Inverter Model | Voltage
(V) | Power
(KW) | Current
( A) | Dimension (mm) |
| H | H1 | W | W1 | D | d |
| ZVF330-M0R4S2MD | 220V
| 0.4 | 2.4 | 141.5 | 130.5 | 85 | 74 | 125 | 5 |
| ZVF330-M0R7S2MD | 0.75 | 4.0 | 141.5 | 130.5 | 85 | 74 | 125 | 5 |
| ZVF330-M1R5S2S | 1.5 | 7.5 | 151.0 | 140 | 100 | 89.5 | 128.5 | 5 |
| ZVF330-M2R2S2S | 2.2 | 10 | 151.0 | 140 | 100 | 89.5 | 128.5 | 5 |
| ZVF330-M0R7T4S | 380V | 0.75 | 2.3 | 151.0 | 140 | 100 | 89.5 | 128.5 | 5 |
| ZVF330-M1R5T4S | 1.5 | 3.7 | 151.0 | 140 | 100 | 89.5 | 128.5 | 5 |
| ZVF330-M2R2T4S | 2.2 | 5.0 | 151.0 | 140 | 100 | 89.5 | 128.5 | 5 |
Why you choose the products from CHZIRI Electrical ?
1.Low voltage frequency inverter and soft starter manufacturers and exporter .
2.More than 12 years experience and professional. we want to be the best to serve our clients.
3.CHZIRI frequency inverters and soft starters are easy and convenient to operate .
4.We can also provide clients with customized control panel.
5.CHZIRI Electrical can offer the optional parts for frequency inverter .Such as braking unit .braking resistors .EMI Filter .Reactor .
6.CHZIRI frequency inverter and soft starters are certificated with CE and ISO9001.
7.CHZIRI frequency inverter have built-in RS485 Port .and support Modbus communication protocol.
8.CHZIRI Electrical are near to NINGBO ,SHANGHAI port .The shipping cost have advantage .
9.CHZIRI Frequency Inverters and Soft starters are selling to all over the world .
10.OEM service can be offered .
11.Prompt delivery :7-15 days .
12.Warranty time :12 months .
1. CHZIRI Electrical located in Liushi, Wenzhou -Capital city of low voltage electrical products in China. There have many different factories produce low voltage electrical products. Such as fuses. Circuit breakers. Contactors. And pushbutton. You can buy complete components for automation system.
2. Since 1998. CHZIRI Electrical begin to produce reducer and gear boxes. In 2003. CHZIRI Electrical begin to produce frequency inverter and soft starter and control panels and related products.
3. CHZIRI Electrical is frequency inverter and soft starter manufacturer. We have big stock in warehouse. So we can offer prompt delivery and professional technical support and fast after sale service.
4. CHZIRI Electrical can also provide clients with customized control panel. We
Can design MCC panel and inverter cabinet & soft starter cabinet according to clients the wiring diagram.
5. CHZIRI Electrical also respectively obtained ISO9001, CE, CCC certificates.
6. CHZIRI Electrical set up branch offices in more than 30 cities and established a perfect, professional and efficient sale-and-service system. At the same time, ZIRI Electrical also working up international sales net. CHZIRI products have been exported in large quantity to Europe, South America, Southeast Asia, Middle East.
7. CHZIRI Electrical also go aboard to attend the fair every year.
8. OEM service can be offered.
9. CHZIRI Electrical can offer the optional parts for frequency inverter. Such as braking unit. Braking resistors. EMI Filter. Reactor. CHZIRI Electrical can offer the whole solution for automation system.
10. CHZIRI Electrical adhere to the eximious tradition of technical innovation, continue to introduce new generation products to meet market demands. Make great strides forward gradually to high-end application domain, and strive to shoulder heavy responsibilities to create a full of hope for the future.
