Chziri Special Frequency Inverter 22kw for Blower/Water Application

Prod Model:	ZVF9V-P0220T4M, ZVF9V-P0300T4M, ZVF9V-P0370T4M
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Black
Power:	22kw
Input Voltge:	380V.440V
Input Frequency:	50/60Hz
Rated Current:	45A
Output Voltage:	Three Phase 0~Input Voltage Va
Output Frequency:	0.00~400.00Hz
Net Weight:	21kg
Gross Weight:	25kg
Packing Size:	555*375*360mm/1PCS
Brand:	Chziri

Product Description

ZVF9V-P Blower/Water Pump Special Frequency Inverter


Input Voltage (V)	Output Voltage(V)	Power Range (kW)
Three phase 380V ± 20%	Three phase 0~Input Voltage	1.5kW~400kW
Overload capacity :120% 1 minute; 150% 1 second;180% transient protection

Main Features for pump frequency inverter
ZVF9V-P Series frequency inverter has good effect energy saving find speed adjustment , stable running .soft start,  protection  function and self diagnostics fault and other advantages.
1.Advanced vector control algorithm , combine  with accurate speed calculation and self learning of the motor parameter. It can realize the accuracy control of motor speed and torque under no- speed sensor mode. V/F and SVC can be selected.
2.Optimized space voltage vector PWM modulation technique, over modulation, high
Voltage- utilization, low output harmonic, and it greatly improves the stability of the motor and switching losses.
3.Good operation characteristic of low frequency running , can be realized  0.5HZ/150% torque output under no-speed sensor mode.
4.LED display and removable keypad . display frequency , current ,parameters ,error and ect .
the user can operate easily.
5.Control terminals can be analog voltage output . current output and digital pulse  output . Voltage , current ,pulse .COM and other multiple frequency setting mode . It can achieve the overlay function of different source . The frequency control mode is very flexible.
6.Abundant functions: automatic voltage regulation control, automatic slip Compensation,
restart when power off ect. Can meet the demand of different clients.
7.Customization function design :program running, wobble frequency running, PID control operation , timing function ,counter functions ect. can be convenient to form and  meet the  different industrial application .
8.Built-in RS485 Port Compat with MODEBUS communication protocol, It can  realize networked control.
9. Super strong protection  function: Over voltage, over current , over load, under voltage, over heat , short circuit and so on , can offer more than 20 kinds fault protection function for clients.




.

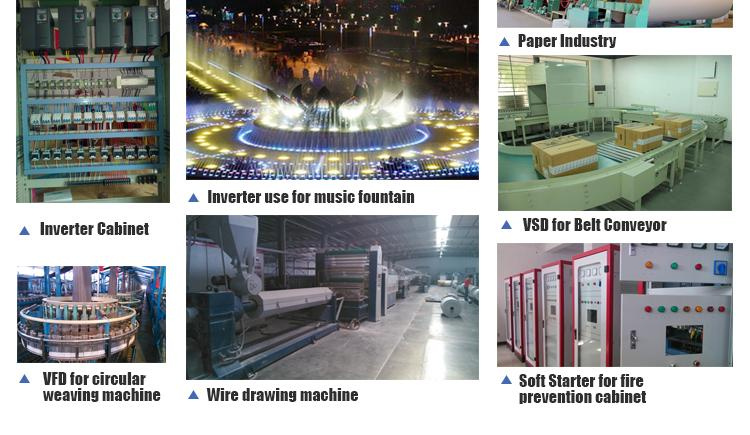

Application Range :

ZVF9V-P Series frequency inverter is suitable for driving and speed control of blower fan, water pump electrical machinery. Built-in PID function, which is specially  suitable for flow ,pressure ,air ,temperature and other  slow physical change of process control .

Application range: Blower fan . Water Pump and Music Spring and so on .

ZVF9V-P Pump and Blower Type Special Inverter for pump and fan application .
Inverter Outline & Mounting Dimension (Unit:mm)


Inverter Model	Power (KW)	Current (A)	Dimension (mm)						Figure
			H	W	A	B	D	d
ZVF9V-P0015T4MDR	1.5	3.7	185	175	118	108	175	4	Fig-1
ZVF9V-P0022T4MDR	2.2	5.0
ZVF9V-P0037T4MDR	3.7	9.5	215	205	145	135	178	4
ZVF9V-P0055T4MDR	5.5	13
ZVF9V-P0075T4MDR	7.5	17
ZVF9V-P0110T4MDR	11	25	265	253	185	174	200	5.5
ZVF9V-P0150T4MDR	15	33
ZVF9V-P0185T4MDR	18.5	39	380	360	210	160	204	10	Fig-2
ZVF9V-P0220T4M	22	45	470	450	270	206	255	10
ZVF9V-P0300T4M	30	60
ZVF9V-P0370T4M	37	75
ZVF9V-P0450T4M	45	90	630	605	360	270	300	10
ZVF9V-P0550T4M	55	110
ZVF9V-P0750T4M	75	150
ZVF9V-P090T4M	90	176	750	726	470	376	346	12
ZVF9V-P1100T4M	110	210
ZVF9V-P1320T4M	132	250
ZVF9V-P1600T4M	160	310	1270		574		380		Fig-3
ZVF9V-P1850T4M	185	360
ZVF9V-P2000T4M	200	380
ZVF9V-P2200T4M	220	415	1700		710		410
ZVF9V-P2500T4M	250	470
ZVF9V-P2800T4M	280	510
ZVF9V-P3150T4M	315	585
ZVF9V-P3500T4M	350	645	2020		750		550
ZVF9V-P3750T4M	375	675
ZVF9V-P4000T4M	400	750

ZVF300 Series frequency inverters are high performance open loop vector inverters for controlling asynchronous AC induction motors and permanent synchronous motors .


Input Voltage (V)	Output Voltage(V)	Power Range (kW)
Single phase 220V± 20%	Three phase 0~Input Voltage	0.4kW~2.2kW
Three phase 380V ± 20%	Three phase 0~Input Voltage	0.75kW~630kW
Overload capacity :150% 1 minute; 180% 1 second;200% transient protection


Main Features for ZVF300 Frequency Inverter

1.Output frequencyof ZVF300 Frequency Inverter  :0-600Hz.
2.Multiple password protection mode
3.Remote control operation keypad, convenient for remote control.
4.V/F curve &multi-inflection point setting, flexible configuration .
5.Keyboard parameter copy function . easy to set the parameters for multi-inverters .
6.Wide industry application . to expand special function according to different industries.
7.Multiple hardware and software protection and optimized hardware for anti-interference technology.
8.Multi-step speed and wobble  frequency running  (external terminal 15 steps speed control).
9.Unique adaptive control technology . Auto current limiting and voltage limiting and under-voltage restrain .
10.Optimized external installation and internal structure and independent air flue design , fully enclosed electrical space design .
11.Output automatic voltage regulation function .(AVR),automatically adjust the output pulse width . to eliminate the  influence  of the grid change on load .
12.Built-in PID regulation function to facilitate the  realization of closed loop control of the temperature ,pressure and flow . and reduce the cost of the control system .
13.Standard MODBUS communication protocol . easy to achieve the communication between PLC,IPC and other industrial equipments.

Inverter Outline Dimension(Unit:mm)



ZVF300 Frequency Inverter Model Selection Guide

Inverter Model	Power (kW) G/P	Current (A)	Dimension (mm)						Figure
			H	H1	W	W1	D	d
ZVF300-G0R4S2MD	0.4	2.4	185	175	118	108	170	4	Fig.1
ZVF300-G0R7S2MD	0.75	7.5
ZVF300-G1R5S2MD	1.5	7.0	185	175	118	108	190	4
ZVF300-G2R2S2MD	2.2	10
ZVF300-G0R7T4MD	0.75	2.5	185	175	118	108	170	4	Fig.1
ZVF300-G1R5T4MD	1.5	3.7
ZVF300-G2R2T4MD	2.2	5.0
ZVF300-G3R7/P5R5T4MD	3.7/5.5	9.0/13	215	205	145	135	193	4
ZVF300-G5R5/P7R5T4MD	5.5/7.5	13/17
ZVF300-G7R5/P011T4MD	7.5/11	17/25	265	253	185	174	215	5.5
ZVF300-G011/P015T4MD	11/15	25/33
ZVF300-G015/P018T4MD	15/18.5	33/37	380	360	220	140	230	6	Fig.2
ZVF300-G018/P022T4MD	18.5/22	37/45
ZVF300-G022/P030T4M	22/30	45/60	460	443	260	177	268	6
ZVF300-G030/P037T4M	30/37	60/75
ZVF300-G037/P045T4M	37/45	75/90	620	603	265	182	300	8
ZVF300-G045/P055T4M	45/55	90/110
ZVF300-G055/P075T4M	55/75	110/150
ZVF300-G075/P090T4M	75/90	150/176	720	702	365	240	360	9
ZVF300-G090/P110T4M	90/110	176/210
ZVF300-G110/P132T4M	110/132	210/253
ZVF300-G132/P160T4M	132/160	253/300	1190		493		390		Fig.3
ZVF300-G160/P185T4M	160/185	300/340
ZVF300-G185/P200T4M	185/200	340/380
ZVF300-G200/P220T4M	200/220	380/420	1600		660		415
ZVF300-G220/P250T4M	220/250	420/470
ZVF300-G250/P280T4M	250/280	470/520
ZVF300-G280/P315T4M	280/315	520/600
ZVF300-G315/P350T4M	315/350	600/640	1750		750		470
ZVF300-G350/P400T4M	350/400	640/690
ZVF300-G400/P450T4M	400/450	690/790
ZVF300-G450/P500T4M	450/500	790/860	1900		950		520		Fig.4
ZVF300-G500/P560T4M	500/560	860/950
ZVF300-G560/P630T4M	560/630	950/1100
ZVF300-G630T4M	630	1100
