Chziri Three Phase380V Frequency Inverter Wall-Mounted for 250kw

Prod Model:	ZVF300-G250/P280T4M
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power Range:	0.75kw~600kw
Output Type:	Triple
Switch Mode:	PWM Control
Main Circuit Type:	Voltage
Application:	to Drive and Control The Speed of Drive
Principle Of Work:	Optimal Space Voltage Vector PWM Modulation

Product Description

ZVF300 Series frequency inverter is suitable for many kinds of general model of high quality, low noise and multi-purpose.
Scope of application for ZVF300 Series frequency inverter.

ZVF300 Series frequency inverter applied at the metallurgy, plastomer, textile, food-stuff, petroleum, chemical industry, paper-making, pharmacy, printing, building material, crane and all kinds of machine equipment. As AC asynchronous motor's driving and speed control

1. Power: 0.4KW-600KW 50/60Hz.

2. ZVF300 T2 Series: Three phase input, 220V± 20%, Three phase output.

3. Output Frequency: 0~600Hz.

4. CE & ISO9001

5. Built-in RS485 Port

6. There have braking unit for small inverter

7. Capacitor: 0.75KW- 15KW (NICHICON) 18.5KW~375KW (STG) (Import from Japan).
Infineon IGBT and MITSUBISHI. ( Import from Germany ).

For more details, Welcome to send inquiry to us!

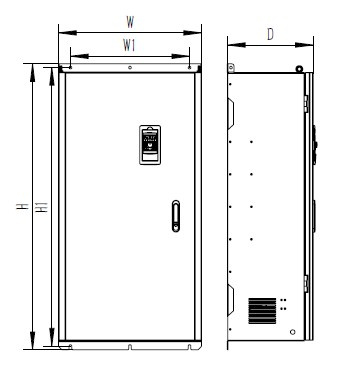

Inverter Model	Power (KW)	Current (A)	Dimension (mm)						Figure
			H	H1	W	W1	D	d
ZVF300-G0R4T2MD	0.4	2.4	185	175	118	108	155	4
ZVF300-G0R7T2MD	0.75	5.0							Fig.1
ZVF300-G1R5T2MD	1.5	7.5
ZVF300-G2R2T2MD	2.2	10
ZVF300-G3R7T2MD	3.7	16	215	205	145	135	178	4
ZVF300-G5R5T2MD	5.5	25	265	253	185	174	200	5.5
ZVF300-G7R5T2MD	7.5	33	380	360	220	140	210	6	Fig.2
ZVF300-G011T2M	11	42	460	443	260	177	248	6
ZVF300-G015T2M	15	55
ZVF300-G018T2M	18.5	70	620	603	265	182	280	8
ZVF300-G022T2M	22	80
ZVF300-G030T2M	30	110
ZVF300-G037T2M	37	130	720	702	365	240	340	9
ZVF300-G045T2M	45	160
ZVF300-G055T2M	55	200
ZVF300-G075T2M	75	270	1270		574		380		Fig.3
ZVF300-G090T2M	90	320
ZVF300-G110T2M	110	380	1700		710		410

90kW frequency Converter have the following meatures.
1.90kW frequency Converter is our new type frequency inverter.
2.90kW frequency Converter are high performance open loop vector inverters for controlling asynchronous AC induction motors and permanent synchronous motors.
3. Output frequency of 200kW frequency Converter: 0-600Hz.
4.90kW frequency Converter have Multiple password protection mode
5.90kW frequency Converter can support remote control operation keypad, convenient for remote control.
6.90kW frequency Converter have V/F curve &multi-inflection point setting, flexible configuration.
7.90kW frequency Converter have Keyboard parameter copy function. Easy to set the parameters for multi-inverters.
8. Wide industry application for 200kW frequency Converter To expand special function according to different industries.
9.90kW frequency Converter have multiple hardware and software protection and optimized hardware for anti-interference technology.
10.90kW frequency Converter have Multi-step speed and wobble frequency running (external terminal 15 steps speed control).
11. Unique adaptive control technology for 200kW frequency Converter. Auto current limiting and voltage limiting and under-voltage restrain.
12.90kW frequency Converter Optimized external installation and internal structure and independent air flue design, fully enclosed electrical space design.
13.90kW frequency Converter have Output automatic voltage regulation function. (AVR), automatically adjust the output pulse width. To eliminate the influence of the grid change on load.
14.90kW frequency Converter have Built-in PID regulation function to facilitate the realization of closed loop control of the temperature, pressure and flow. And reduce the cost of the control system.
15.90kW frequency Converter can support Standard MODBUS communication protocol. Easy to achieve the communication between PLC, IPC and other industrial equipments.

Model	Power(kW)	H	H1	W	W1	D	d	Packing Size(mm)	G.W.(kg)
ZVF300-G015/P018T4MD	15kW/18.5kW	380	360	220	140	230	6	610*435*300mm/2PCS	25
ZVF300-G018/P022T4MD	18.5kW/22kW	380	360	220	140	230	6
ZVF300-G022/P030T4M	22kW/30kW	460	443	260	177	268	6	555X375X360mm/1PCS	25
ZVF300-G030/P037T4M	30kW/37kW	460	443	260	177	268	6
ZVF300-G037/P045T4M	37kW/45kW	620	603	265	182	300	8	700X375X400mm/PCS	36
ZVF300-G045/P055T4M	45kW/55kW	620	603	265	182	300	8
ZVF300-G055/P075T4M	55kW/75kW	620	603	265	182	300	8
ZVF300-G075/P090T4M	75kW/90kW	720	702	365	240	360	9	800X495X485mm/1PCS	64
ZVF300-G090/P110T4M	90kW/110kW	720	702	365	240	360	9
ZVF300-G110/P132T4M	110kW/132kW	720	702	365	240	360	9

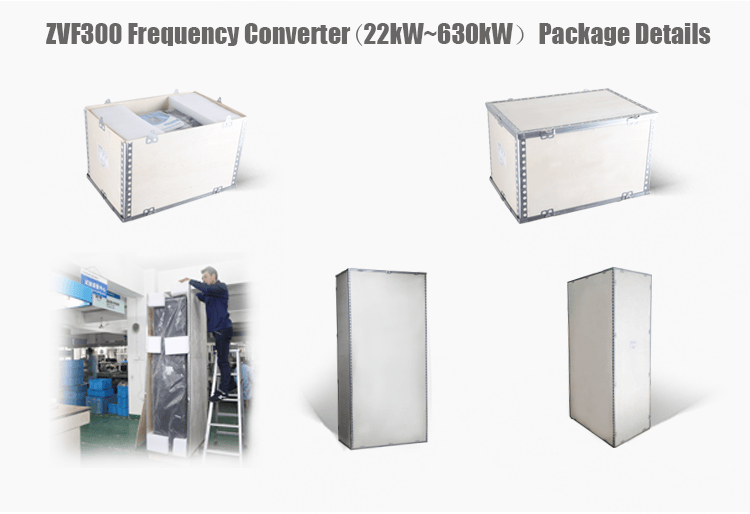

CHZIRI Package

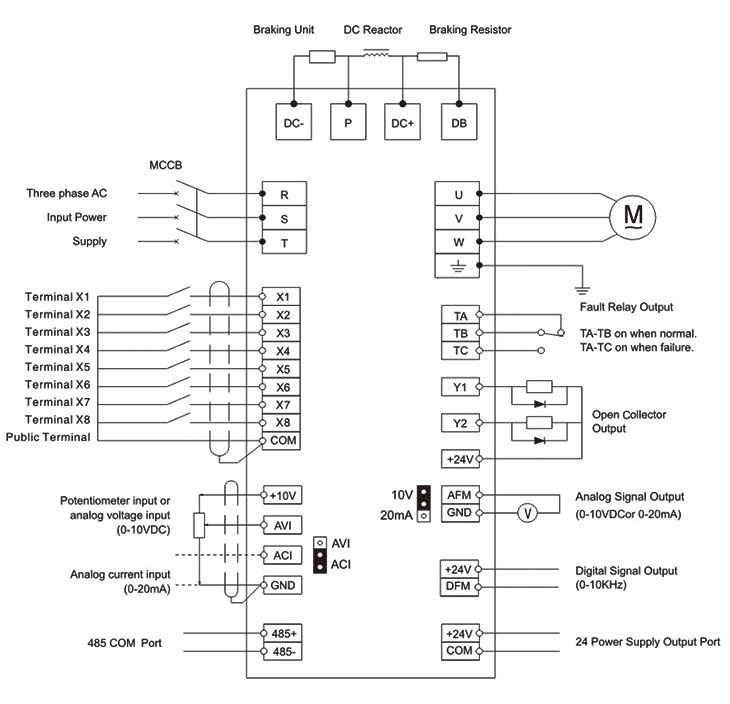

Inverter Wiring Diagram





Item		Item Description
Control Function	Automatic energy-saving operation	Auto optimize V/F curve according to the load changes to realize the energy saving operation.
	Auto voltage regulation(AVR)	When the network voltage changes, it can regulate PWM output automatically to maintain constant voltage.
	Built-in PID	This can form a convenient closed-loop control system (CLCS)and is applicable to pressure control, flow control and other process control  .
Operation Function	Operating command	Operation panel control ,external terminal control and COM control
	Frequency setting	Keypad potentiometer setting , operation panel  setting,. external terminal UP/DOWN setting, analog voltage signal or external potentiometer setting , analog current signal setting .terminal combination setting ,485 COM setting and so on.
	Input Signal	Forward/Reverse signal\multi-speed signal \fault signal \ reset signal etc.
	Output signal	Programmable relay\open collector output \Fault  signal output.
	Multi-function analog and digital output terminal	This can realize the output of frequency current and other physical quantity by output 0-10V or 0-20mA DC signal and 0-10KHz digital signal output.
Braking function	Dynamic braking	With an external braking resistor, the maximum braking torque may reach 100%.
	DC Braking	This can be selected when the motor starts or stops with the action frequency of 0-20Hz,action current level of 0-100% and actuation time of 0-30sec., which can be set in sequence.
Other Function		Skip frequency\Jog function\Counter \Rotation speed tracking\Momentary power loss restart \Frequency upper/lower limiting\Acceleration/ Deceleration mode can be adjusted \Frequency meter and Voltmeter output \Multi-speed/ program running \Two wire mode/ three wire mode control \Wobble frequency control\Multi-function input terminal selection \Fault auto reset\RS485 serial communication .
Protection Function		Input phase loss protection\Over current protection \Overload protection\Over voltage protection \Under voltage protection\Over heat protection ect.
