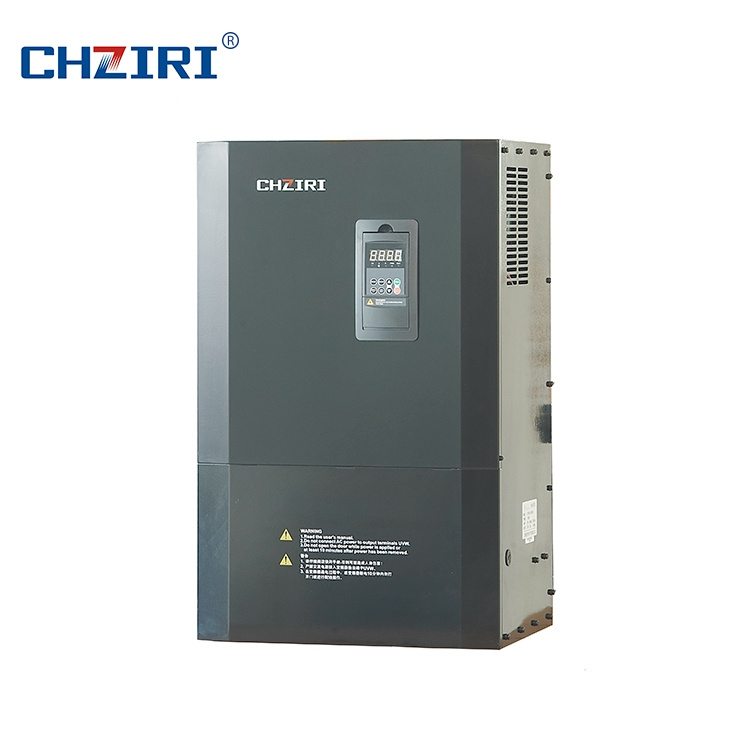

Chziri Variable Frequency Drive 45kw 380V Zvf9V-G045/P055t4m

Chziri Variable Frequency Drive 45kw 380V Zvf9V-G045/P055t4m
Price: US $ 1100/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: ZVF9V-G045/P055T4M
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Voltage: 380V.440V
Input Frequency: 50/60Hz
Output Voltage: Three Phase 0~ Input AC Voltage
Outpu Frequency: 0-600Hz
Power: 45/55kw
Modulation Mode: Optimal Space Voltage Vector PWM Modulation
Control Mode: SVC, V/F Control . Torque Control
Starting Frequency: Starting Frequency
Application: General Transducer
Output Type: Triple
Principle Of Work: Vector Control Transducer
Switch Mode: High Carrier Frequency PWM Control
Main Circuit Type: Voltage
Brand: Chziri

Product Description

Variable frequency drive 45kW have the following meatures.
1. Variable frequency drive 45kW is our new type frequency inverter.
2. Variable frequency drive 45kW are high performance open loop vector inverters for controlling asynchronous AC induction motors and permanent synchronous motors.
3. Output frequency of Variable frequency drive 45kW: 0-600Hz.
4. Variable frequency drive 45kW have Multiple password protection mode
5. Variable frequency drive 45kW can support remote control operation keypad, convenient for remote control.
6. Variable frequency drive 45kW have V/F curve &multi-inflection point setting, flexible configuration.
7. Variable frequency drive 45kW have Keyboard parameter copy function. Easy to set the parameters for multi-inverters.
8. Wide industry application for Variable frequency drive 45kW To expand special function according to different industries.
9. Variable frequency drive 45kW have multiple hardware and software protection and optimized hardware for anti-interference technology.
10. Variable frequency drive 45kW have Multi-step speed and wobble frequency running (external terminal 15 steps speed control).
11. Unique adaptive control technology for Variable frequency drive 45kW. Auto current limiting and voltage limiting and under-voltage restrain.
12. Variable frequency drive 45kW Optimized external installation and internal structure and independent air flue design, fully enclosed electrical space design.
13. Variable frequency drive 45kW have Output automatic voltage regulation function. (AVR), automatically adjust the output pulse width. To eliminate the influence of the grid change on load.
14. Variable frequency drive 45kW have Built-in PID regulation function to facilitate the realization of closed loop control of the temperature, pressure and flow. And reduce the cost of the control system.
15. Variable frequency drive 45kW can support Standard MODBUS communication protocol. Easy to achieve the communication between PLC, IPC and other industrial equipments.
Input Voltage (V)Output Voltage(V)PowerRange(kW)
Single phase 220V± 20%Three phase 0~Input Voltage0.4kW~2.2kW
Three phase 380V ± 20%Three phase 0~Input Voltage0.75kW~630kW
Overload capacity :150% 1 minute; 180% 1 second;200% transient protection

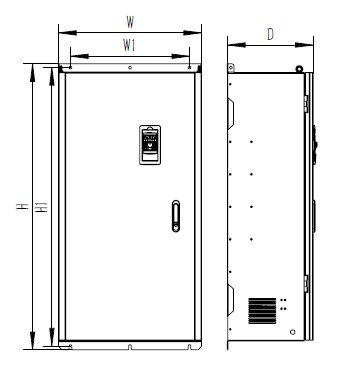

45kW Variable Frequency Drive Outline Dimension(Unit:mm)


ZVF300 Frequency Inverter Model Selection Guide

ModelPower(kW)HH1WW1DdPacking Size(mm)G.W.(kg)
ZVF300-G015/P018T4MD15kW/18.5kW3803602201402306610*435*300mm/2PCS25
ZVF300-G018/P022T4MD18.5kW/22kW3803602201402306
ZVF300-G022/P030T4M22kW/30kW4604432601772686555X375X360mm/1PCS25
ZVF300-G030/P037T4M30kW/37kW4604432601772686
ZVF300-G037/P045T4M37kW/45kW6206032651823008700X375X400mm/PCS36
ZVF300-G045/P055T4M45kW/55kW6206032651823008
ZVF300-G055/P075T4M55kW/75kW6206032651823008
ZVF300-G075/P090T4M75kW/90kW7207023652403609800X495X485mm/1PCS64
ZVF300-G090/P110T4M90kW/110kW7207023652403609
ZVF300-G110/P132T4M110kW/132kW7207023652403609

CHZIRI Variable frequency Drive  Package


Technical Features

ItemItem Description
Control FunctionAutomatic energy-saving operationAuto optimize V/F curve according to the load changes to realize the energy saving operation.
Auto voltage regulation(AVR)When the network voltage changes, it can regulate PWM output automatically to maintain constant voltage.
Built-in PIDThis can form a convenient closed-loop control system (CLCS)and is applicable to pressure control, flow control and other process control  .
Operation FunctionOperating commandOperation panel control ,external terminal control and COM control
Frequency settingKeypad potentiometer setting , operation panel  setting,. external terminal UP/DOWN setting, analog voltage signal or external potentiometer setting , analog current signal setting .terminal combination setting ,485 COM setting and so on.
Input SignalForward/Reverse signal\multi-speed signal \fault signal \
reset signal etc.
Output signalProgrammable relay\open collector output \Fault  signal output.
Multi-function analog and digital output terminalThis can realize the output of frequency current and other physical quantity by output 0-10V or 0-20mA DC signal and 0-10KHz digital signal output.
Braking functionDynamic brakingWith an external braking resistor, the maximum braking torque may reach 100%.
DC BrakingThis can be selected when the motor starts or stops with the action frequency of 0-20Hz,action current level of 0-100% and actuation time of 0-30sec., which can be set in sequence.
Other FunctionSkip frequency\Jog function\Counter \Rotation speed tracking\Momentary power loss restart \Frequency upper/lower limiting\Acceleration/ Deceleration mode can be adjusted \Frequency meter and Voltmeter output \Multi-speed/ program running \Two wire mode/ three wire mode control \Wobble frequency control\Multi-function input terminal selection \Fault auto reset\RS485 serial communication .
Protection FunctionInput phase loss protection\Over current protection \Overload protection\Over voltage protection \Under voltage protection\Over heat protection ect.
Scope of application:

CHZIRI frequency inverter applied at the metallurgy, plastomer,textile, food-stuff,petroleum, chemical industry, paper-making, pharmacy,printing, building material,crane ,music spring .water supply systerm and all kinds of machine equipment.As AC asynchronous motor's driving and speed control.


Frequency Inverter can use in the following environmental
AmbientPlace to be usedIndoor location free from direct exposure to sun light, high humidity or dew condensation, high levels of dust, corrosive gas, explosive gas, inflammable gas, oil mist, salt and etc
AltitudeBelow 1000 M
Ambient Temperature-10 C to +45 C (Bare Machine: -10 C to+50 C)
Humidity20%-90% RH without dew condensation
Vibration<0.5G
Storage temperature-20~+60C
StructureProtection  classIP20
Cooling modeForced air cooling
Installation modeWall mounted or floor-type actuator
FAQ
1.    Can I get some samples?
Yes, Sample order is available for quality check and market test .But you have to pay for it .
2.    What's delivery time?
It usually takes about 3-5 working days for small order and 10-15 days for big order .
3.    What's your payment terms?
We usually accept all kinds of payment terms .Such as T/T,L/C, Western Union.Cash.
4.    What's your warranty terms?
We offer 12 months warranty time .
5.    Do you have the products in stock?
Depends on your request ,We have standard models in stock. Some special products and big order will be newly produced according to your order .
6.    Can I mix different power in one container .
Yes ,Different models can be mixed up in one container ,even one order .
7.    How does your factory do the quality control?
Quality is priority ,we always attach the importance to quality control from the beginning to the end of the production .every product will be fully assembled and carefully tested before packing and shipping .
8.    Can you sell spare parts ?
If you are using CHZIRI products .we can sell spare parts to you . But we couldn't sell the half-finished products.
9.I would like to know if you have a partner for export?
Yes .CHZIRI Electrical have the right to export and can sell electrical product all over the world..
10. Can you make the inverter and soft starter control boards (switchgear)?
Yes. We have a lot of experience to design frequency inverter and soft starter cabinet according to your request . But you can send us the wiring diagram .
11.Can the inverter connect with computer?
Yes .All inverters have built-in RS485 port .and support Modbus communication protocol.
12.How can I trust you ?
The core of CHZIRI electrical culture is honesty and loyalty .our company has been audited and approved ISO9001,CE.CCC. Assessment report will could be sent to you by e-mail .also .we are the made-in-china's gold supplier since 2008.Now we have clients all around the world .
1. CHZIRI Electrical located in Liushi, Wenzhou -Capital city of low voltage electrical products in China. There have many different factories produce low voltage electrical products. Such as fuses. Circuit breakers. Contactors. And pushbutton. You can buy complete components for automation system.

2. Since 1998. CHZIRI Electrical begin to produce reducer and gear boxes. In 2003. CHZIRI Electrical begin to produce frequency inverter and soft starter and control panels and related products.

3. CHZIRI Electrical is frequency inverter and soft starter manufacturer. We have big stock in warehouse. So we can offer prompt delivery and professional technical support and fast after sale service.

4. CHZIRI Electrical can also provide clients with customized control panel. We

Can design MCC panel and inverter cabinet & soft starter cabinet according to clients the wiring diagram.

5. CHZIRI Electrical also respectively obtained ISO9001, CE, CCC certificates.

6. CHZIRI Electrical set up branch offices in more than 30 cities and established a perfect, professional and efficient sale-and-service system. At the same time, ZIRI Electrical also working up international sales net. CHZIRI products have been exported in large quantity to Europe, South America, Southeast Asia, Middle East.

7. CHZIRI Electrical also go aboard to attend the fair every year.

8. OEM service can be offered.

9. CHZIRI Electrical can offer the optional parts for frequency inverter. Such as braking unit. Braking resistors. EMI Filter. Reactor. CHZIRI Electrical can offer the whole solution for automation system.

10. CHZIRI Electrical adhere to the eximious tradition of technical innovation, continue to introduce new generation products to meet market demands. Make great strides forward gradually to high-end application domain, and strive to shoulder heavy responsibilities to create a full of hope for the future.
